This electric-heated jacketed kettle is designed for batch cooking and mixing in food processing operations. Available capacities range from 50L to 1000L, with SUS304 or SUS316L stainless steel options. Depending on the model, configurations may include an agitator, temperature control, variable-speed drive, insulation, and fixed or tilting construction. Share your product and process requirements to discuss a suitable setup.

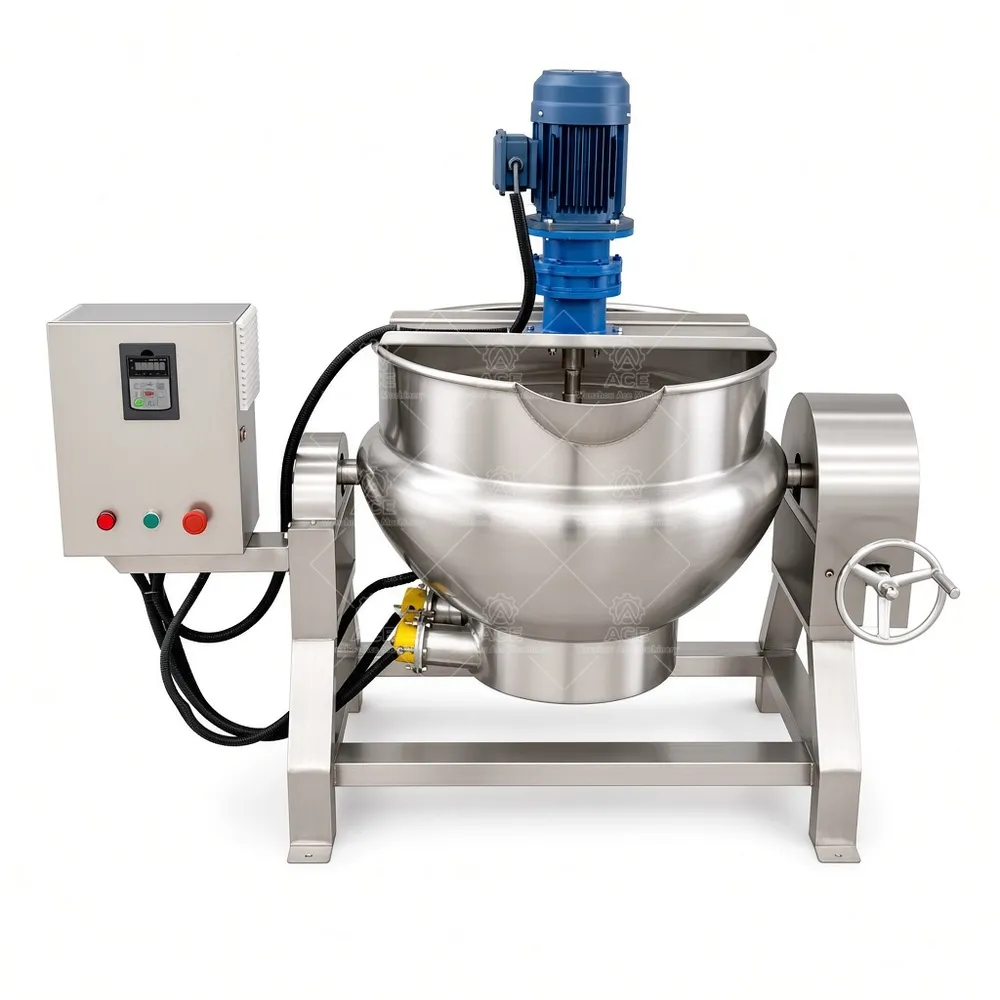

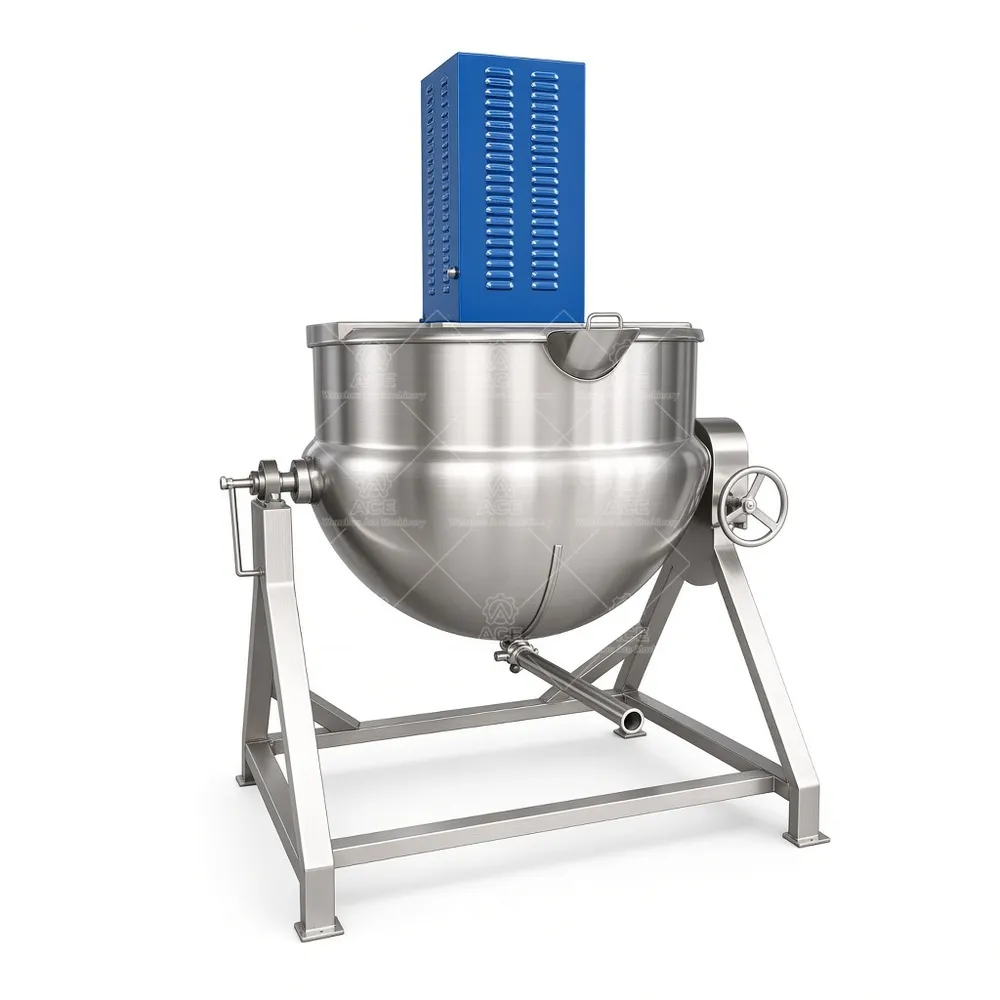

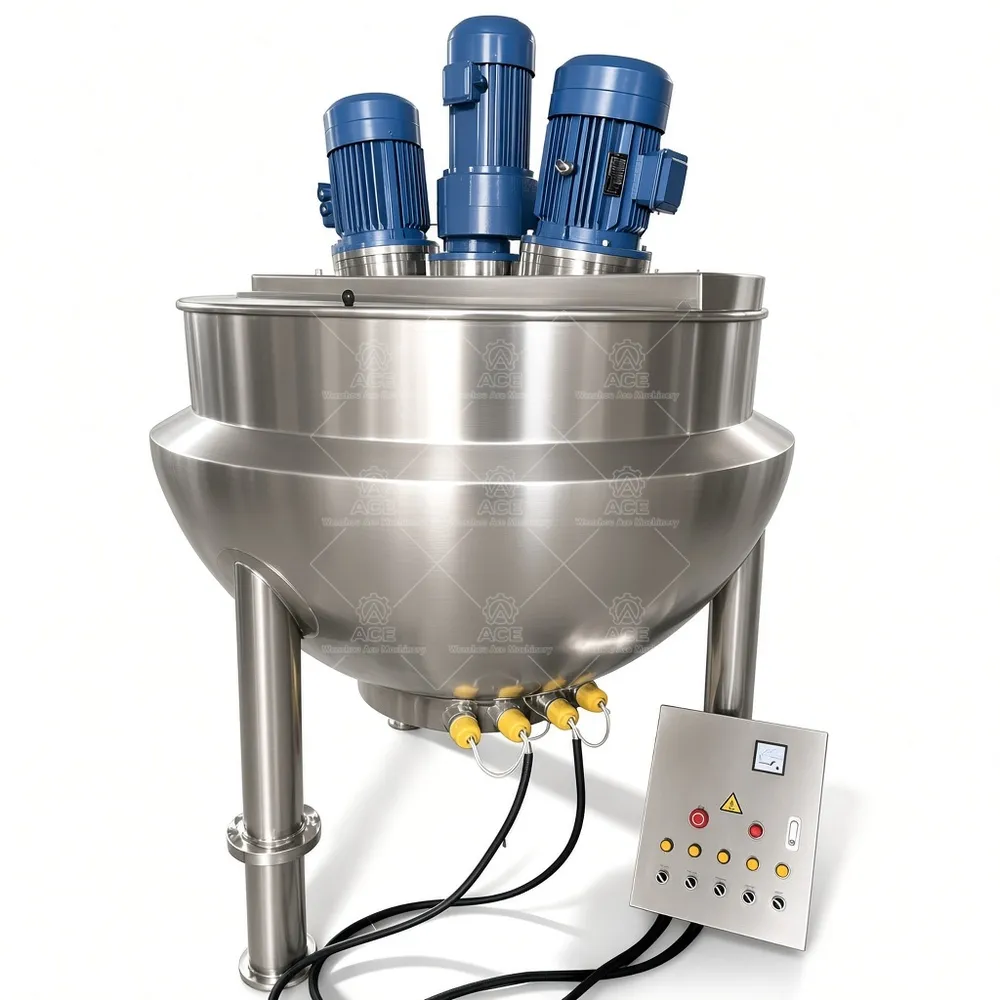

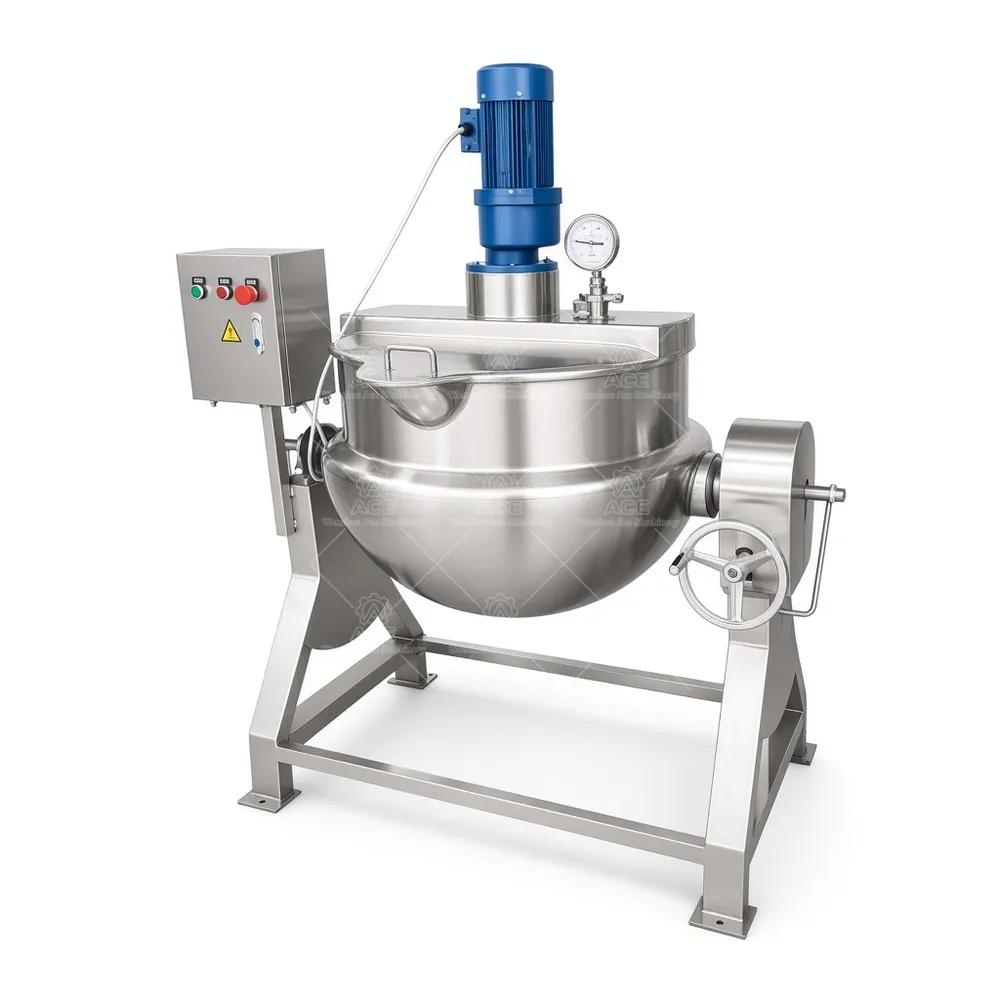

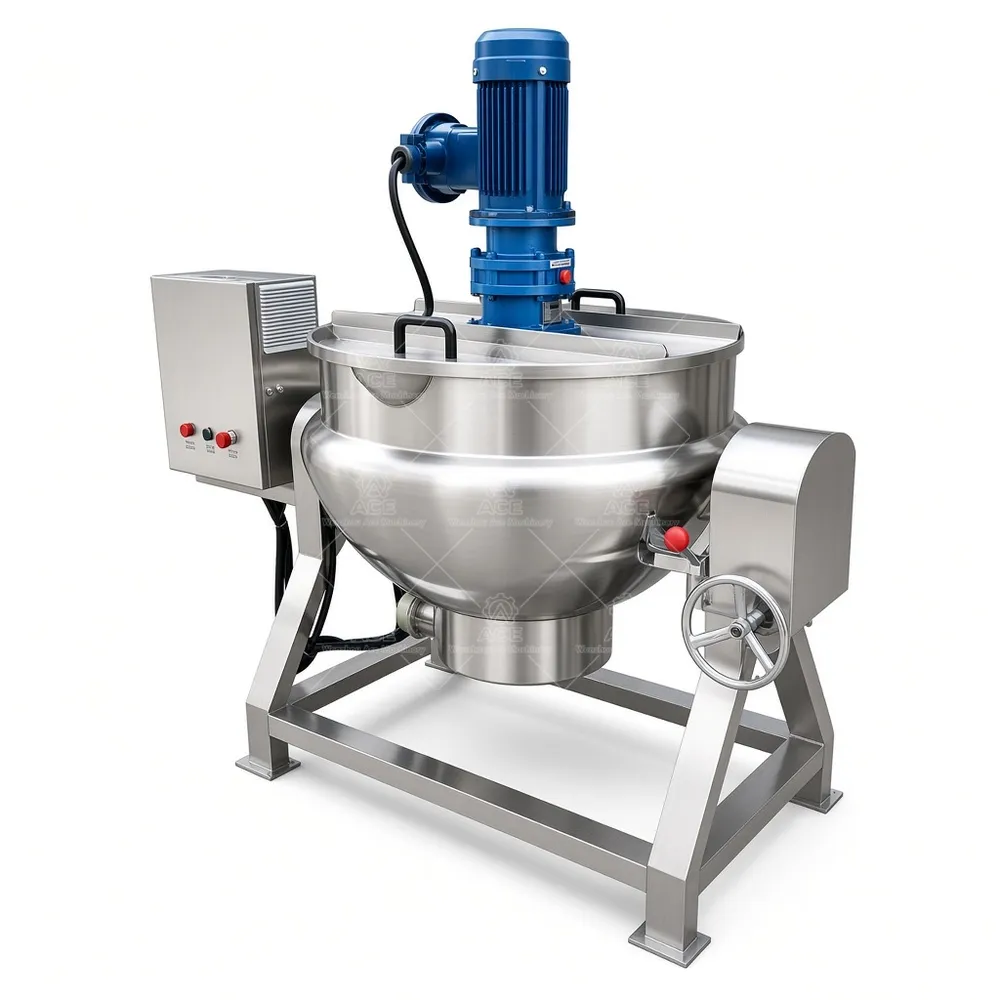

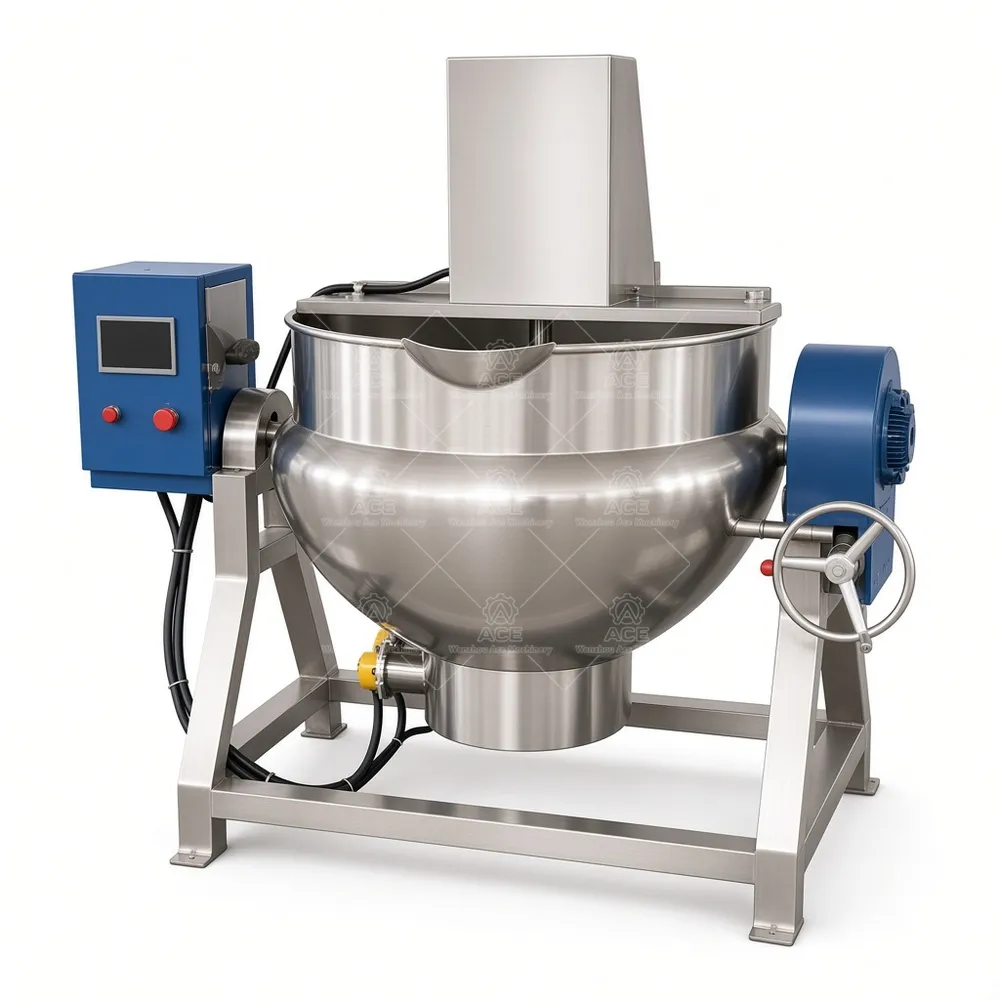

Electric Heating Jacketed Kettle with Stirrer for Food Processing
Price range: $2,201.40 through $2,330.62
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
When a sauce thickens or fruit filling begins to stick, heat distribution and agitation matter as much as batch size. Our jacketed kettles heat product indirectly: a selected heating medium warms the kettle through its jacket, while an optional agitator keeps ingredients moving. This arrangement helps limit direct exposure to a heat source, but the suitable setup depends on the recipe, viscosity, and production method.
Wenzhou Ace Machinery manufactures fixed and tilting configurations in available capacities from 50L to 1000L. Electric, steam, gas, or thermal-oil heating may be selected according to the model and site utilities; not every size supports every heating or accessory option. An agitator can help with products that need regular mixing during cooking. Temperature control, variable-speed drive, insulation, and a control panel are optional where compatible. Tilting may simplify discharge, with manual or hydraulic operation depending on the configuration.
Typical Processing Applications
Common batches include sauces and gravy, jams and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy products, and fillings. A thick sauce may need agitation during heating, while a delicate dairy mixture may call for a different temperature-control and mixing arrangement. The same standard setup is not suitable for every recipe.
Related uses may include beverage ingredients, dispersing starches or stabilizers, and compatible cosmetic, personal-care, pharmaceutical, or chemical batches. These applications require confirmation of process suitability, contact material, seals, and operating conditions; a food-processing configuration should not be assumed suitable for every formulation.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Kettle configuration | Fixed or tilting; model dependent |
| Tilting options | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration dependent |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
Configuration and Ordering
Before requesting a quotation, share the product, target batch volume, preferred heat source, mixing needs, and discharge method. Include product viscosity, ingredients that settle or scorch, and available plant utilities when known. These details help our engineering team assess capacity, material, heating, agitation, and compatible options. As a direct manufacturer, Wenzhou Ace Machinery can discuss custom configurations for the production process.
FAQ
Can every capacity use every heating method? No. Availability depends on the selected model.
Is an agitator included? It is optional and subject to configuration.
Which steel should I specify? SUS304 and SUS316L are available; confirm material compatibility with the product and cleaning process.
Can the kettle tilt? Tilting is available on applicable models, with manual or hydraulic operation.
What information helps size the kettle? Provide batch volume, recipe characteristics, heat source, mixing needs, and discharge requirements.
Request a configuration review: send us your required capacity, product, preferred heating method, and stirring or tilting requirements so we can discuss a suitable kettle arrangement.
