Wenzhou Ace Machinery manufactures 50L to 1000L jacketed kettles for batch cooking and processing. Choose from SUS304 or SUS316L stainless steel, with electric, steam, gas, or thermal oil heating options depending on the model. Fixed or tilting vessels and optional agitation, temperature control, insulation, and control panels can be discussed to match your product and production requirements.

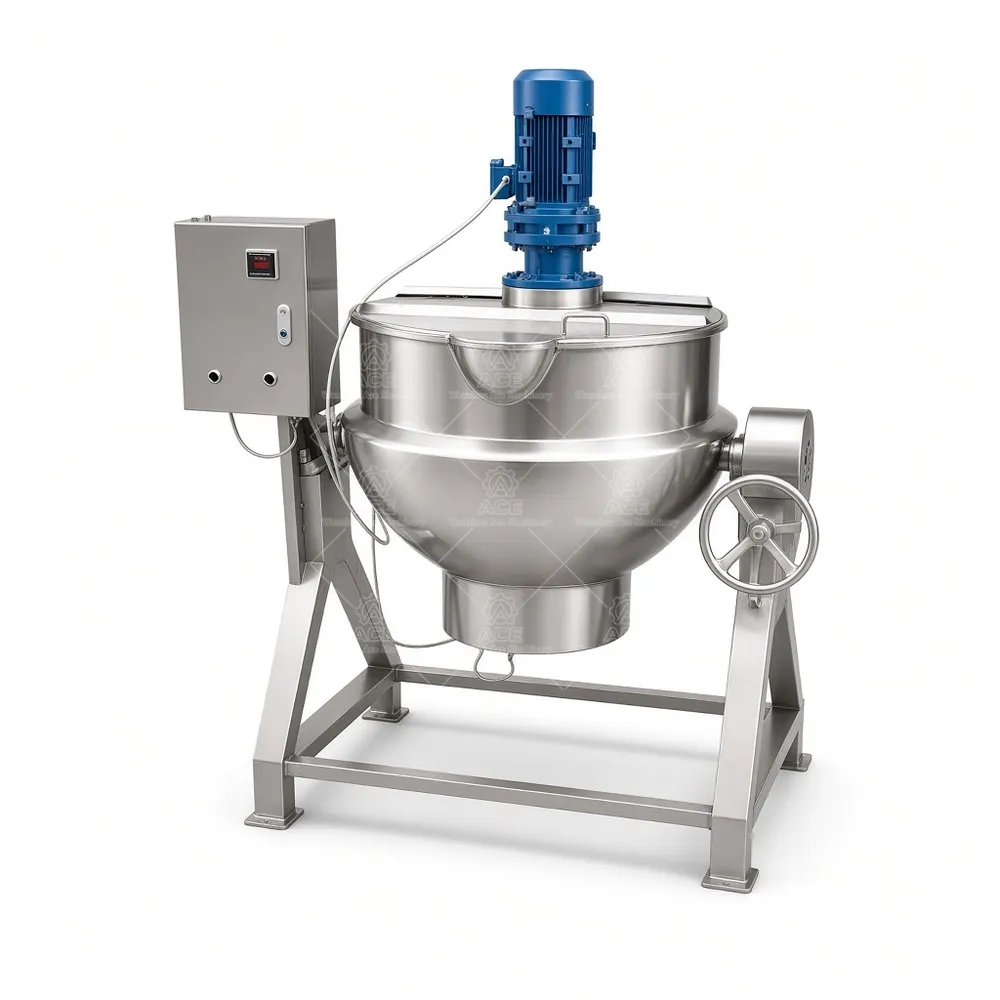

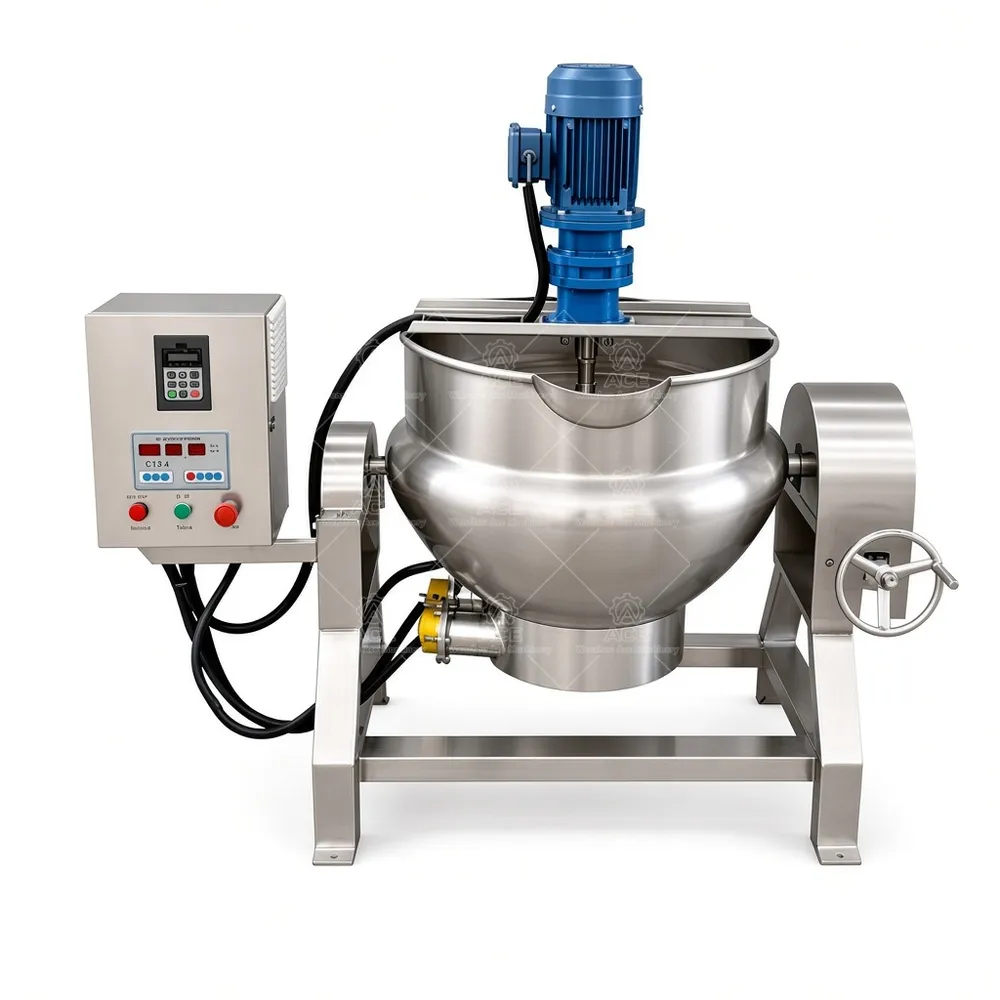

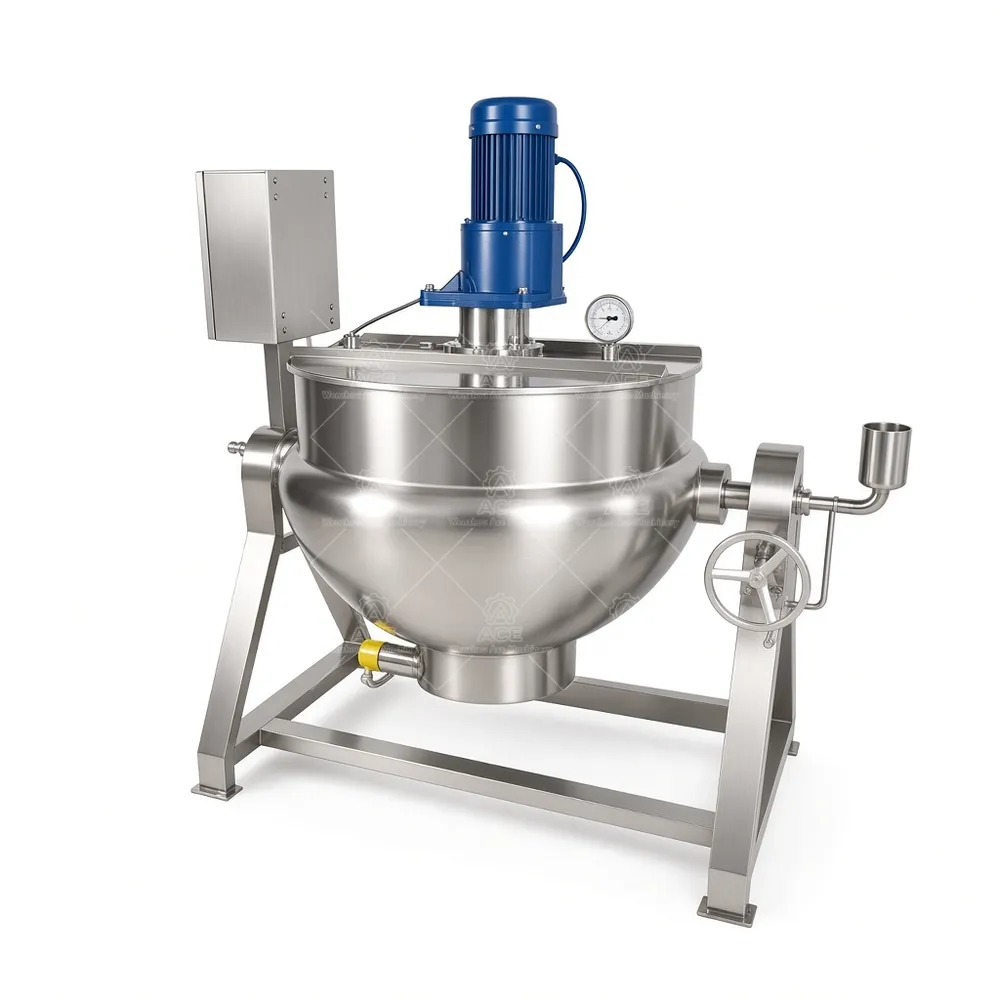

Industrial Jacketed Kettle for Sauce, 50L–1000L with Agitator
价格范围：$1,998.49 至 $2,114.60
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Choosing a kettle starts with the product and batch size. A thick sauce, fruit filling, or dairy mixture can heat and move differently from a thin broth. We manufacture jacketed kettles at Wenzhou Ace Machinery in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, with final configuration selected around the process.
Heat is applied through the jacket around the product vessel, so the heating medium does not contact the batch directly. This indirect heating supports cooking and warming operations where direct flame or a heating element in the product could be unsuitable. Available heating methods are electric, steam, gas, and thermal oil; compatibility depends on the model and plant utilities. An optional agitator can help move product during processing, but its arrangement and drive options must match the recipe and kettle configuration.
Features and applications
- Fixed or tilting vessel configurations are available on applicable models. Tilting may be manual or hydraulic, helping suit the intended discharge and handling routine.
- Optional temperature control, variable-speed drive, insulation, and control panel can support day-to-day operation; availability depends on model compatibility.
- Typical food uses include sauces, gravy, jam, fruit fillings, soup, broth, syrup, confectionery mixtures, dairy products, and other foods. Viscosity, solids, batch size, and mixing needs affect the suitable setup.
- Other potential uses include cosmetic creams or lotions, liquid detergent, pharmaceutical liquids, and compatible chemical dispersions. Confirm product contact materials, seals, and process suitability before specifying non-food service.
Technical specifications
| Item | Options |
|---|---|
| Product name | Jacketed kettle |
| Capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; configuration dependent |

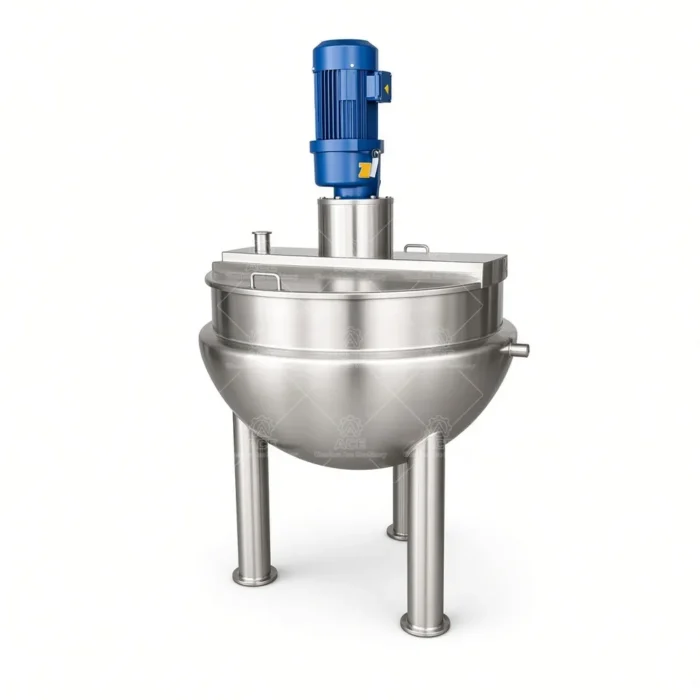

| Vessel / tilting | Fixed or tilting; manual or hydraulic tilt where applicable |
| Agitation / temperature control | Optional; details depend on configuration |
| Customization | Available on request |
Configuration and FAQs
Factory-direct manufacturing and customization are available. To review a proposal, share product type, target batch volume, heating source, mixing needs, and discharge method. Also note viscosity, ingredients or particulates, cleaning routine, and available utilities.
Can every size use every heating method? No. Heating options depend on the selected model and requirements.
Can the kettle tilt? Tilting is available on applicable models, with manual or hydraulic operation.
Is an agitator included? It is an optional feature; confirm compatibility and requirements.
Which steel should I specify? SUS304 and SUS316L are available. Discuss product chemistry and cleaning conditions with our team.
Can it process non-food products? Potentially, subject to material, seal, and process review.
Send your capacity, product, preferred heat source, and agitation or tilting requirements to Wenzhou Ace Machinery for a configuration discussion and quotation.
