This 100L electric jacketed kettle is designed for batch cooking and processing applications where indirect heat and optional agitation suit the product. Wenzhou Ace Machinery offers multiple capacities, SUS304 or SUS316L construction, and model-dependent heating, vessel, and control options. Share your batch size, product characteristics, heat source, and discharge needs to discuss a configuration suited to your production process.

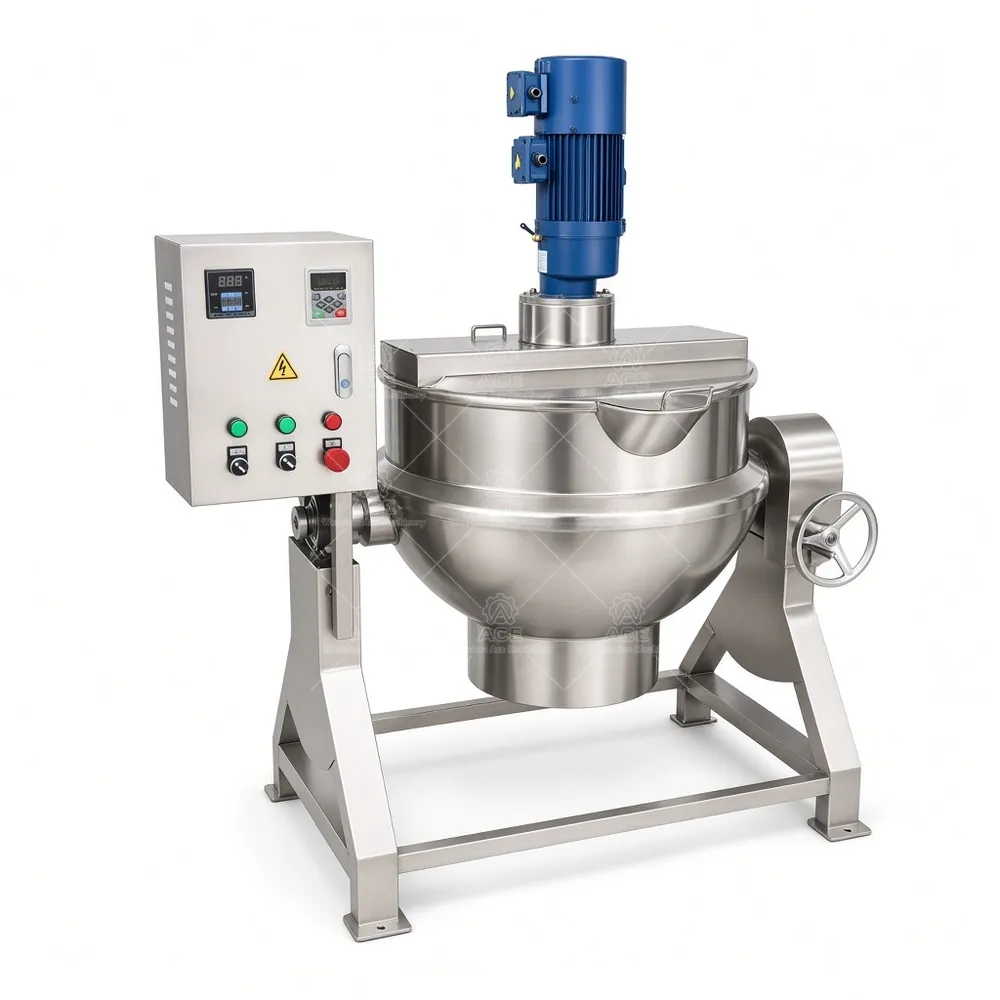

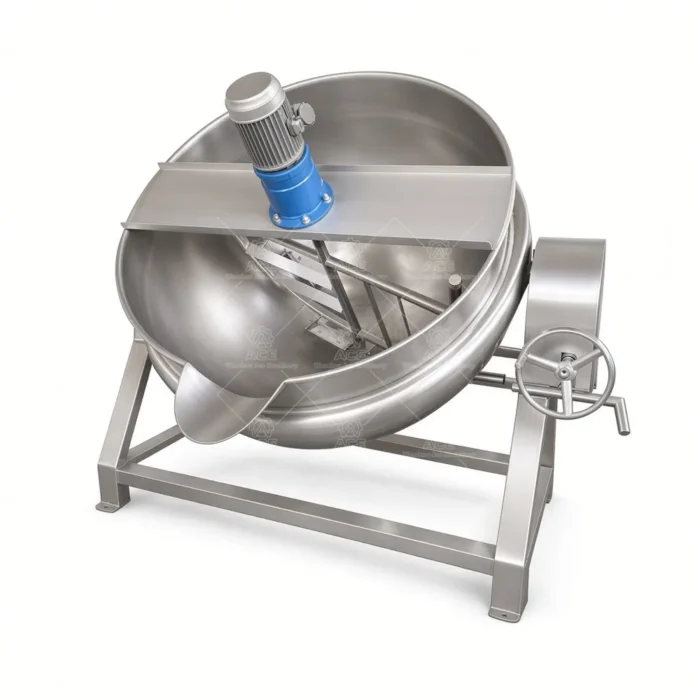

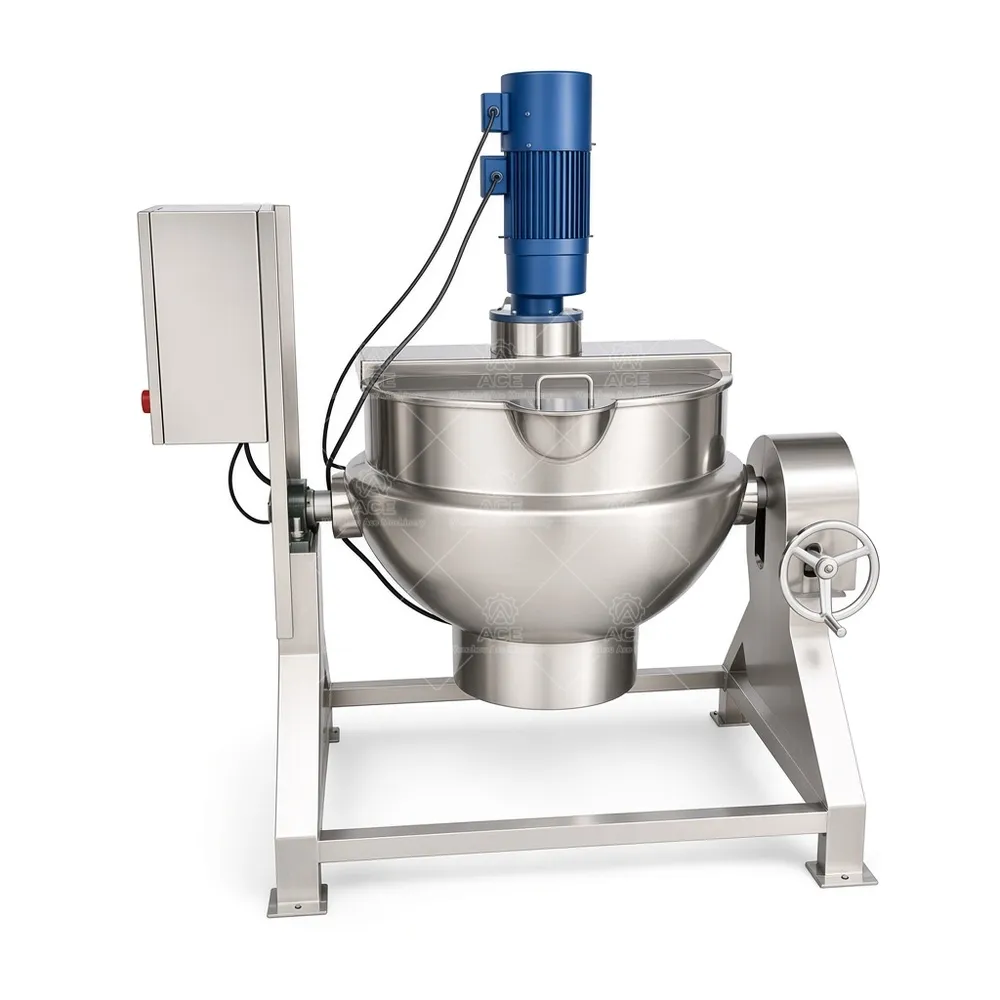

100L Electric Jacketed Kettle with Agitator for Food Processing
价格范围：$2,284.98 至 $2,443.56
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
100L Electric Jacketed Kettle
Heating a thick sauce or fruit filling in a direct-fired vessel can create hot spots and product buildup. This 100L electric jacketed kettle uses an outer heating jacket to transfer heat indirectly to the product. The jacketed design supports controlled batch cooking; the required heating setup depends on the product, process, and selected model.

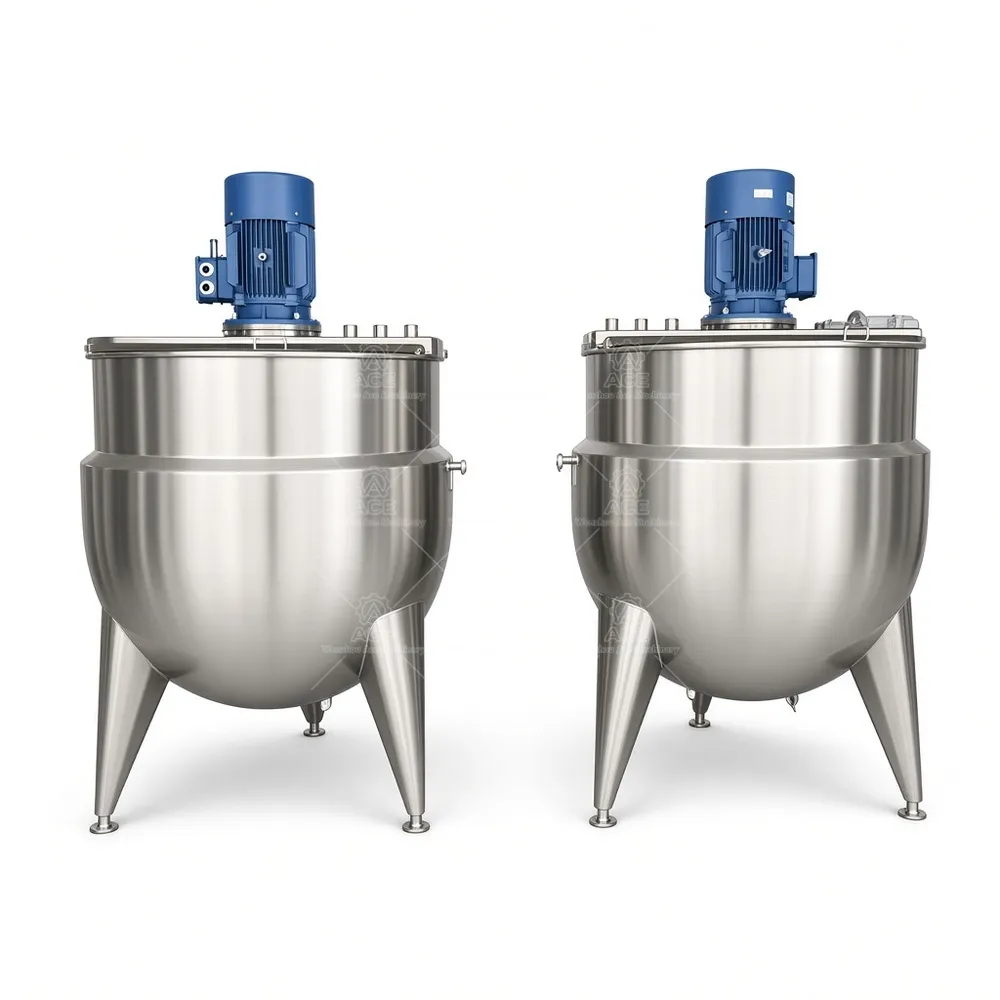

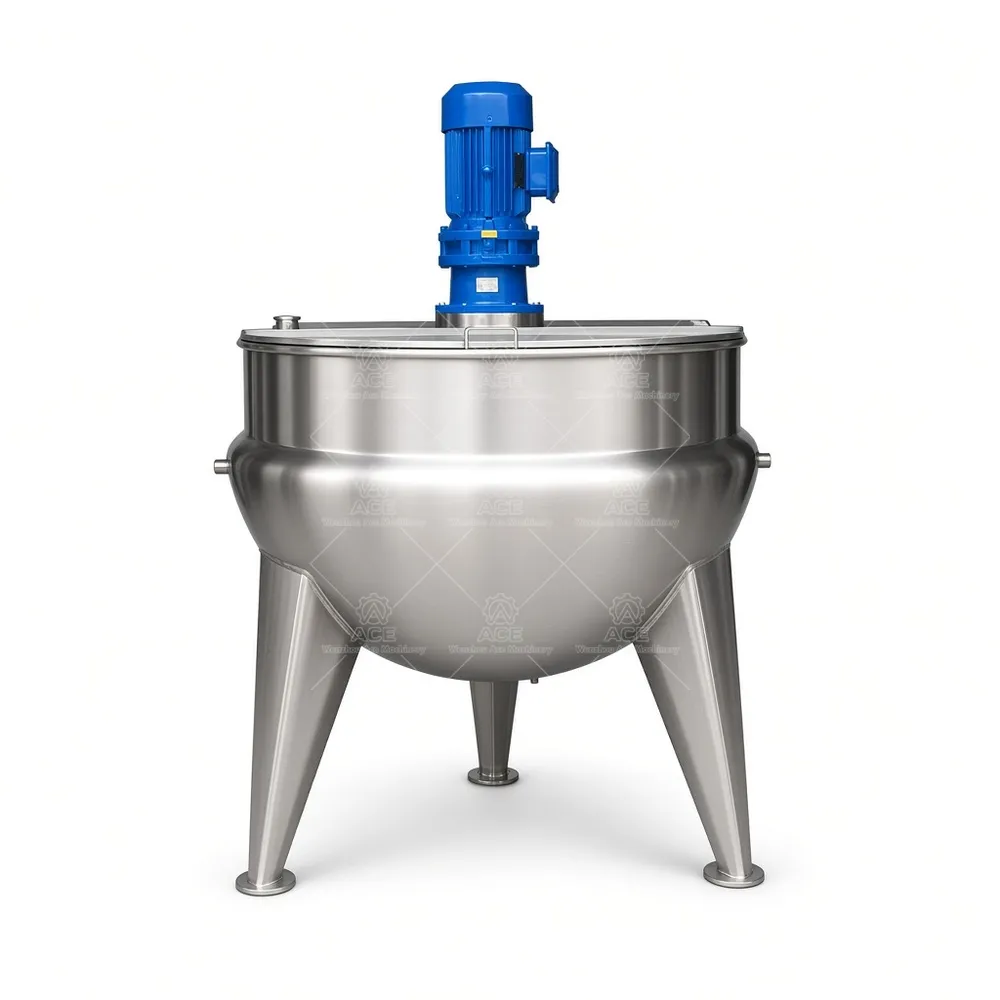

Wenzhou Ace Machinery manufactures jacketed kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. Depending on model compatibility, the kettle may be configured for electric, steam, gas, or thermal-oil heating, with a fixed or tilting body. An agitator can help move product through the vessel during cooking, reducing reliance on manual stirring. Temperature control, variable-speed drive, insulation, and a control panel are available options on compatible configurations.
Typical Applications
Food processors use these kettles for sauces and gravy, jams and fruit fillings, soups and stocks, syrups, confectionery mixes, dairy mixtures, and other foods. A viscous filling may call for an agitator, while a batch that needs to be transferred by gravity may require a suitable tilting arrangement. The right setup depends on viscosity, batch size, heating source, and discharge method.
Related processing uses may include beverage ingredients, dispersing starches or stabilizers, cosmetics, personal-care products, pharmaceutical liquids, and compatible chemical formulations. These applications require review of material, seal, cleaning, and process compatibility; one standard configuration is not appropriate for every formulation.
Technical Specifications
| Item | Specification |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting operation | Manual or hydraulic, where applicable |
| Agitation and controls | Agitator, temperature control, variable-speed drive, and control panel; configuration dependent |
| Customization | Available according to product and process requirements |
Configuration and FAQs
Before requesting a quotation, prepare the batch volume, product characteristics, heating source, agitation needs, and preferred discharge method. We can review these production details and discuss compatible options through factory-direct manufacturing and customization.
Can I order a 100L unit? Yes, 100L is an available capacity.
Does every size support every heat source? No. Heating options depend on the model and requested configuration.
Can the kettle tilt? Tilting is available on applicable models, with manual or hydraulic operation as configured.
Is an agitator included? Agitation is a configuration option; confirm requirements when requesting a quote.
Which steel should I specify? SUS304 and SUS316L are available. Discuss ingredients and cleaning conditions with our team.
Request a Quote
Contact Wenzhou Ace Machinery with your required capacity, product, preferred heating method, and agitation or tilting requirements. Include any discharge and process constraints so our team can recommend a suitable kettle configuration.
