This 100L jacketed cooking kettle is designed for batch preparation of sauces, soups, jams, syrups, dairy mixtures, and other compatible foods. Choose from electric, gas, steam, or thermal oil heating according to model availability, with optional agitation, temperature control, insulation, and fixed or tilting construction. Wenzhou Ace Machinery can review your product, batch size, heating needs, and discharge requirements for a suitable configuration.

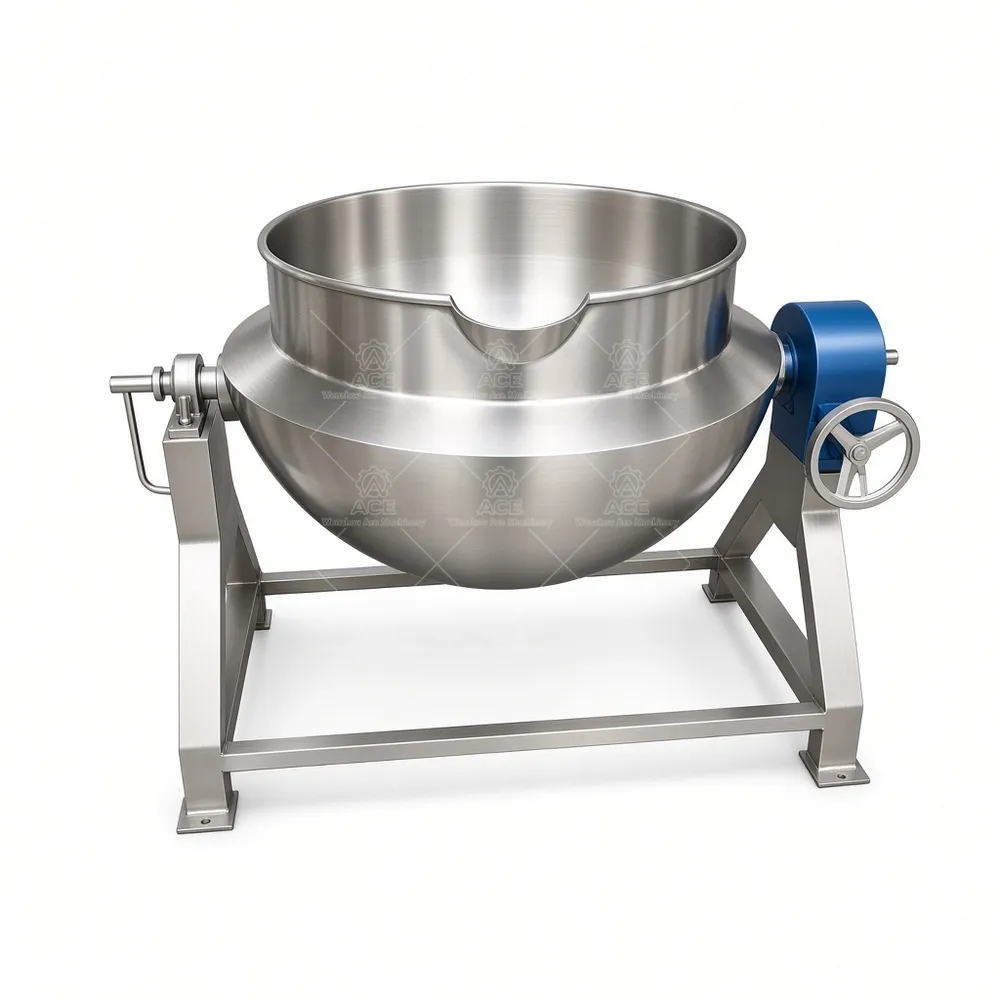

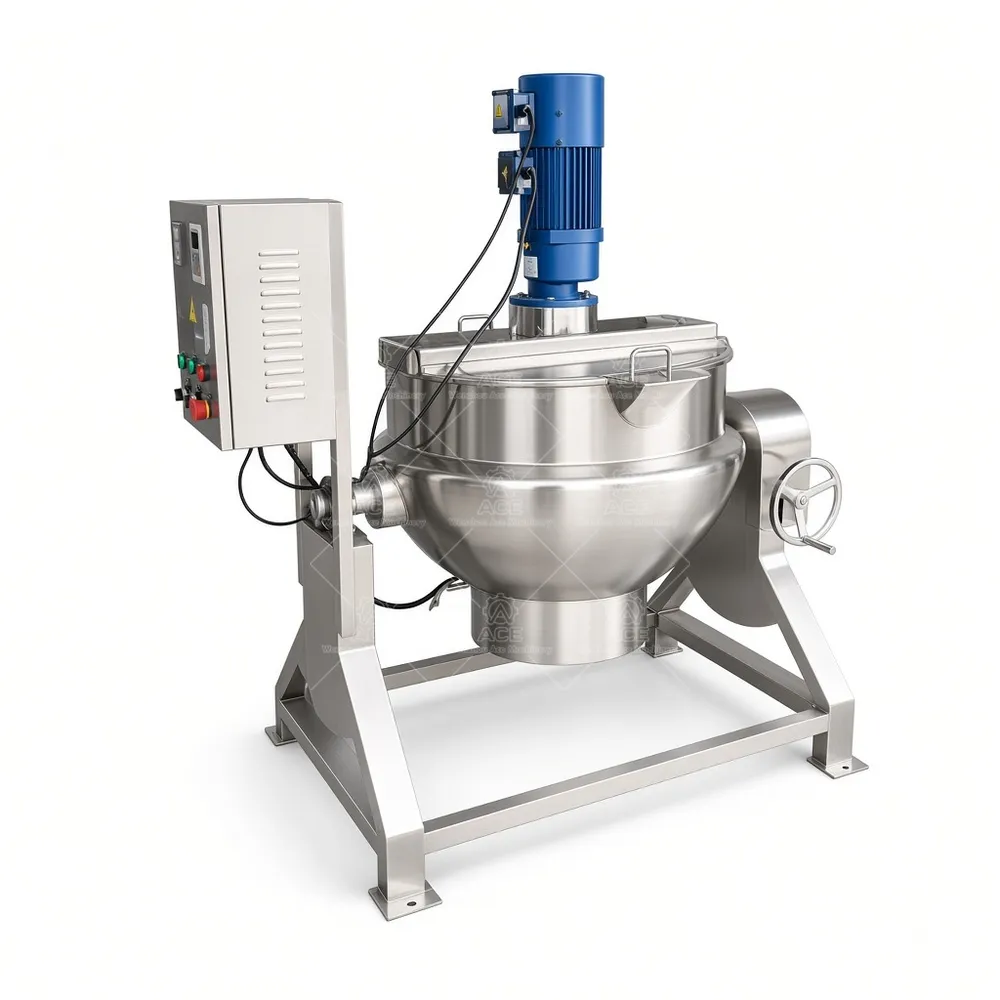

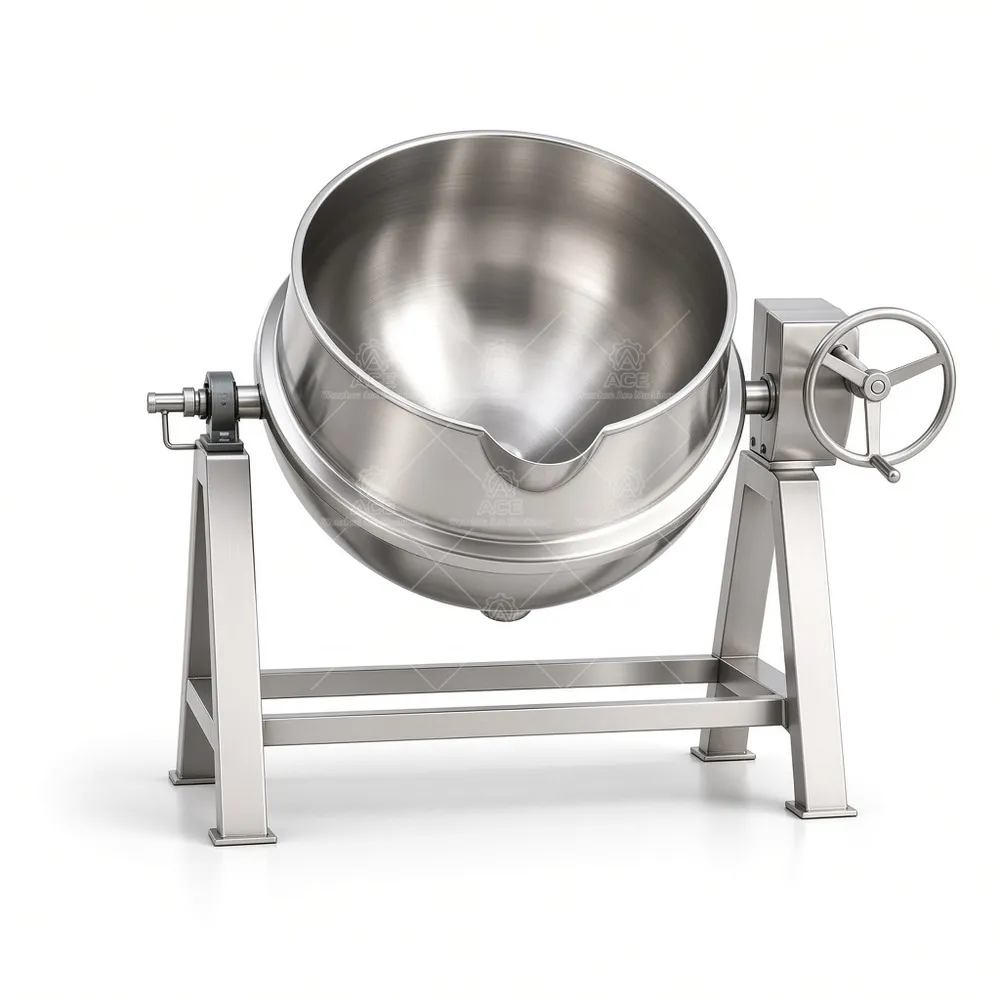

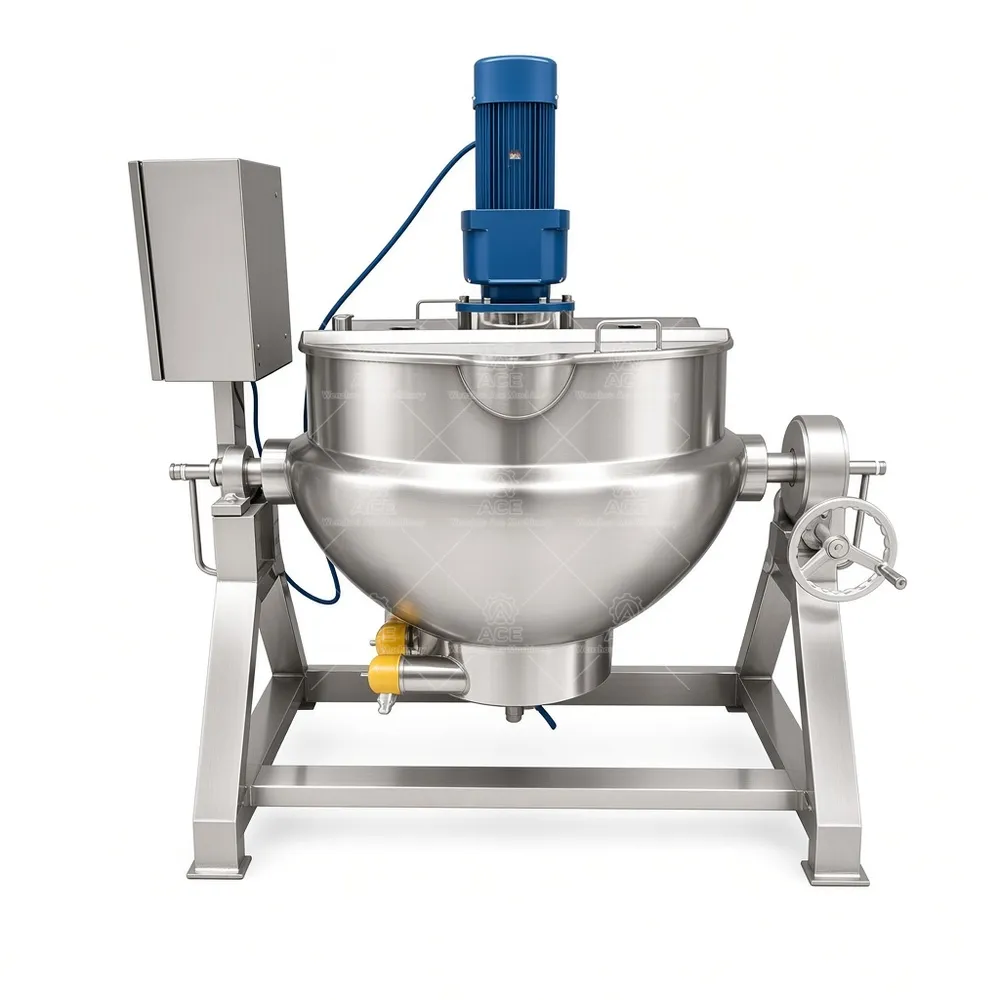

100L Jacketed Cooking Kettle with Electric or Gas Heating and Mixer
Price range: $2,018.70 through $2,165.06
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Controlled Batch Production
Heating a thick sauce, fruit filling, or dairy mixture directly can create hot spots and make scraping and temperature control harder. This jacketed cooking kettle heats the product indirectly: a selected heating medium warms the vessel through its jacket, helping distribute heat around the batch. The appropriate heat source and operating setup depend on the model and your process.
Wenzhou Ace Machinery manufactures fixed and tilting kettle configurations in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. An optional agitator can support routine batch mixing; the suitable mixer and drive depend on the product’s viscosity and processing needs. Temperature control, variable-speed drive, insulation, and a control panel may also be available, subject to model compatibility. These options can help operators follow a repeatable process and reduce manual stirring, but they do not replace recipe and process validation.
Typical Applications
Common uses include sauces and gravies, jams and fruit fillings, soups and stocks, syrups and confectionery mixtures, dairy blends, and other compatible foods. A sugar syrup, a particulate soup, and a viscous filling place different demands on heating, agitation, and discharge. Cosmetic, personal-care, pharmaceutical, or chemical batches should be considered only after confirming material, seal, and process compatibility; this food-processing kettle is not automatically suitable for every formulation.
Specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional mixer; configuration dependent |
| Temperature control | Optional, subject to configuration |
| Customization | Available according to product and process requirements |
Configuration and Ordering
Capacity, heating method, material, agitation, and discharge needs should be reviewed together. Share the batch size, product description, viscosity or solids, preferred heat source, cleaning conditions, and whether a fixed or tilting vessel is needed. For SUS304 versus SUS316L selection, provide relevant ingredient and cleaning-chemical details for material review. Final accessory and heating compatibility depends on the selected model.
Frequently Asked Questions
Can every capacity use every heating method?
No. Available combinations depend on the model and requested configuration.
Can I request a mixer?
Yes. Describe the product and mixing task so the compatible option can be reviewed.
Is the kettle fixed or tilting?
Both arrangements are available by model; manual or hydraulic tilting may apply.
Which steel should I specify?
SUS304 and SUS316L are available. Confirm suitability against ingredients and cleaning conditions.
What should I send for a quotation?
Provide capacity, product, batch details, heat source, mixing needs, and discharge preference.
Contact Wenzhou Ace Machinery with these production details. Our factory-direct team can review the process and discuss a suitable customized configuration.
