Prepare sauces, soups, jams, syrups, dairy mixtures, and other food batches with a configurable 100L jacketed cooking kettle. Wenzhou Ace Machinery offers capacity options, SUS304 or SUS316L construction, and model-dependent electric, steam, gas, or thermal-oil heating. Fixed or tilting vessels and optional agitation and controls can be discussed around your product and production workflow.
100L Jacketed Cooking Kettle with Agitator | Steam, Gas or Electric
Price range: $1,981.73 through $2,169.99
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

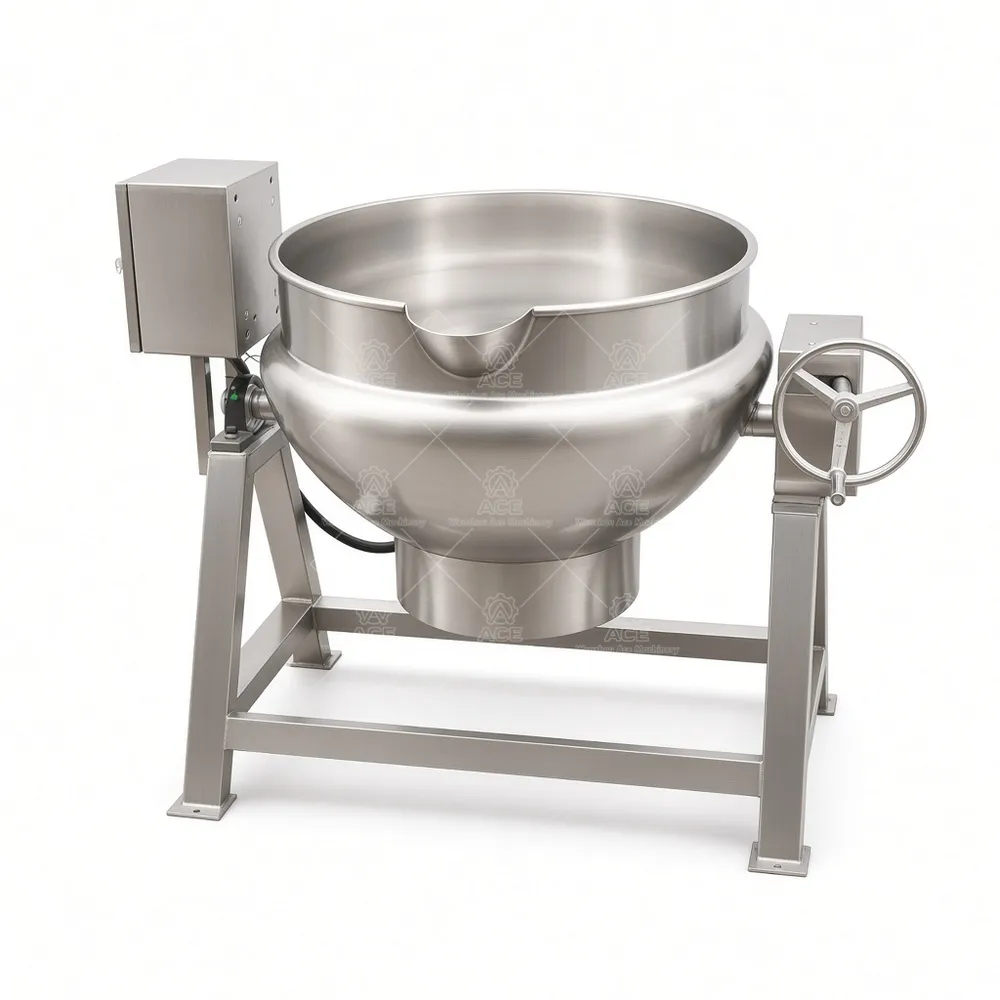

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
100L Jacketed Cooking Kettle for Controlled Batch Preparation
Cooking thick sauces, fruit fillings, or dairy mixtures calls for more than selecting a batch size. The heat source, product viscosity, agitation, and discharge method all affect how the kettle fits into daily production. At Wenzhou Ace Machinery, we configure jacketed kettles around these process details rather than assume one setup suits every recipe.
The product is heated indirectly: a selected heat source warms the jacket around the kettle vessel, which transfers heat through the vessel wall to the batch. This separates the product from direct contact with a burner or heating element. An optional agitator can support mixing during heating; its suitability depends on the product and selected model. Operators should confirm cleaning access and routine maintenance requirements for the final configuration.
Typical Applications
Food uses include sauces and gravy, jams and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy blends, and fillings. A sauce with suspended ingredients may need a different agitation approach than a smooth syrup. The kettle may also be considered for compatible beverage ingredients, cosmetic or personal-care batches, pharmaceutical liquids, and chemical formulations, subject to process suitability and confirmation of contact materials and seals. One configuration is not appropriate for every formulation.
Key Features
- 50L to 1000L capacity options support different batch plans.
- SUS304 or SUS316L stainless steel selection can be discussed against product and cleaning requirements.
- Electric, steam, gas, or thermal-oil heating options are available by model.
- Fixed or tilting construction, with manual or hydraulic tilt where applicable, can influence discharge and line layout.
- Optional temperature control, variable-speed drive, insulation, control panel, and other custom features depend on model compatibility.
Technical Specifications
| Product | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel / tilt | Fixed or tilting; manual or hydraulic tilt where applicable |
| Agitation / temperature | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
Frequently Asked Questions
Are all heating methods available at every capacity? No. Availability depends on the selected model and requirements.
How do I choose capacity? Share target batch volume, fill level, and production frequency for review.
Can the kettle tilt? Tilting is model dependent; manual or hydraulic operation may apply.
Is an agitator included? It is an optional feature; describe viscosity and mixing needs.
What should I send for a quotation? Provide product, batch size, heat source, agitation, discharge, and site process details.
Wenzhou Ace Machinery supplies factory-direct equipment and customization based on product characteristics, batch scale, heating needs, and workflow. Send your required capacity, product, preferred heat source, and agitation or tilt requirements so our team can review a suitable configuration.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
