Configure a 50L to 1000L jacketed cooking kettle for sauces, soups, jams, dairy products, syrups, and other batch processes. Wenzhou Ace Machinery offers SUS304 or SUS316L construction, model-dependent electric, steam, gas, or thermal-oil heating, and optional agitation, temperature control, insulation, and tilting. Share your product and process requirements to discuss a suitable configuration.
Industrial Jacketed Cooking Kettle with Agitator and Heating Options
价格范围：$2,005.05 至 $2,167.06
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products

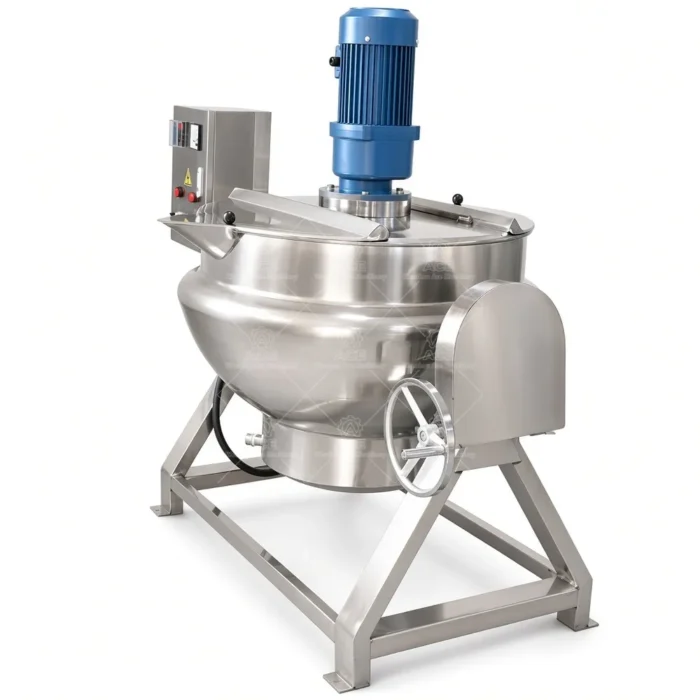

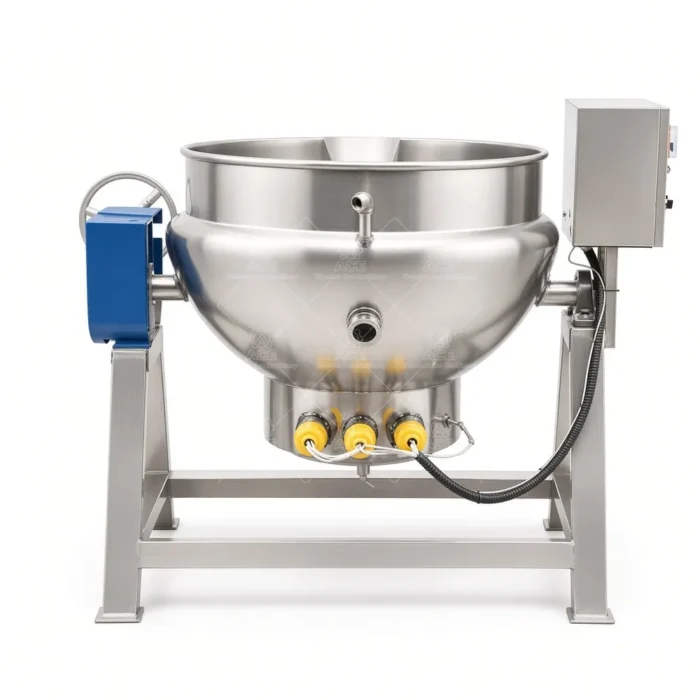

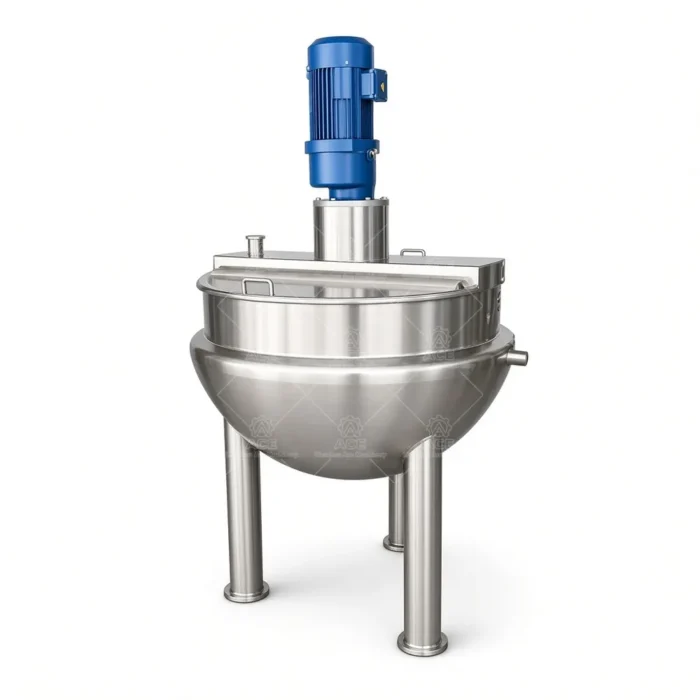

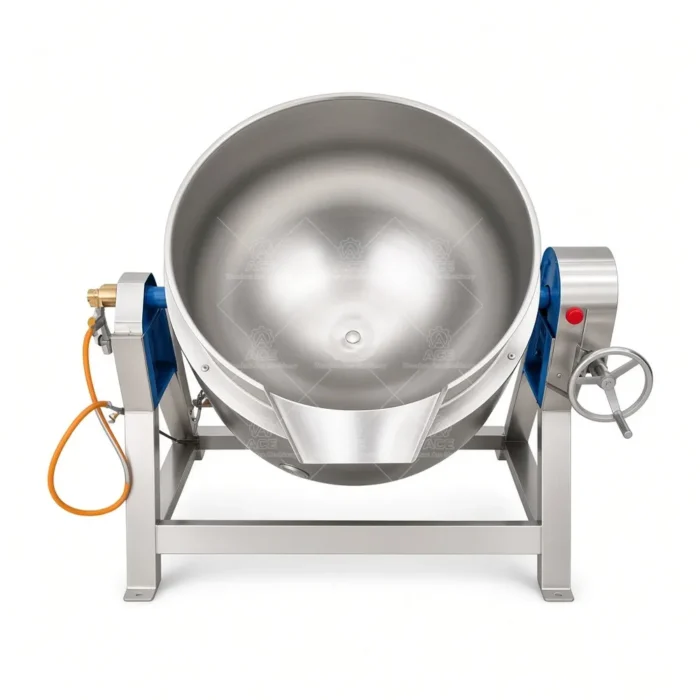

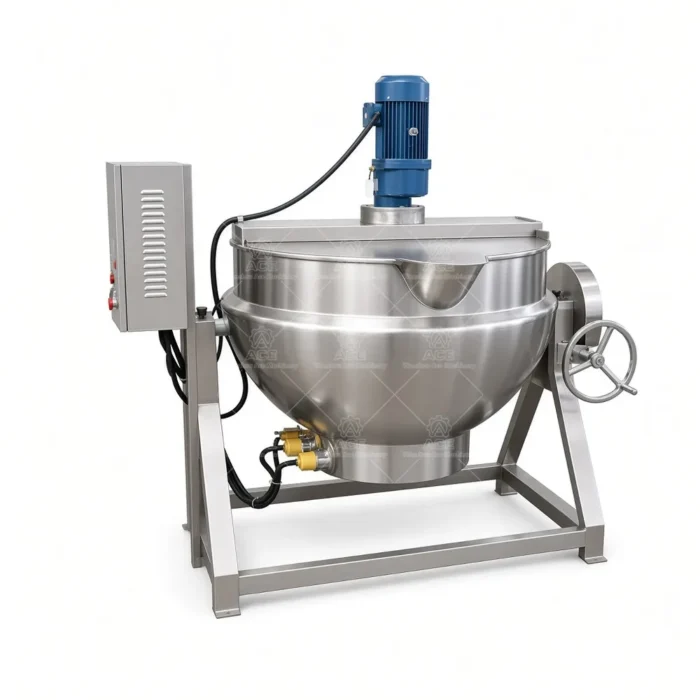

Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Industrial Jacketed Cooking Kettle
Batch size, product thickness, and available plant utilities all affect kettle selection. A thin soup base has different mixing needs from a fruit filling or a viscous sauce. At Wenzhou Ace Machinery, we configure jacketed kettles around the product and production process rather than assuming one setup suits every batch.
Heat is applied through the jacket and passes indirectly through the vessel wall to the product. This avoids direct contact between the heating source and the batch, while an optional agitator helps move product through the vessel during cooking or mixing. Agitator style and operating requirements depend on the recipe; this kettle is not an inline rotor-stator mixer. Specify any tendency to scorch, foam, settle, or form lumps so the mixing arrangement can be assessed.
Production and configuration
Choose from 50L, 100L, 200L, 300L, 500L, or 1000L capacities. Electric, steam, gas, and thermal-oil heating are available subject to model compatibility and site utilities. Fixed or tilting construction may be available by model; tilt operation can be manual or hydraulic where applicable. Temperature control, variable-speed drive, insulation, control panel, and other custom features can be discussed based on the selected unit. These options can support batch handling and operator workflow, but are not standard on every configuration.
Typical food applications include sauces, gravies, soups, stocks, jams, fruit fillings, syrups, confectionery mixtures, dairy products, and fillings. Recipes containing starches, gums, stabilizers, or thickeners may require a suitable agitation approach and a defined ingredient-addition sequence. Other possible uses include cosmetic creams and lotions, personal-care liquids, pharmaceutical liquids or excipient dispersions, and compatible water-based chemical formulations. Material, seals, and process suitability must be reviewed for each non-food application.
Technical specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilt operation | Manual or hydraulic where applicable |
| Agitation | Optional agitator; details depend on product and model |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to process requirements |
Ordering questions
How do I select capacity? Share the target batch size and whether capacity refers to working volume or vessel size; our team can review the suitable model.
Can every heating source be paired with every size? No. Availability depends on the model and requested configuration.
Is an agitator included? It is an option. Provide product viscosity and mixing objectives for review.
Can the kettle tilt for discharge? Tilting and manual or hydraulic operation depend on the selected model.
Which steel grade should I request? SUS304 and SUS316L are available; discuss ingredients, cleaning practices, and corrosion considerations with us.
Request a configuration
Wenzhou Ace Machinery supplies directly from the manufacturer and offers process-based customization. Send your required capacity, product, preferred heating source, batch details, and agitator or tilt requirements. Include discharge and site-utility needs so our engineers can review a practical configuration for your production line.
