Cook tomato paste, sugar syrup, sauces, and other batch products in a jacketed kettle configured for your process. Available in capacities from 50L to 1,000L, with SUS304 or SUS316L stainless steel, multiple heating options, and model-dependent fixed or tilting designs. Optional mixing and controls can be discussed with Wenzhou Ace Machinery.

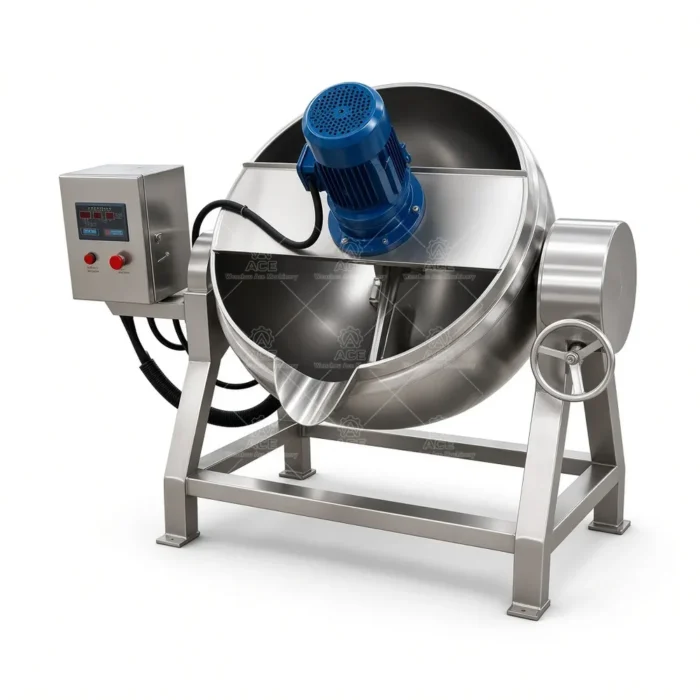

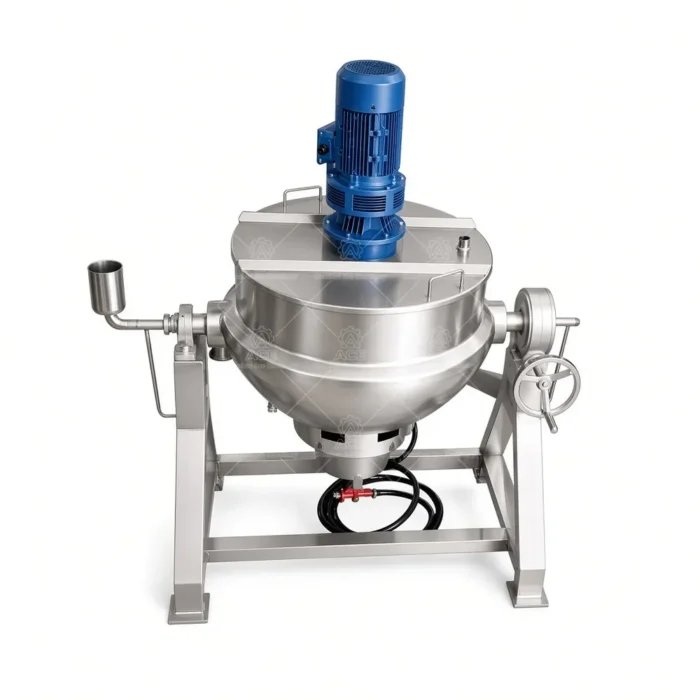

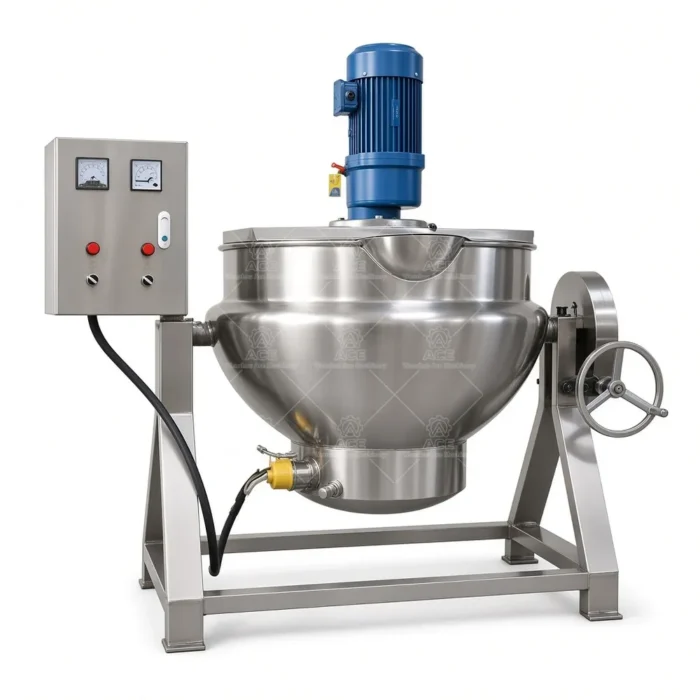

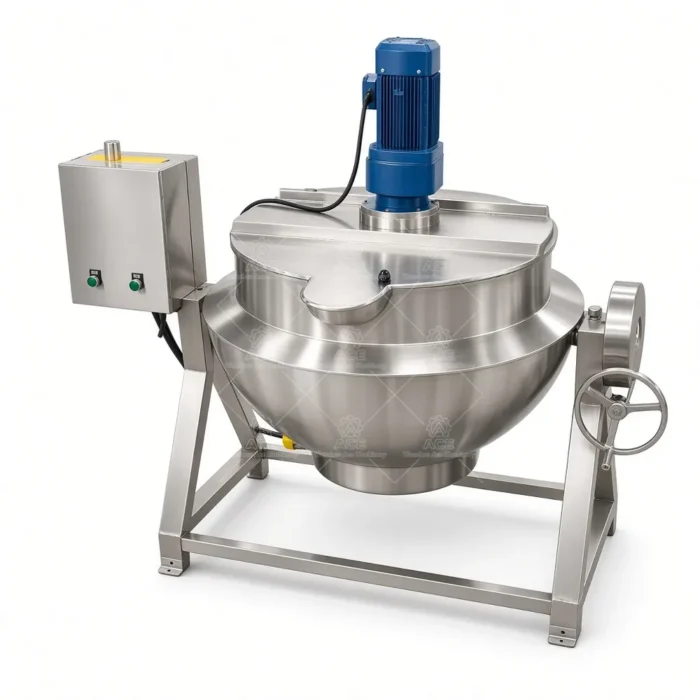

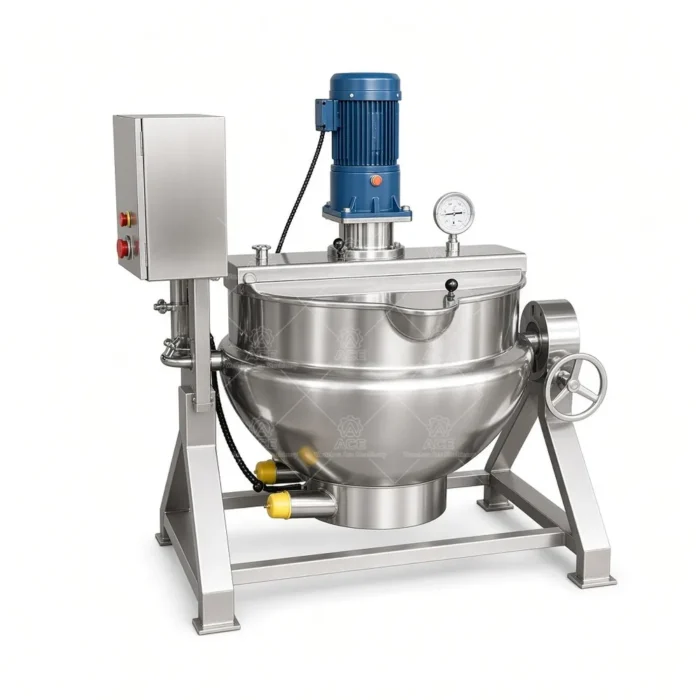

Tilting Electric Jacketed Kettle with Mixer for Tomato Paste & Syrup
价格范围：$2,297.68 至 $2,419.23
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Tomato paste, syrup, and thick fillings can scorch when heat is concentrated at the cooking surface. A jacketed kettle transfers heat indirectly through the vessel wall, helping distribute heat across the batch. The actual heating method and operating setup depend on the selected model and process requirements.
At Wenzhou Ace Machinery, we configure these kettles for food processors, sauce makers, and commercial kitchens handling products such as sauces, jams, soups, gravies, dairy mixtures, and confectionery blends. An optional agitator can support product movement during heating; mixer design and compatibility depend on the kettle configuration and the product’s viscosity.
Configuration and production fit
Available capacities are 50, 100, 200, 300, 500, and 1,000 liters. Fixed and tilting vessel arrangements are available on applicable models, with manual or hydraulic tilting options where compatible. Tilting can assist batch discharge, but the right arrangement depends on the installation and how the product is transferred downstream.
Choose SUS304 or SUS316L stainless steel based on the product, cleaning routine, and material requirements. Heating options include electric, steam, gas, and thermal oil; not every heating method or accessory is available across all capacities. Temperature control, variable-speed drive, insulation, control panel, and other custom features can be discussed subject to model compatibility.
Technical specifications
| Product name | Jacketed boiling kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1,000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional mixer; configuration dependent |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
Applications and configuration questions
These kettles are intended primarily for food processing. Other uses, such as cosmetic, pharmaceutical, or chemical batches, require separate review of product compatibility, contact materials, seals, cleaning needs, and process suitability. We do not assume one standard configuration fits every formulation.
Frequently asked questions
How do I select capacity? Share your target batch size and normal fill level. Can every kettle tilt? No; vessel and tilting options vary by model. Which heating method should I specify? Tell us what utilities are available at your facility. Is a mixer included? It is an optional feature, subject to compatibility. Can the material be customized? SUS304 and SUS316L are available; discuss product contact requirements with our team.
Request a configuration review
Wenzhou Ace Machinery provides factory-direct manufacturing and customization. For a practical recommendation, send your required capacity, product, preferred heating method, mixing and tilting requirements, and discharge needs.
