Configure a jacketed kettle for batch cooking of sauces, jams, soups, syrups, dairy mixtures, and other compatible products. Wenzhou Ace Machinery offers 50L to 1000L capacities in SUS304 or SUS316L stainless steel, with electric, steam, gas, or thermal oil heating options. Fixed or tilting construction, agitation, temperature control, and other features depend on the selected model and process requirements.

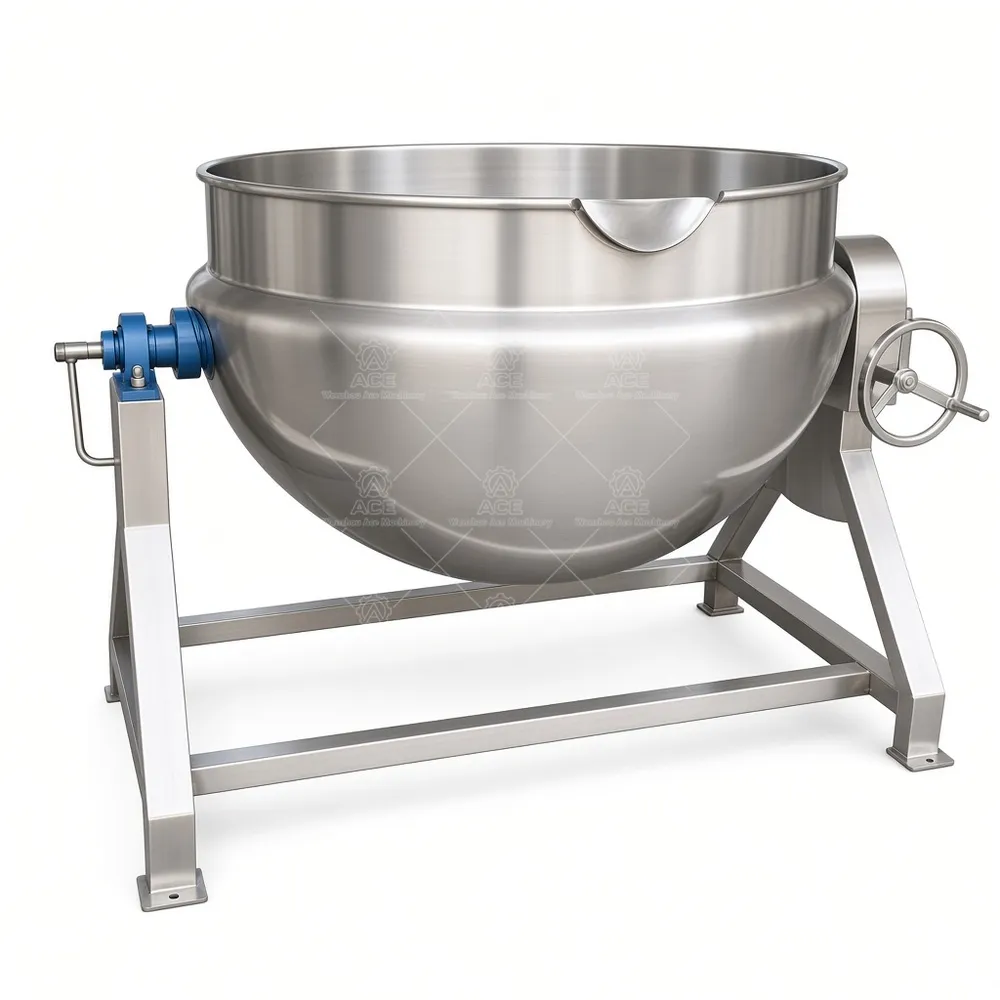

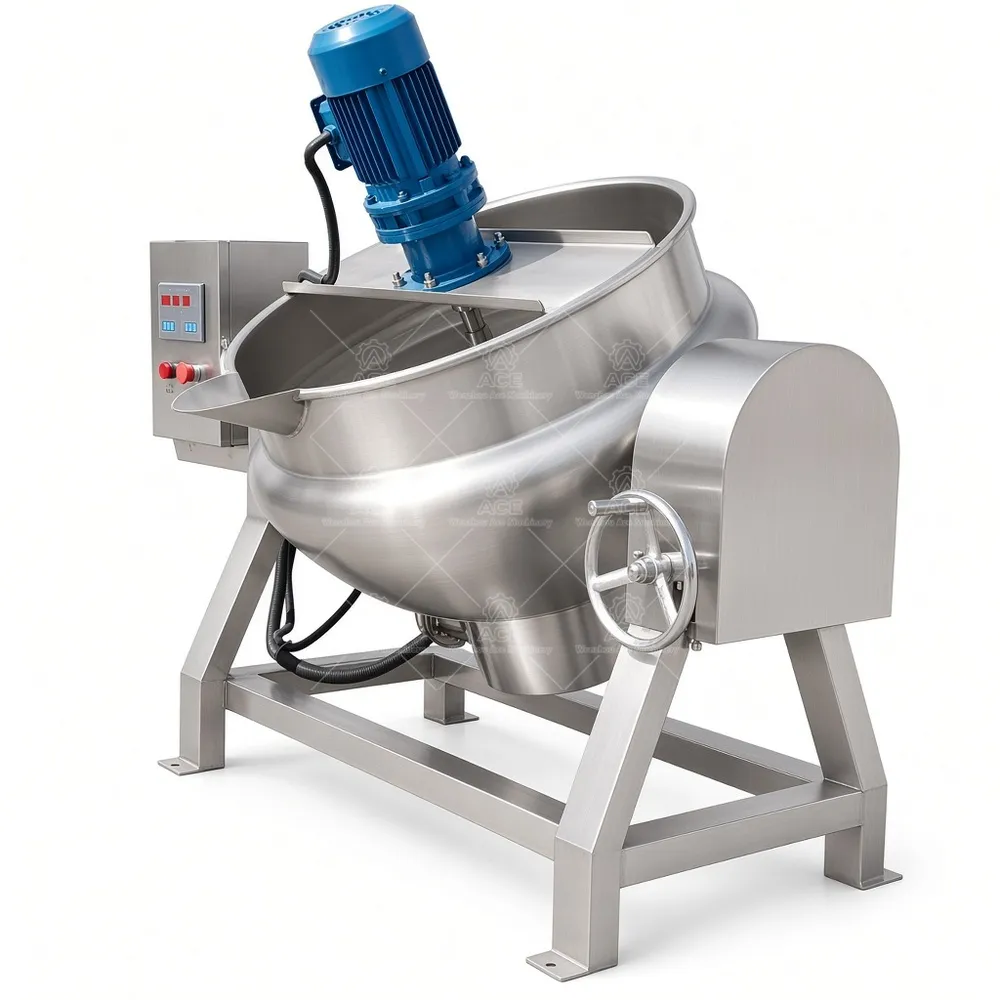

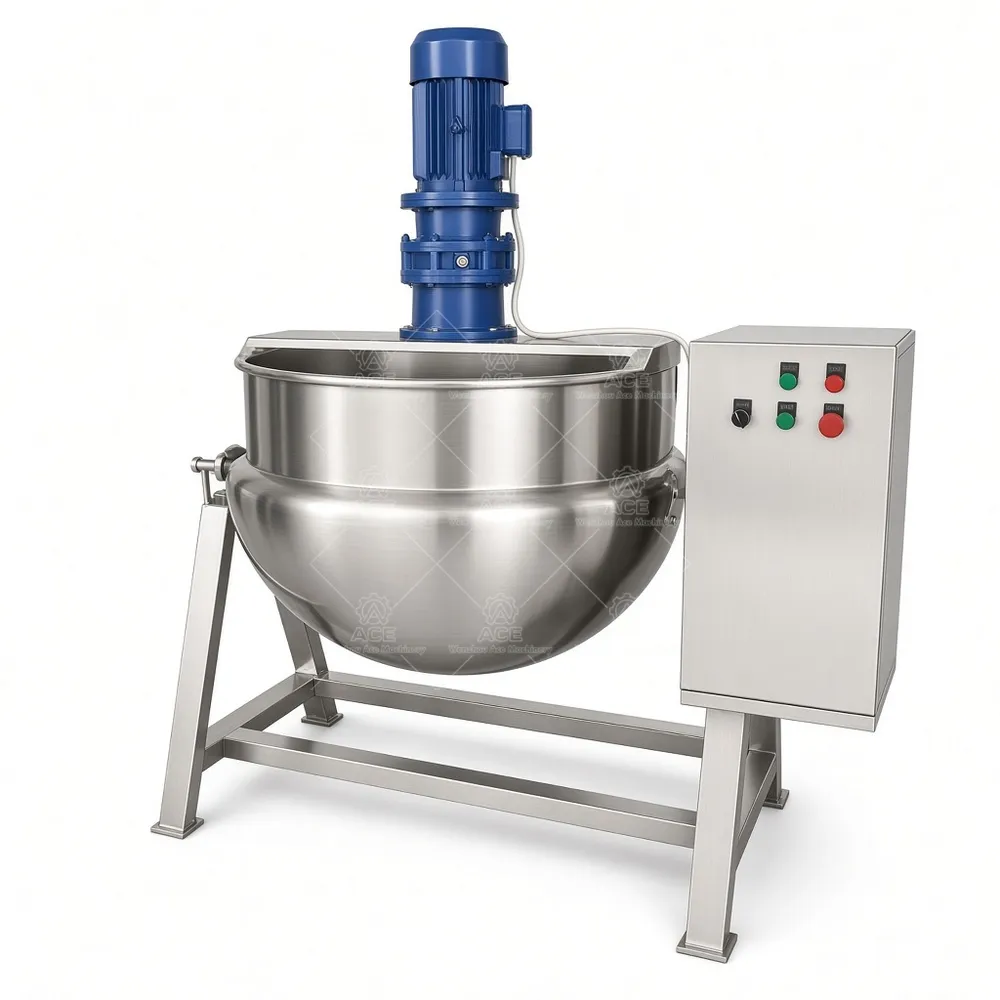

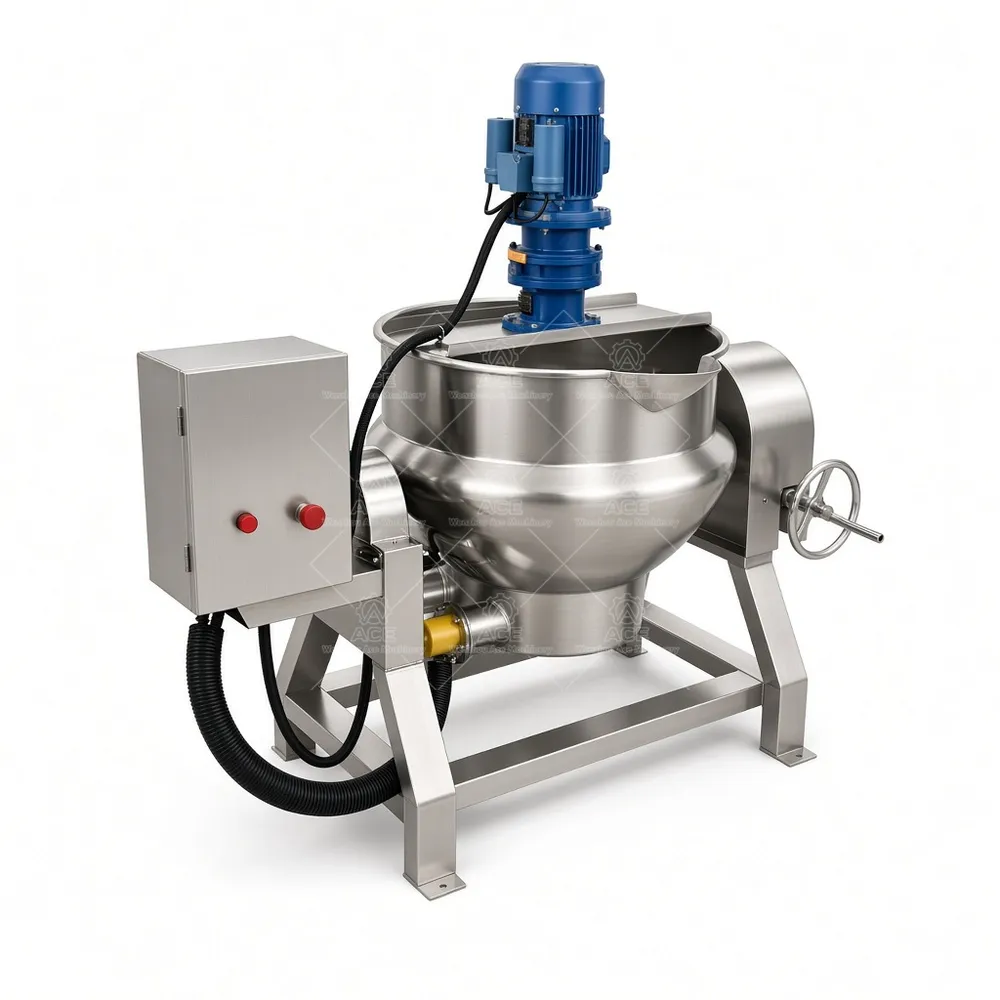

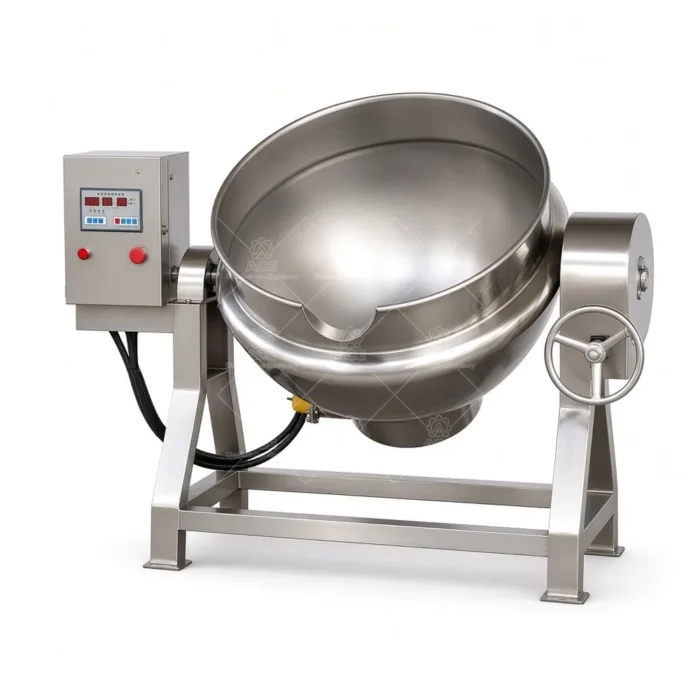

Configurable Gas-Heated Tilting Jacketed Kettle with Agitator, 50–1000L
价格范围：$2,098.24 至 $2,258.55
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Cooking a thick sauce or fruit filling in a direct-heated vessel can create hot spots and make scraping and discharge difficult. A jacketed kettle transfers heat through the vessel wall, helping warm the batch indirectly. The suitable heating source and agitation setup depend on the recipe, batch size, and plant utilities.
Wenzhou Ace Machinery manufactures jacketed kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. Fixed and tilting configurations are available by model; tilting may be manual or hydraulic when applicable. An optional agitator can support product movement during cooking, while temperature control and a variable-speed drive can be specified where compatible. These options help operators manage mixing and batch handling, but the correct arrangement depends on viscosity and process requirements.
Typical Applications
Food applications include sauces and gravies, jams and fruit fillings, soups and stock, syrups, confectionery mixes, dairy mixtures, and other compatible products. A thick filling may need a different agitator and discharge arrangement than a thin syrup. The kettle can also be assessed for selected beverage, cosmetic, personal-care, pharmaceutical, or chemical processes; material, seals, and process suitability must be confirmed for each formulation.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model-dependent |
| Kettle configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration depends on product and model |
| Temperature control | Optional, subject to configuration |
| Customization | Available according to process requirements |
Configuration and FAQs
To select a model, share batch size, product characteristics, heating utility, mixing needs, and how the cooked batch will be discharged. We can discuss insulation, control panels, variable-speed drives, and other compatible options. As a factory-direct manufacturer, Wenzhou Ace Machinery supports custom configuration; final specifications are confirmed against the selected model.
Can every size use every heating method? No. Availability depends on model and requirements.
Is an agitator standard? It is optional; specify the product and mixing objective.
Can the kettle tilt? Tilting is model-dependent, with manual or hydraulic operation where applicable.
Which steel should I request? SUS304 or SUS316L; discuss product compatibility and cleaning conditions.
What details help prepare a quotation? Provide capacity, product, heating preference, agitation, and discharge requirements. Contact us to discuss a suitable configuration.
