This 1000L electric jacketed cooking kettle is designed for batch cooking and mixing of sauces, soups, syrups, fillings, and other food products. Wenzhou Ace Machinery offers multiple capacity, material, heating, vessel, and accessory options. Final configuration depends on the product, process requirements, and model compatibility.

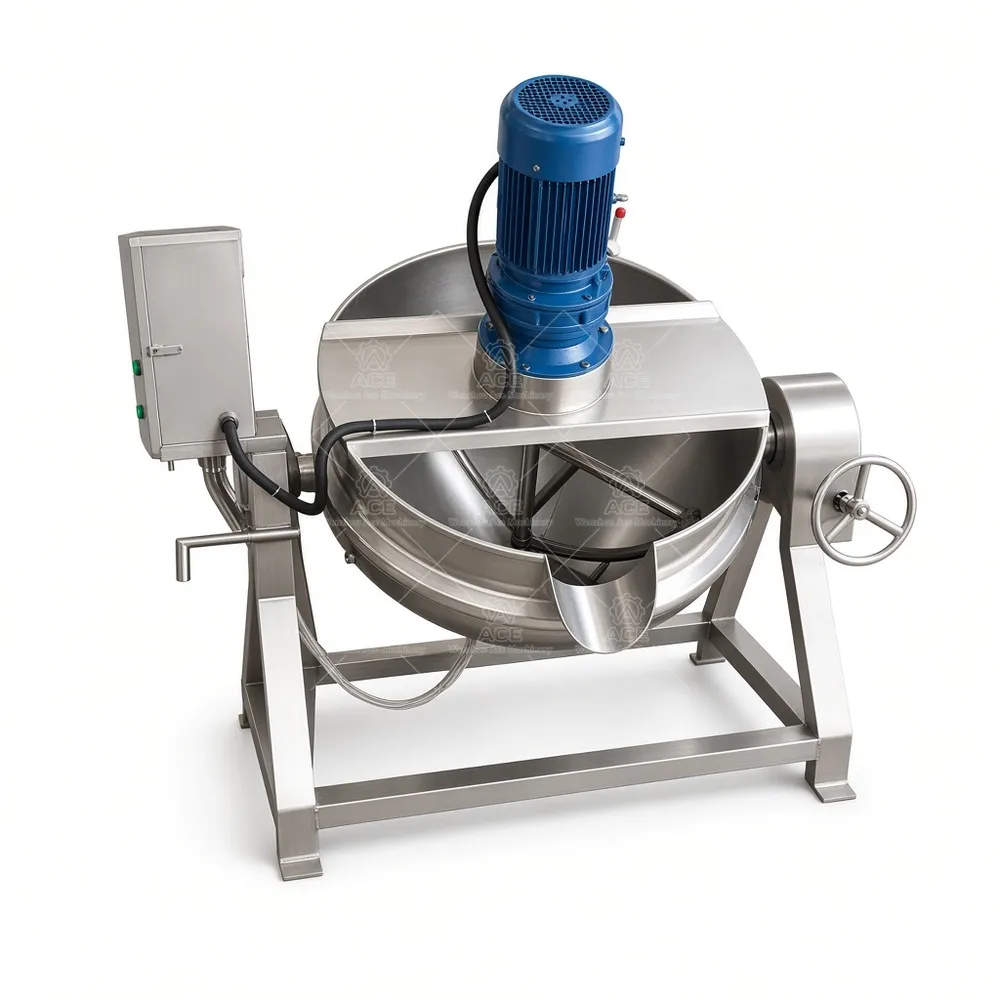

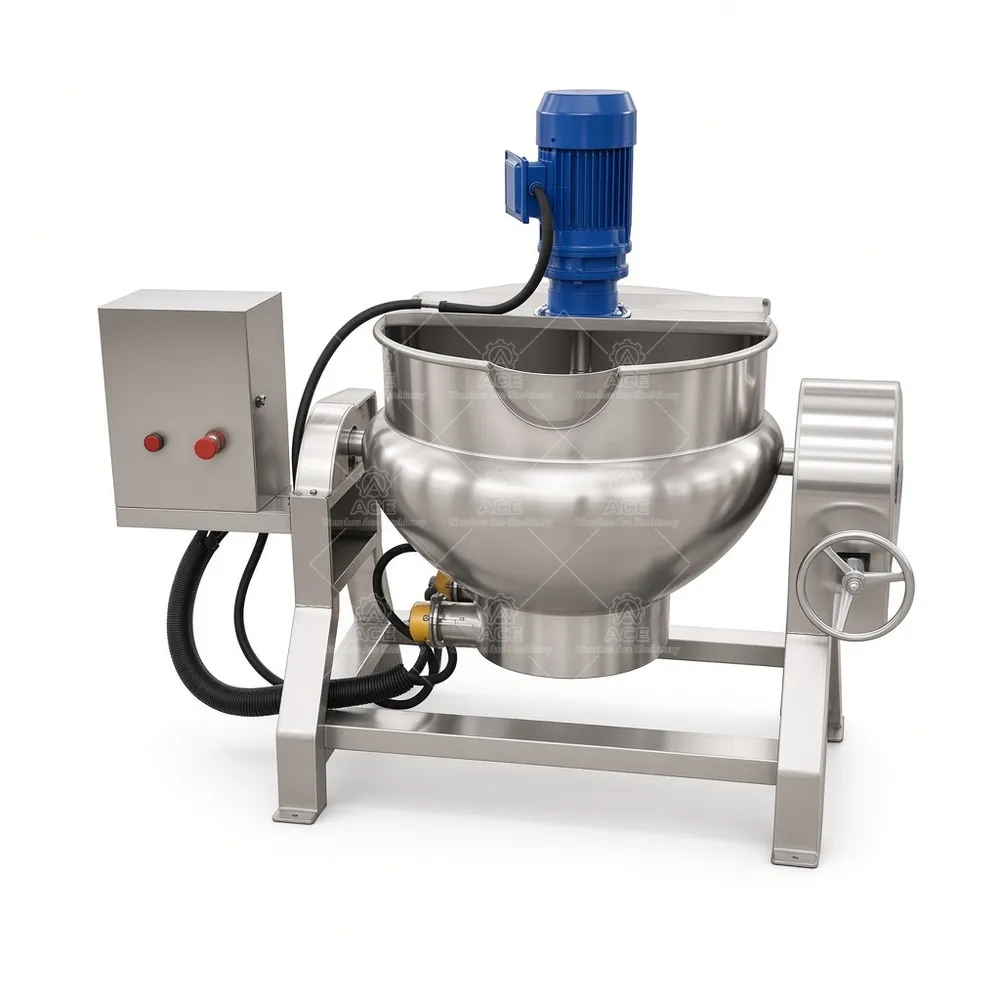

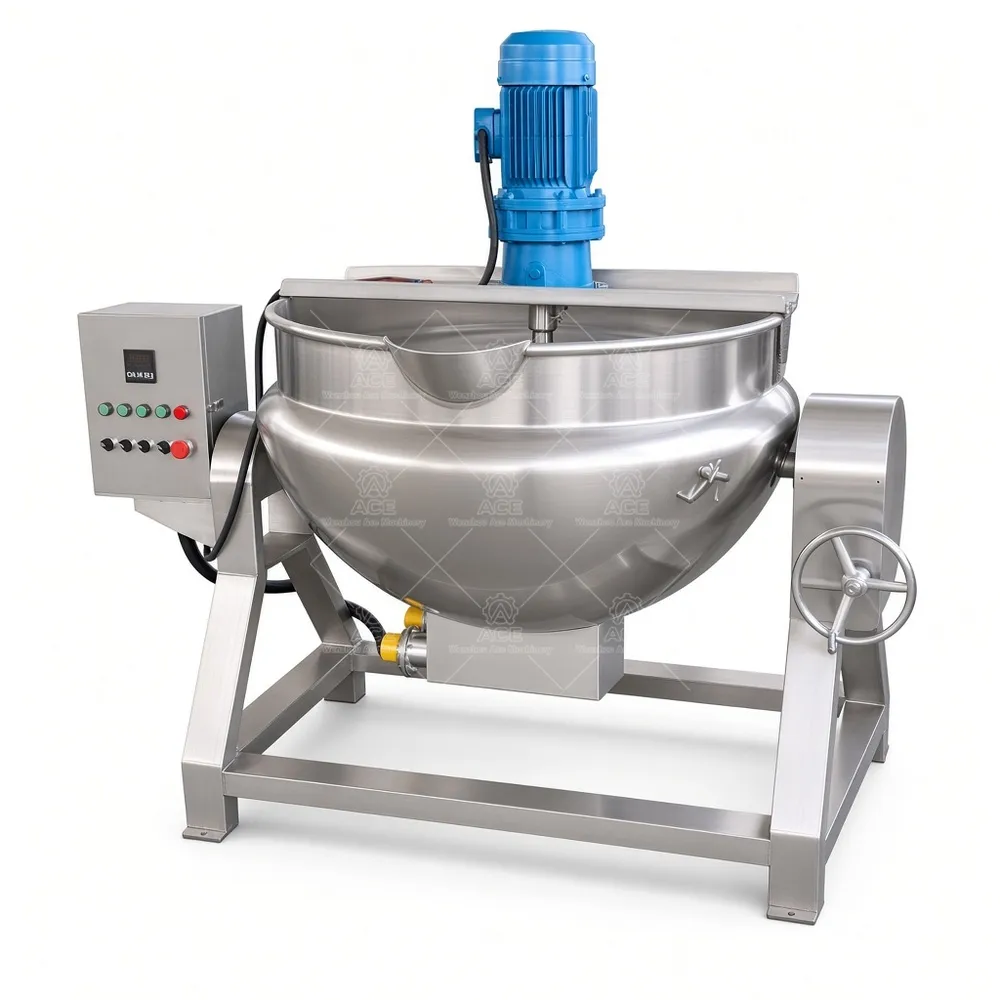

1000L Electric Jacketed Cooking Kettle with Mixer
Price range: $1,861.38 through $1,973.06
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification

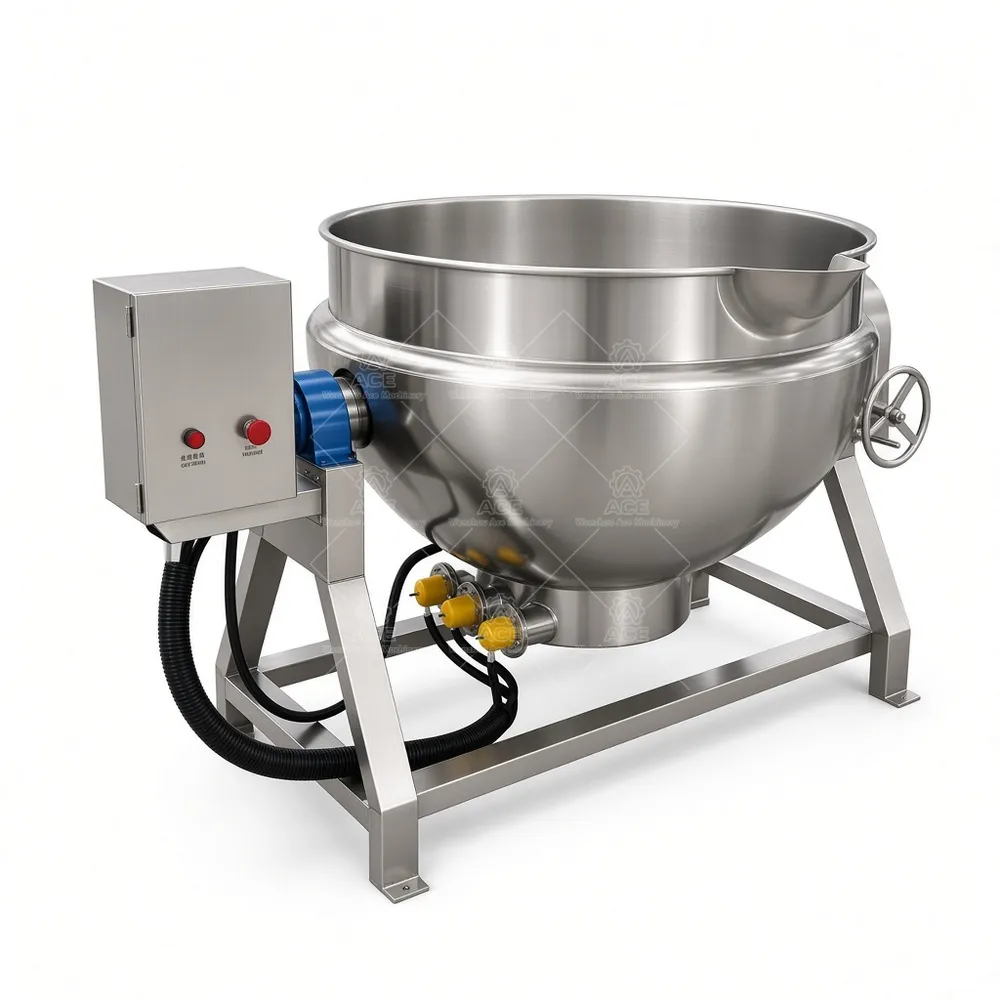

1000L Electric Jacketed Cooking Kettle
Heating a thick sauce or fruit filling in a large batch calls for controlled heat transfer and practical mixing access. Wenzhou Ace Machinery manufactures jacketed cooking pots in a 1000L option, with configuration selected around the product, batch size, and plant utilities.
Heat passes through the kettle wall from the jacket rather than being applied directly to the product. This indirect heating approach supports cooking and mixing in one vessel. The appropriate heating arrangement depends on the selected model and process requirements. An optional mixer can help keep ingredients moving during cooking; mixer design and compatibility should be confirmed against the product’s viscosity and solids.
Configuration and production use
Choose SUS304 or SUS316L stainless steel based on the product and cleaning environment. Heating options include electric, steam, gas, or thermal oil, subject to model compatibility. The kettle may be fixed or tilting, depending on the model; manual or hydraulic tilt may be available where applicable. Temperature control, variable-speed drive, insulation, a control panel, and other custom features can be discussed for compatible configurations.
Typical batches include sauces and gravies that need regular agitation, jam and fruit fillings with pieces, soups, syrups, dairy mixtures, and confectionery blends. These products differ in viscosity, solids, heating needs, and discharge method, so a standard setup may not suit every recipe. Kettle configurations may also be considered for compatible beverage, cosmetic, pharmaceutical, or chemical processes after confirming materials, seals, cleaning requirements, and process suitability.
Technical specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking pot |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Vessel setup | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Mixing system | Optional mixer; configuration dependent |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to process and model compatibility |
Common questions
How do I select capacity? Share batch size, working volume, and production frequency for review.
Can every heating method be used at 1000L? Availability depends on the specific model and requirements.
Is a mixer included? It is an optional configuration; specify product viscosity and ingredients.
Can the kettle tilt? Fixed and tilting versions are available depending on model.
What should I provide for a quotation? Include product, batch volume, heat source, mixing, discharge, and cleaning needs.
Request a configuration review
As a factory-direct manufacturer, Wenzhou Ace Machinery can discuss custom configurations around your process. Send your required capacity, product details, preferred heating method, and mixer or tilting requirements so our team can assess a suitable setup.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
