This jacketed cooking kettle is designed for batch processing of sugar, candy mixtures, syrups, sauces, jams, soups, and other food products. Choose from 50 L to 1,000 L capacities, SUS304 or SUS316L stainless steel, and model-dependent electric, steam, gas, or thermal oil heating. Optional agitation, temperature control, insulation, and fixed or tilting construction can be discussed to match your recipe and production requirements.

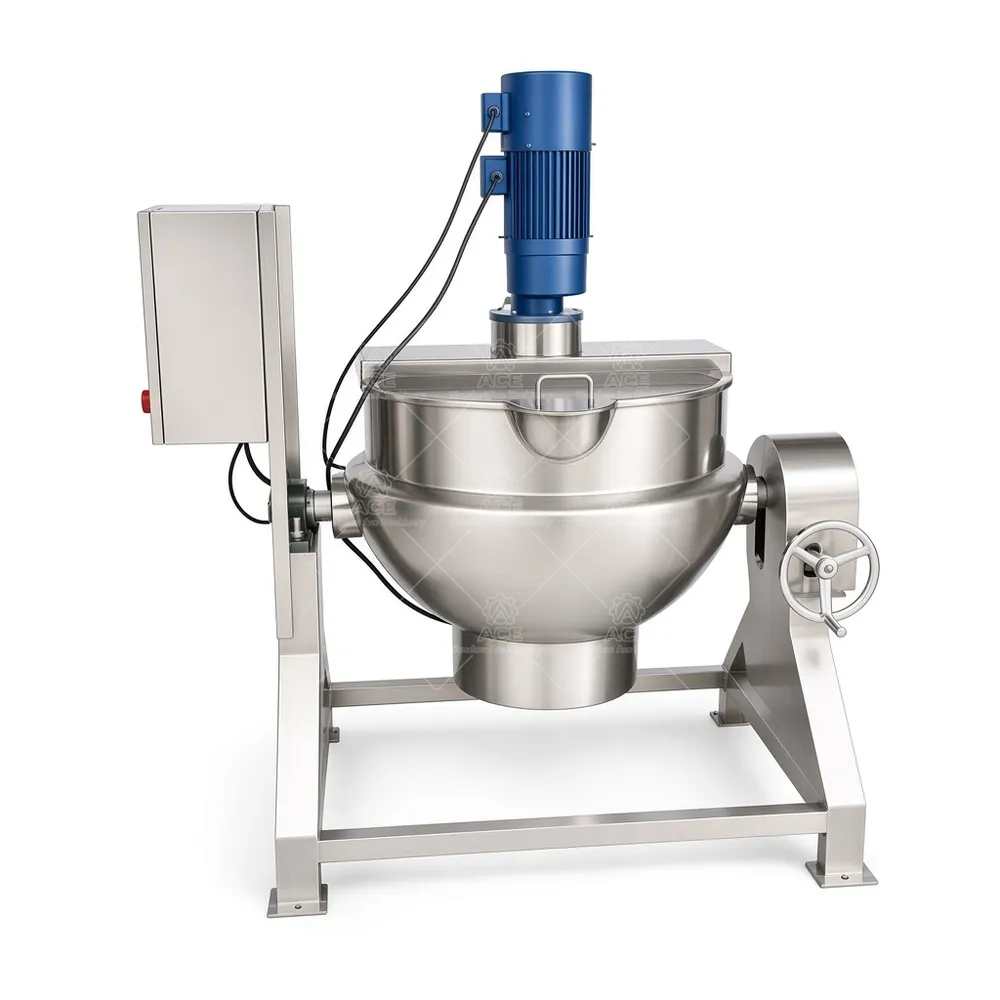

Electric Jacketed Cooking Kettle for Candy and Sugar Processing
Price range: $2,058.87 through $2,216.17
Request a quote

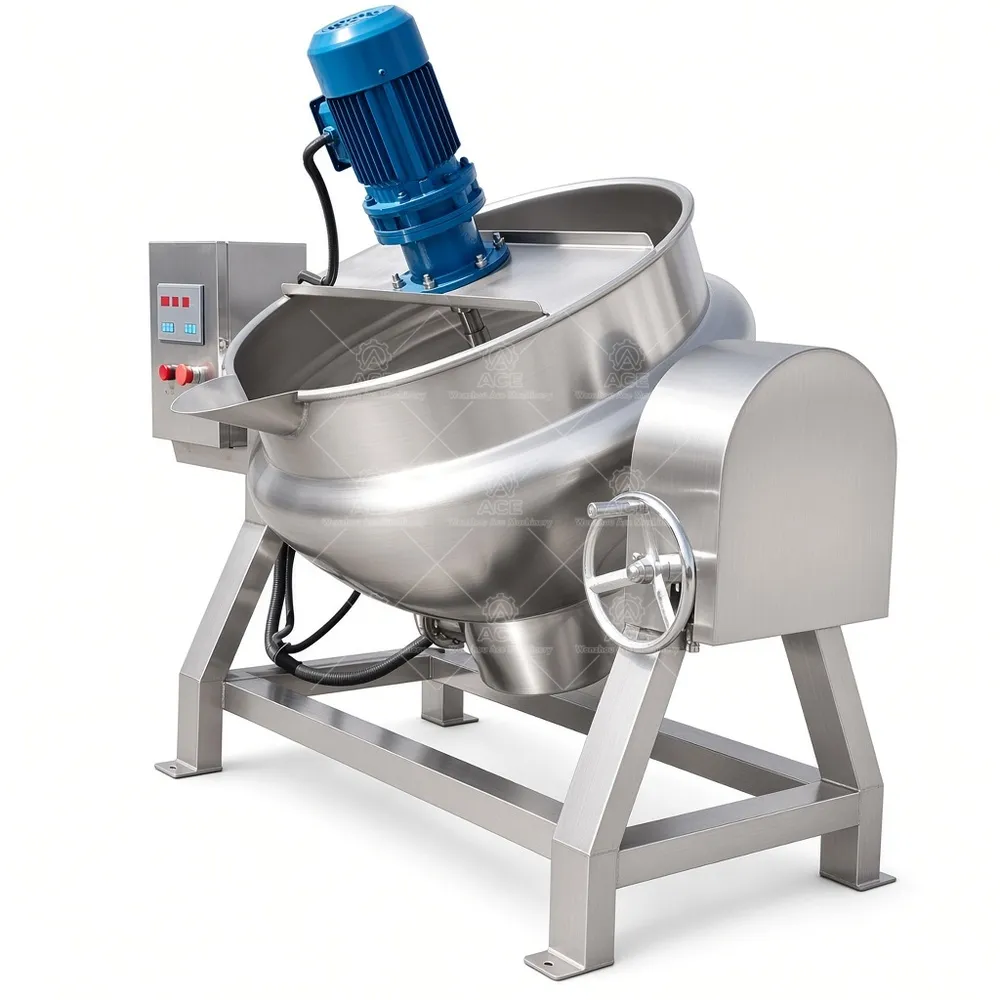

A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products

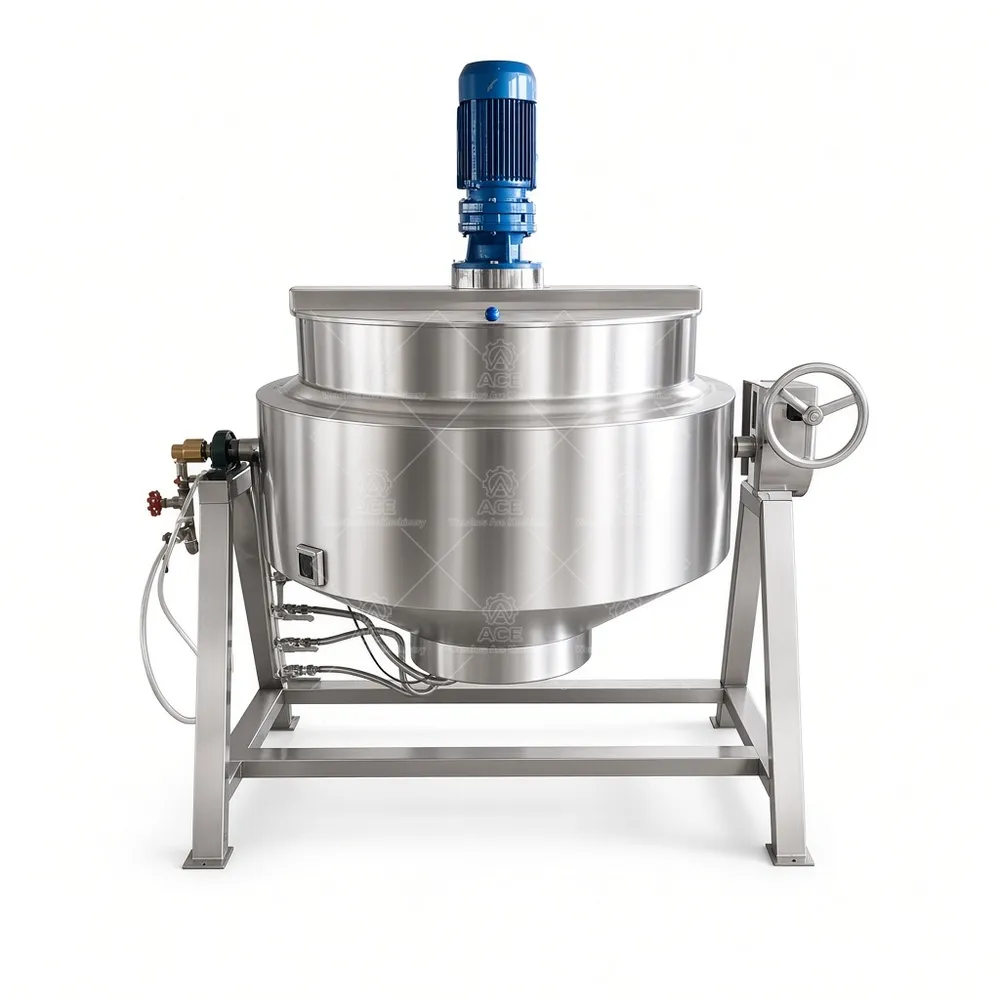

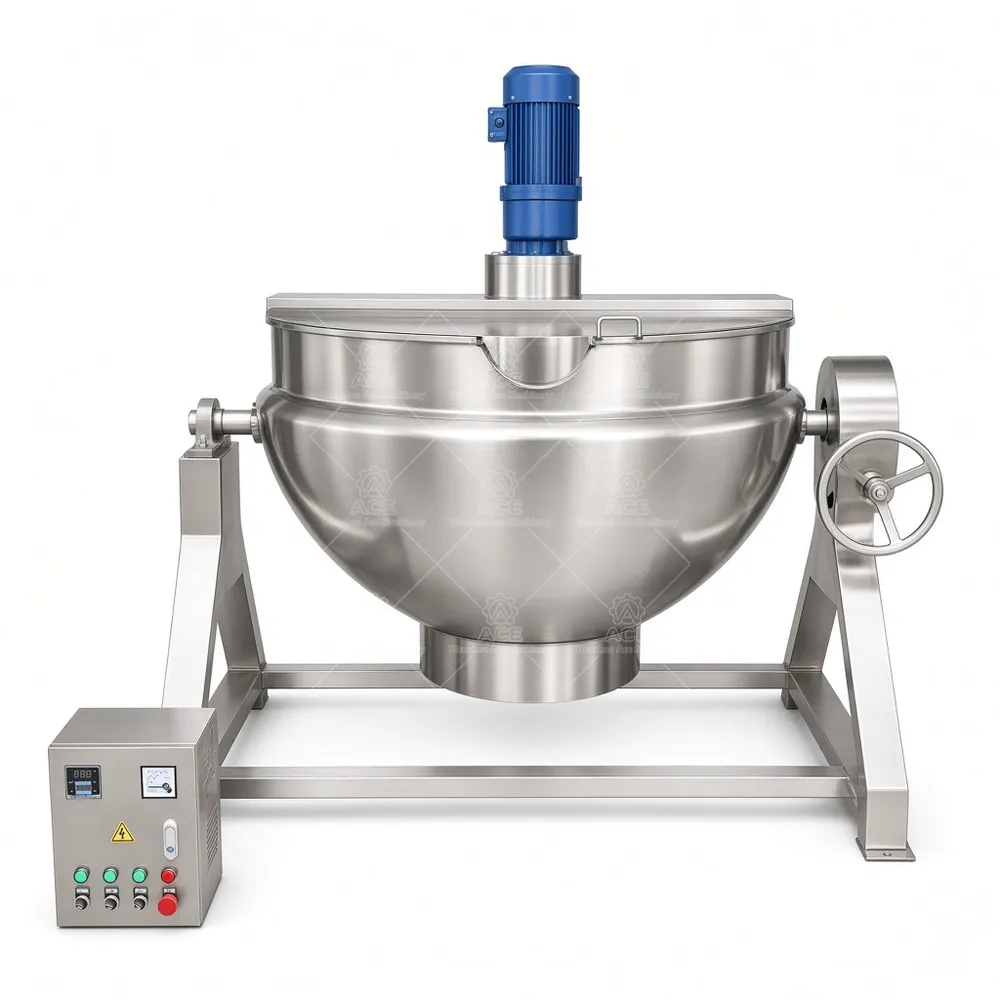

Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products

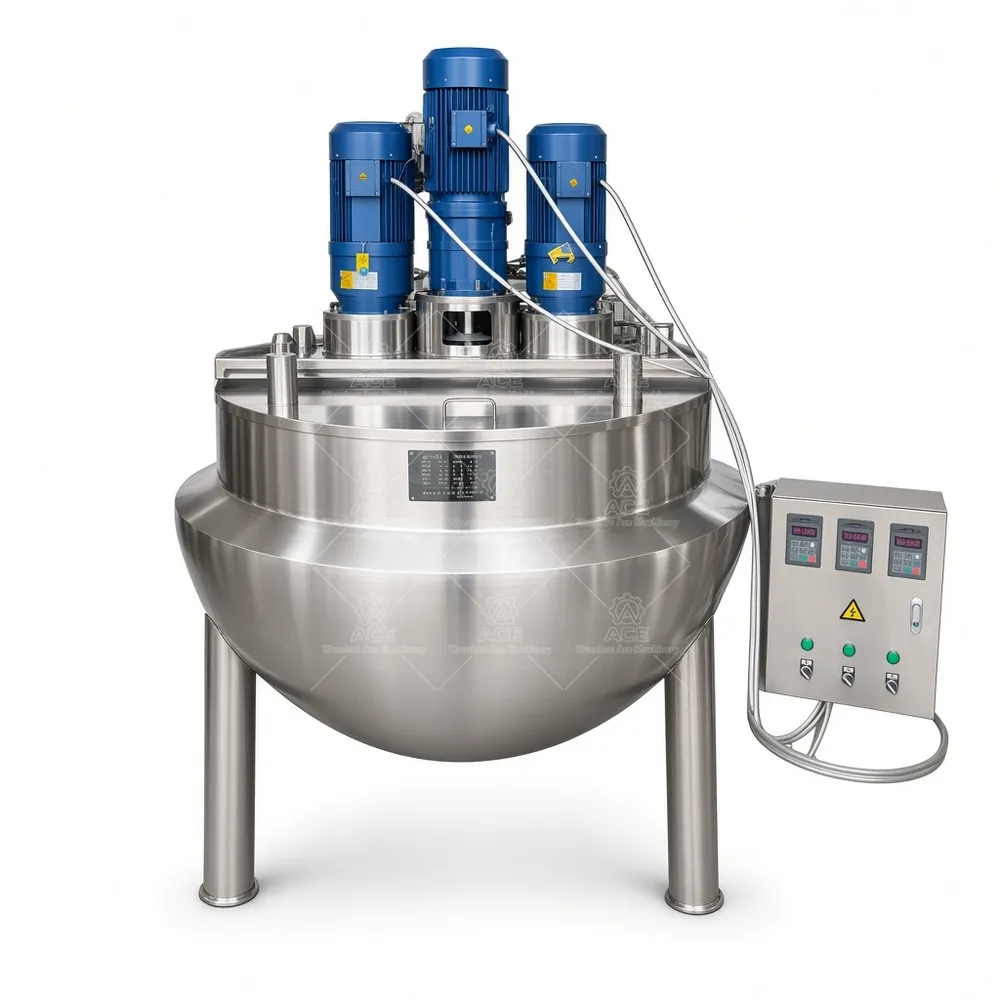

Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Candy and Sugar Batches
Cooking sugar or candy mixtures calls for controlled heat and a kettle sized to the batch. A jacketed kettle transfers heat indirectly through the vessel wall, helping heat the product without placing a direct heat source against the food. The right setup depends on the recipe, batch volume, heating supply, and whether mixing or tilting is needed.
Built Around Your Process
Wenzhou Ace Machinery manufactures jacketed cooking kettles in 50 L, 100 L, 200 L, 300 L, 500 L, and 1,000 L capacities. Available materials are SUS304 or SUS316L stainless steel. Heating options include electric, steam, gas, or thermal oil; compatibility varies by model. A fixed vessel suits processes where the product is removed by the selected discharge arrangement. A tilting model can assist emptying where offered, with manual or hydraulic operation depending on configuration.
An optional agitator can support batch mixing during cooking, while temperature control helps operators monitor the process. Variable-speed drive, insulation, and a control panel may also be specified where compatible. For candy or syrup, discuss how the mixture changes as it heats and whether continuous agitation is required. For sauces, soups, fruit fillings, or dairy mixtures, provide details about viscosity, solids, and cleaning routines. These factors guide material, heating, and agitator selection; no single setup suits every recipe.
Technical Specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50 L, 100 L, 200 L, 300 L, 500 L, 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration dependent |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
Applications and Configuration
Typical food applications include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, candy mixtures, and dairy products. Other process uses require review of product compatibility, materials, seals, and cleaning needs. As a factory-direct manufacturer, we discuss batch size, product behavior, available heat source, agitation, vessel movement, and discharge needs before recommending a build.
Frequently Asked Questions
Are all capacities available with every heat source? No. Heating options depend on the selected model.
Can I specify SUS316L? Yes, subject to the required configuration.
Is an agitator standard? It is an optional feature where compatible.
Can the kettle tilt? Tilting is model dependent; manual or hydraulic operation may be available.
What information helps with a quotation? Share capacity, product, batch details, heating preference, mixing needs, and unloading requirements.
Send these process details to Wenzhou Ace Machinery for a configuration discussion and quotation.
