Wenzhou Ace Machinery’s commercial jacketed kettles are available in 50L to 1000L capacities, with SUS304 or SUS316L stainless steel and model-dependent heating options. Choose a fixed or tilting vessel and discuss optional agitation, temperature control, insulation, and other features. Share your product, batch size, heating supply, and discharge requirements to help identify a suitable configuration.
100L Commercial Jacketed Kettle with Agitator Gas Electric or Steam
Price range: $2,258.23 through $2,466.21
Request a quote

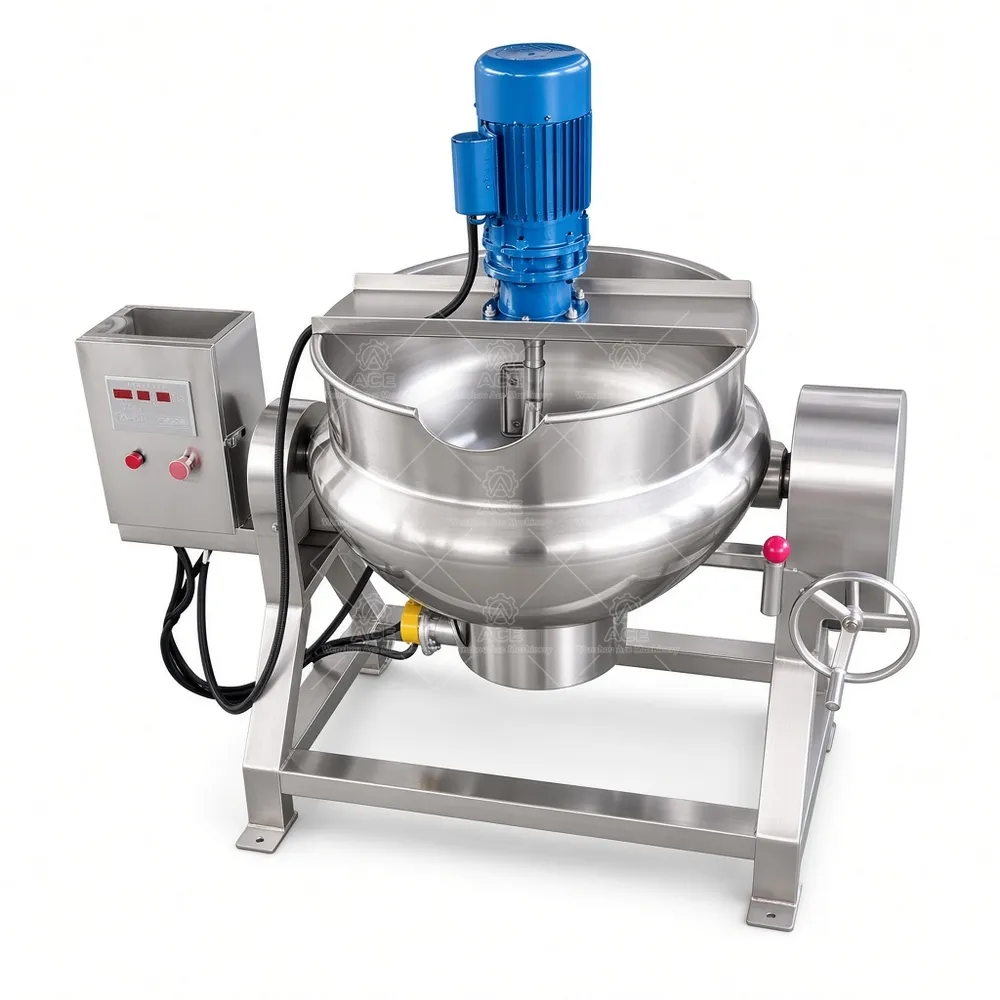

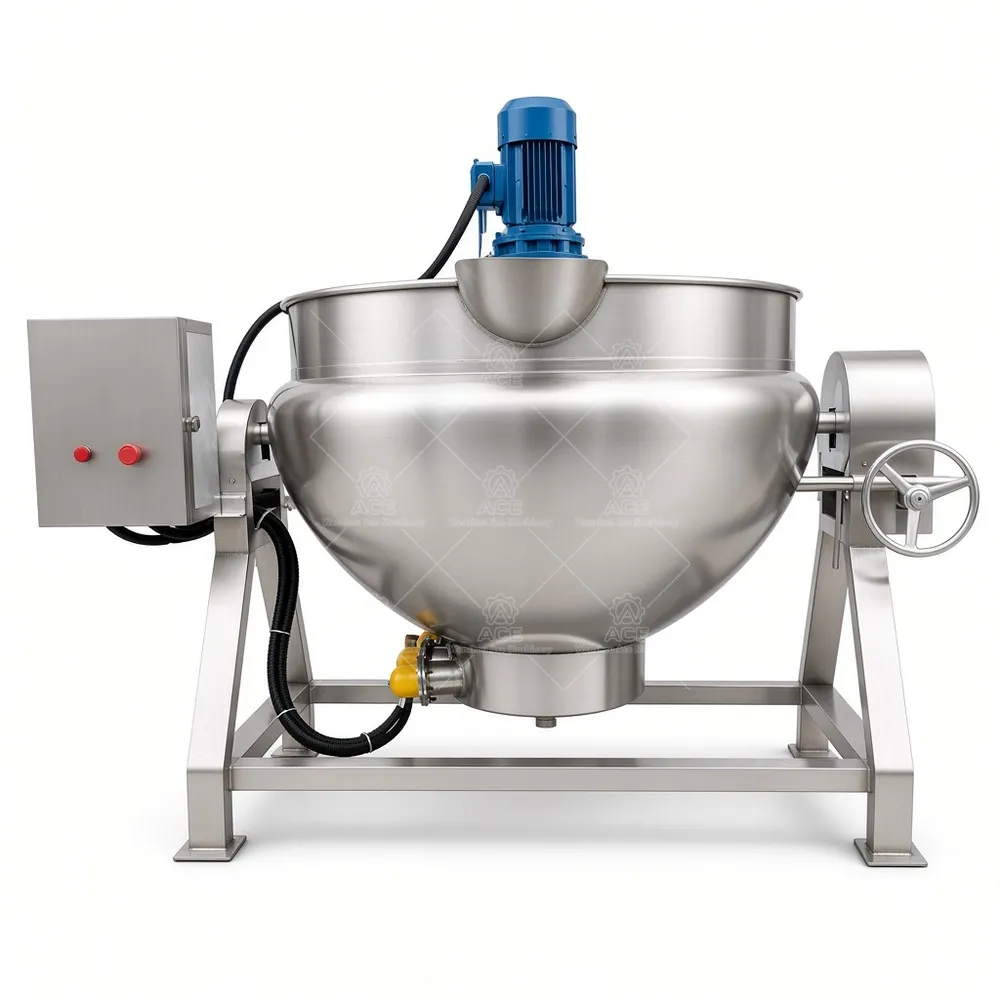

A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Commercial Jacketed Kettle for Batch Cooking
Batch size, product thickness, and available utilities all affect kettle selection. A jacketed kettle heats food indirectly: the selected heating medium warms the jacket, which transfers heat through the vessel wall to the product. This avoids direct flame or heating-element contact with the batch and suits recipes that need controlled cooking and regular agitation.
Wenzhou Ace Machinery manufactures kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. Fixed and tilting configurations are available depending on the model; tilting may be manual or hydraulic where applicable. An optional agitator can help keep sauces, soups, fillings, and syrups moving during cooking. This is batch-kettle mixing, not an inline rotor-stator system. It does not by itself guarantee emulsification or eliminate every lump; ingredient addition and process requirements still matter.
Applications and configuration
Typical food applications include sauces and gravies, jam and fruit fillings, soups and stocks, syrup and confectionery mixtures, dairy blends, and other compatible products. Thick or heat-sensitive recipes may need a different agitation, heating, or discharge arrangement than a thin liquid. Stainless steel is available in SUS304 or SUS316L; material selection should reflect ingredients, cleaning chemicals, and process conditions.
Heating options include electric, steam, gas, or thermal oil, subject to model compatibility. Temperature control, variable-speed drive, insulation, control panel, and other custom features can be discussed for compatible configurations. The kettle is a cooking vessel, not a general-purpose cosmetics, pharmaceutical, or chemical mixer; non-food use requires review of materials, seals, and process suitability.
Technical specifications
| Item | Details |
|---|---|
| Product name | Jacketed kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic where applicable |
| Agitation and controls | Optional; details depend on configuration |
| Customization | Available according to product and process requirements |
FAQs
Can every size use every heating method? No. Availability depends on the selected model and requirements.
How is capacity selected? Share batch volume, recipe behavior, and expected production frequency.
Is an agitator included? Agitation is optional and should be specified with the product viscosity and mixing needs.
Can the kettle tilt? Tilting options depend on the model and may be manual or hydraulic.
What should an inquiry include? Provide capacity, product, heat source, agitation, discharge, and site utility details.
Request a configuration review
As a factory-direct manufacturer, Wenzhou Ace Machinery can discuss a configuration around your batch size, product characteristics, heating supply, mixing needs, and discharge method. Send these details with your inquiry so our team can assess a suitable model and compatible options.
