This electric jacketed kettle is designed for batch cooking applications such as sauces, chili paste, jams, soups, syrups, and candy mixtures. Available capacities range from 50L to 1000L, with SUS304 or SUS316L construction options. Heating source, fixed or tilting vessel design, agitation, and controls depend on the selected model and production requirements.

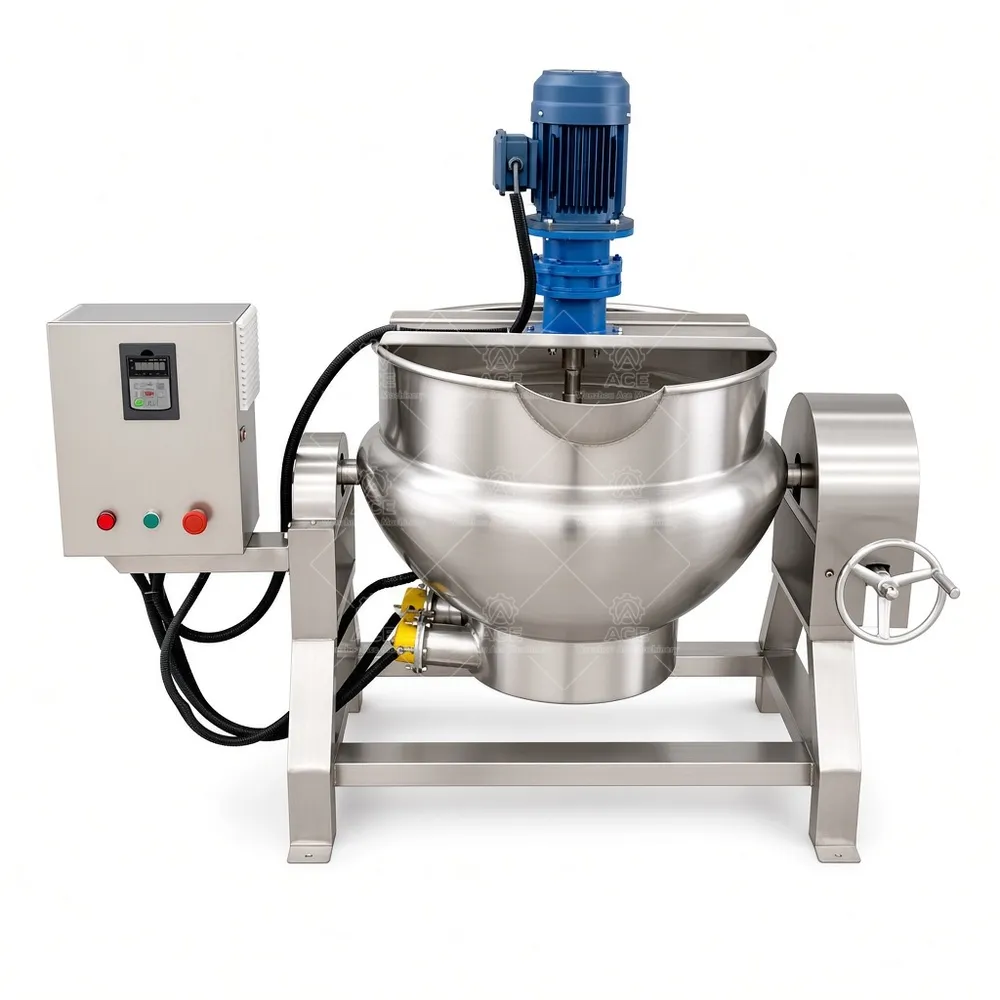

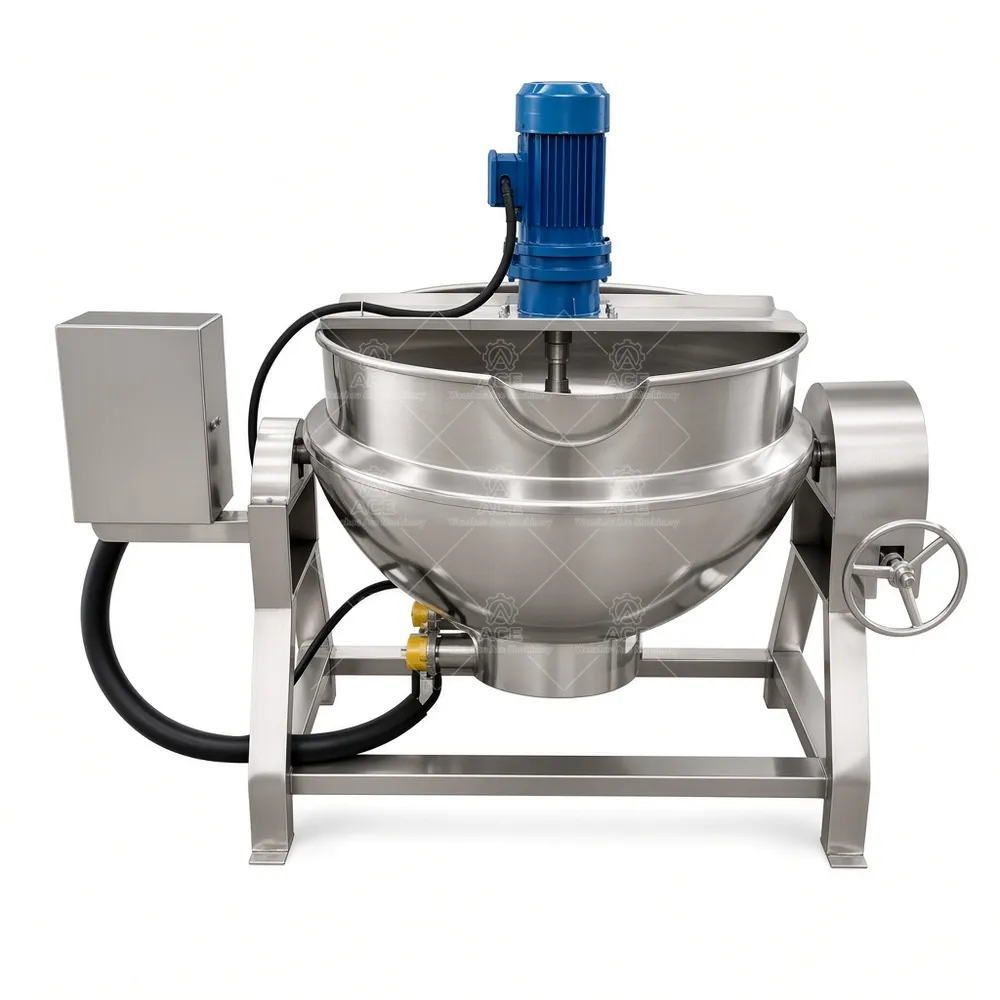

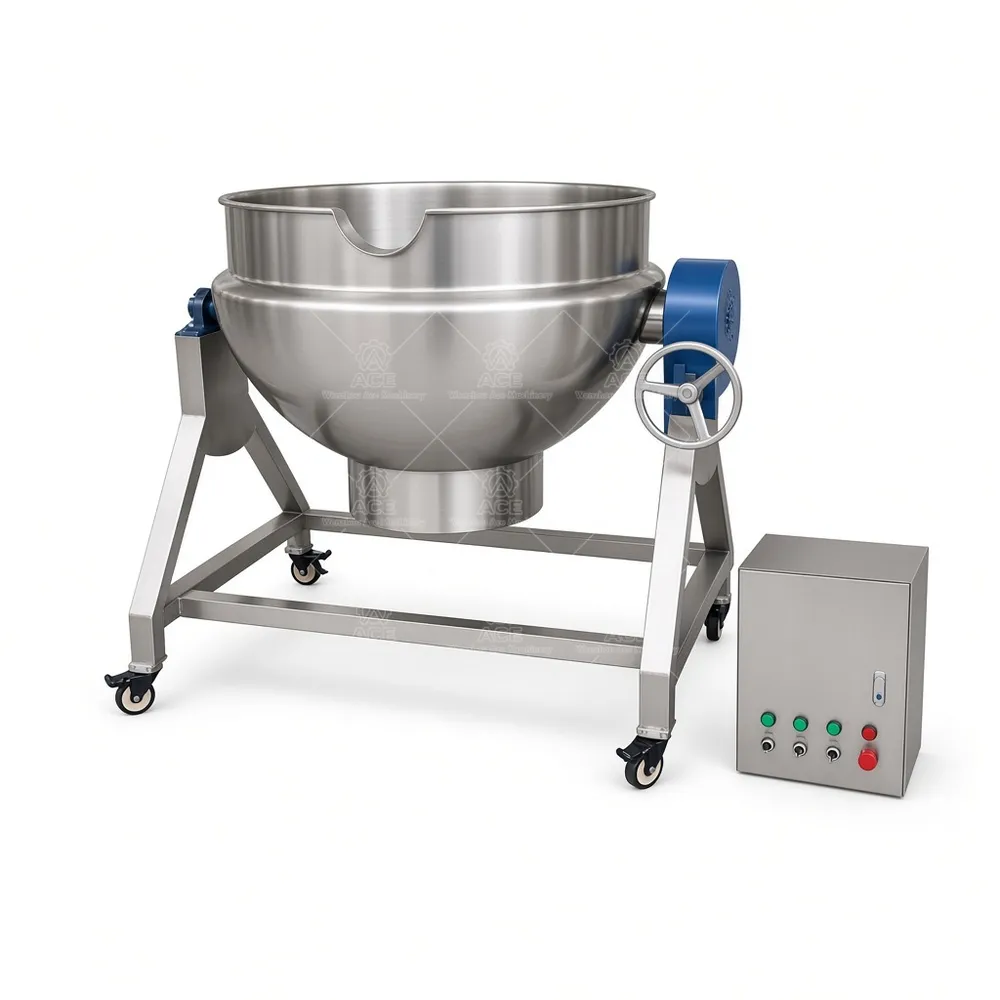

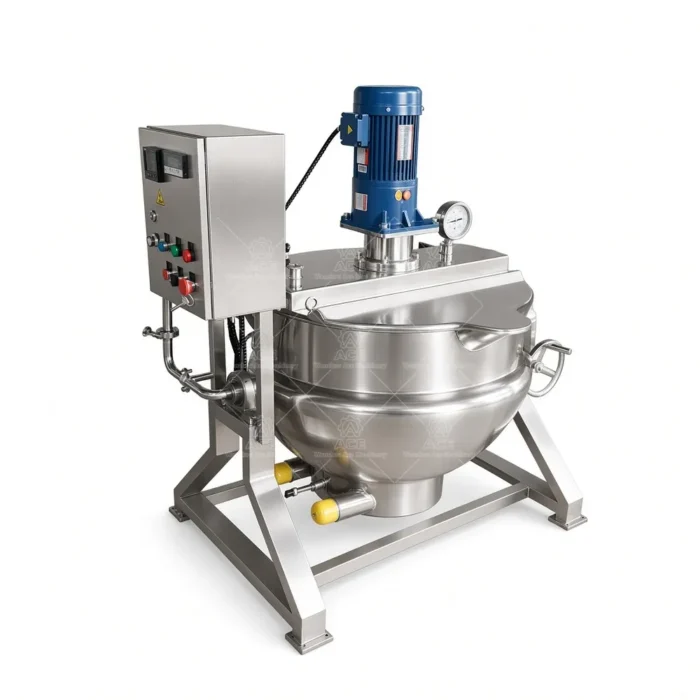

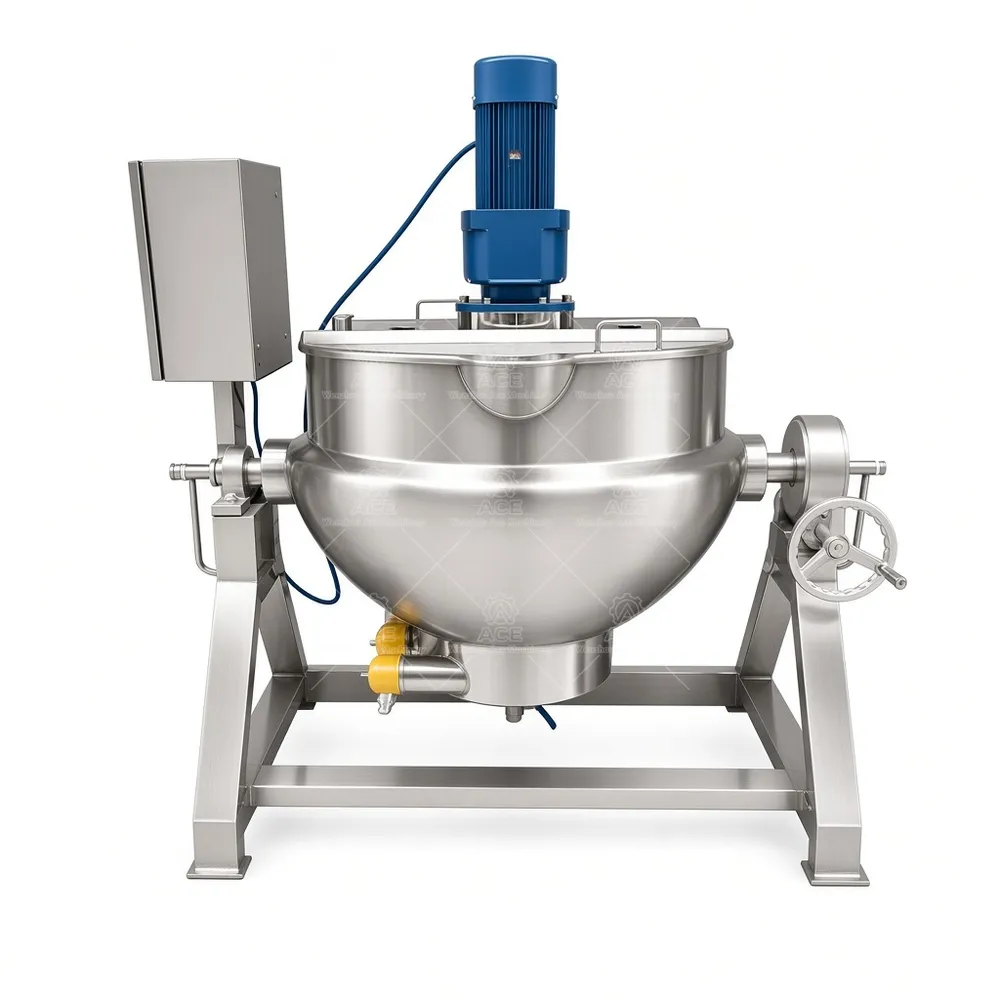

Tilting Electric Jacketed Kettle for Sauces, Candy, and Chili Paste
价格范围：$2,225.78 至 $2,386.26
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Electric Jacketed Kettle for Batch Cooking
Choosing a kettle starts with the product and the way it leaves the vessel. A thick chili paste, a fruit filling with visible pieces, and a sugar-based candy mixture place different demands on heating, agitation, and discharge. At Wenzhou Ace Machinery, we configure jacketed kettles around these production details rather than assume one setup fits every batch.
Electric heating warms the jacket surrounding the product vessel. Heat transfers indirectly through the vessel wall, avoiding direct contact between the heating source and the food. This arrangement is useful for controlled batch cooking, though the actual heat transfer depends on the product, batch size, and selected configuration. Tilting allows the vessel to be emptied by pivoting it; the tilt mechanism may be manual or hydraulic when available for the selected model. A fixed vessel may suit a process with a separate discharge arrangement.
Production Uses and Configuration
Common food applications include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, candy mixtures, dairy blends, and other compatible foods. Agitation may help keep ingredients moving during cooking, but mixer type and suitability depend on the product’s viscosity and texture. This kettle is not specified as an inline rotor-stator mixer; high-shear emulsification or powder dispersion should be reviewed as a separate process requirement.
SUS304 or SUS316L can be selected based on the product and cleaning environment. Insulation, temperature control, a control panel, and variable-speed drive are optional where compatible with the model. Non-food uses such as cosmetics, pharmaceutical preparations, or chemical mixtures require review of material, seals, cleaning, and process suitability; do not assume a standard food-kettle configuration is appropriate.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, and 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |

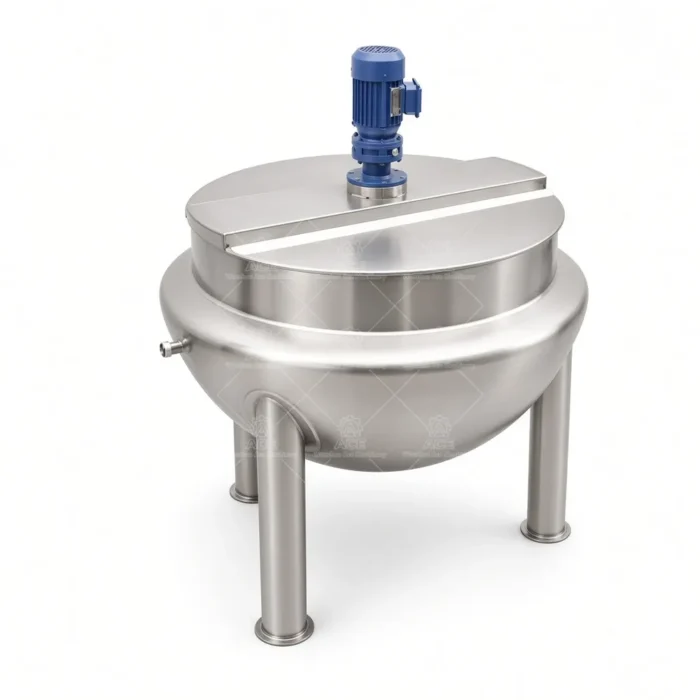

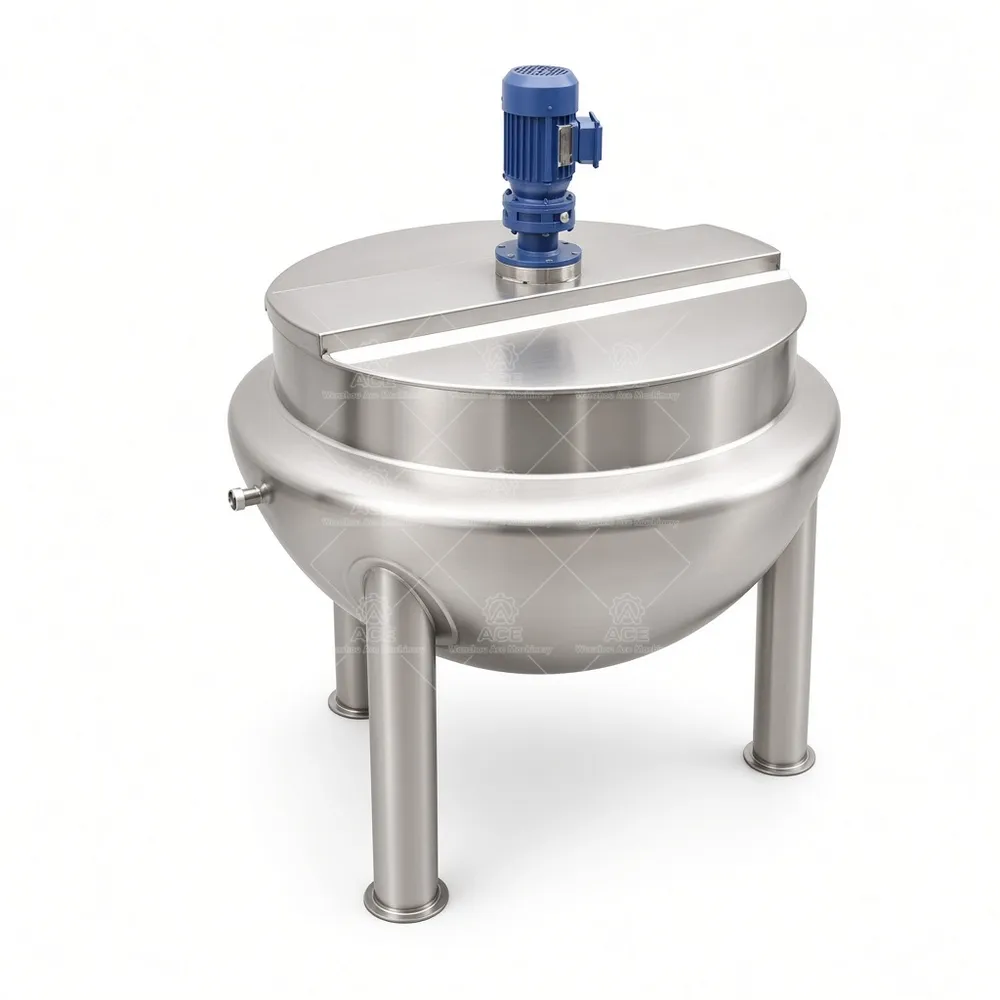

| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration dependent |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
Frequently Asked Questions
Are all capacities available with every heat source? No. Availability depends on the selected model and requirements.
How do I choose capacity? Share your normal batch size, working fill level, and production schedule for review.
Can the kettle include a mixer? An optional agitator may be available; describe viscosity, ingredients, and desired product texture.
Which steel should I specify? Provide product and cleaning details so material suitability can be assessed.
What information helps with a quotation? Send capacity, product, preferred heat source, mixing needs, and discharge or tilting requirements.
Request a Configuration Review
As a factory-direct manufacturer, Wenzhou Ace Machinery can discuss customization based on batch size, heating, agitation, and workflow. Send your product details and preferred configuration for an engineering review.
