Cook chili paste, jam, sugar mixtures, sauces, soups, and other batch products in a jacketed kettle configured for your process. Available in 50 to 1,000 L capacities, with SUS304 or SUS316L construction and electric, steam, gas, or thermal oil heating options depending on the model. Optional mixing, temperature control, insulation, and tilting configurations can be reviewed for your production needs.

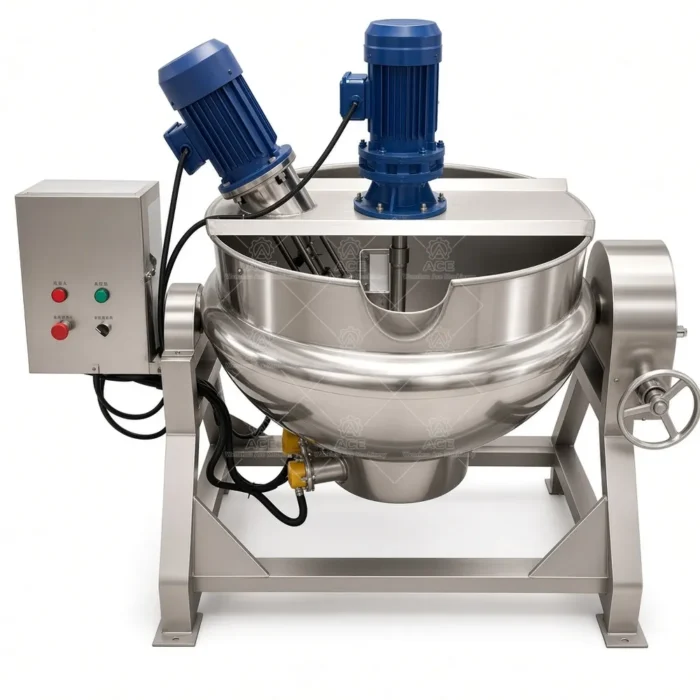

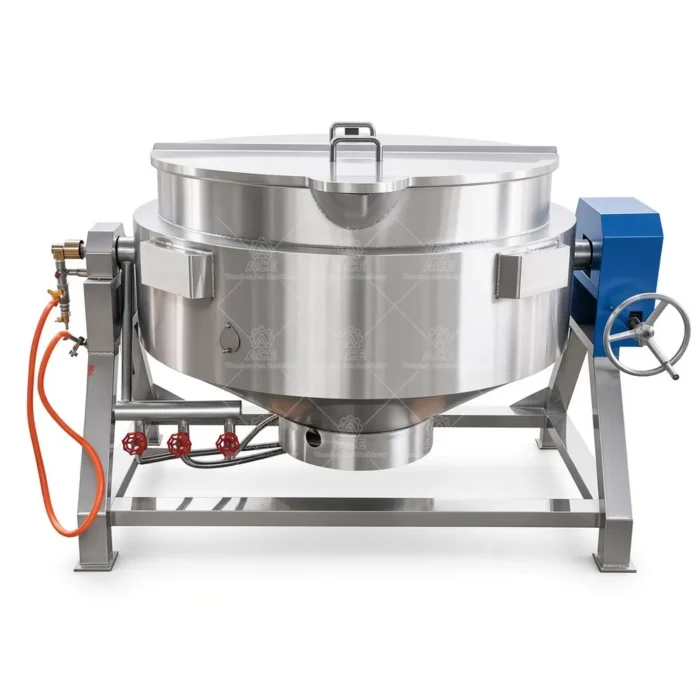

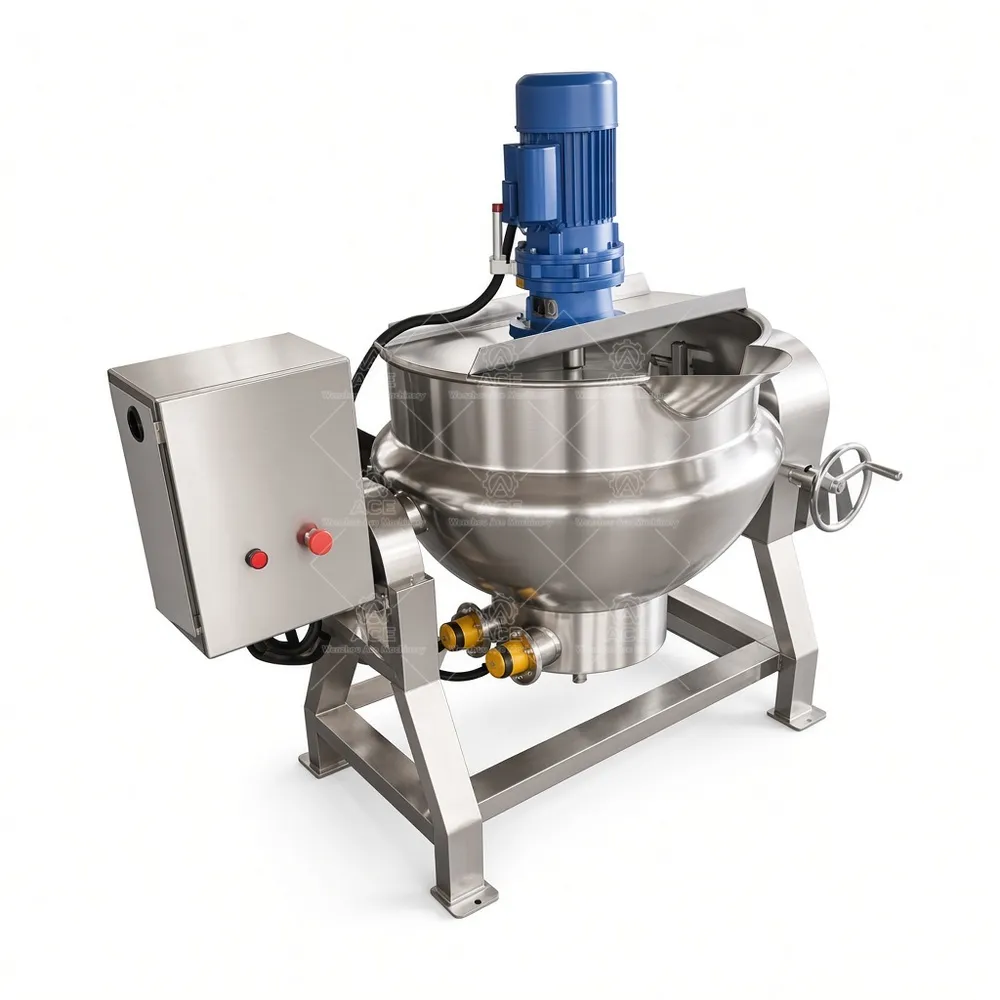

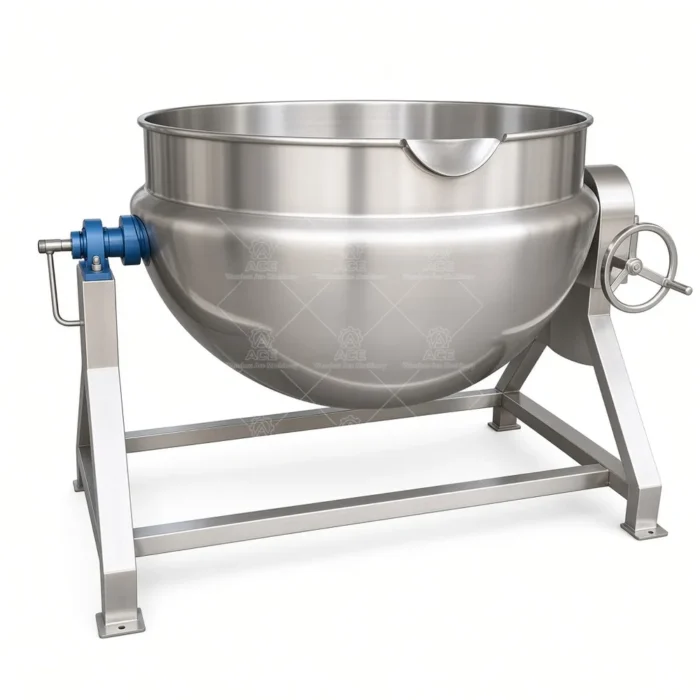

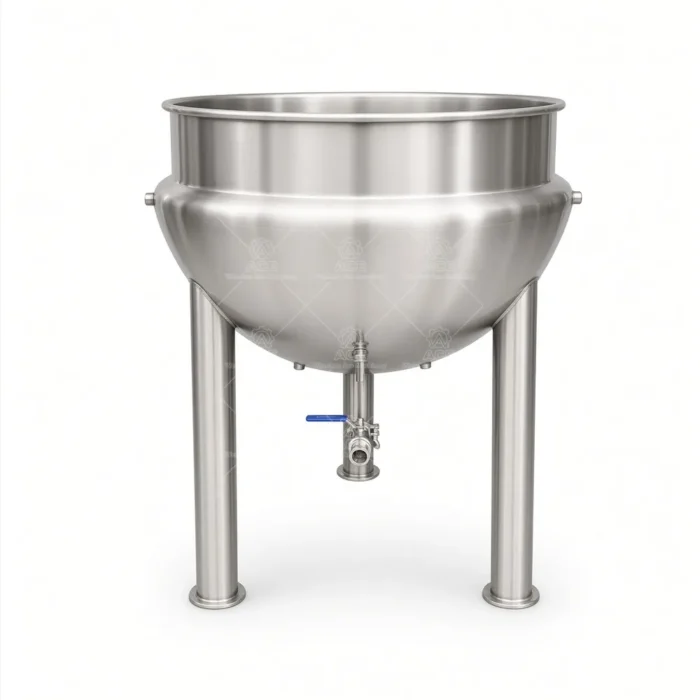

Jacketed Cooking Kettle with Mixer for Chili Paste, Jam & Sugar
价格范围：$2,100.54 至 $2,281.19
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Chili paste, fruit fillings, and sugar mixtures can scorch when heat is applied directly to the vessel bottom. A jacketed kettle transfers heat through the vessel wall from a surrounding jacket, helping heat the product indirectly. The selected heat source and kettle construction determine how the batch is heated; available options include electric, steam, gas, or thermal oil, subject to model compatibility.
We manufacture fixed and tilting kettle configurations in 50, 100, 200, 300, 500, and 1,000 L capacities. Optional agitation supports product movement during cooking, which can help operators manage batches that thicken or require regular mixing. Temperature control, variable-speed drive, insulation, and a control panel are available where compatible. Tilting may be manual or hydraulic, depending on the model, and can assist discharge into a receiving container.
Typical Processing Uses
Common batches include sauces and gravies, chili paste, jams and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy blends, and fillings. A thick fruit preparation may call for a different agitator and discharge arrangement than a soup or thin syrup. Other liquid-processing uses, including cosmetic, pharmaceutical, or chemical preparations, require prior review of product compatibility, contact materials, seals, cleaning needs, and process requirements; one configuration is not suitable for every formula.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50, 100, 200, 300, 500, or 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional mixer; configuration depends on product |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to process requirements |
Configuration and Ordering
Wenzhou Ace Machinery supplies factory-direct equipment and customizes configurations around batch size, product behavior, heat source, mixing needs, and discharge method. For a useful quotation, share the product description, target batch volume, preferred heating method, required agitation, and whether tilting is needed. Also describe the production workflow and receiving vessel so our team can review a suitable arrangement.
Frequently Asked Questions
Can every capacity use every heating method? No. Heating options depend on the selected model and requirements.
Is a mixer included? It is optional; the arrangement depends on the product and model.
Can the kettle tilt? Tilting is available on applicable models, with manual or hydraulic operation as configured.
Which stainless steel should I specify? SUS304 and SUS316L are available; product and cleaning conditions help guide selection.
What details help with sizing? Provide batch volume, product characteristics, heat source, mixing needs, and discharge requirements.
Contact Wenzhou Ace Machinery with these production details to discuss a kettle configuration for your process.
