Wenzhou Ace Machinery jacketed cooking kettles are available in 50L to 1000L capacities, with SUS304 or SUS316L stainless steel options. Select from electric, steam, gas, or thermal oil heating, subject to model compatibility. Fixed and tilting designs, agitators, temperature control, insulation, and other custom features can be discussed to match your product and batch process.

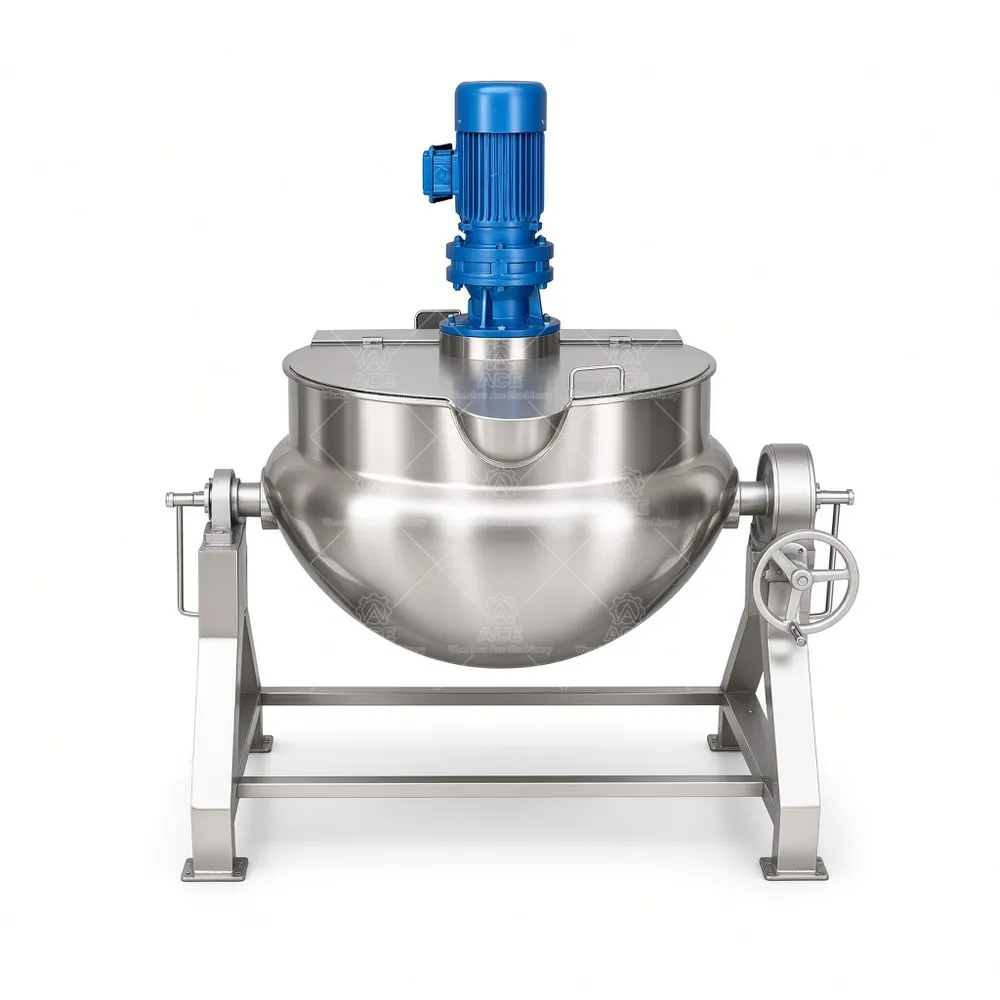

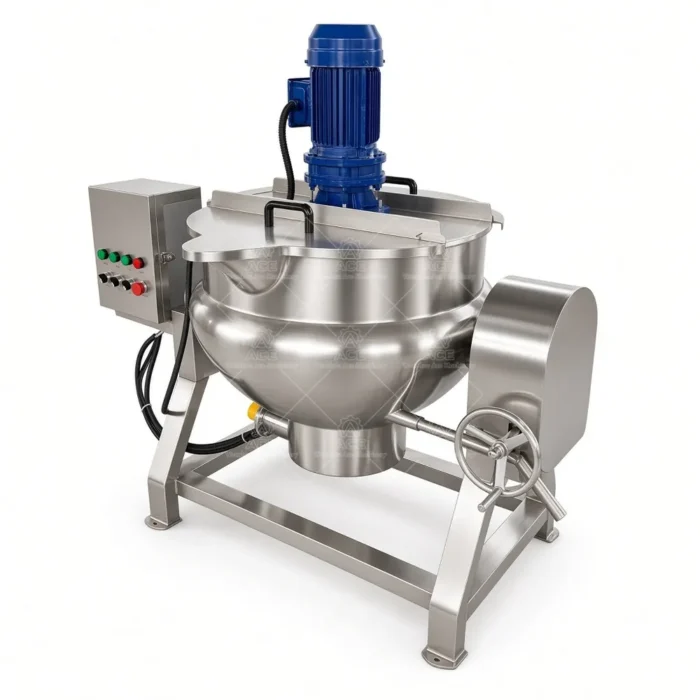

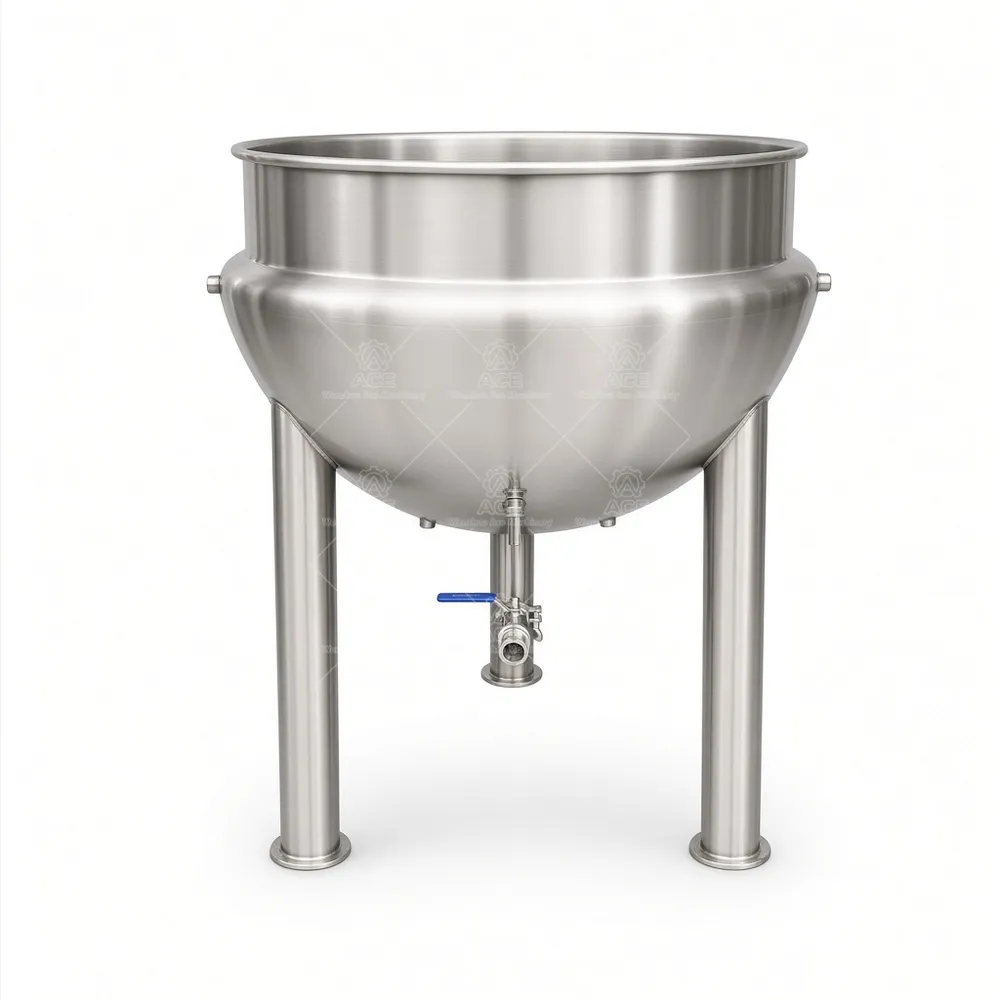

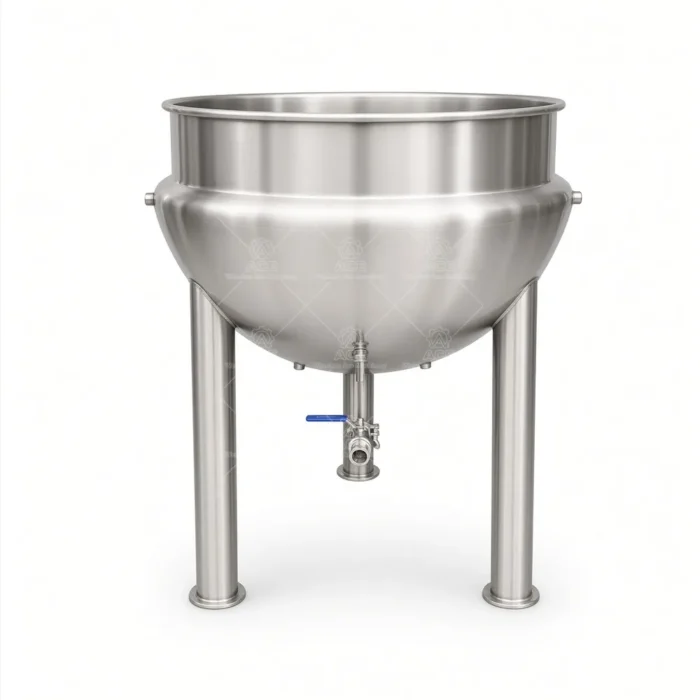

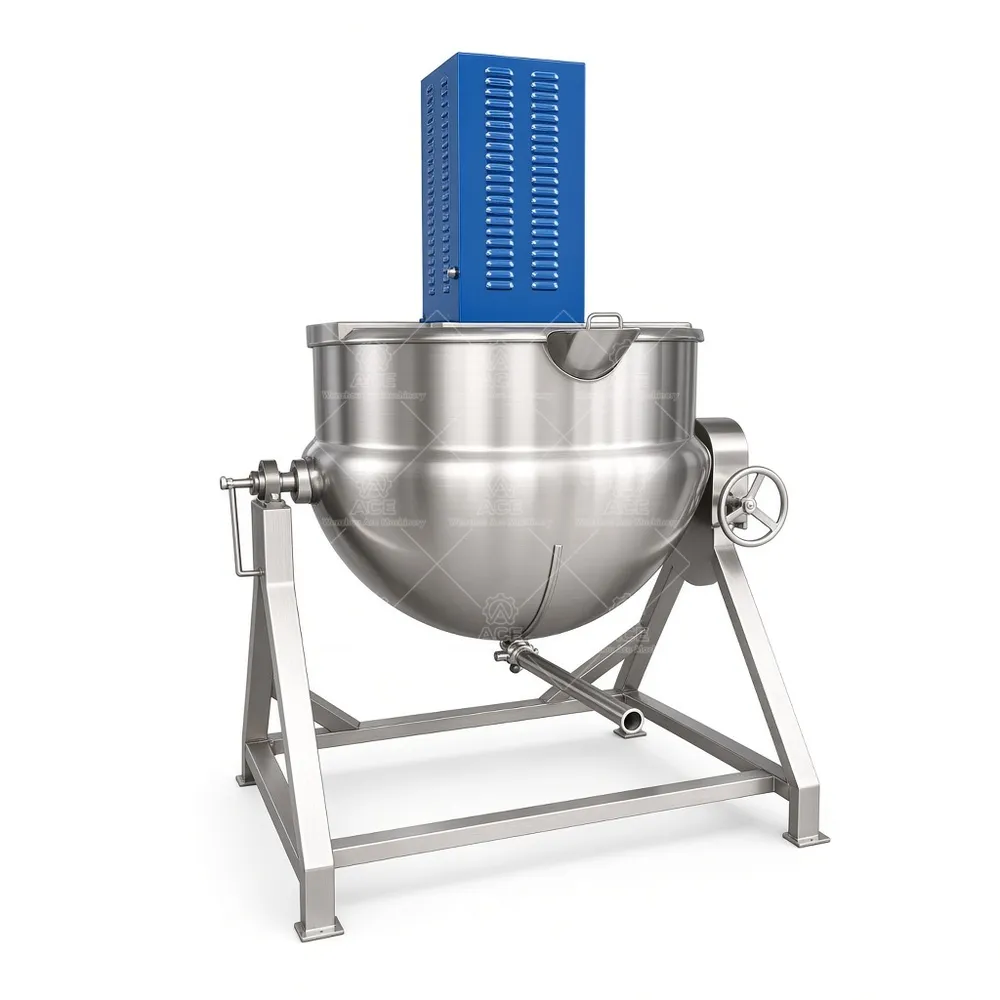

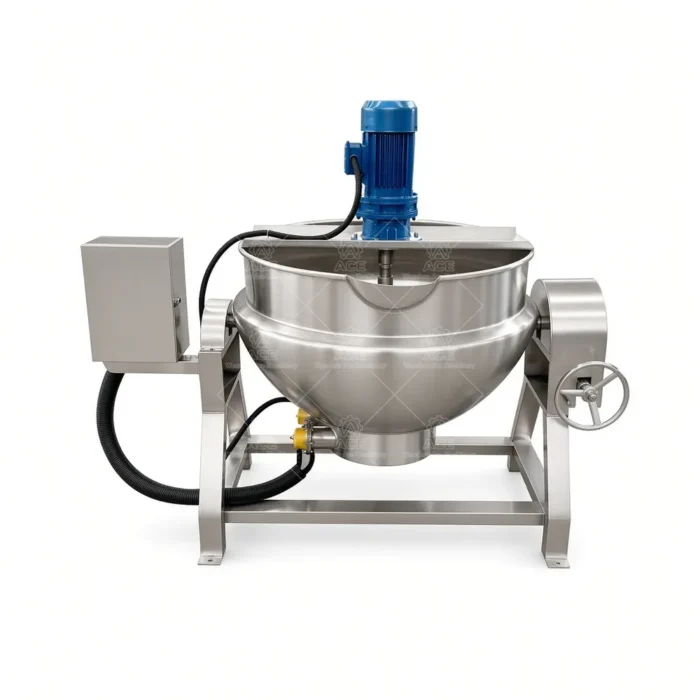

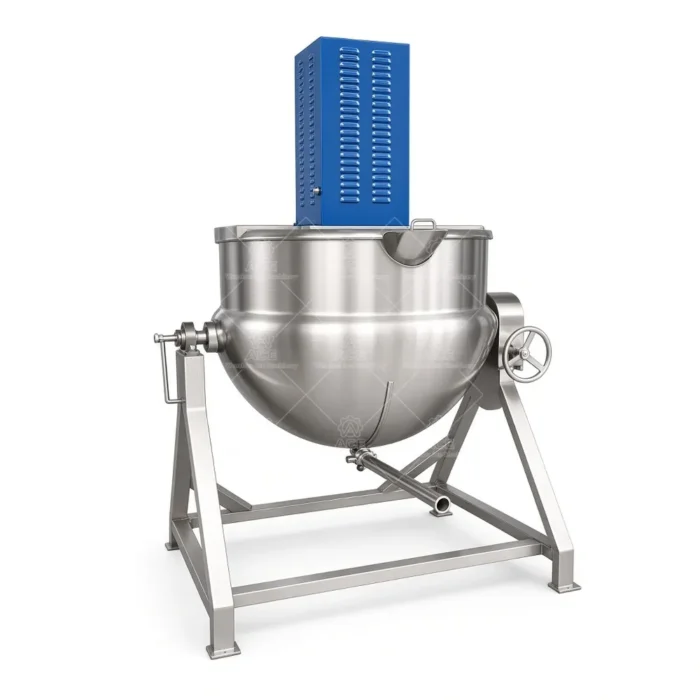

Industrial Jacketed Cooking Kettle, 50–1000L
价格范围：$1,876.09 至 $1,994.66
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Heating a thick sauce or fruit filling in a direct-fired pot can create hot spots and product sticking. Our jacketed kettle heats the vessel through an outer jacket, transferring heat indirectly to the batch. This approach suits cooking and mixing operations where operators need to manage heat input while processing products such as gravy, jam, soup, or dairy mixtures. Actual results depend on the recipe, batch size, heat source, and operating method.
Configuration for Your Process
Wenzhou Ace Machinery manufactures kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, in SUS304 or SUS316L stainless steel. Available heating options include electric, steam, gas, and thermal oil; compatibility varies by model. A kettle can be fixed or tilting, depending on the selected design. Where tilting is available, operation may be manual or hydraulic. An agitator, temperature control, variable-speed drive, insulation, control panel, and other custom features may be considered subject to model compatibility.
For example, a sauce containing particulates may call for a different agitation arrangement than a smooth syrup. Batch volume, viscosity, solids, heating supply, loading method, and how the cooked product will be discharged all affect selection. Stainless steel grade should also be discussed in relation to ingredients and cleaning conditions. Confirm the intended cleaning method and product contact requirements during inquiry.
Applications
Typical food uses include sauces, dressings, gravy, jams, fruit fillings, soups, stock, syrups, confectionery mixtures, dairy blends, and other compatible foods. Production requirements differ: fruit preparations may contain pieces, while dairy mixtures can need careful control of agitation and heating. Other possible sectors include cosmetics, personal care, pharmaceutical processing, and chemical manufacturing, subject to process suitability and confirmation of material and seal compatibility. One standard configuration is not appropriate for every formula.
Technical Specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting operation | Manual or hydraulic, where applicable |
| Agitation and temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
FAQ
Can every capacity use every heat source? No. Confirm availability for the selected model.
How do I choose capacity? Share your target batch size and normal working volume.
Can the kettle tilt? Tilting is model dependent; manual or hydraulic operation may be available.
Is an agitator included? It is an optional feature, subject to compatibility.
What should I include in a quotation request? Provide product details, batch size, heat source, agitation needs, and discharge requirements. Contact Wenzhou Ace Machinery to discuss a factory-direct configuration for your process.
