This 300L steam-heated jacketed kettle with agitator is intended for batch cooking applications such as mashed potatoes, sauces, soups, and fillings. Wenzhou Ace Machinery offers multiple capacities, stainless steel options, heating methods, and fixed or tilting configurations, depending on model compatibility. Share your recipe, batch volume, heating preference, mixing requirements, and discharge method to discuss a suitable specification.

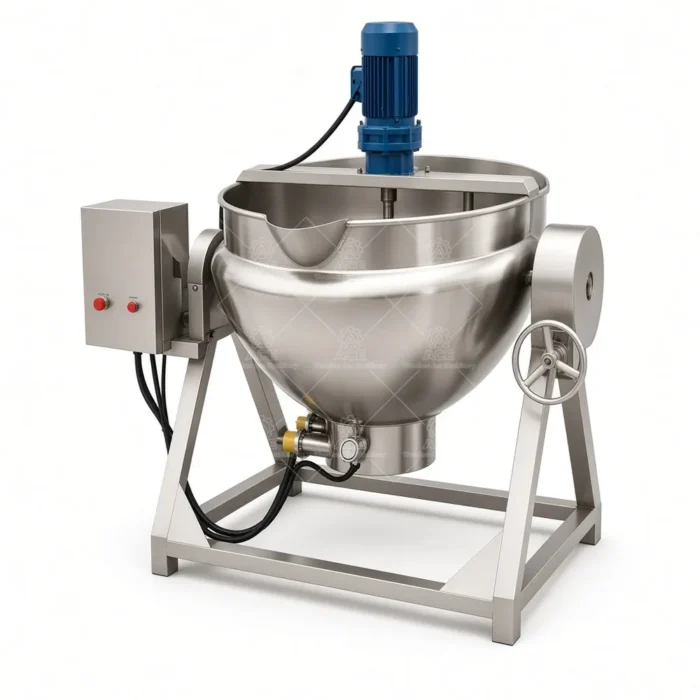

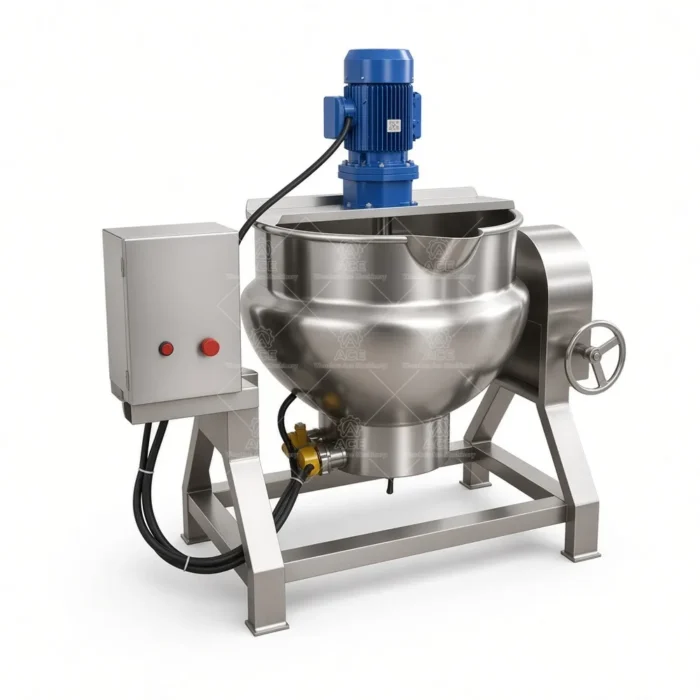

300L Steam-Heated Jacketed Kettle with Agitator for Mashed Potatoes
价格范围：$2,209.33 至 $2,427.17
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Steam-Heated Kettle for Mashed Potato Production
Cooking mashed potatoes in a batch kettle calls for controlled heating and mixing that suit the recipe, batch size, and discharge method. Wenzhou Ace Machinery manufactures jacketed kettles with an agitator option for food processors and commercial kitchens. The 300L steam-heated arrangement can be discussed for potato cooking; final compatibility and configuration should be confirmed against the intended process.
How the Jacket Works
Steam heats the space between the product vessel and its outer jacket. Heat passes indirectly through the kettle wall rather than coming from direct contact with a burner. This arrangement supports cooking and heating while the agitator moves the batch. Agitator design and operating settings should match the product: potato pieces, for example, have different mixing needs from a smooth sauce. Appropriate cleaning access and routine inspection of product-contact surfaces and seals should also be considered.
Applications and Configuration
Typical food applications include sauces and gravy, jam and fruit fillings, soups, syrup, dairy mixtures, fillings, and confectionery masses. Mashed potato processing requires discussion of batch volume, ingredient loading, desired texture, and how the cooked product will be removed. The same standard arrangement should not be assumed suitable for every recipe.
Kettles are available in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, in SUS304 or SUS316L stainless steel. Heating options include electric, steam, gas, or thermal oil, subject to model compatibility. Fixed and tilting bodies are available by model; tilting operation may be manual or hydraulic where applicable. Temperature control, variable-speed drive, insulation, control panel, and other custom configurations can be discussed. Cosmetics, pharmaceutical, or chemical use requires a separate review of product compatibility, materials, and seals.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel / tilt | Fixed or tilting by model; manual or hydraulic tilt where applicable |
| Agitator / temperature control | Optional; configuration dependent |
| Customization | Available based on product and process requirements |
FAQs
Can the 300L kettle be supplied with steam heating and an agitator? This arrangement can be reviewed; confirm the compatible model and process details with us.
How do I select capacity? Share normal and maximum batch volumes, including ingredient loading and headspace needs.
Is the kettle tilting? Fixed or tilting construction depends on the selected model; specify your discharge method.
Which steel should I request? SUS304 and SUS316L are available; provide product and cleaning conditions for material review.
What details help with a quotation? Send product type, batch size, heat source, mixing needs, and tilt or discharge requirements. Contact Wenzhou Ace Machinery for factory-direct configuration support.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
