This 100L electric jacketed cooking kettle is designed for batch heating and mixing in food production. The product range includes 50L to 1000L capacities, with SUS304 or SUS316L stainless steel and optional agitation, temperature control, insulation, and tilting on compatible models. Share your product, batch size, heating preference, and handling requirements to discuss a configuration suited to your process.
100L 304 Stainless Steel Electric Tilting Jacketed Cooking Kettle
Price range: $2,236.47 through $2,418.30
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

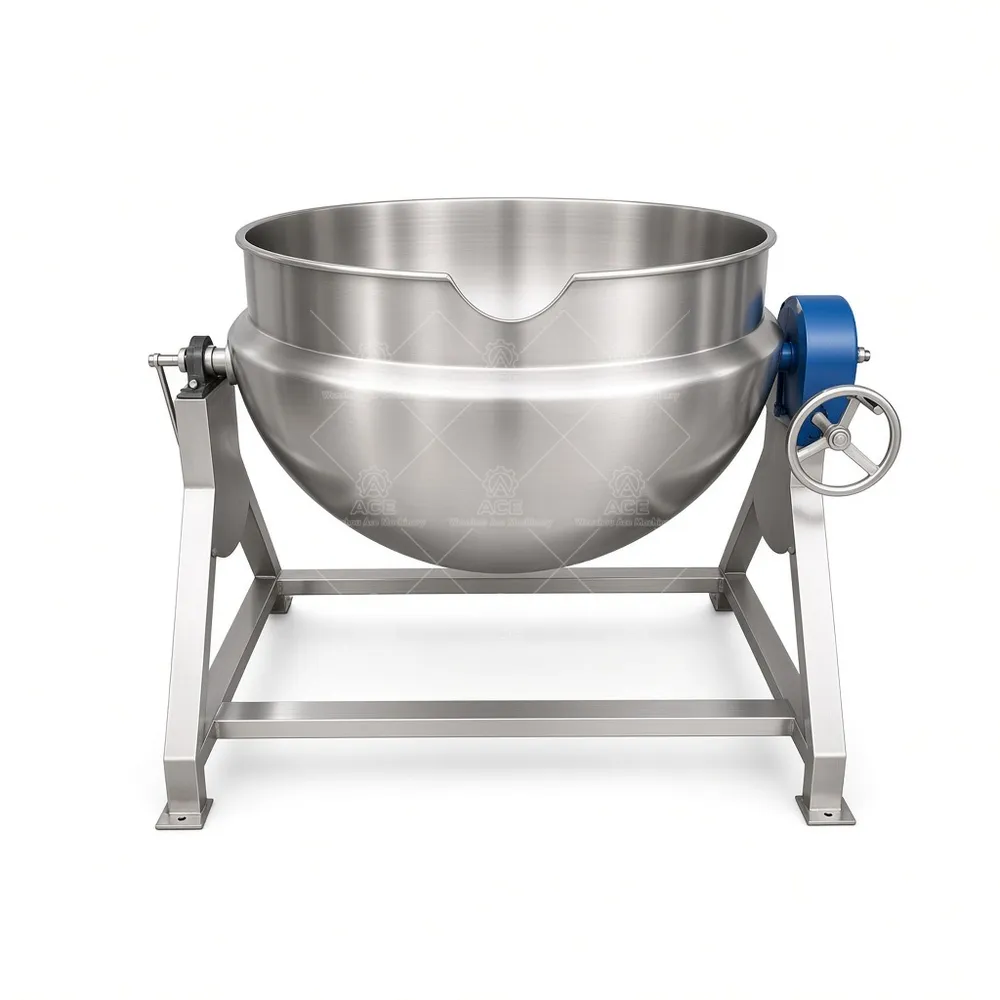

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products

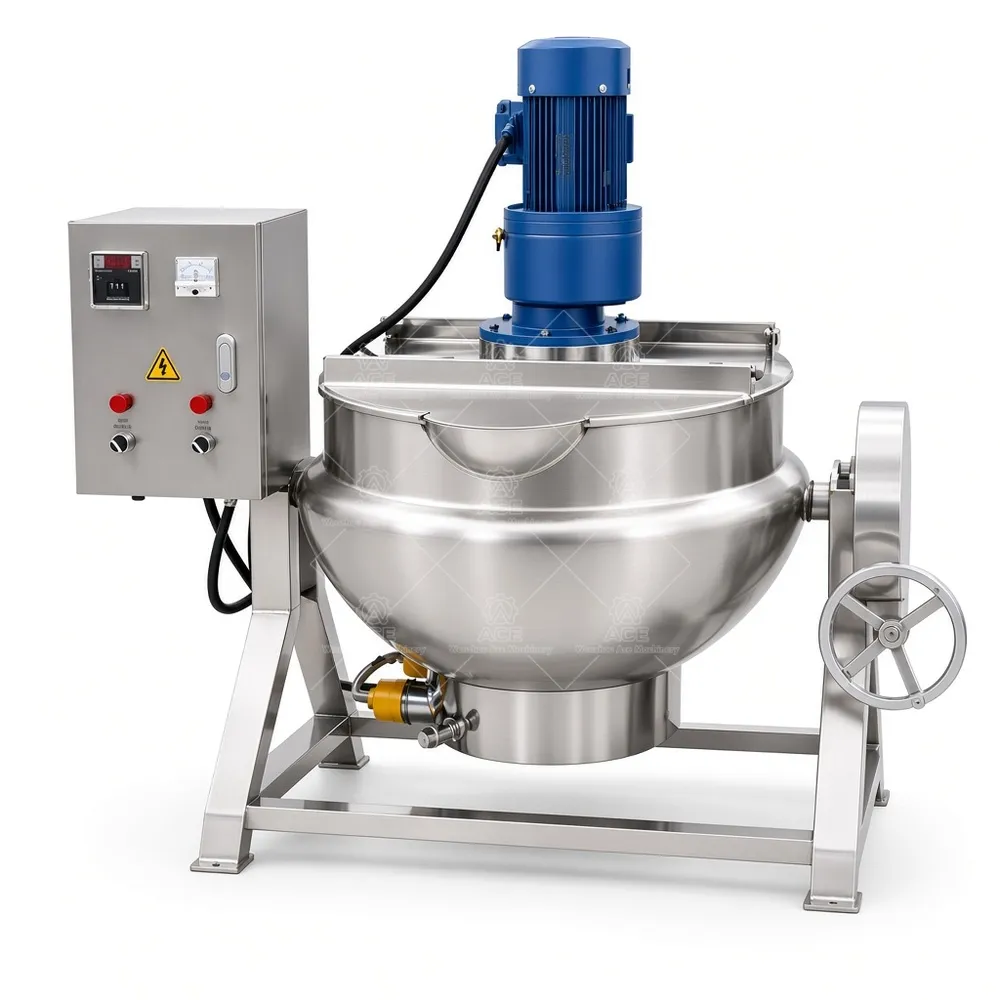

Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
100L Electric Jacketed Cooking Kettle
Heating a thick sauce evenly while limiting scorching depends on more than the heat source. The vessel, batch size, agitation, and product behavior all matter. Wenzhou Ace Machinery manufactures jacketed cooking kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, with final equipment configuration selected to suit the process.
Heat is applied through the jacket surrounding the product vessel, so the heating medium does not contact the batch directly. Depending on the model and project, heating can be electric, steam, gas, or thermal oil. Indirect heating supports controlled cooking for products such as sauces and fruit fillings. An optional agitator can help move the batch during heating; its type and drive arrangement should be matched to viscosity and mixing needs. Fixed and tilting designs are available on applicable models, with manual or hydraulic tilting where supported.
Features and production considerations
- Material choices: SUS304 or SUS316L stainless steel, selected with product composition, cleaning practices, and site requirements in mind.
- Heating options: Electric, steam, gas, or thermal oil, subject to model compatibility and available plant utilities.
- Process controls: Temperature control, variable-speed drive, insulation, and a control panel can be considered where compatible.
- Batch handling: A tilting vessel may assist discharge, while a fixed kettle may better suit a stationary production layout. Confirm the intended transfer method during inquiry.
Typical applications
Food applications include sauces and gravy, jam and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy blends, and other suitable products. Viscosity, solids content, batch size, and required agitation affect the recommended setup. The kettle may also be considered for compatible cosmetic, personal-care, pharmaceutical, or chemical processing, but material, seal, and process suitability must be reviewed for each formulation.
Technical specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic where applicable |
| Agitation | Optional; type depends on product and configuration |
| Temperature control | Optional, subject to configuration |
| Customization | Available according to process requirements |
FAQ
Can every capacity use every heating method? No. Availability depends on the selected model and project requirements.
How should we choose capacity? Share your target batch size, working volume, and production frequency for review.
Is an agitator included? It is an optional feature; describe product viscosity and mixing needs.
Which steel grade should we specify? Provide product and cleaning details so material suitability can be assessed.
What details help with a quotation? Send capacity, product, preferred heat source, utility conditions, agitation, tilting, and discharge requirements.
Discuss your kettle configuration
As a factory-direct manufacturer, Wenzhou Ace Machinery can review customization options around your product, batch scale, heat source, mixing duty, and production flow. Send these details with your inquiry so our team can recommend a suitable configuration.
