Process sauces, soups, gravies, and other batch products with a jacketed kettle configured for your production needs. Available in 50L to 1000L capacities, with SUS304 or SUS316L construction and model-dependent electric, steam, gas, or thermal oil heating. Fixed or tilting designs and optional controls or agitation can be reviewed for your process.

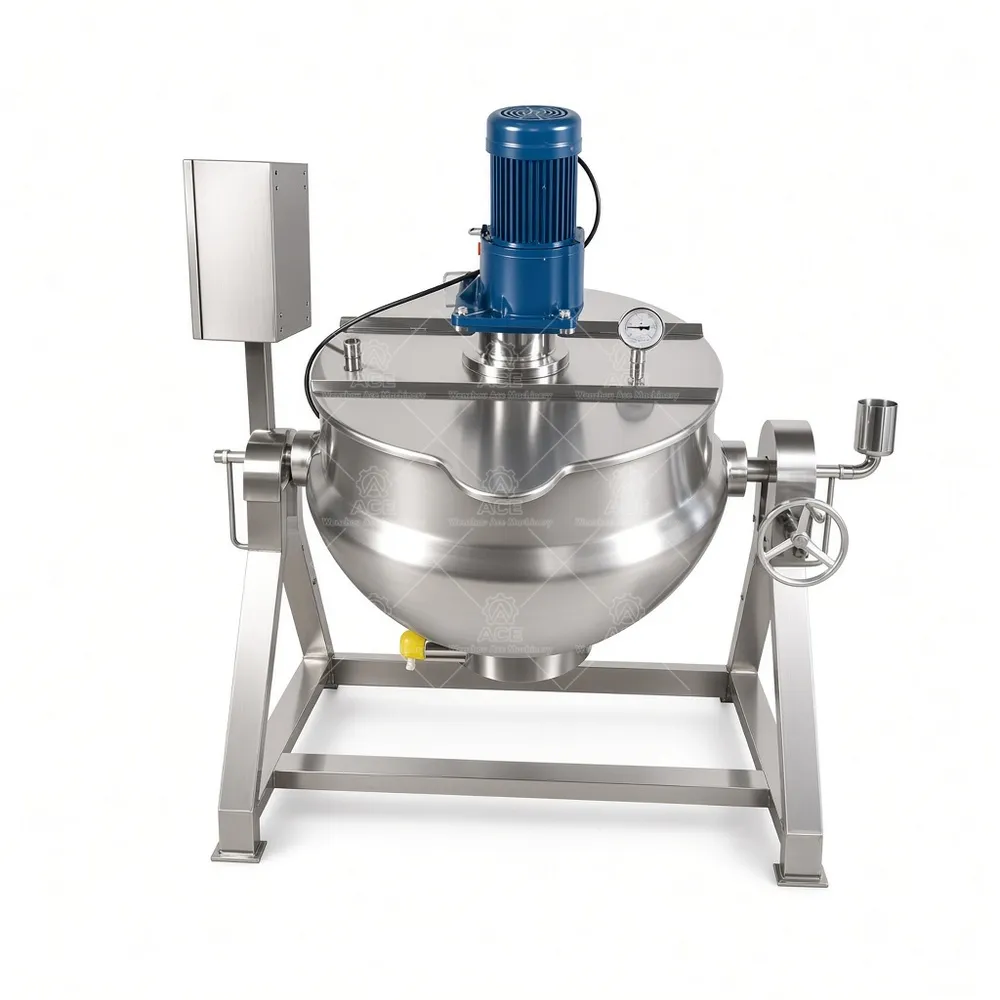

Industrial Tilting Jacketed Kettle for Sauce, Soup & Food Processing
价格范围：$1,902.04 至 $2,080.07
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettles for Controlled Batch Cooking
Batch size, product thickness, heat source, and discharge method all affect kettle selection. At Wenzhou Ace Machinery, we configure jacketed kettles around those production details rather than assume one setup suits every recipe.
Heating is applied through the kettle jacket, transferring heat indirectly to the product instead of heating it directly from the outside surface. This arrangement supports batch cooking for sauces, soups, fillings, and similar foods. A fixed or tilting vessel can be selected by model; a tilting unit may use manual or hydraulic operation when compatible. Tilting can help operators empty a batch, while the required outlet and handling method should be confirmed during configuration.
Configuration and Production Use
Available capacities are 50L, 100L, 200L, 300L, 500L, and 1000L. Heating options include electric, steam, gas, or thermal oil, depending on the selected model. SUS304 and SUS316L are available; the appropriate grade depends on the product and cleaning conditions. An agitator, temperature control, variable-speed drive, insulation, and control panel may be available according to model compatibility. Agitation can help manage products that need mixing during cooking, but the impeller and drive requirements depend on viscosity and batch behavior.
Typical food applications include sauce and gravy production, fruit jam and filling preparation, soups and stocks, syrups, confectionery mixtures, dairy blends, and other foods. Creams, lotions, shampoos, liquid detergents, pharmaceutical liquids, and compatible chemical formulations require separate review of product compatibility, materials, and seals. A food-oriented configuration should not be assumed suitable for every non-food process.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration dependent |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to process requirements |
Common Questions
How do I select capacity? Share the target batch size and whether the vessel must accommodate mixing or headspace needs.
Are all heating methods available at every size? No. Availability depends on the kettle model and requested configuration.
Is an agitator included? It is optional. Provide product viscosity and mixing needs for review.
What should I send for a quotation? Include product, batch volume, preferred heat source, material preference, and discharge or tilting requirements.
Can the kettle be customized? Yes. Our factory-direct team reviews the product, batch scale, heating, agitation, and workflow before recommending a configuration.
Request a Configuration Review
Contact Wenzhou Ace Machinery with your required capacity, product, preferred heating method, and agitation or tilting needs. These details help our engineers assess a suitable kettle configuration.
