This 200L jacketed cooking kettle with agitator is designed for garri processing and other batch food applications. Choose from electric, steam, gas, or thermal oil heating, with SUS304 or SUS316L stainless steel options. Fixed or tilting construction and optional controls depend on the selected model. Wenzhou Ace Machinery can review your product, batch size, heating source, mixing needs, and discharge requirements for a suitable configuration.

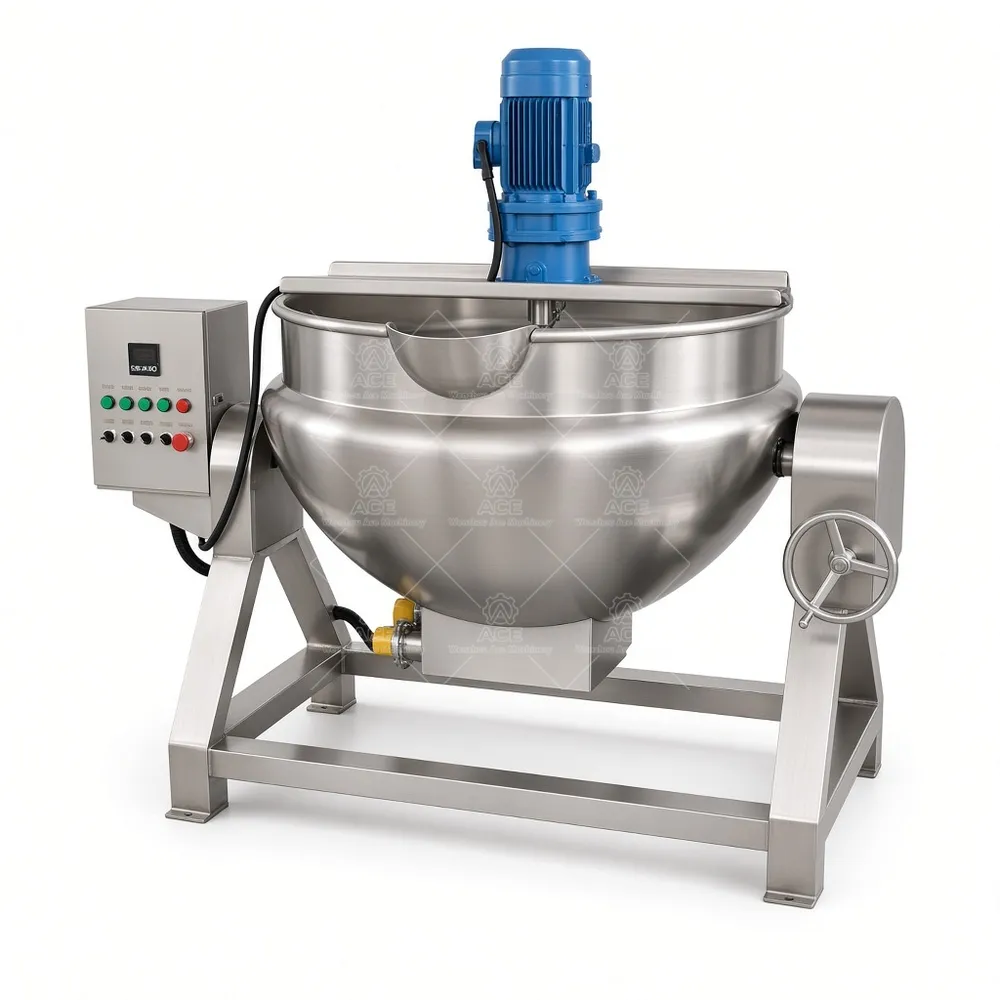

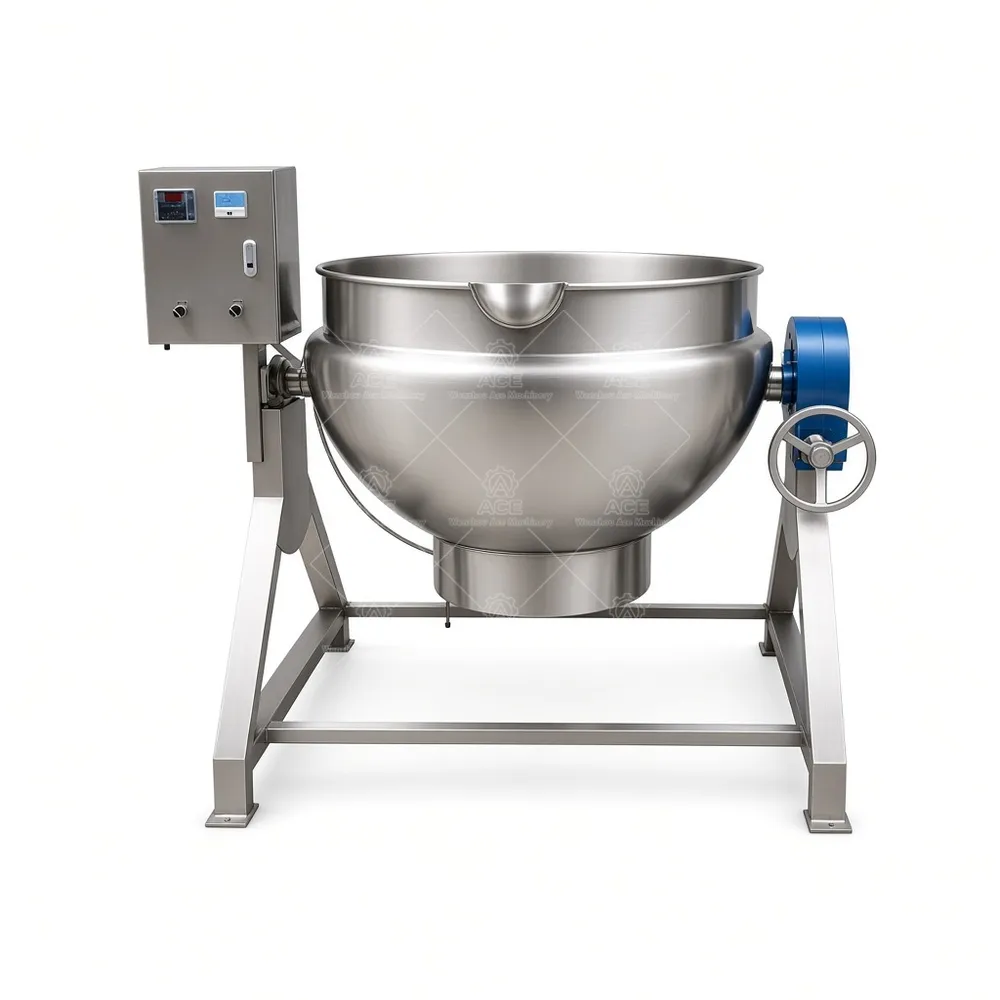

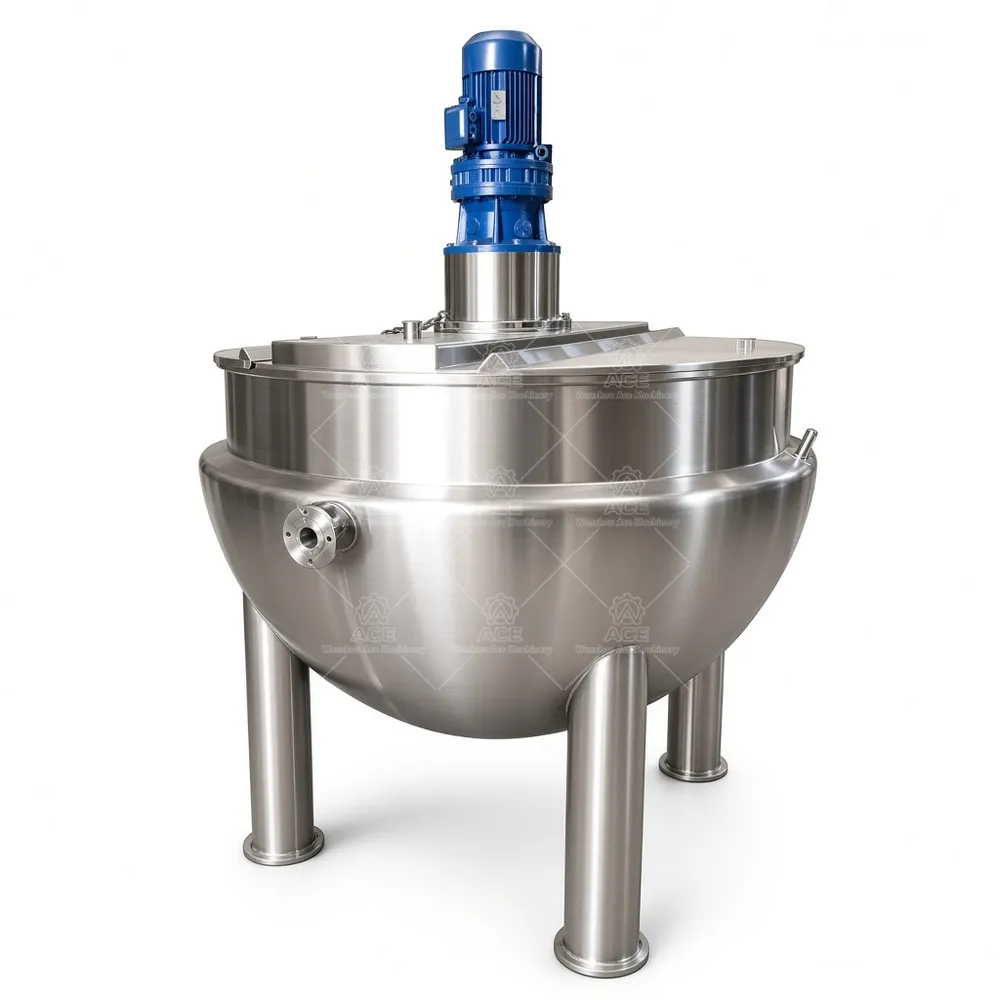

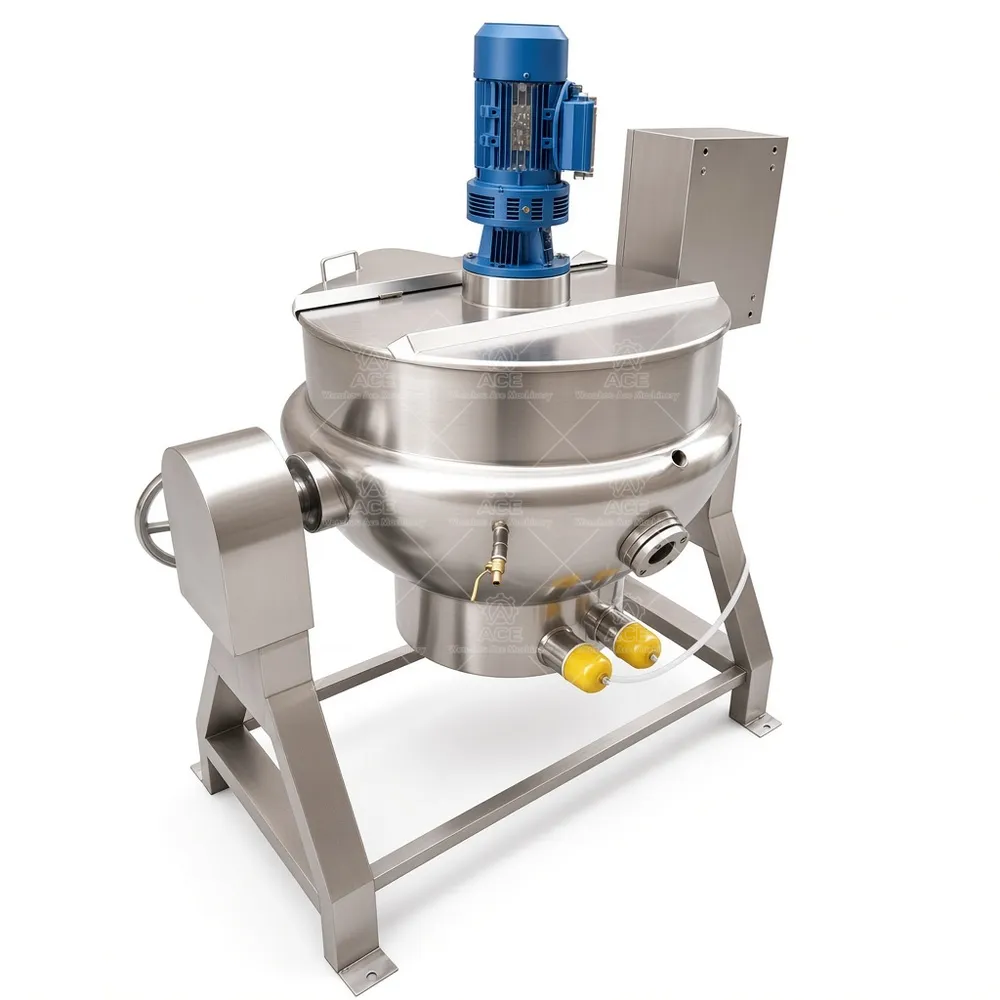

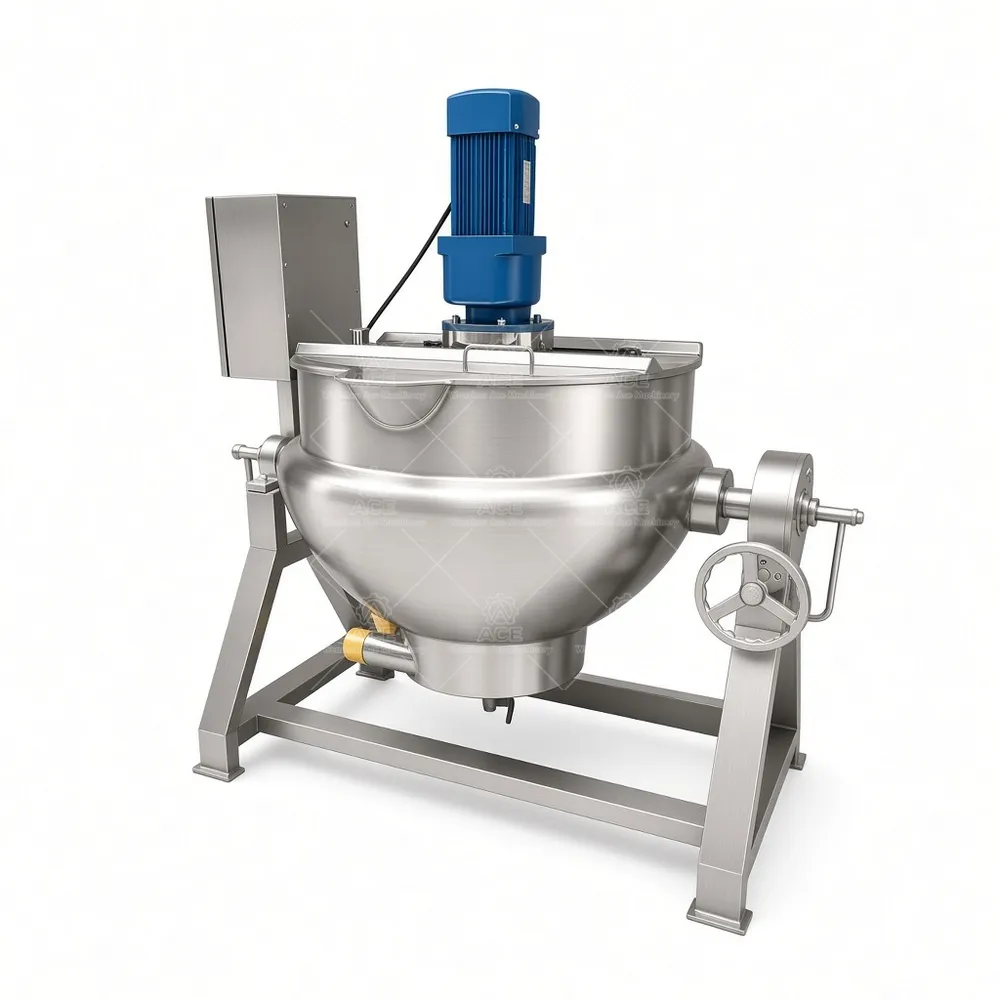

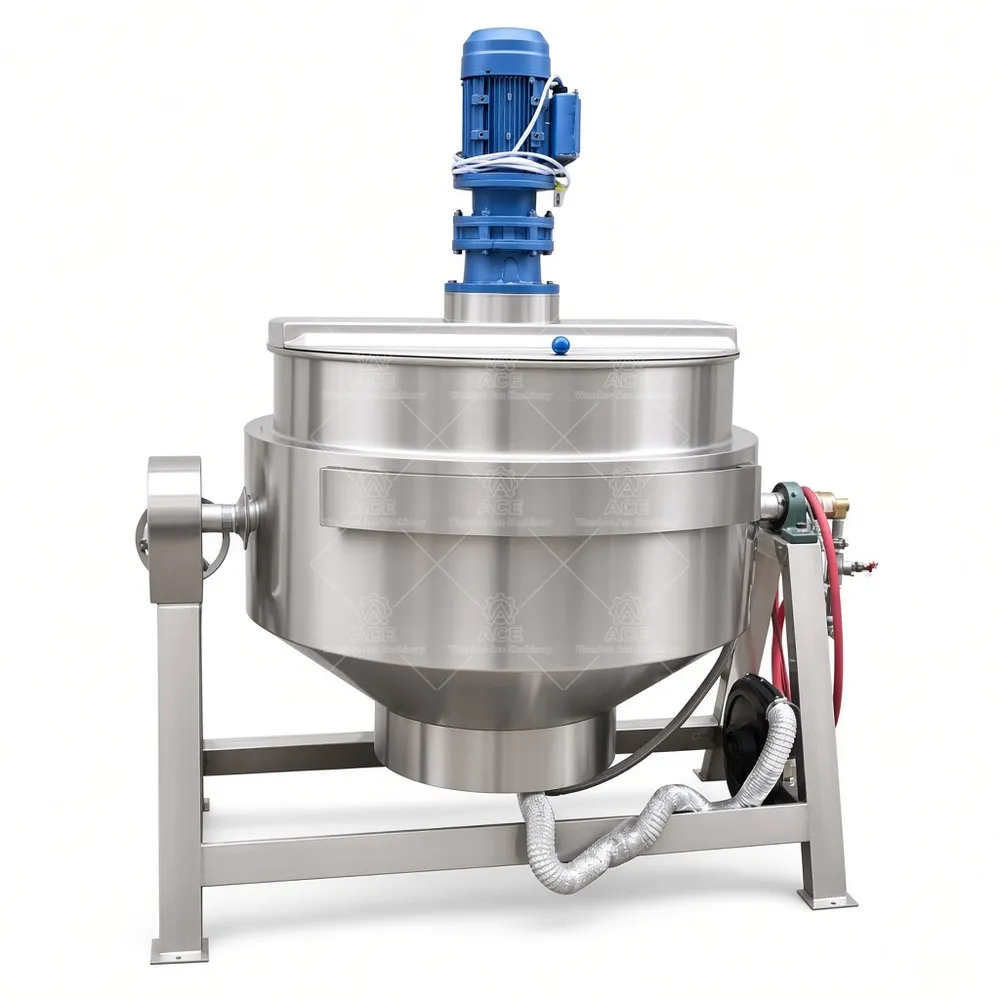

200L Jacketed Cooking Kettle with Agitator for Garri Processing
价格范围：$2,200.38 至 $2,394.67
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

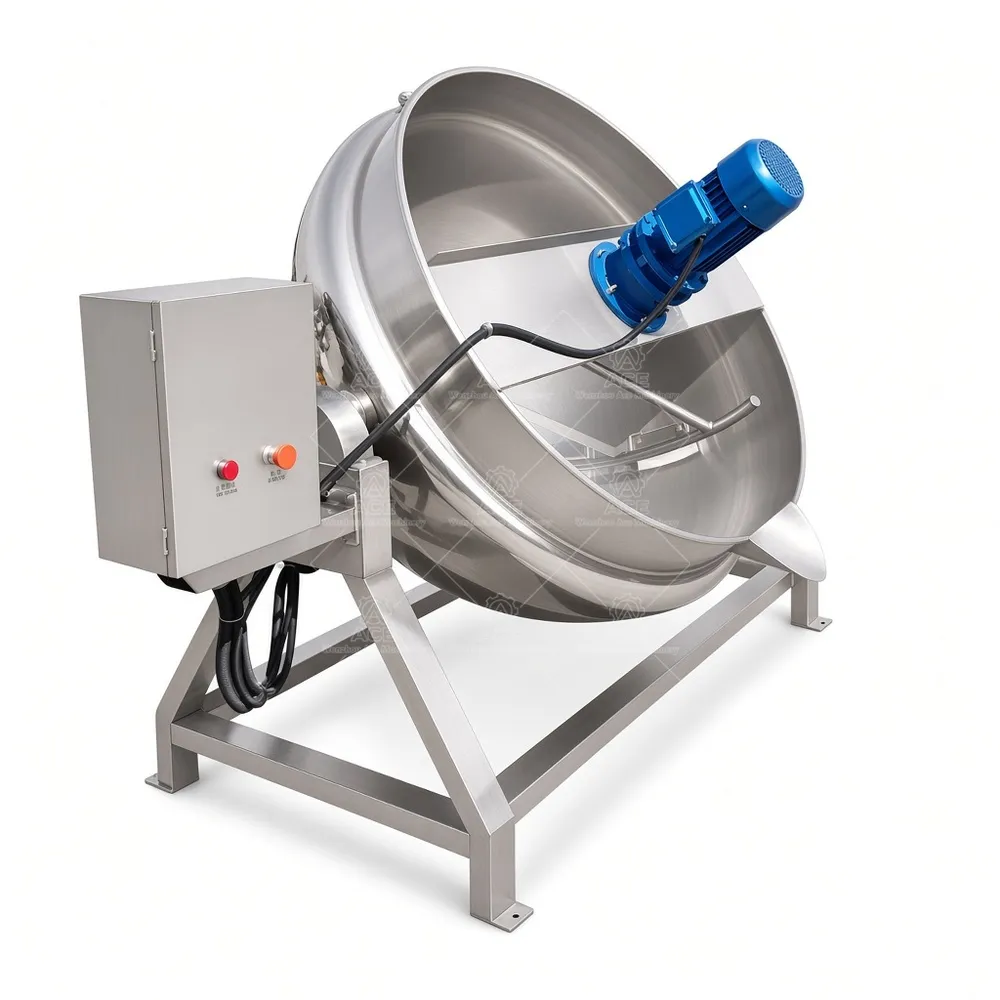

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Controlled Batch Production
Choosing a kettle involves more than matching batch volume. Product thickness, heating source, agitation needs, and how the finished batch is discharged all affect the workable configuration. This 200L industrial jacketed cooking kettle is designed for batch processing, including garri production. Wenzhou Ace Machinery also manufactures models in 50L, 100L, 300L, 500L, and 1000L capacities.
Heat is applied through the jacket rather than directly to the product-contact surface. The selected heating medium transfers heat through the kettle wall, supporting indirect product heating. An optional agitator can help move the batch during processing; the suitable design depends on the product’s viscosity and handling requirements. For garri or other thick mixtures, discuss the material’s behavior during heating and mixing before selecting the drive and kettle arrangement.
Configuration for Daily Production
- Heating: Electric, steam, gas, or thermal oil, subject to model compatibility and site utilities.
- Vessel: Fixed or tilting construction, depending on the selected model. Manual or hydraulic tilting may be available where applicable.
- Options: Agitator, temperature control, variable-speed drive, insulation, control panel, and other custom features, subject to compatibility.
- Materials: SUS304 or SUS316L stainless steel. Material selection should consider the product and cleaning conditions.
These kettles can also be considered for sauces, gravies, jams, fruit fillings, soups, stocks, syrups, confectionery mixtures, dairy blends, and other compatible foods. Creams, lotions, detergents, pharmaceutical liquids, or chemical dispersions require separate review of process suitability, materials, seals, and cleaning requirements. One configuration should not be assumed suitable for every formulation.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel / tilt | Fixed or tilting; manual or hydraulic tilt where applicable |
| Agitation / temperature control | Optional; details depend on configuration |
| Customization | Available according to product and process requirements |
FAQs
Can every capacity use every heat source? No. Availability depends on the model and requested configuration.
Is an agitator included? It is an optional feature; share product viscosity and mixing needs.
Can the kettle tilt? Tilting options depend on the selected model.
Which steel should I specify? SUS304 and SUS316L are available; confirm suitability for your product and cleaning routine.
What details help with a quotation? Provide batch size, product, heat source, agitation, discharge, and site requirements.
Request a Configuration Review
Contact Wenzhou Ace Machinery with your required capacity, product, preferred heating method, and agitation or tilting requirements. Our factory team can review the process and discuss a suitable customized configuration.
