Configure a jacketed kettle for batch cooking, heating, and mixing requirements across food processing and other compatible applications. Available capacities range from 50 L to 1,000 L, with SUS304 or SUS316L stainless steel and model-dependent electric, steam, gas, or thermal oil heating. Contact Wenzhou Ace Machinery to discuss agitation, tilting, temperature control, and customization.

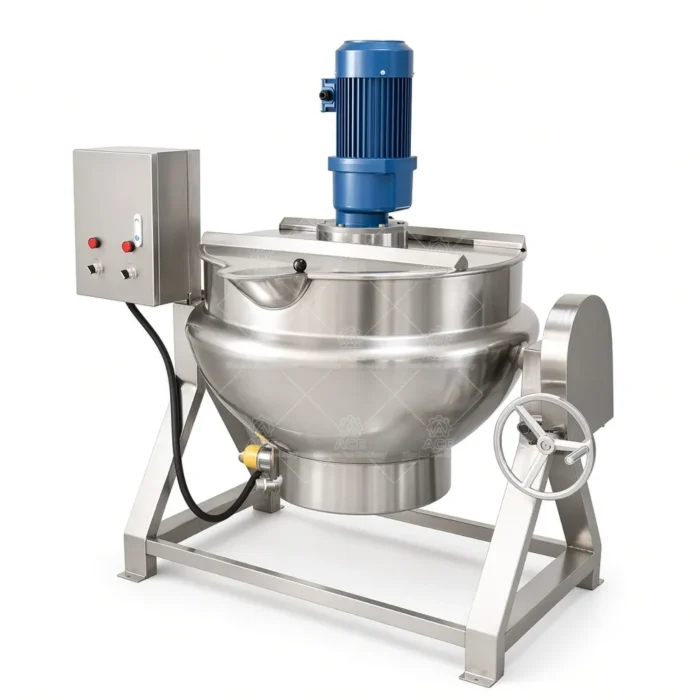

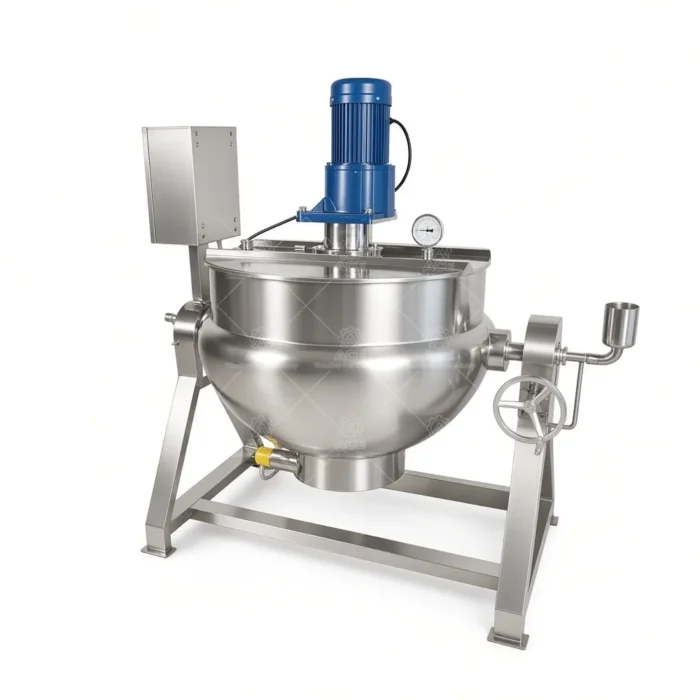

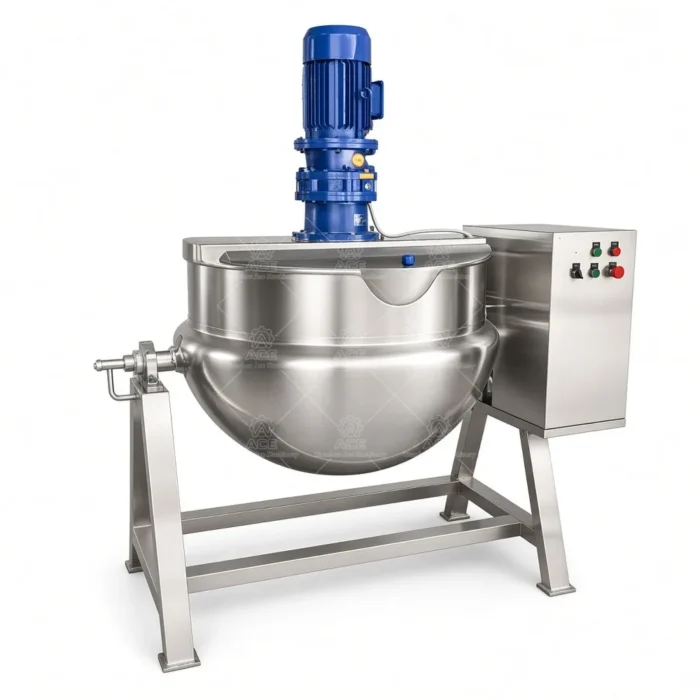

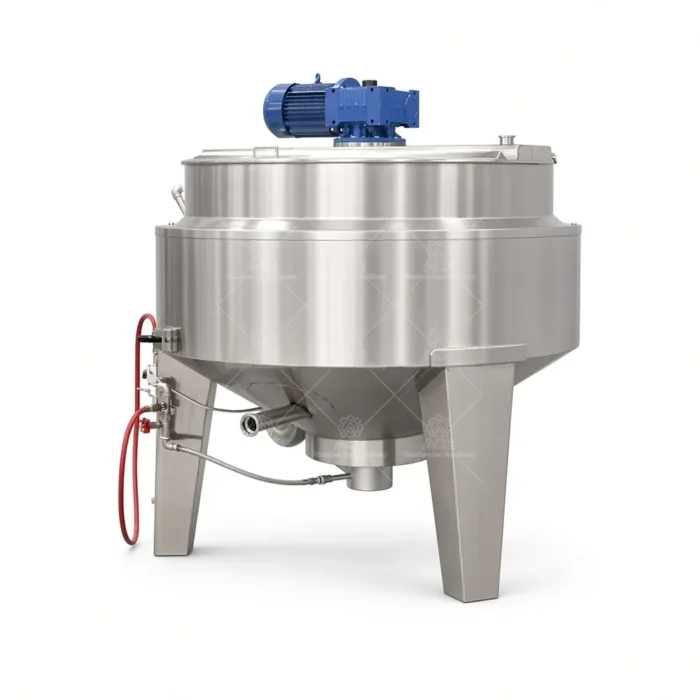

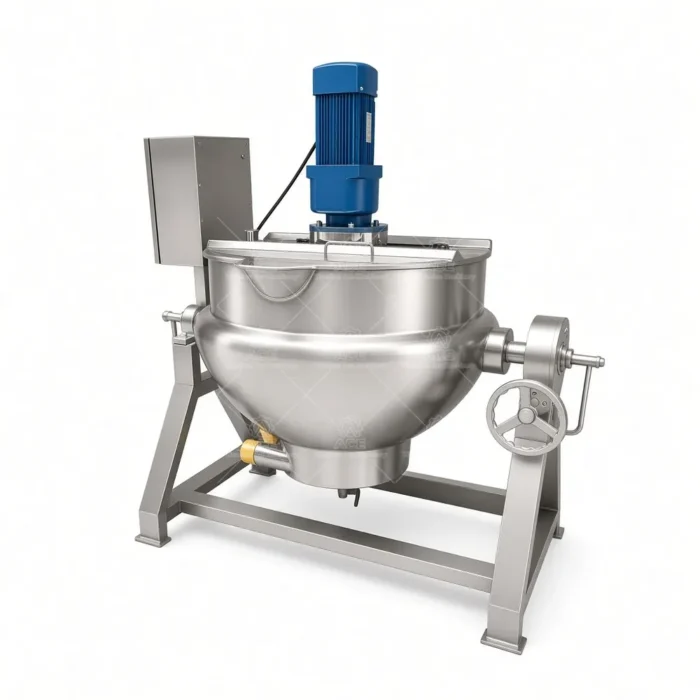

Industrial Jacketed Kettle with Electric Heating and Agitator
价格范围：$1,835.47 至 $1,979.00
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Batch kettles must match the product’s heating needs, batch size, and discharge process. A thick sauce may need agitation during cooking, while fruit filling or syrup may call for a different heating source and operating setup. At Wenzhou Ace Machinery, we configure jacketed kettles around these production conditions rather than assume one arrangement suits every recipe.
The selected heating medium warms the kettle through its jacket, transferring heat indirectly to the product. This avoids direct contact between the heat source and the batch. An optional agitator can help move product through the vessel during processing; temperature control and a variable-speed drive may also be specified when compatible with the selected model. These options can support repeatable batch handling, but suitability depends on the product’s viscosity, solids, and process requirements.
Typical Applications
Common food uses include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, confectionery mixes, dairy mixtures, and fillings. A sauce containing particulates, for example, may require a different stirring arrangement from a smooth syrup. Kettles may also be considered for food and beverage ingredients, cosmetic creams or lotions, liquid detergents, and compatible pharmaceutical or chemical preparations. Confirm material and seal compatibility before using non-food formulations; one configuration is not suitable for every product.
Key Specifications
| Product | Jacketed kettle |
|---|---|
| Available capacity | 50 L, 100 L, 200 L, 300 L, 500 L, and 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; availability depends on model |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic where applicable |
| Agitation and controls | Optional agitator, temperature control, variable-speed drive, and control panel; compatibility varies |
| Customization | Insulation and other configurations available upon request |
Configuration and Ordering
We manufacture and supply directly from our factory, with customization based on product characteristics, batch size, heat source, mixing needs, and production flow. Share your target working batch, recipe type and viscosity, preferred heating method, discharge requirements, and whether a fixed or tilting vessel is needed. These details help our team assess a practical configuration. Final capacity, heating, tilting, and accessory combinations depend on the selected model.
FAQs
Can every capacity use every heating method? No. Heating options vary by model and requested configuration.
Is an agitator standard? It is optional; describe the product and mixing requirement.
Can the kettle tilt? Tilting is available on applicable models, with manual or hydraulic operation as appropriate.
Which steel should I request? SUS304 and SUS316L are available; discuss product and cleaning conditions with our team.
What should I include in an inquiry? Capacity, product, heating preference, agitation, and discharge needs.
Can it process non-food products? Potentially, subject to process, material, and seal compatibility.
Send Wenzhou Ace Machinery your batch details and preferred options to discuss a suitable kettle configuration.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
