Process tomato jam, curry paste, sauces, soups, and other batch products in a jacketed kettle configured for your production needs. Wenzhou Ace Machinery offers 50–1,000 L capacities, SUS304 or SUS316L stainless steel, and model-dependent electric, steam, gas, or thermal oil heating. Agitation, temperature control, insulation, and fixed or tilting vessel options can be reviewed for your application.
Industrial Jacketed Kettle for Tomato Jam, Curry Paste and Sauces
价格范围：$1,909.86 至 $2,069.52
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products

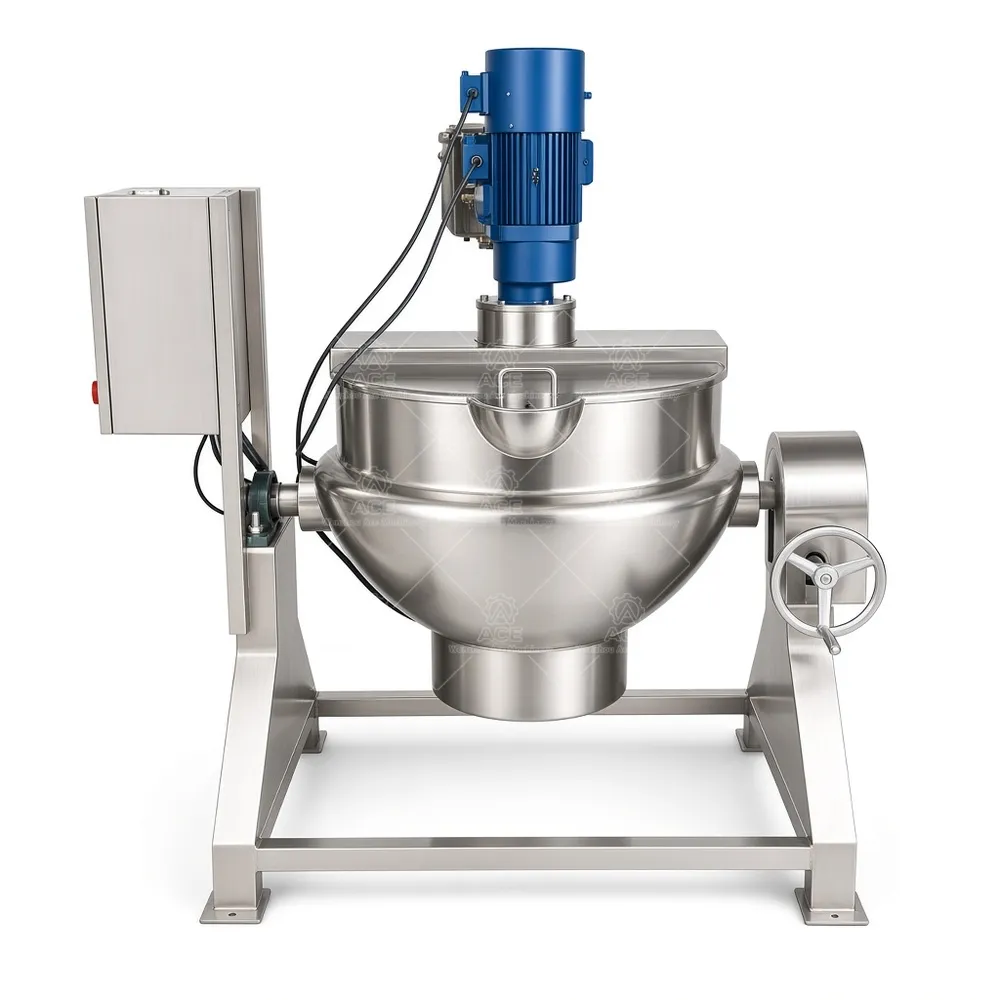

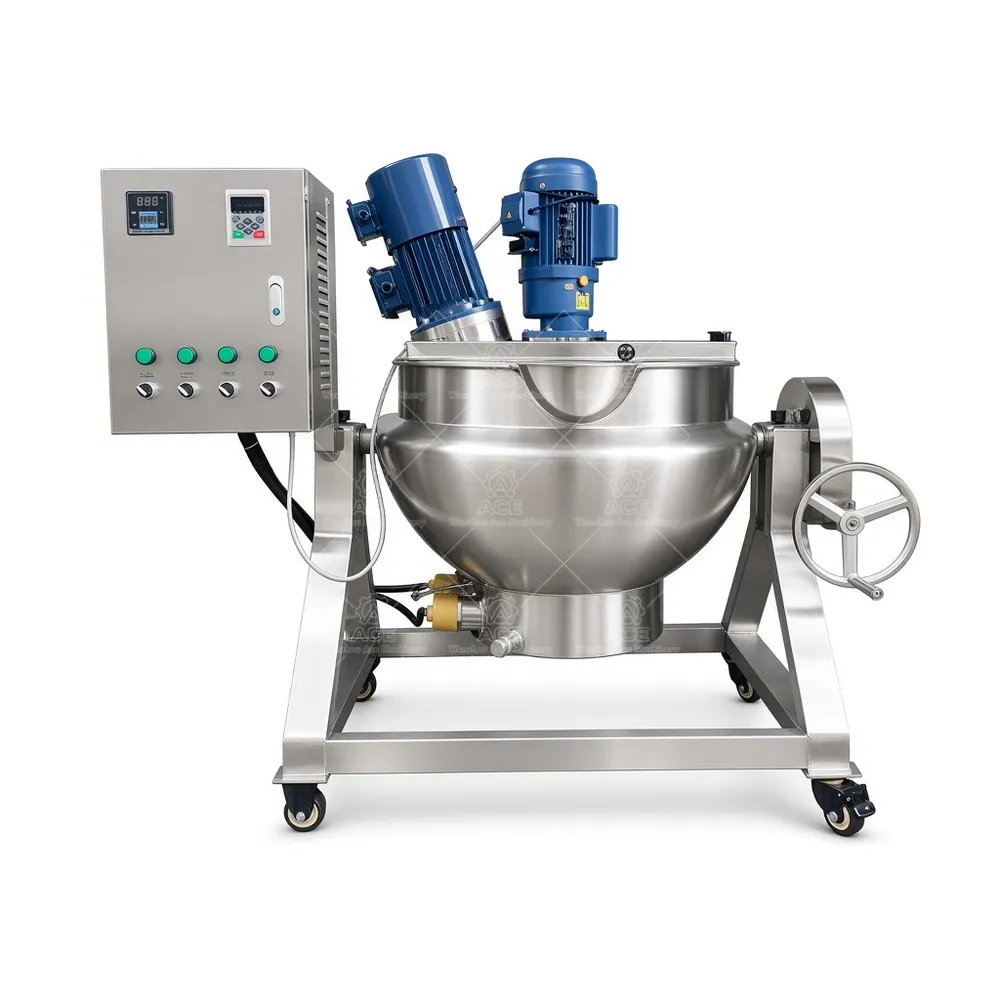

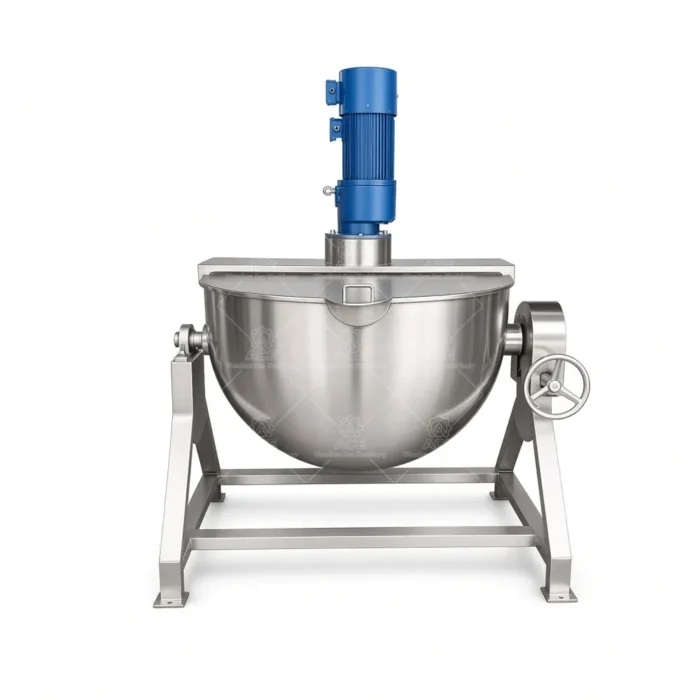

Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Tomato jam, curry paste, and sauces can scorch or cook unevenly when heat is applied too directly. Our jacketed kettle heats the product indirectly: a selected heat source warms the jacket surrounding the vessel, and heat transfers through the kettle wall into the batch. This arrangement supports batch cooking and reduces direct exposure to the burner or heating element. Actual heat behavior depends on the product, batch size, and selected configuration.
Wenzhou Ace Machinery manufactures kettles in 50, 100, 200, 300, 500, and 1,000 L capacities. Models may be fixed or tilting. Depending on the model, options include an agitator, temperature control, variable-speed drive, insulation, and a control panel. An agitator can help move thicker products during cooking; it is not a high-shear rotor-stator mixer, and suitability depends on the recipe and kettle design. Tilting can assist discharge where the selected model supports it. Confirm outlet and transfer requirements during quotation.
Applications and Configuration
Typical food batches include sauces and gravies, fruit jams and fillings, soups and stocks, syrups and confectionery mixtures, dairy blends, and other compatible foods. A thick filling may need different agitation and discharge arrangements than a thin soup. SUS304 or SUS316L stainless steel is available; discuss ingredients, cleaning chemicals, and process conditions to identify a suitable material. Cosmetic, pharmaceutical, or chemical use requires review of product compatibility, materials, seals, and process requirements. One configuration is not suitable for every formulation.
Technical Specifications
| Product | Jacketed kettle |
|---|---|
| Available capacity | 50, 100, 200, 300, 500, or 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |

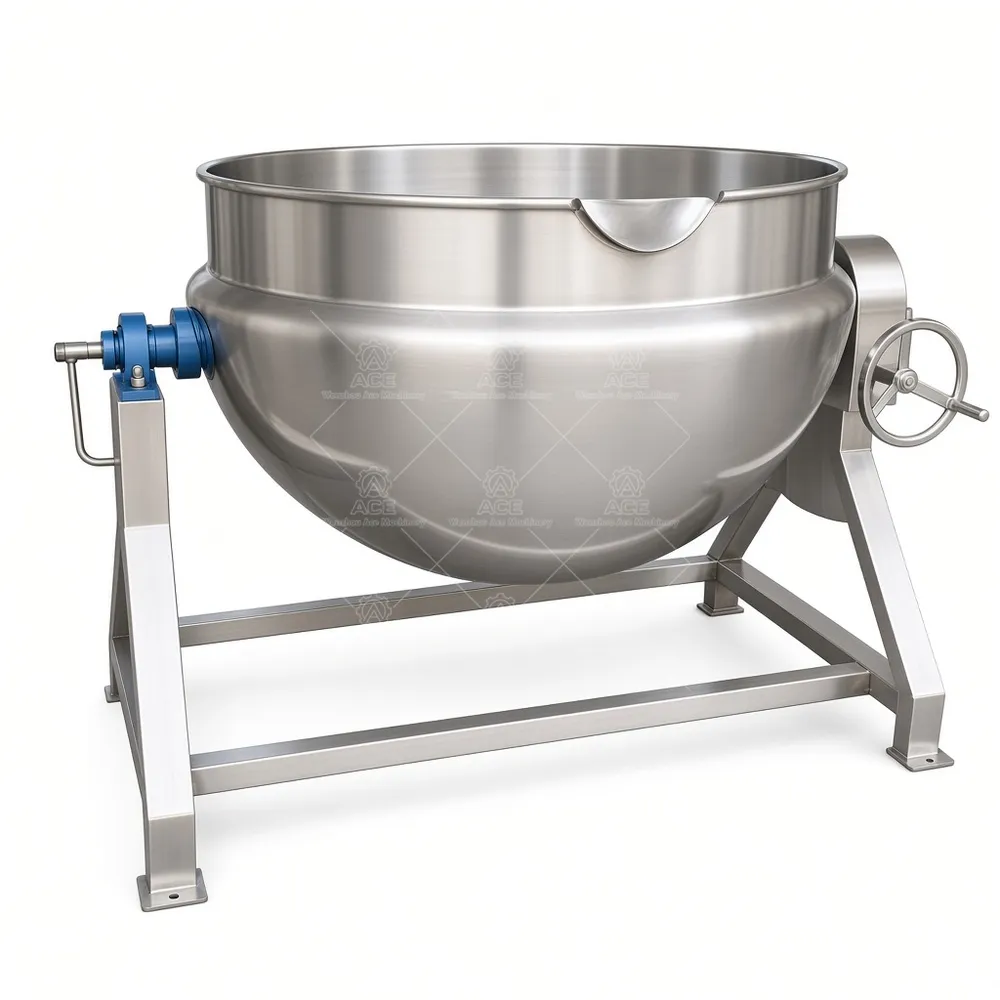

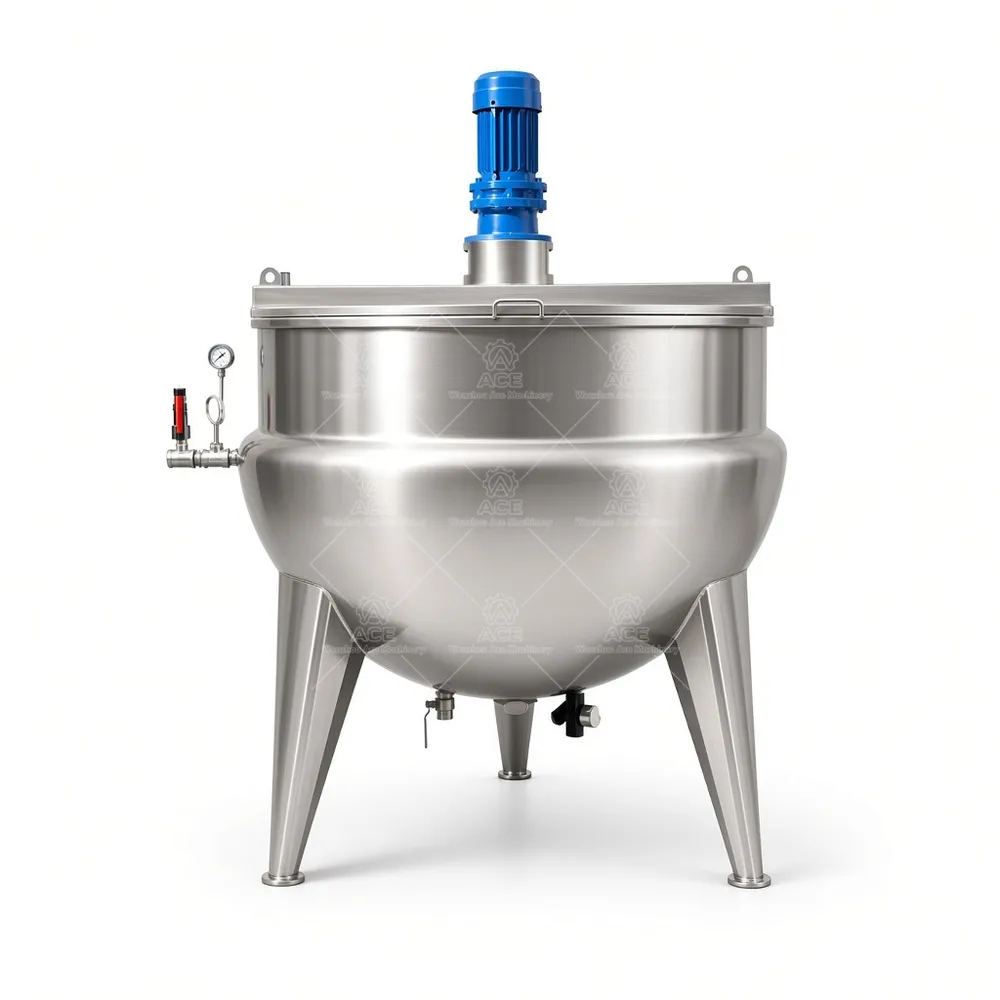

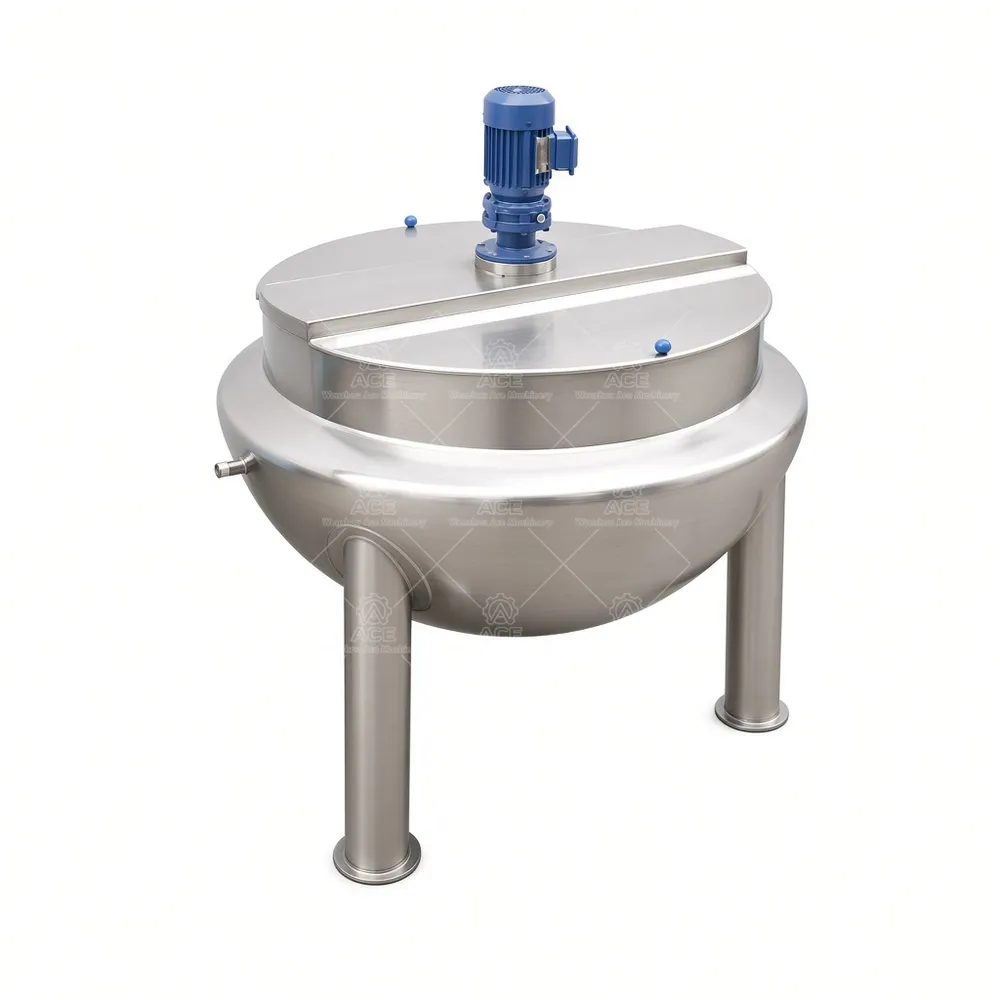

| Vessel configuration | Fixed or tilting; model dependent |
| Tilting | Manual or hydraulic, where applicable |
| Agitation and controls | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
Ordering Questions
Are all heating methods available at every capacity? No. Availability depends on the selected model and configuration.
Can the kettle be supplied with an agitator? Agitation options depend on the product and model; share viscosity and mixing needs.
How do I choose capacity? Provide batch size and whether it refers to working volume or vessel capacity.
Can I request a tilting model? Yes, where compatible; manual or hydraulic operation may be available.
What information helps with a quotation? Send product details, batch size, preferred heat source, mixing needs, and discharge method. Our factory team can review these requirements and discuss a suitable customized configuration. Contact Wenzhou Ace Machinery to start your inquiry.
