Wenzhou Ace Machinery jacketed kettles are available in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, with SUS304 or SUS316L construction. Depending on the model, options include electric, steam, gas, or thermal oil heating, fixed or tilting vessels, agitators, temperature control, and other custom features. Share your product and batch requirements to discuss a configuration suited to your process.

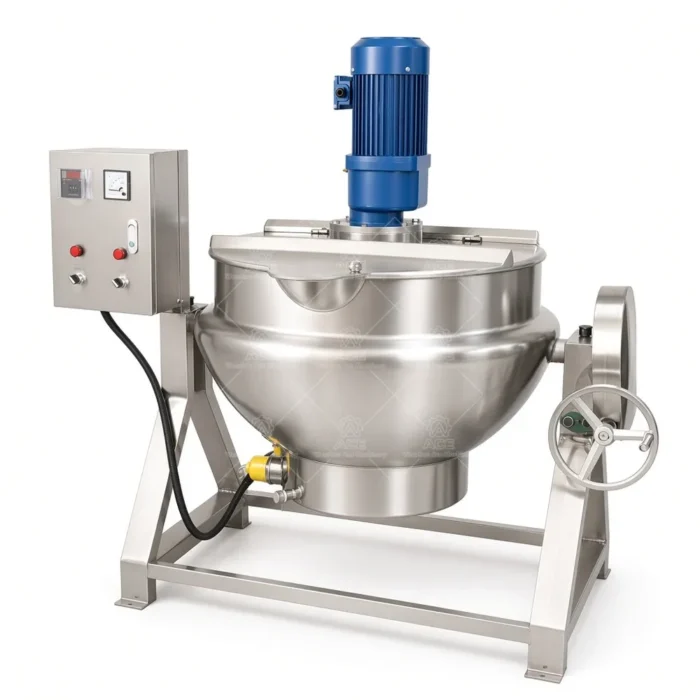

Electric Jacketed Kettle with Agitator 50L to 500L
价格范围：$2,047.18 至 $2,157.52
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Batch Cooking
Batch size, product thickness, and available utilities all affect kettle selection. A thin soup base and a fruit filling with suspended pieces place different demands on heating, agitation, discharge, and cleaning. Wenzhou Ace Machinery builds jacketed kettles in several capacities and can discuss a configuration around your process rather than assume one setup fits every recipe.
The product is heated indirectly: a selected heat source warms the jacket around the vessel, and heat passes through the kettle wall to the batch. This avoids applying the heat source directly to the product surface. An optional agitator can help move product through the heated vessel; the suitable arrangement depends on viscosity and ingredients. Operators should also consider access for cleaning and the way the batch will be transferred at the end of cooking.
Typical Uses and Configuration
These kettles are used for sauces and gravy, jam and fruit fillings, soups, syrups, candy mixtures, dairy products, and other compatible foods. Food and beverage applications may include dressings, mayonnaise, liquid seasonings, beverage ingredients, and dispersing starches, gums, stabilizers, or thickeners. Creams, lotions, shampoos, liquid detergents, pharmaceutical liquids, and chemical emulsions may be considered only when the process, materials, seals, and equipment configuration are suitable. A standard kettle should not be assumed to handle every formulation.
Choose SUS304 or SUS316L based on the product and cleaning environment. Heating options include electric, steam, gas, and thermal oil, subject to model compatibility and site utilities. Fixed or tilting construction is available depending on model; tilt operation can be manual or hydraulic where applicable. Optional features include an agitator, temperature control, variable-speed drive, insulation, and control panel. These options can support recipe handling and discharge needs, but compatibility must be confirmed.
Technical Specifications
| Item | Details |
|---|---|
| Product | Jacketed kettle |
| Capacity | 50L, 100L, 200L, 300L, 500L, or 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel | Fixed or tilting, depending on model |
| Tilt operation | Manual or hydraulic where applicable |
| Agitation and controls | Optional; configuration dependent |
| Customization | Available on request |
Questions and Ordering
Can every size use every heat source? No. Confirm options for the selected model. Is an agitator standard? It is an optional feature, subject to compatibility. How do I choose capacity? Share your normal batch size, fill requirements, and production frequency. What should I provide for a quote? Include product characteristics, heating utilities, mixing needs, discharge method, and cleaning conditions. Can the kettle tilt? Tilting and its operating method depend on the model. Can it process non-food products? Potentially, after material and process suitability are reviewed.
As a direct manufacturer, Wenzhou Ace Machinery can discuss custom configurations for your batch scale and production workflow. Send us your required capacity, product, preferred heat source, and agitation or tilting requirements so our team can review a suitable kettle arrangement.
