Wenzhou Ace Machinery manufactures commercial jacketed kettles for batch cooking in central kitchens and food production facilities. Choose from 50L to 1000L capacities, SUS304 or SUS316L stainless steel, and model-dependent heating, tilting, agitation, and control options. Share your product, batch size, utilities, and discharge needs to discuss a suitable configuration.

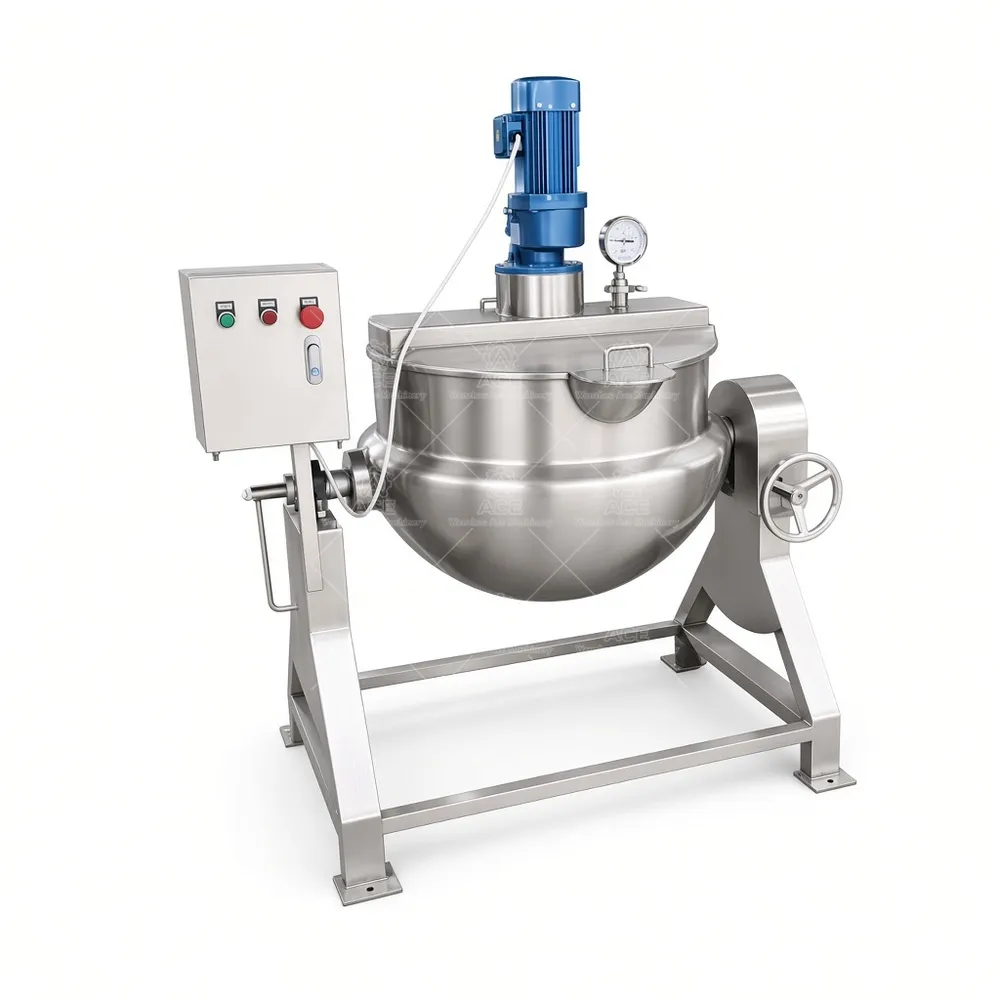

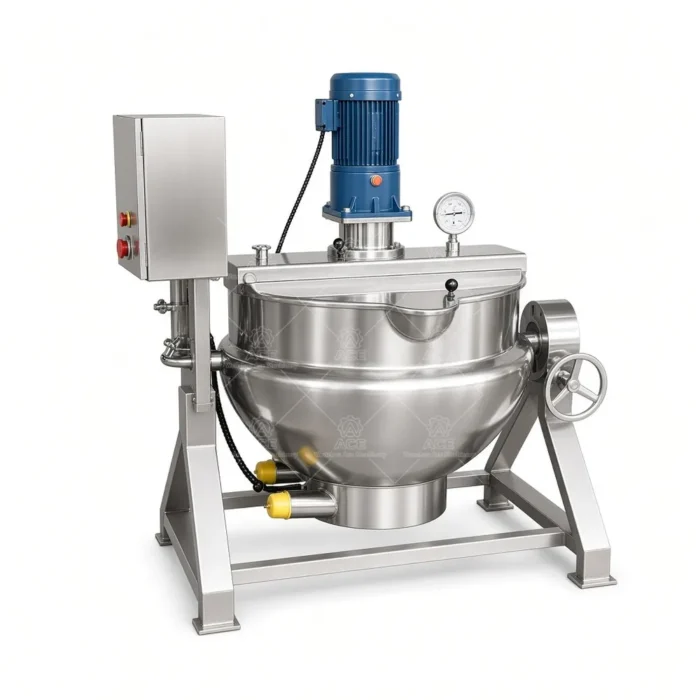

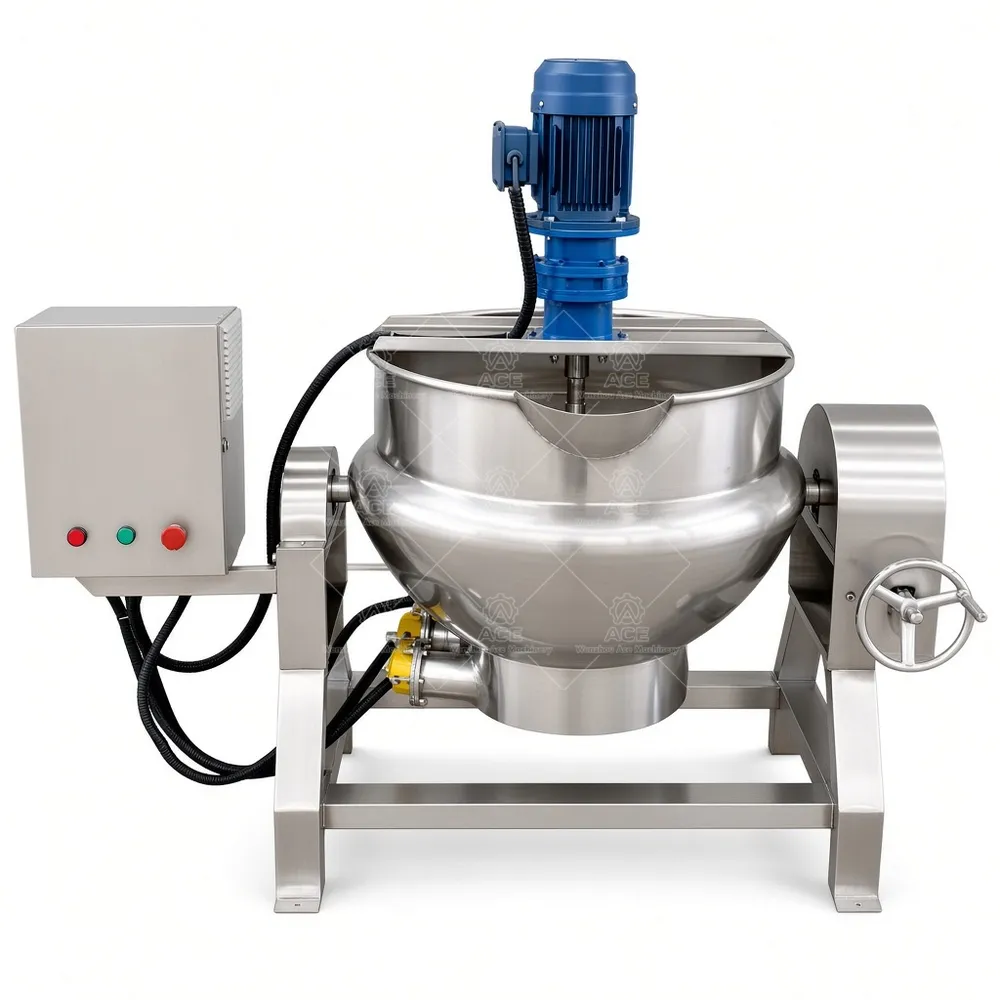

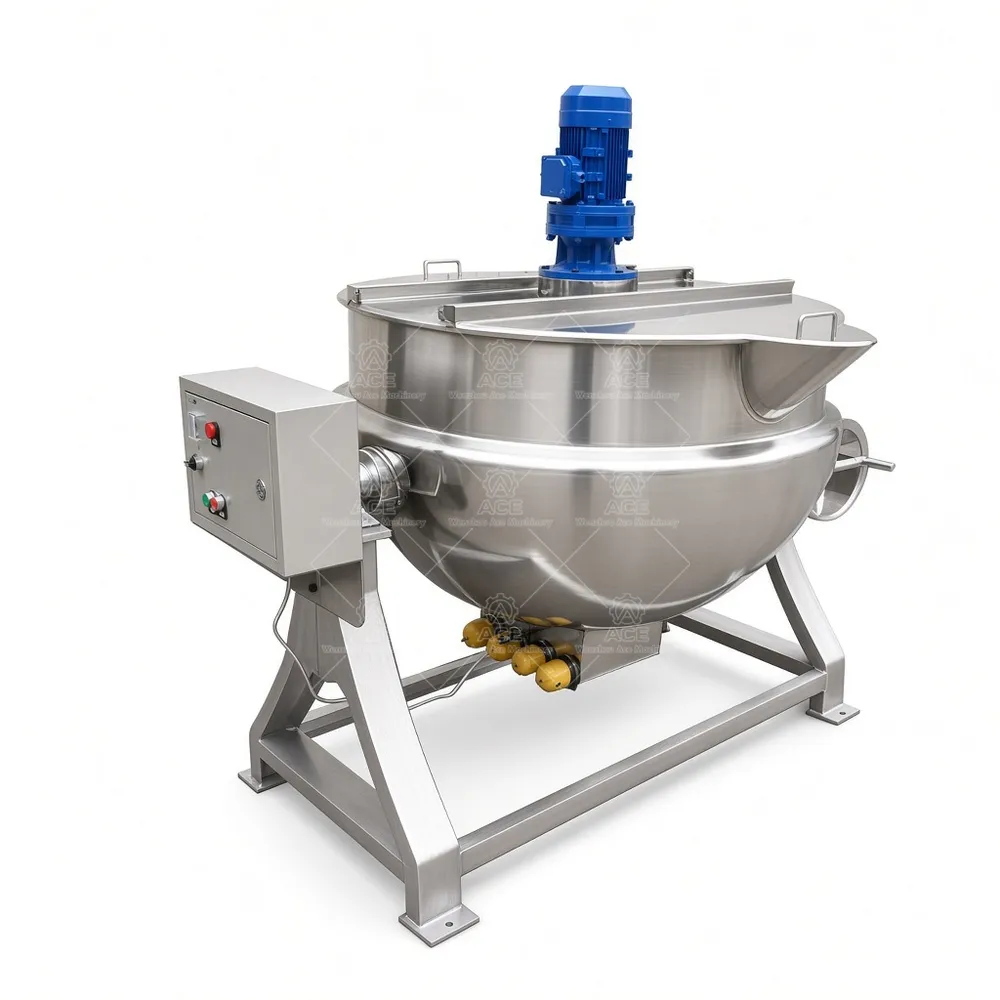

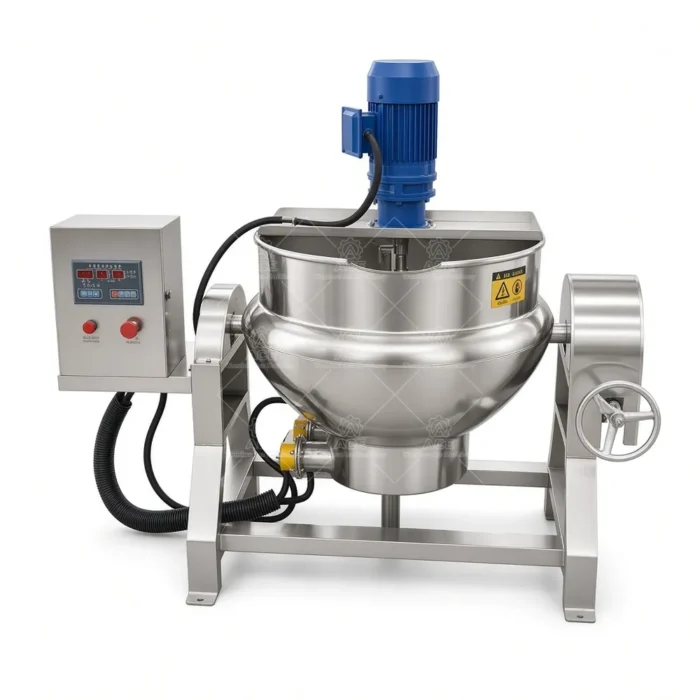

Commercial Tilting Jacketed Kettle for Food Processing
价格范围：$2,252.94 至 $2,469.22
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Batch Cooking
Choosing a kettle starts with the product, not just the batch size. A thick fruit filling, a thin broth, and a heat-sensitive dairy mix place different demands on heating, agitation, discharge, and cleanout. At Wenzhou Ace Machinery, we configure jacketed kettles around those production conditions.
The product sits inside the kettle while a heating medium warms the surrounding jacket, transferring heat indirectly through the vessel wall. This avoids direct contact between the flame or heating element and the batch. Depending on the model, heating can be electric, steam, gas, or thermal oil. Indirect heating supports controlled batch cooking, but the suitable method depends on the plant’s utilities and process requirements.
Configuration and Production Use
Available capacities are 50L, 100L, 200L, 300L, 500L, and 1000L. A fixed kettle can suit a stationary cooking station; a tilting model can help discharge product into a receiving vessel. Tilting may be manual or hydraulic where applicable. An optional agitator can help move products during cooking and reduce the need for manual stirring. Temperature control, variable-speed drive, insulation, and a control panel are available options subject to model compatibility. This is a batch kettle, not an inline rotor-stator mixer; high-shear emulsification or powder deagglomeration requires separate process equipment.
Typical batches include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, confectionery mixes, dairy blends, and other compatible foods. Applications in cosmetics, personal care, pharmaceutical processing, or chemical manufacturing require review of the formulation, contact materials, seals, and process suitability. One standard configuration should not be assumed to handle every product.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model-dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation and controls | Optional; configuration-dependent |
| Customization | Available according to product and process requirements |
Common Questions
How do I select capacity? Share the normal batch size, fill level, and production frequency.
Can every size use every heat source? No. Heating and accessory compatibility depend on the selected model.
Which steel should I specify? Discuss the product composition and cleaning conditions with our team; SUS304 and SUS316L are available.
Can the kettle be tilted? Tilting is model-dependent, with manual or hydraulic operation where applicable.
What information helps with a quotation? Provide product type, batch volume, available utilities, agitation needs, and preferred discharge method.
Discuss Your Kettle
Wenzhou Ace Machinery supplies factory-direct equipment and customization based on product characteristics, batch scale, heating needs, and workflow. Send us your required capacity, product, preferred heat source, and agitation or tilting requirements so our team can review a suitable configuration.
