Process fruit candy, sauces, jams, soups, syrups, and other compatible batches in a jacketed cooking kettle with indirect heating. Wenzhou Ace Machinery offers 50 L to 1,000 L capacities in SUS304 or SUS316L stainless steel, with electric, steam, gas, or thermal oil heating options depending on the model. Agitation, temperature control, insulation, and tilting configurations can be tailored to process requirements.

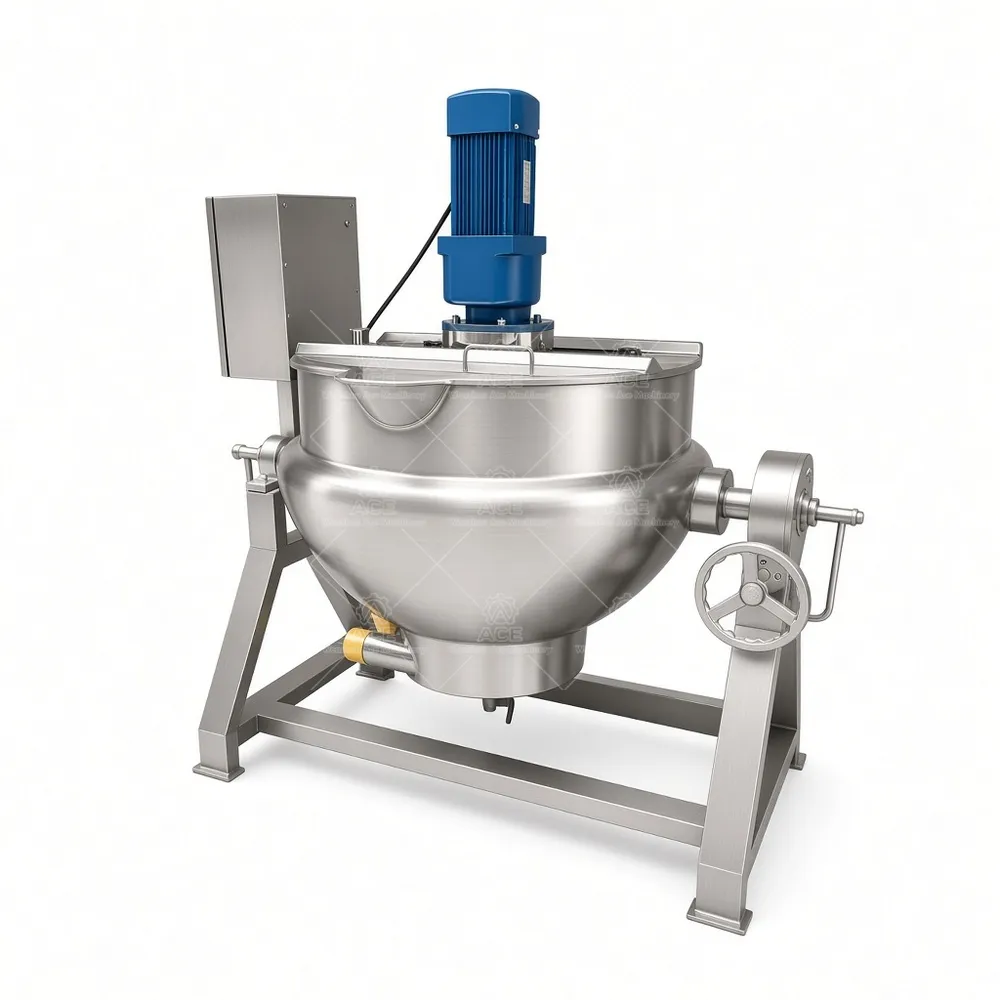

304 Stainless Steel Jacketed Kettle with Scraper Agitator
价格范围：$2,284.44 至 $2,472.45
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Controlled Batch Processing
Fruit candy, sauce, and filling batches need heat distributed through the product without relying on direct flame or a hot surface inside the vessel. Our jacketed kettle transfers heat through the vessel wall from a selected heating medium. This indirect heating arrangement supports cooking and mixing in one batch vessel; the suitable heat source and agitator depend on the product and kettle model.
Wenzhou Ace Machinery manufactures 50 L, 100 L, 200 L, 300 L, 500 L, and 1,000 L options in SUS304 or SUS316L stainless steel. A scraper agitator is an available configuration for products that benefit from movement along the heated vessel surface. Stirring needs vary: a fruit filling, thick candy mass, and pourable syrup do not place the same demands on an agitator. Temperature control, variable-speed drive, insulation, and a control panel can be discussed where compatible.
Applications and Configuration
Typical food uses include sauces and gravies, jams and fruit fillings, soups, syrups, dairy mixtures, and confectionery mixes. Batch size should reflect usable production volume, product viscosity, heating method, and the required mixing action. Fixed and tilting vessel arrangements are available by model; tilting operation may be manual or hydraulic where applicable. Non-food formulations, including compatible cosmetic or chemical mixtures, require review of material, seals, heating, and process suitability before selection.
Technical Specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50 L, 100 L, 200 L, 300 L, 500 L, 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model-dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic where applicable |
| Agitation | Optional agitator; scraper configuration subject to model compatibility |
| Temperature control | Optional; configuration-dependent |
| Customization | Available according to product and process requirements |
Frequently Asked Questions
Can every capacity use every heating method? No. Available combinations depend on the model and requested configuration.
How do I choose capacity? Share target batch size and whether it refers to vessel capacity or normal working volume.
Is a scraper agitator included? It is an optional feature, subject to model and product requirements.
Which steel should I specify? SUS304 and SUS316L are available; discuss ingredients and cleaning conditions with our team.
What information helps with a quotation? Provide product, batch size, heat source, mixing needs, and fixed or tilting preference.
Request a Configuration Review
As a factory-direct manufacturer, we discuss vessel material, heating, agitation, and discharge requirements around your process. Send Wenzhou Ace Machinery your capacity, product details, preferred heat source, and tilting or mixing requirements so our team can review a suitable configuration.
