This 300L steam jacketed kettle is designed for batch cooking applications such as mashed potatoes, sauces, soups, and fillings. Indirect jacket heating transfers heat through the vessel wall, while an agitator supports product movement during processing. Wenzhou Ace Machinery offers model-dependent options for materials, vessel construction, temperature control, and other configurations. Share your product and process details to confirm suitability.

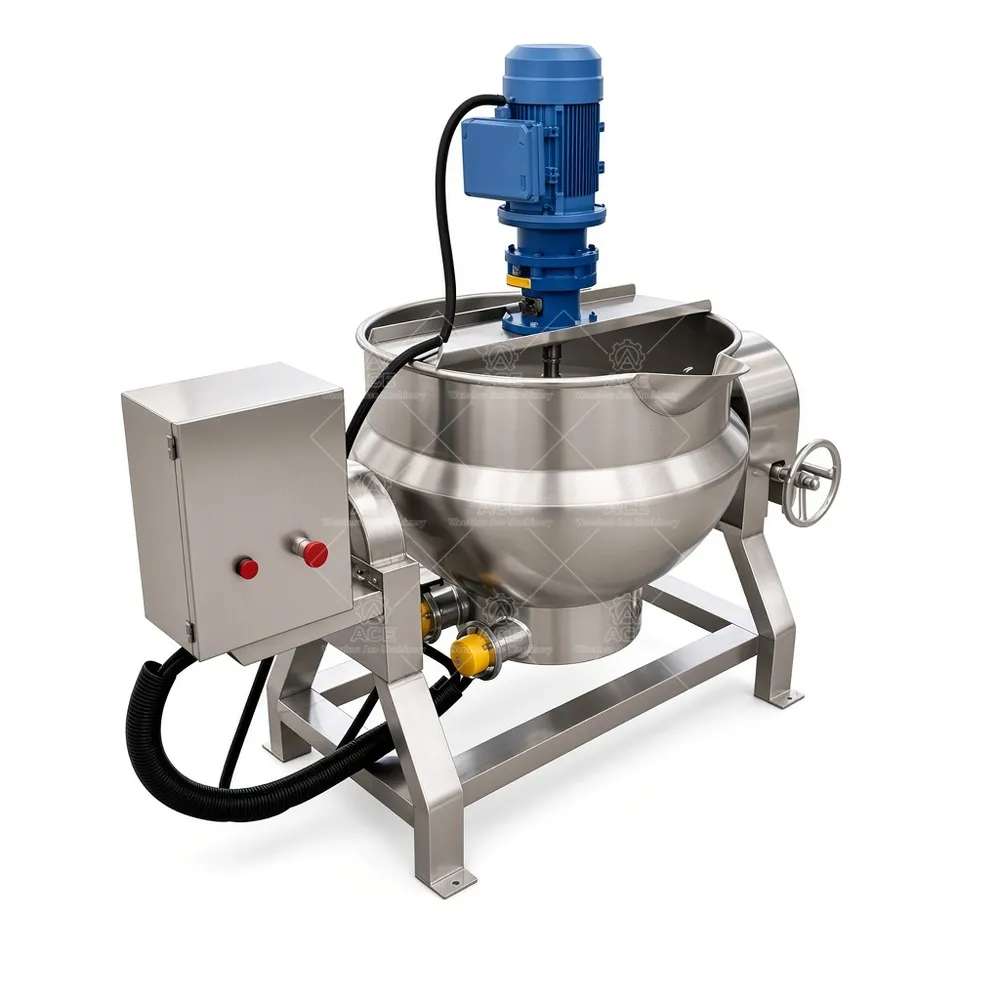

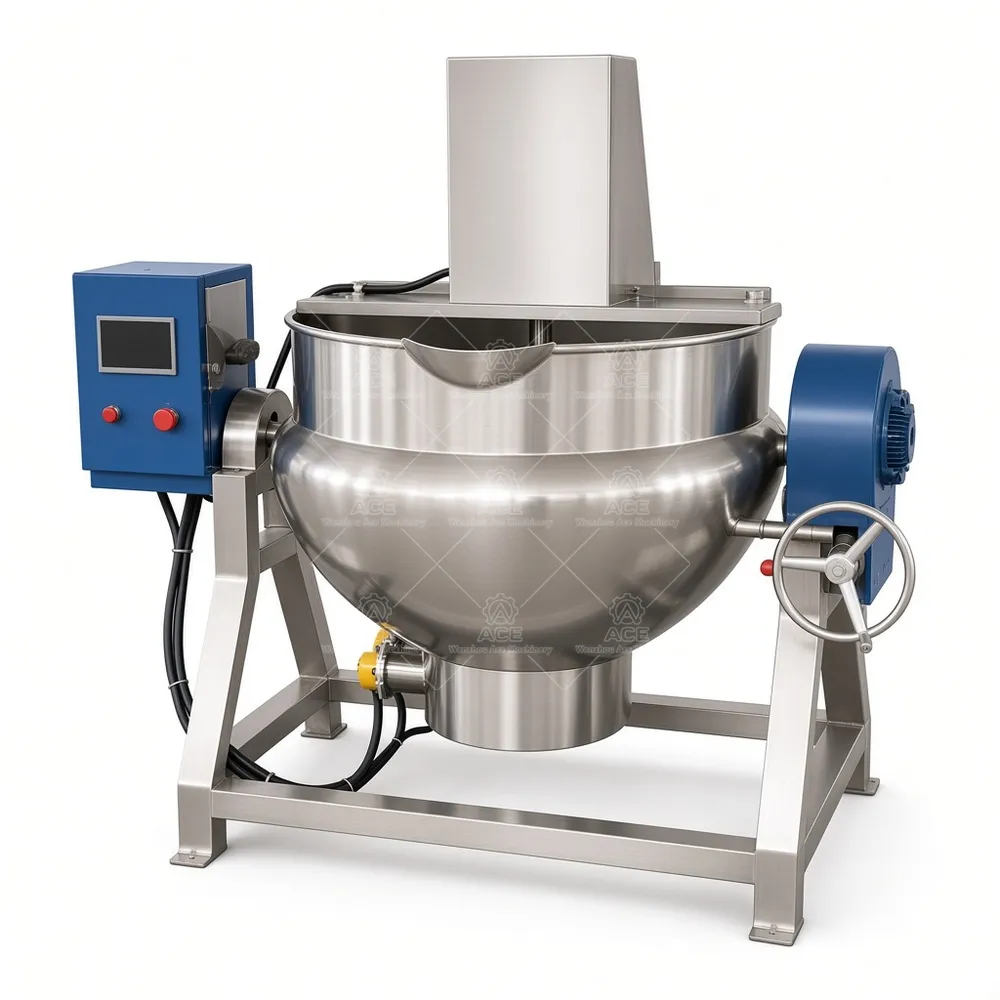

300L Steam Jacketed Kettle with Agitator for Mashed Potatoes
Price range: $1,889.46 through $2,064.61
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

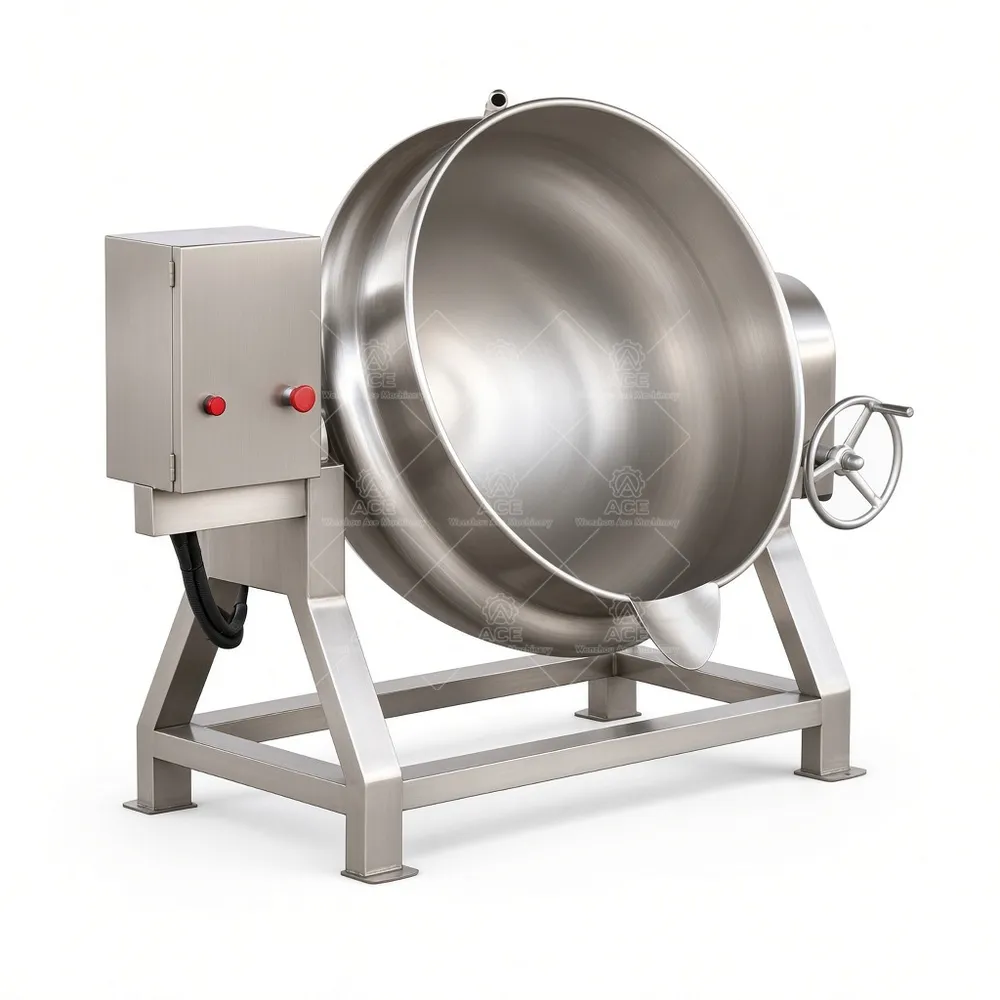

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
300L Steam Jacketed Kettle for Batch Cooking
Cooking mashed potatoes in a production batch calls for controlled heating and a mixing setup suited to the product’s thickness. A jacketed kettle heats the vessel wall indirectly: steam circulates through the jacket and transfers heat to the product without direct contact with a flame or heating element. This arrangement is useful for cooking and warming foods that need regular agitation, though the appropriate setup depends on the recipe and process.
Wenzhou Ace Machinery manufactures jacketed kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. This 300L model is specified for steam heating with an agitator. Agitation can help keep a batch moving during cooking; the suitable agitator design and operating arrangement depend on product viscosity and production requirements. For mashed potatoes, discuss batch size, texture, ingredient addition, and discharge method with our team before confirming a configuration.
Features and Configuration
- Indirect jacket heating: Heat passes through the kettle wall, supporting batch cooking without direct heating of the product.
- Material options: SUS304 or SUS316L stainless steel, selected according to product and cleaning requirements.
- Heating choices: Electric, steam, gas, or thermal oil, subject to model compatibility. The supplied title identifies steam heating.
- Operational options: Fixed or tilting construction, with manual or hydraulic tilt where applicable. Temperature control, variable-speed drive, insulation, control panel, and other custom features may be available depending on the model.
Applications
Typical food uses include sauces, gravy, soups, jams, fruit fillings, syrups, dairy products, confectionery mixes, and other prepared foods. Kettles may also be considered for selected beverage ingredients, cosmetics, personal-care products, or compatible liquid formulations in pharmaceutical and chemical processing. Suitability depends on the recipe, materials, seals, cleaning method, and required process controls; one standard configuration is not appropriate for every formulation.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic where applicable |
| Agitation | Optional; configuration dependent |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
Frequently Asked Questions
Can this kettle cook mashed potatoes? It is specified for mashed-potato cooking; confirm batch size and desired texture so the agitator configuration can be reviewed.
Can every capacity use steam heating? Heating options depend on the selected model.
Is the 300L kettle tilting? Vessel construction varies by configuration; request confirmation for the required model.
Which steel should I choose? SUS304 and SUS316L are available. Share product and cleaning details to assess material suitability.
What information helps with a quotation? Provide capacity, product, batch size, heat source, mixing needs, discharge method, and any control or installation requirements.
Request a Configuration Review
As a factory-direct manufacturer, Wenzhou Ace Machinery can discuss customization around your product, batch volume, heating source, agitation, and discharge workflow. Send your required capacity, product details, preferred heating method, and any tilting or mixing requirements so our team can review a suitable configuration.
