Wenzhou Ace Machinery manufactures jacketed kettles for batch cooking and processing, with available capacities from 50L to 1000L. Choose SUS304 or SUS316L stainless steel and discuss electric, steam, gas, or thermal oil heating, along with optional agitation, temperature control, insulation, and fixed or tilting construction. Final configurations depend on the model and your process requirements.

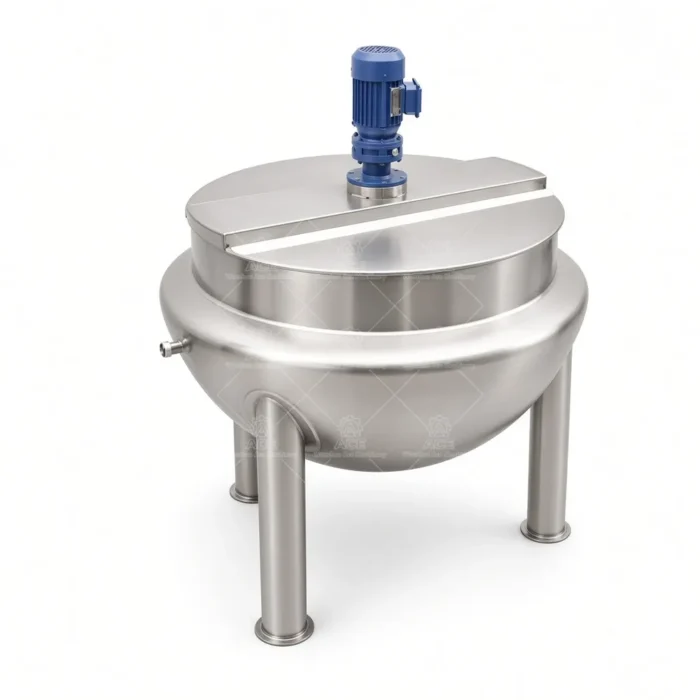

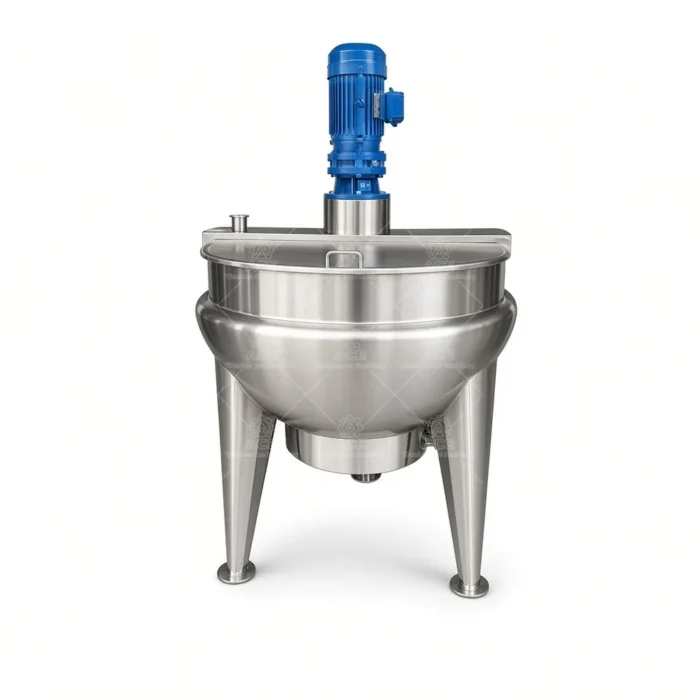

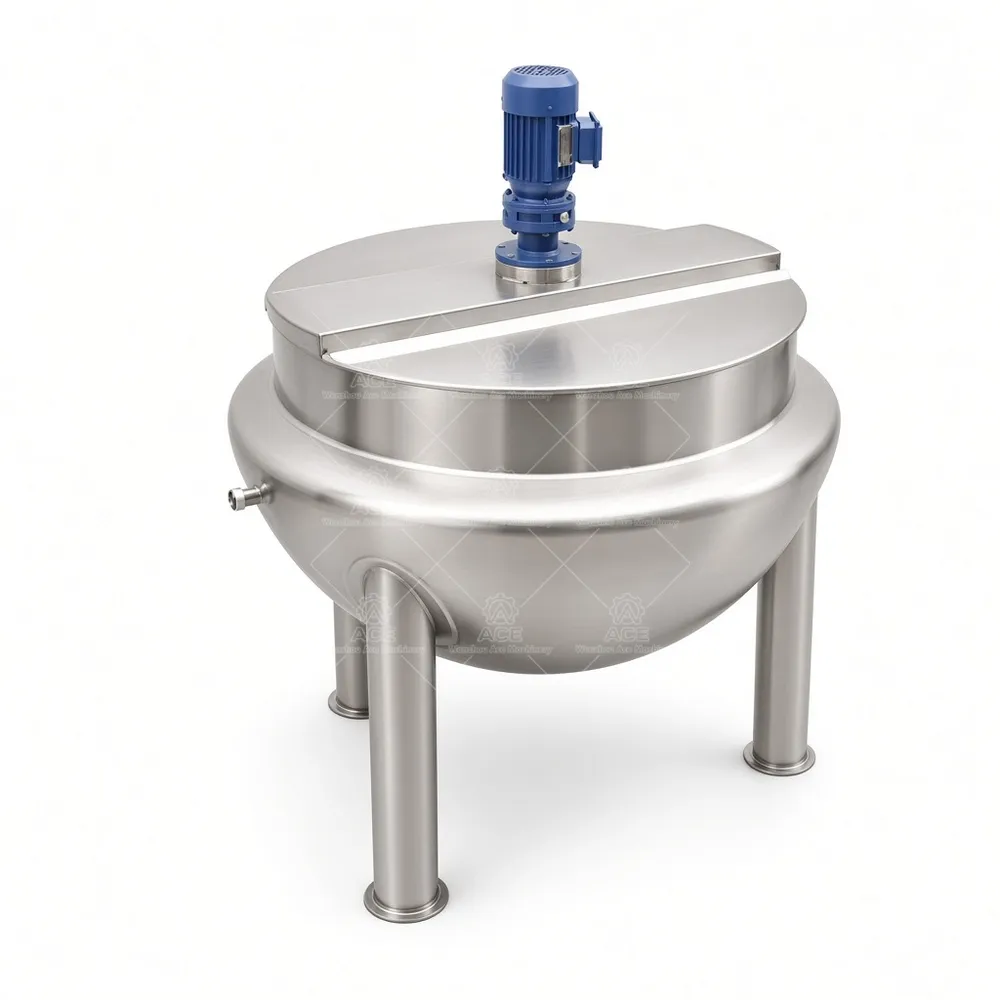

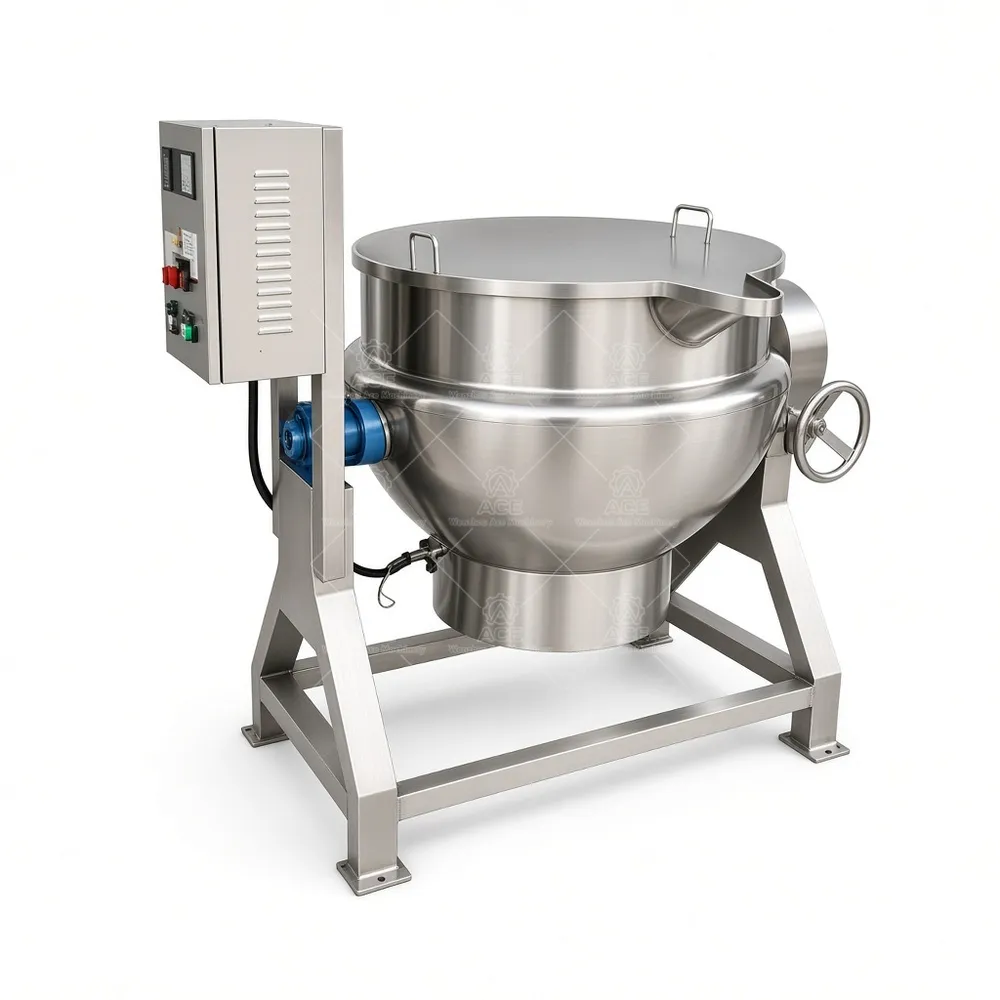

Vertical Jacketed Kettle with Agitator | Electric, Steam or Gas
价格范围：$2,028.01 至 $2,205.87
Request a quote

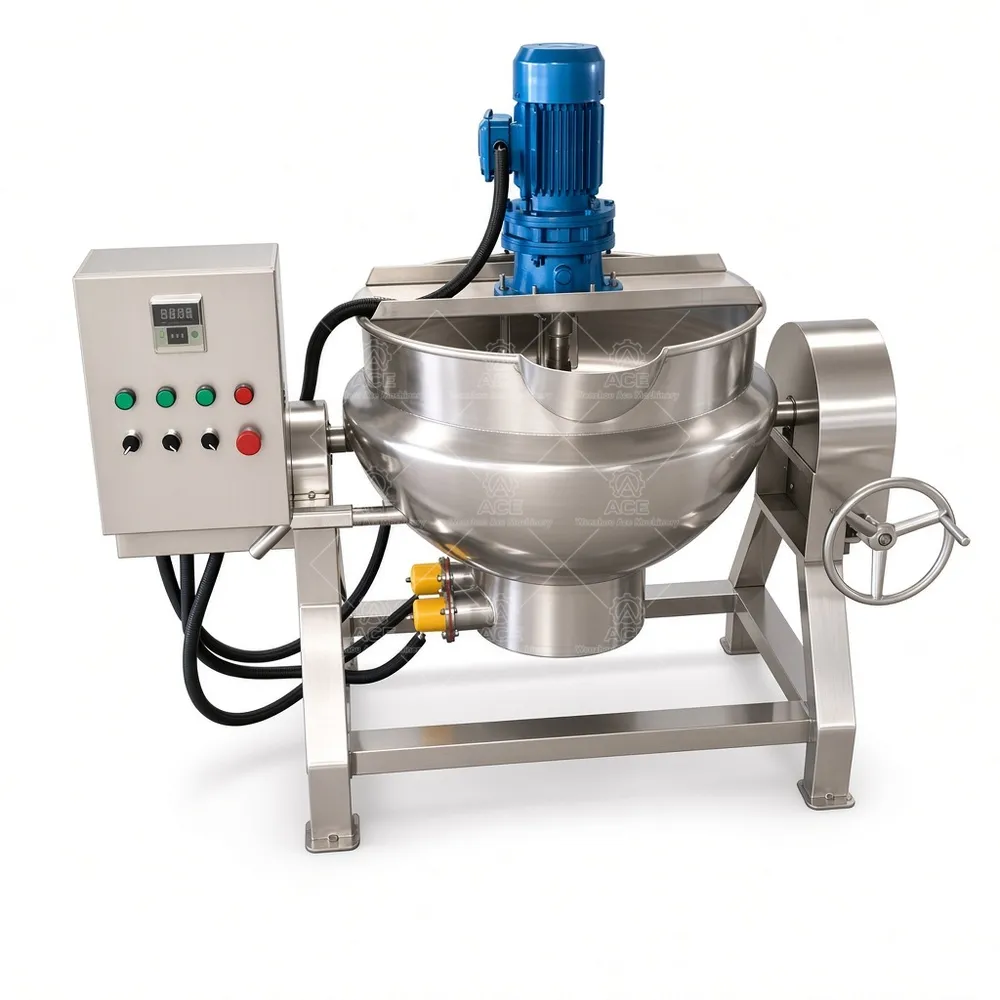

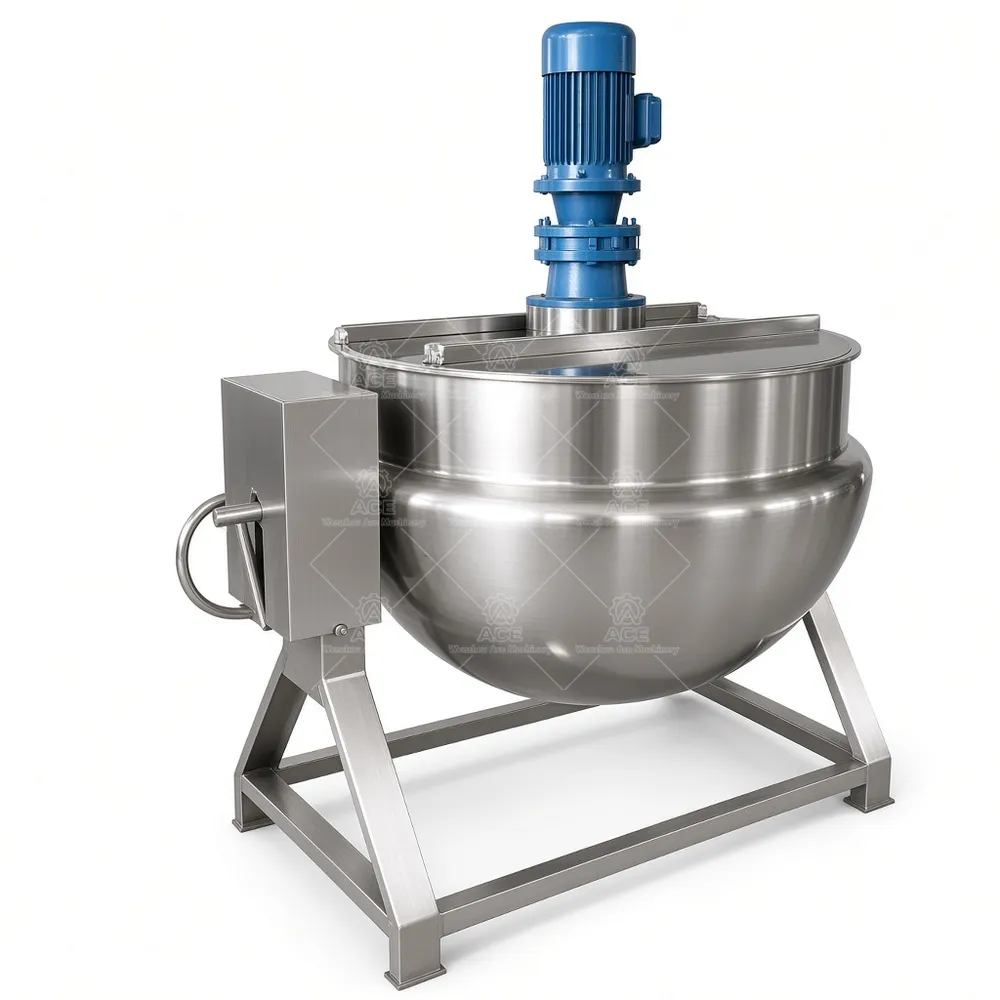

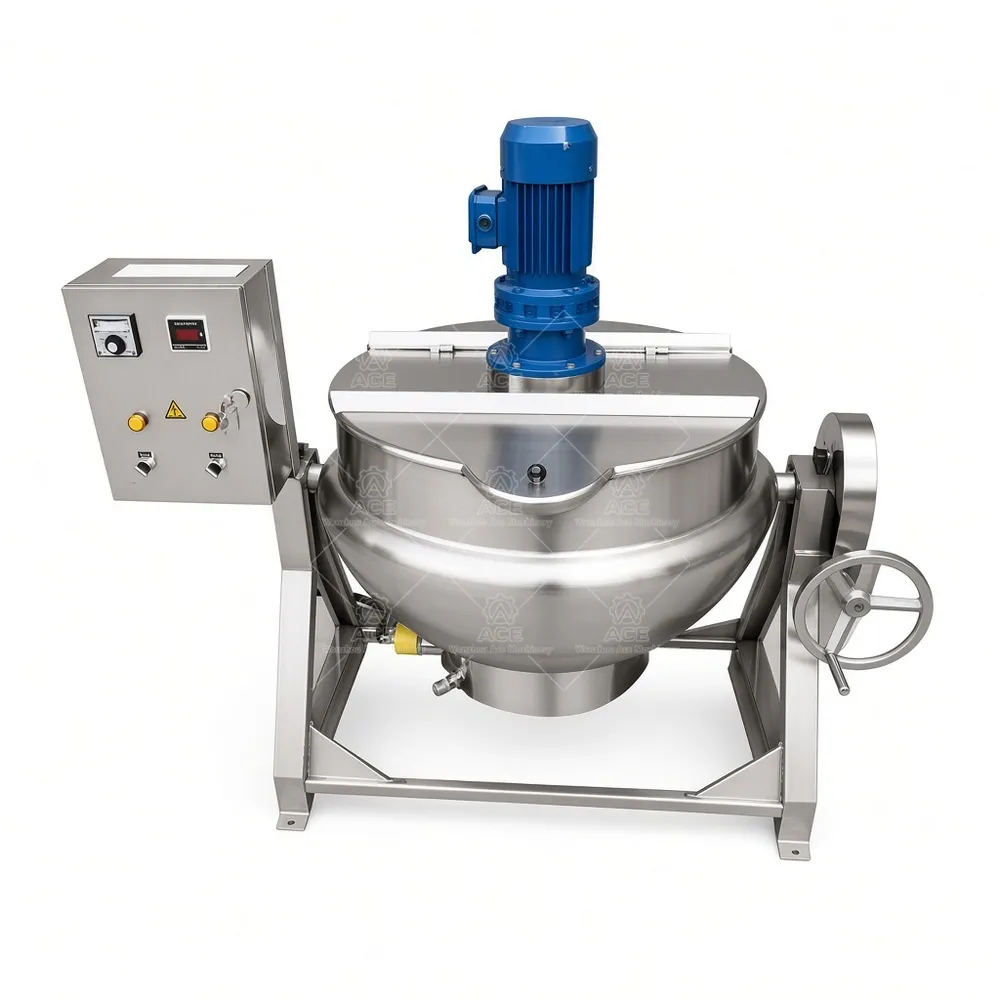

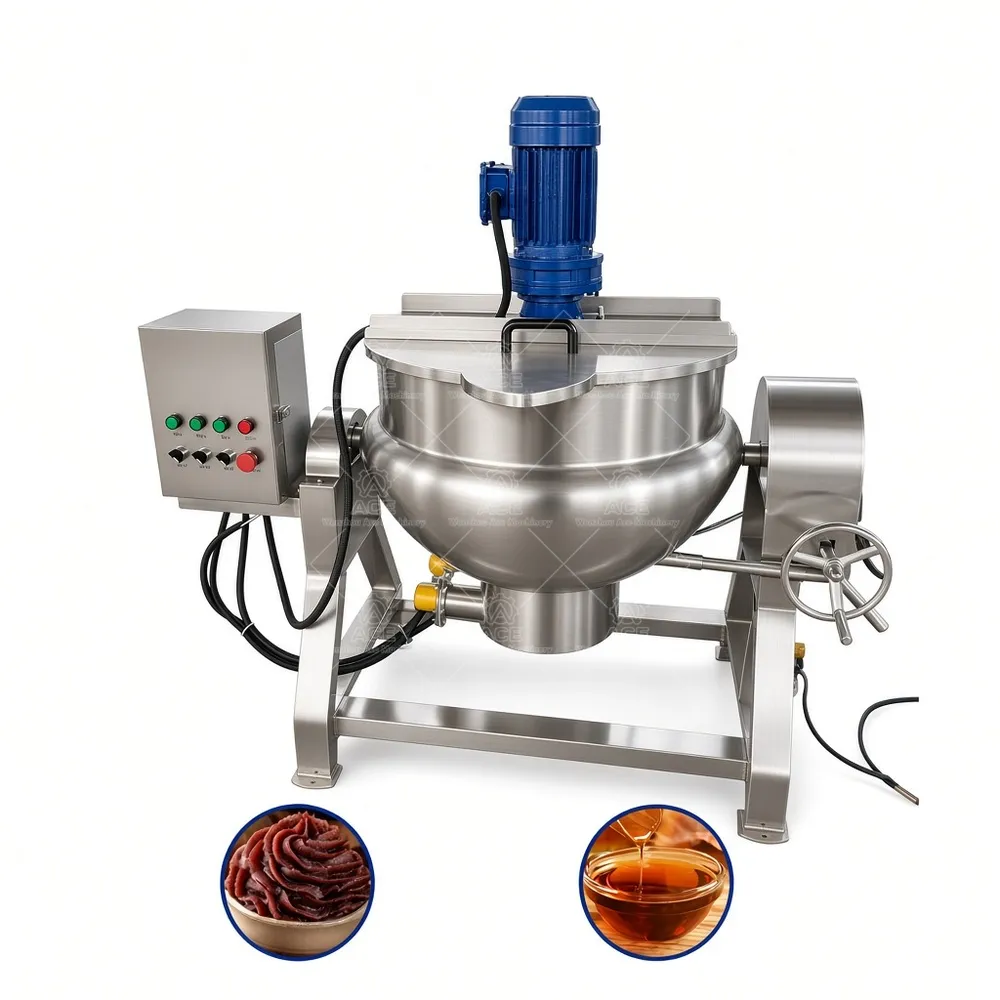

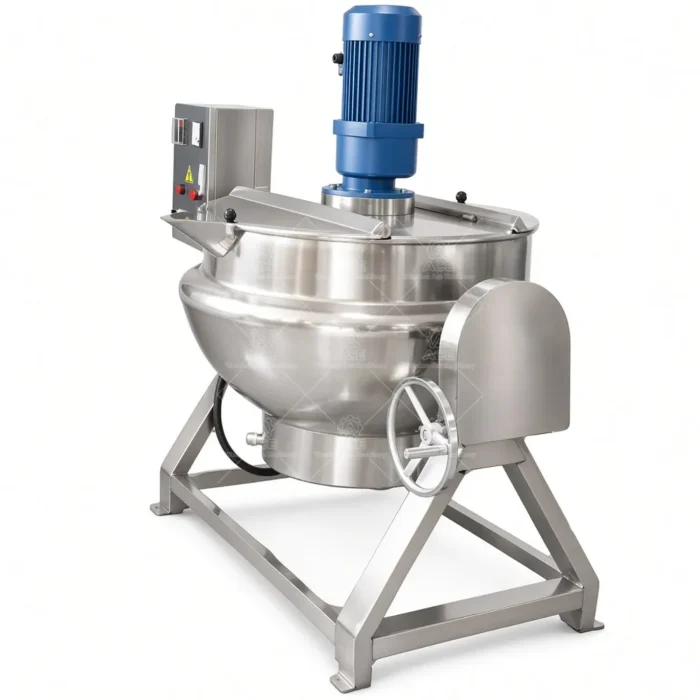

A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Heating a thick sauce or fruit filling directly over a flame can create hot spots and product that sticks to the vessel. A jacketed kettle transfers heat indirectly: the selected heating medium warms the kettle through its jacket, while the product is cooked in the inner vessel. This arrangement supports batch cooking where steady heating and regular agitation are important. The suitable heat source and operating setup depend on the model and production requirements.
Wenzhou Ace Machinery manufactures fixed and, on compatible models, tilting kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. SUS304 or SUS316L stainless steel is available. Heating options include electric, steam, gas, or thermal oil, subject to model compatibility. A mixer can help circulate products such as gravy or dairy blends; optional temperature control and variable-speed drive can give operators more control over batch handling. Insulation, a control panel, and other custom features may also be considered.
Applications and configuration
Typical food applications include sauces, salad dressings, jam, fruit fillings, soups, stocks, syrup, confectionery mixtures, dairy blends, and liquid seasonings. Products with starches, gums, or stabilizers may need a suitable mixing arrangement to disperse ingredients without persistent lumps. Creams, lotions, shampoos, liquid detergents, and selected water-based chemical or pharmaceutical preparations may be considered only after confirming process, material, and seal compatibility. One standard configuration will not suit every recipe.
For daily operation, discuss batch size, viscosity, heating utility, mixing needs, cleaning routine, and how the cooked product will be discharged. Tilting may be available with manual or hydraulic operation, depending on the model. Share these details with our factory team before requesting a quotation so we can review a practical configuration.
Technical specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration depends on model and product |
| Temperature control | Optional, depending on configuration |
| Customization | Available on request, subject to compatibility |
Frequently asked questions
Can every size use every heat source? No. Confirm available combinations for the selected model.
Can the kettle tilt? Some models offer tilting, with manual or hydraulic operation as applicable.
Is an agitator included? Agitation is an optional configuration; describe your product and mixing needs.
Which steel should I specify? SUS304 and SUS316L are available. Confirm product-contact and cleaning requirements with our team.
What should I send for a quotation? Provide capacity, product, batch size, preferred heat source, mixing, tilting, and discharge requirements.
Request a configuration review: Send your process details to Wenzhou Ace Machinery for a factory-direct quotation discussion and custom configuration assessment.
