Wenzhou Ace Machinery’s jacketed cooking kettle is available in 50L to 1000L capacities, with SUS304 or SUS316L construction and model-dependent heating, vessel, and control options. Designed for batch cooking of sauces, chili paste, syrup, soups, fruit fillings, and other foods, it can be configured around your product, heat source, mixing needs, and discharge process.

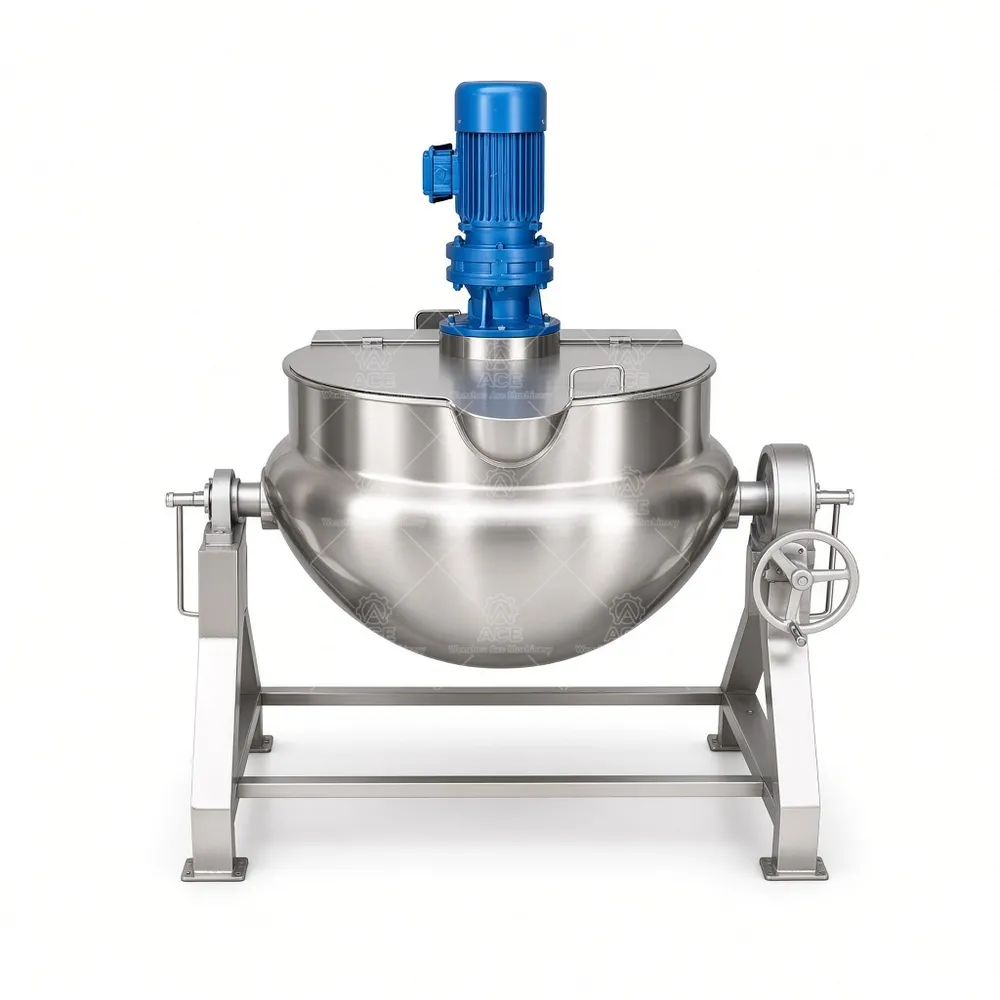

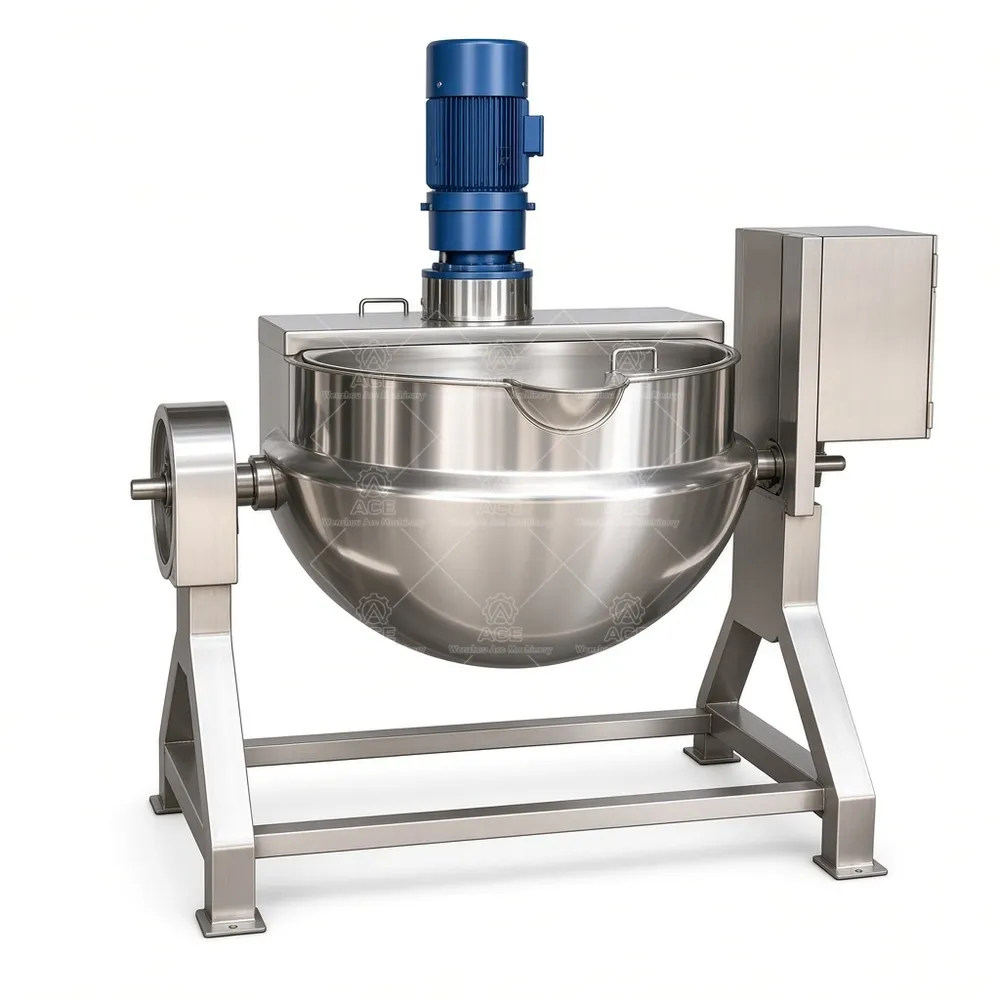

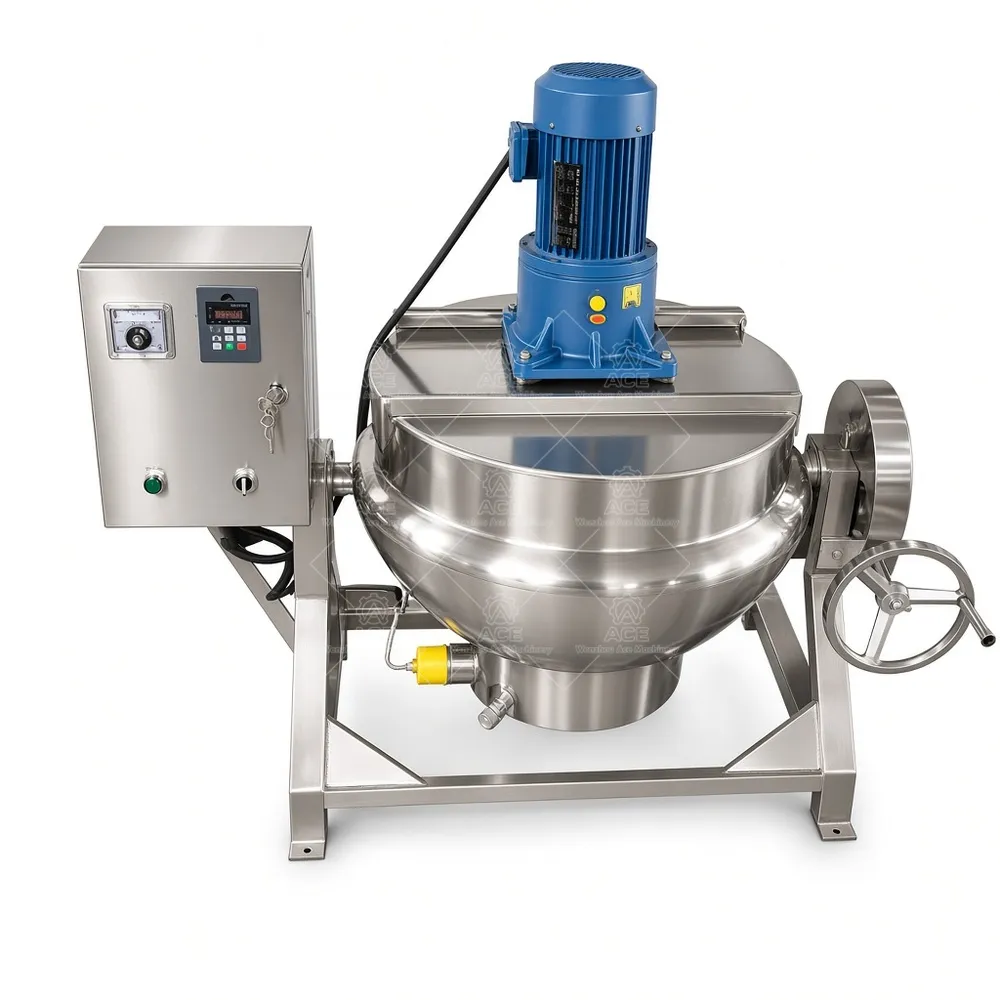

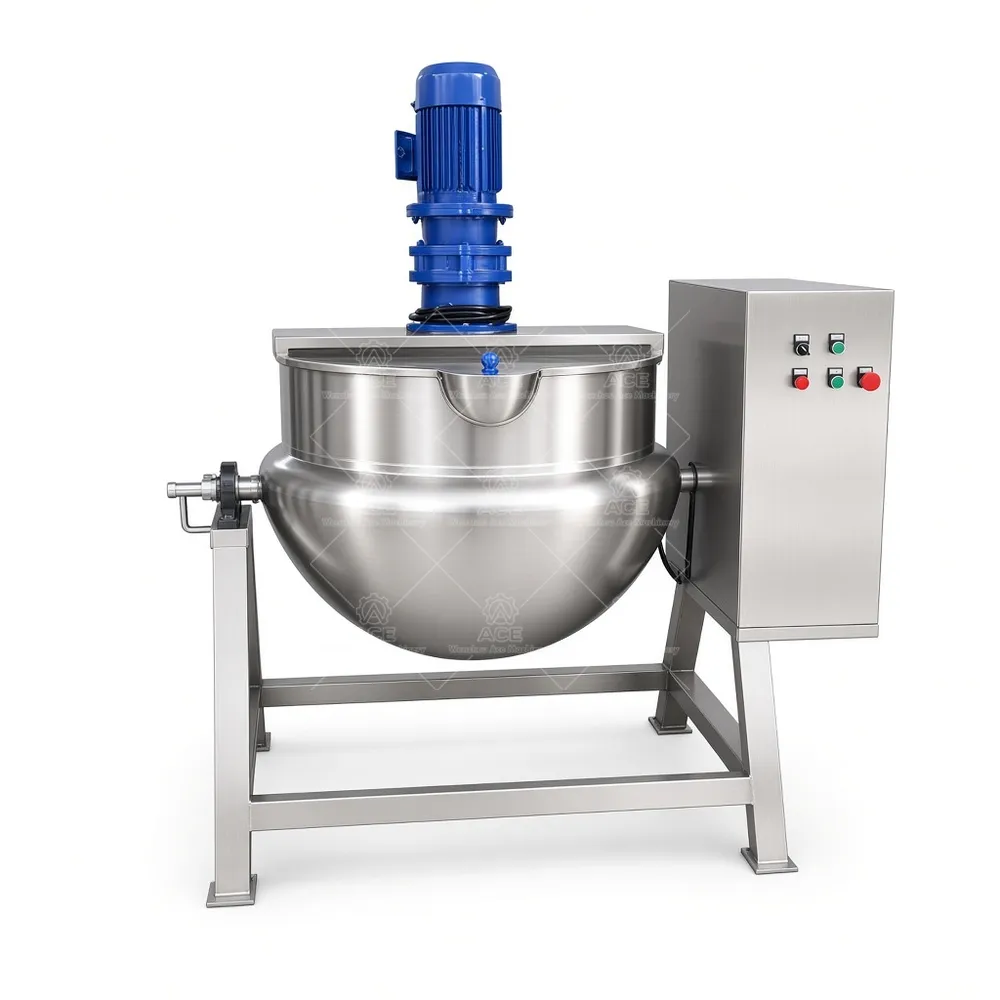

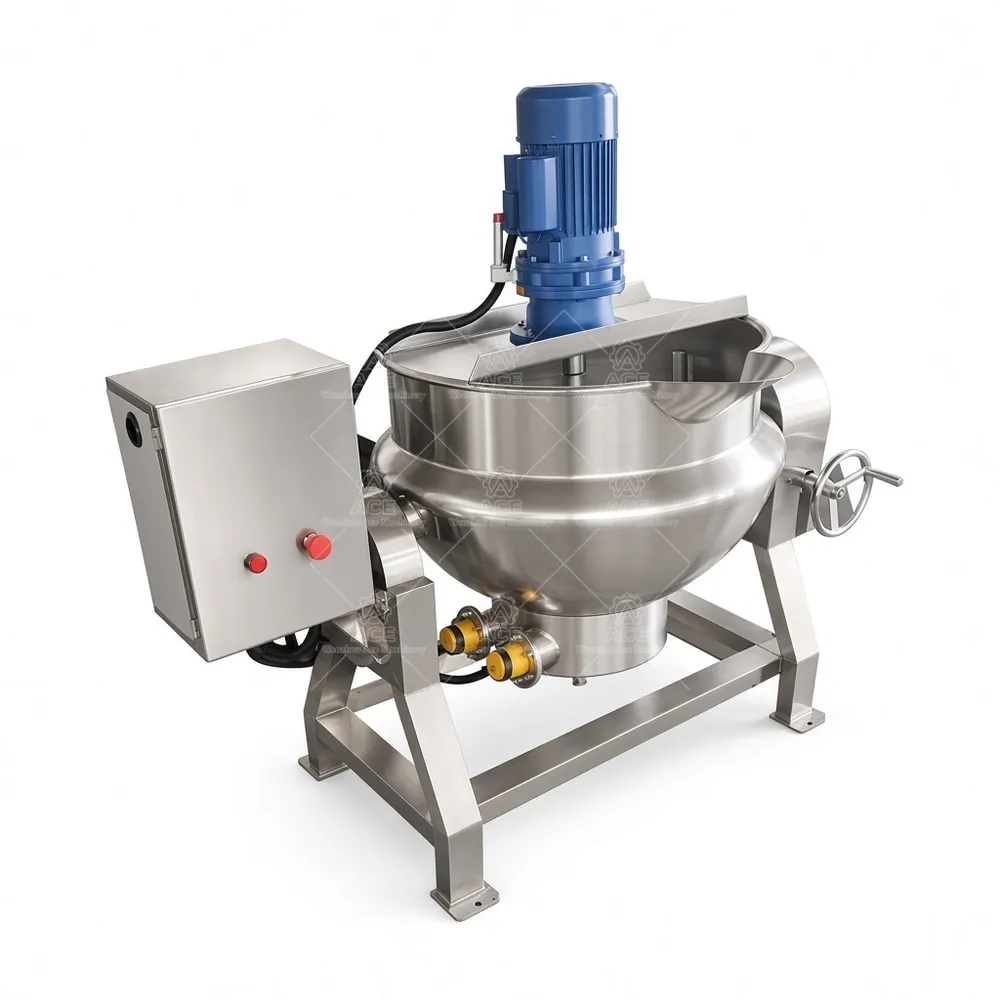

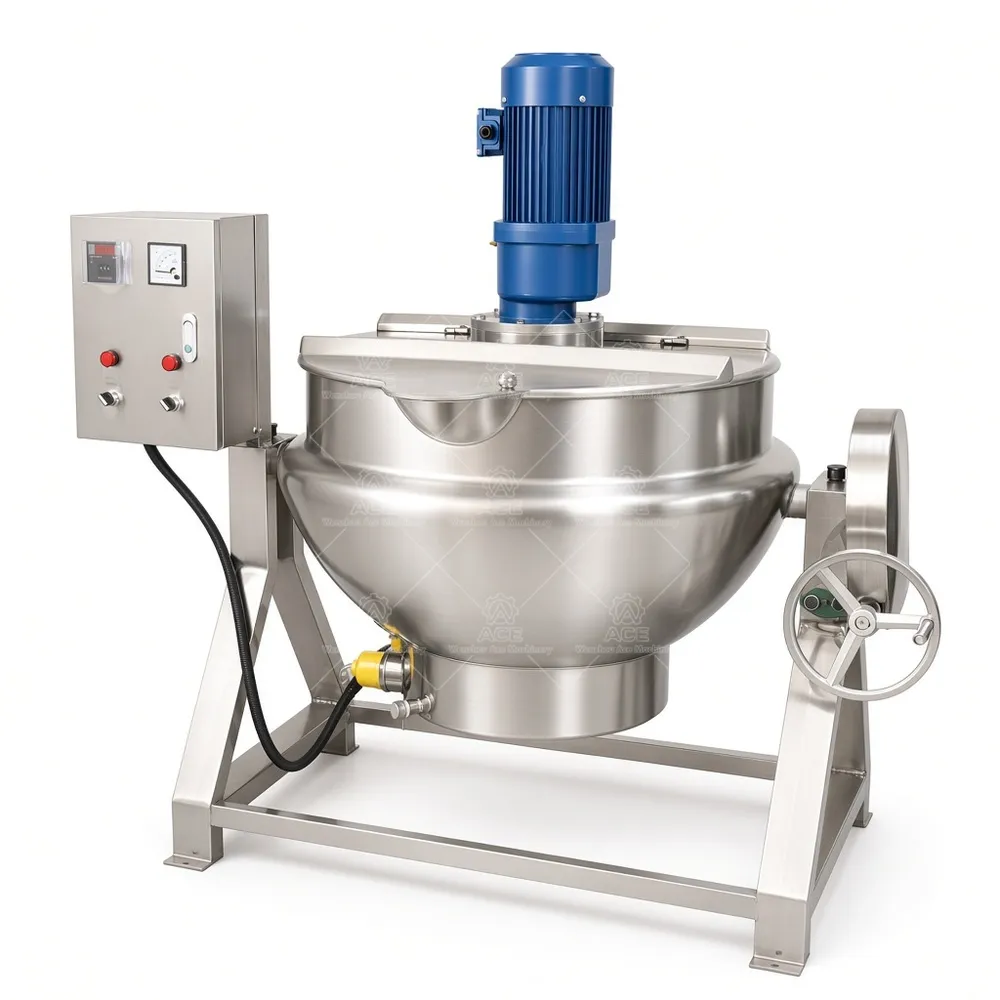

Tilting Jacketed Cooking Kettle with Agitator, 50–1000L
价格范围：$2,172.42 至 $2,345.78
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products

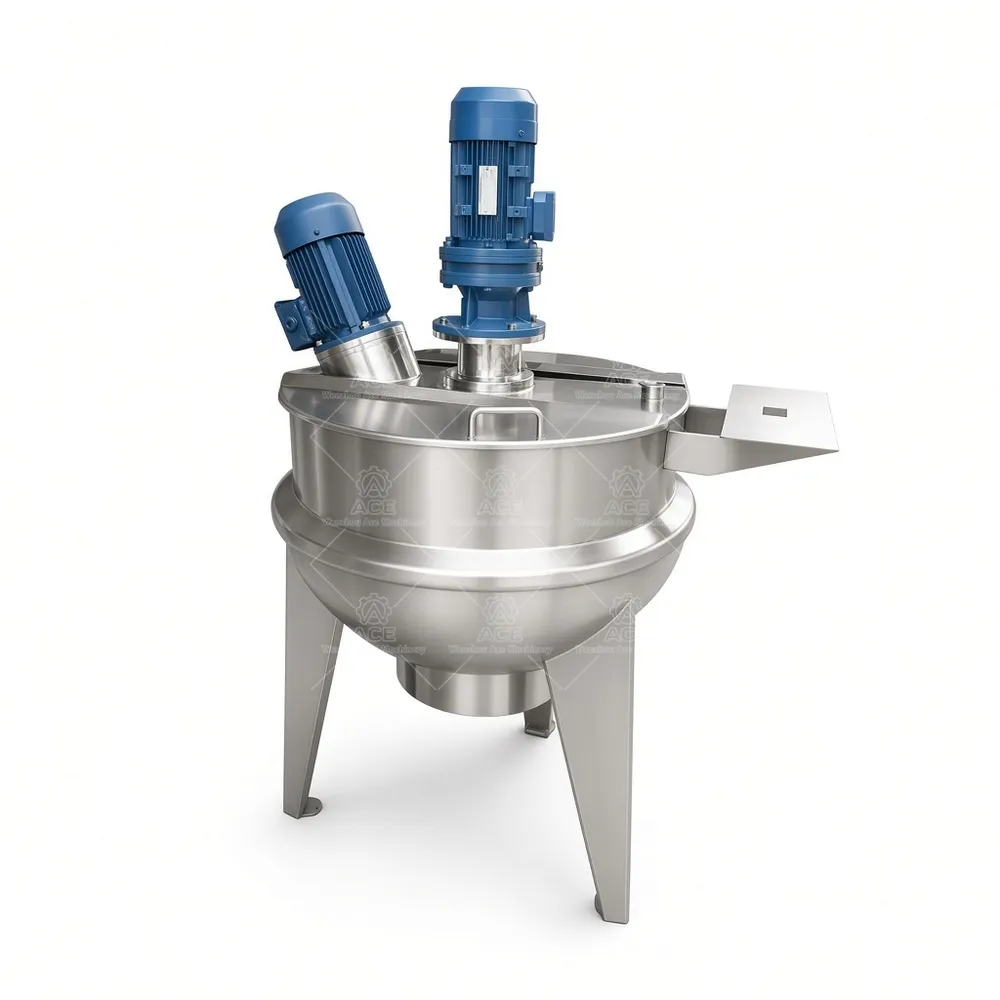

Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Batch Processing
Heating sticky syrup, chili paste, or fruit filling in a direct-fired vessel can create hot spots and residue that complicate cleaning. Our jacketed cooking kettle heats product indirectly: a selected heat source warms the jacket, which transfers heat through the vessel wall. This arrangement supports controlled batch cooking without direct contact between the heating medium and the product.
Wenzhou Ace Machinery manufactures fixed and tilting configurations, depending on the model. An optional agitator helps move product through the batch during cooking; its suitability depends on viscosity and recipe. Tilting, where available, can assist discharge, while manual or hydraulic operation depends on the selected configuration. Temperature control, variable-speed drive, insulation, and a control panel can be discussed as compatible options. These choices affect operator workflow, product handling, and the utilities required at the installation site.
Typical Applications
Common food applications include sauces and gravy, chili paste, jam and fruit fillings, soups and stocks, syrup, confectionery mixes, dairy mixtures, and other foods. A thick filling may call for different agitation and discharge arrangements than a thin soup. Cosmetic, personal-care, pharmaceutical, or chemical use should be reviewed separately; material, seal, and process compatibility must be confirmed for the specific formulation.
Technical Specifications
| Product | Jacketed cooking kettle |
|---|---|
| Available capacities | 50L, 100L, 200L, 300L, 500L, and 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation and controls | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
Configuration and FAQs
Before requesting a quote, share the product, batch size, heating source, viscosity or mixing needs, and preferred discharge method. Our factory-direct team can review these details and discuss a suitable build.
Are all options available on every size? No. Final compatibility depends on the model and requested configuration.
Which steel should I specify? SUS304 and SUS316L are available; select based on product and cleaning requirements.
Can the kettle tilt? Tilting is available on applicable models, with manual or hydraulic operation as specified.
Can you recommend an agitator? Provide product viscosity and batch details so the mixing requirement can be reviewed.
Can it process non-food products? Potentially, subject to material, seal, and process compatibility review.
Request a configuration review: Send your required capacity, product, preferred heat source, and agitation or tilting needs to Wenzhou Ace Machinery.
