Wenzhou Ace Machinery’s jacketed cooking kettle is available in 50 L to 1,000 L capacities, with SUS304 or SUS316L stainless steel and model-dependent heating options. Fixed or tilting designs, optional mixing, temperature control, insulation, and other configurations can be discussed around your product, batch size, and production workflow.

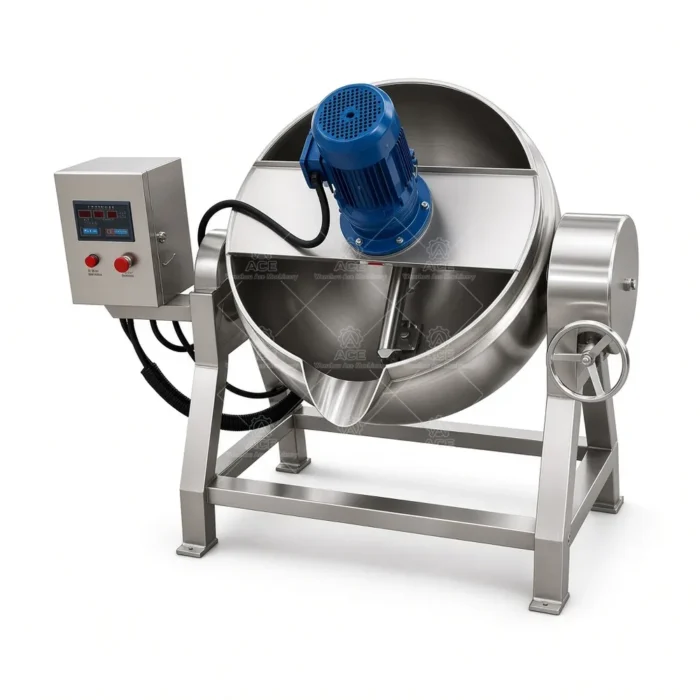

SS304 Jacketed Cooking Kettle with Mixer for Beef Sauce
价格范围：$2,030.85 至 $2,225.81
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products

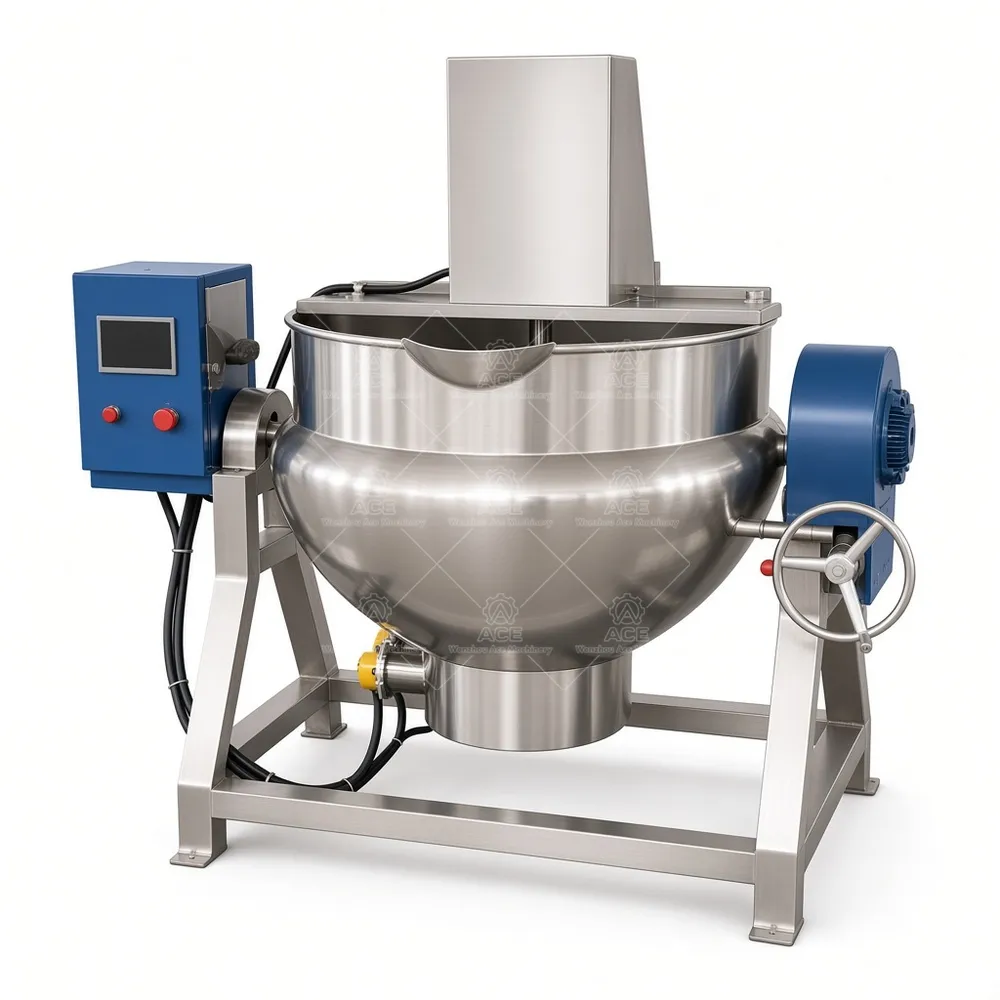

Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Beef sauce can scorch at the vessel wall while remaining underheated near the center, especially as a batch thickens. Our jacketed kettle heats product indirectly: a selected heating medium warms the jacket, and heat passes through the kettle wall into the food. This avoids direct flame or heating elements contacting the product, supporting more controlled cooking. Actual results depend on the recipe, batch size, heating source, and mixing setup.
Wenzhou Ace Machinery manufactures fixed and tilting configurations in capacities from 50 L to 1,000 L. Depending on the model, heating can be electric, steam, gas, or thermal oil. An optional mixer can help move thicker sauces during heating; mixer type and compatibility must be confirmed for the product and kettle. Temperature controls, variable-speed drive, insulation, and a control panel are available options where compatible. These choices can affect operator workload, heat management, cleaning access, and batch handling.
Applications and Production Fit
Typical food uses include sauces and gravy, fruit jams and fillings, soups and stock, syrups and confectionery mixtures, dairy blends, and other compatible products. A viscous meat sauce may call for mixing and a suitable discharge arrangement, while a delicate dairy mixture may require a different heating and agitation approach. The same setup should not be assumed to suit every recipe.
With suitable materials and process review, kettle configurations may also be considered for beverage ingredients, starches, gums, stabilizers, cosmetic creams or lotions, liquid detergents, and selected pharmaceutical or chemical formulations. Confirm product compatibility, cleaning requirements, and wetted materials before specifying non-food use. SUS304 or SUS316L stainless steel is available; selection depends on the product and operating conditions.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50 L, 100 L, 200 L, 300 L, 500 L, and 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Mixing system | Optional; configuration depends on model and product |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
FAQ
Can every size use every heat source? No. Availability depends on the selected model and requirements.
Is a mixer included? It is an optional feature, subject to compatibility.
How do I choose capacity? Share target batch size, fill level, and production frequency.
Can the kettle tilt? Fixed and tilting models are available; operation may be manual or hydraulic where applicable.
What should I provide for a quotation? Send product details, capacity, preferred heat source, mixing needs, discharge method, and cleaning or material requirements.
Discuss Your Configuration
As a factory-direct manufacturer, we can review the product, batch scale, heat supply, mixing needs, and discharge workflow with your team. Contact Wenzhou Ace Machinery with your required capacity, preferred heating method, and any tilting or mixer requirements so we can recommend a suitable configuration.
