Wenzhou Ace Machinery manufactures jacketed cooking kettles in capacities from 50L to 1000L, with SUS304 or SUS316L construction and model-dependent heating, agitation, and tilting options. Designed for batch processing of sauces, soups, jams, syrups, dairy blends, and other compatible products. Share your batch size, recipe characteristics, heat source, and discharge requirements to discuss a suitable configuration.

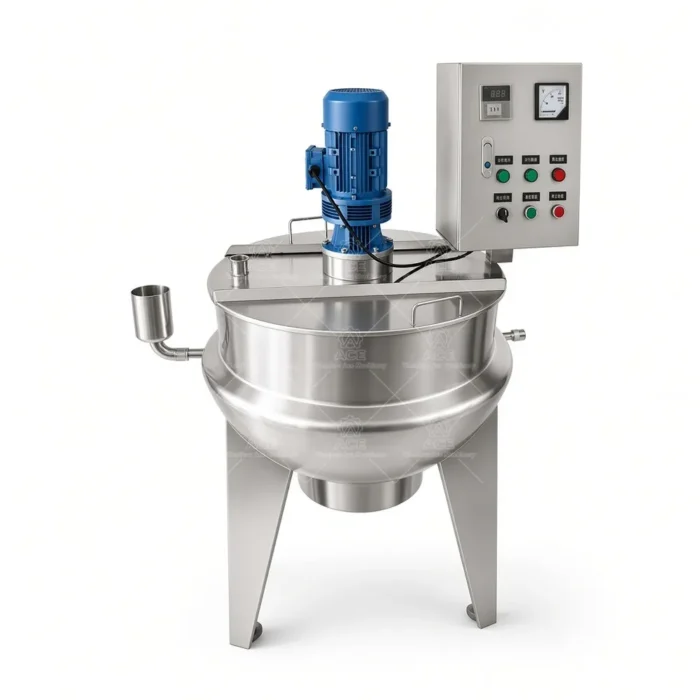

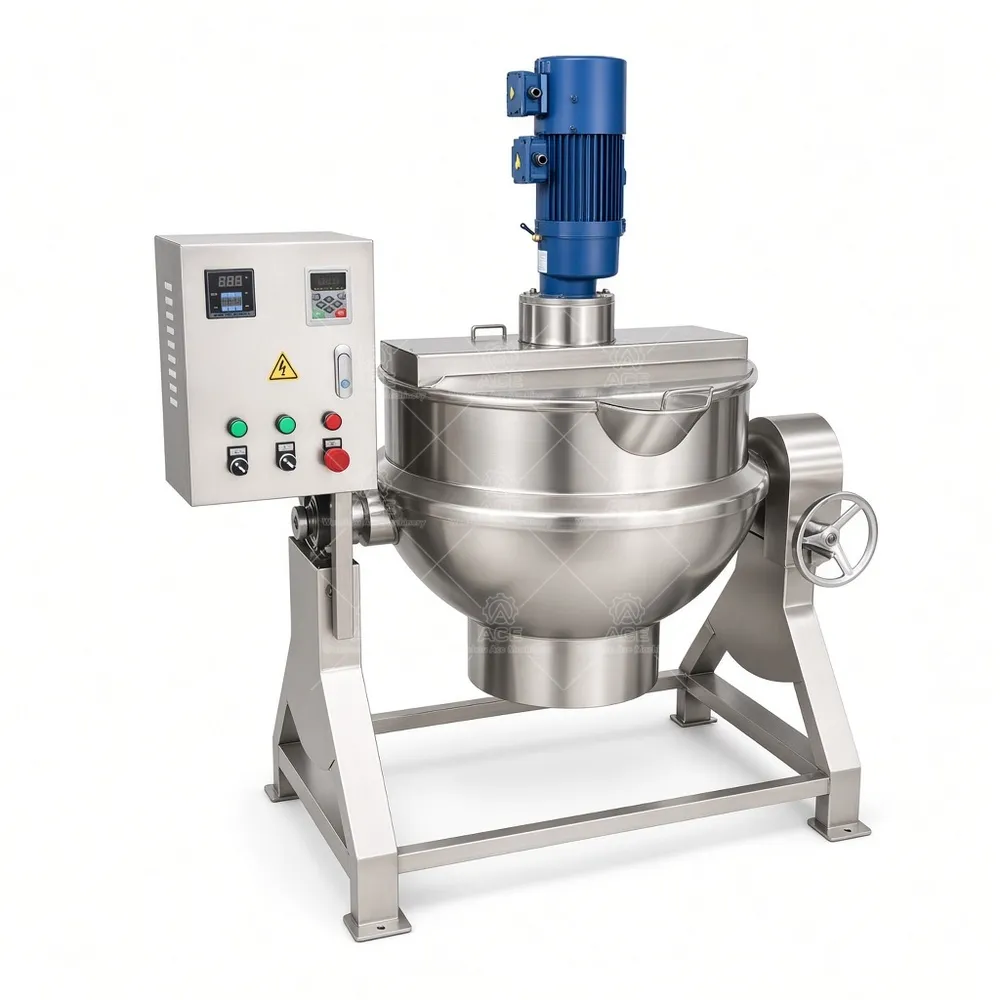

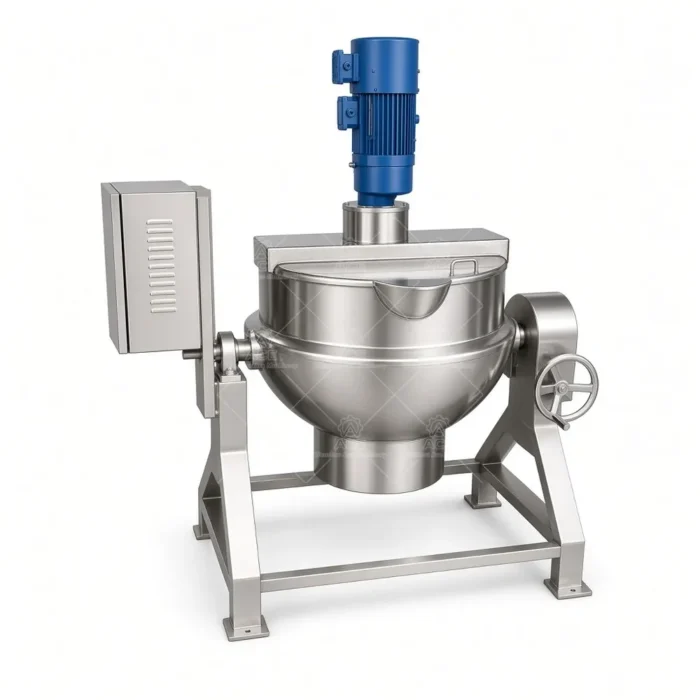

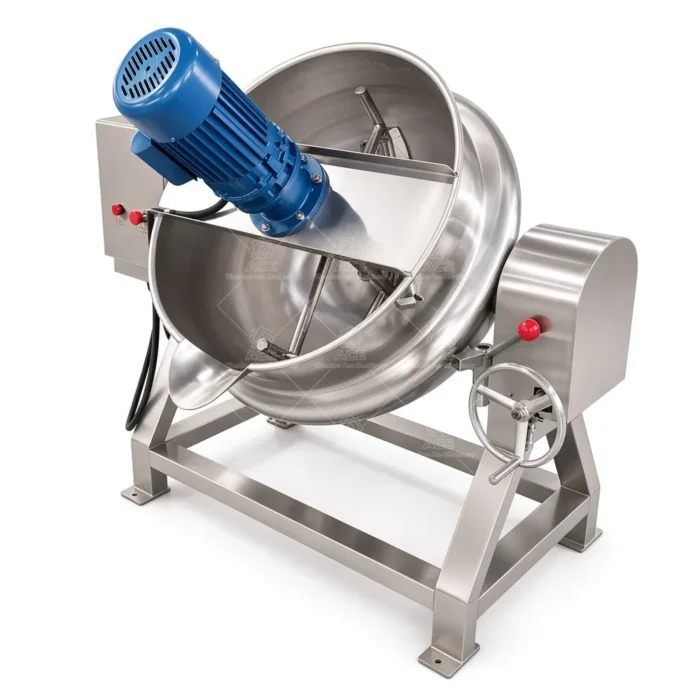

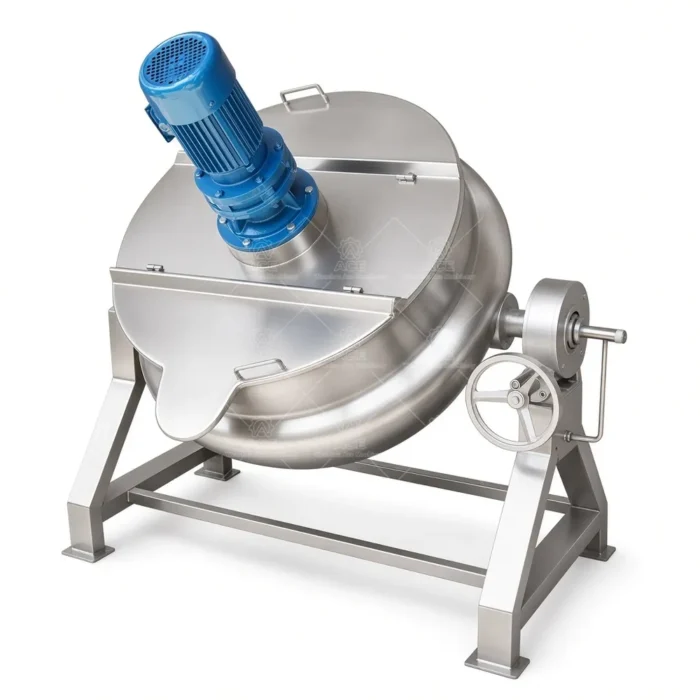

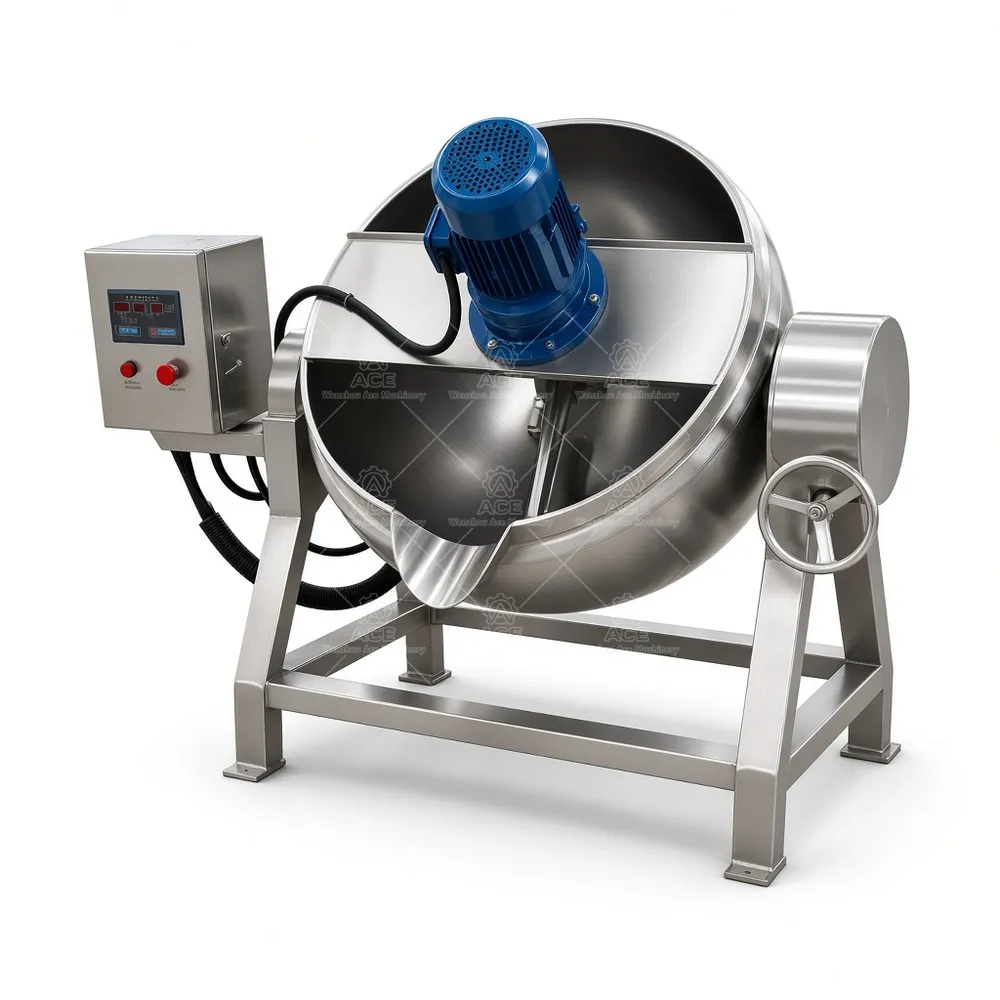

SS304 LPG Gas Jacketed Cooking Kettle with Agitator
价格范围：$2,275.43 至 $2,414.69
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Batch Processing
Heating a thick sauce or fruit filling evenly can be difficult when product settles on a hot surface. Our jacketed cooking kettle uses an indirect heat source: heat passes through the jacket and kettle wall into the batch. This arrangement supports controlled batch cooking without direct flame contact with the product. Agitation is available to help move product during processing; the suitable agitator depends on the recipe and kettle model.
Wenzhou Ace Machinery manufactures 50L, 100L, 200L, 300L, 500L and 1000L models in SUS304 or SUS316L stainless steel. Heating options include electric, steam, gas or thermal oil. Fixed and tilting constructions are available on applicable models, with manual or hydraulic tilting where supported. Temperature controls, variable-speed drives, insulation, control panels and other custom features depend on model compatibility.
Applications and Configuration
Typical food batches include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy blends and fillings. A viscous sauce may call for a different agitator arrangement than a thin syrup; batch size, heating source, discharge method and cleaning routine also affect selection. Similar kettle configurations may suit some beverage ingredients, cosmetics or chemical mixtures only after confirming material and process compatibility. No single configuration handles every formulation.
To discuss a suitable build, share your product characteristics, batch volume, preferred heat source, agitation needs, tilt or discharge requirements, and production workflow. We provide factory-direct manufacturing and customization based on the selected model and application.
Technical Specifications
| Item | Specification |
|---|---|
| Product | Jacketed cooking kettle |
| Capacity | 50L, 100L, 200L, 300L, 500L or 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas or thermal oil; model dependent |
| Kettle / tilt | Fixed or tilting; manual or hydraulic tilt where applicable |
| Agitation / control | Agitator and temperature control; configuration dependent |
| Customization | Available on request, subject to model compatibility |
FAQs
How do I choose capacity? Provide your normal batch size and available production space.
Can every size use gas heating? Heating options vary by model; confirm the required capacity and heat source.
Is tilting standard? No. Fixed or tilting construction depends on the selected model.
Can the agitator be variable speed? A variable-speed drive may be available where compatible.
What details help with a quotation? Send the product, batch volume, heat source, agitation, discharge and operating requirements.
Request a Configuration
Contact Wenzhou Ace Machinery with your required capacity, product, preferred heating method, and agitation or tilting requirements. Our team can review the process details and discuss an appropriate kettle configuration.
