Wenzhou Ace Machinery jacketed cooking kettles are available in 50L to 1000L capacities, with SUS304 or SUS316L stainless steel options. Depending on the model, configurations may include electric, steam, gas, or thermal-oil heating, fixed or tilting vessels, and optional stirring and controls. Share your product and batch requirements to discuss a suitable setup.

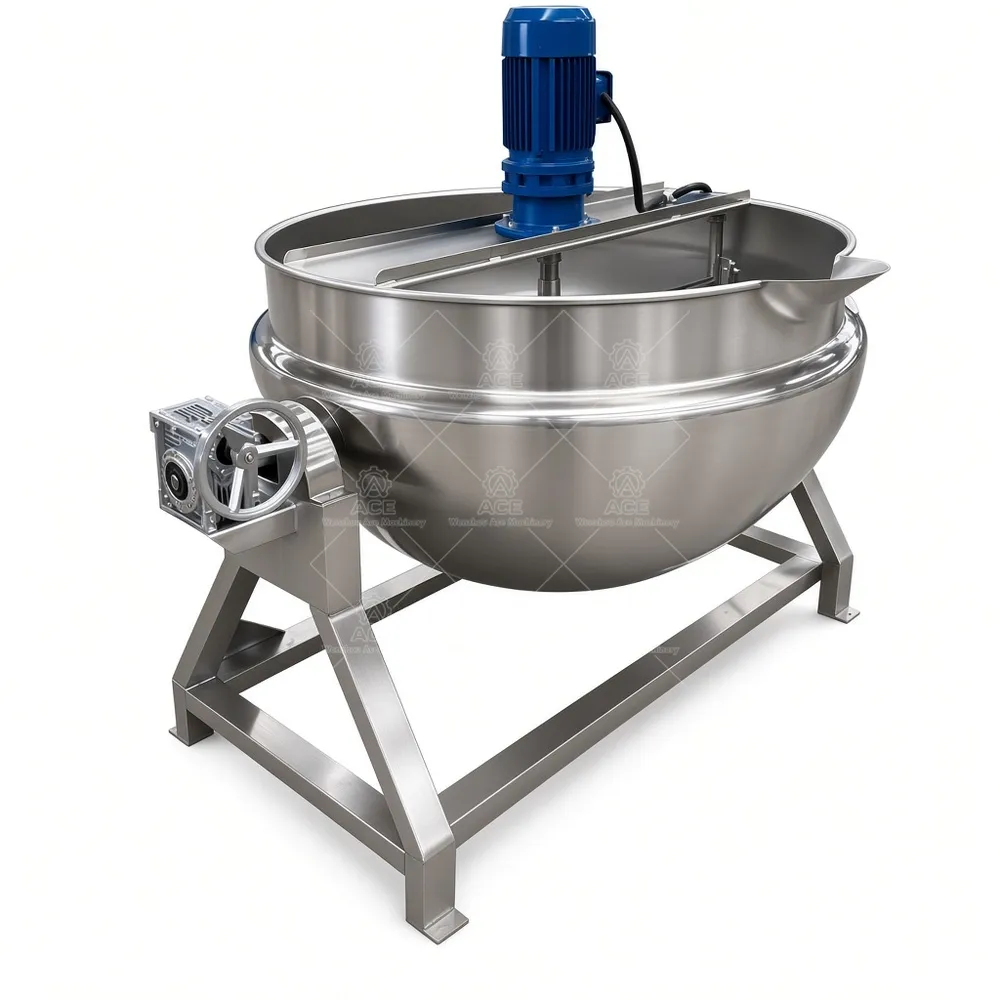

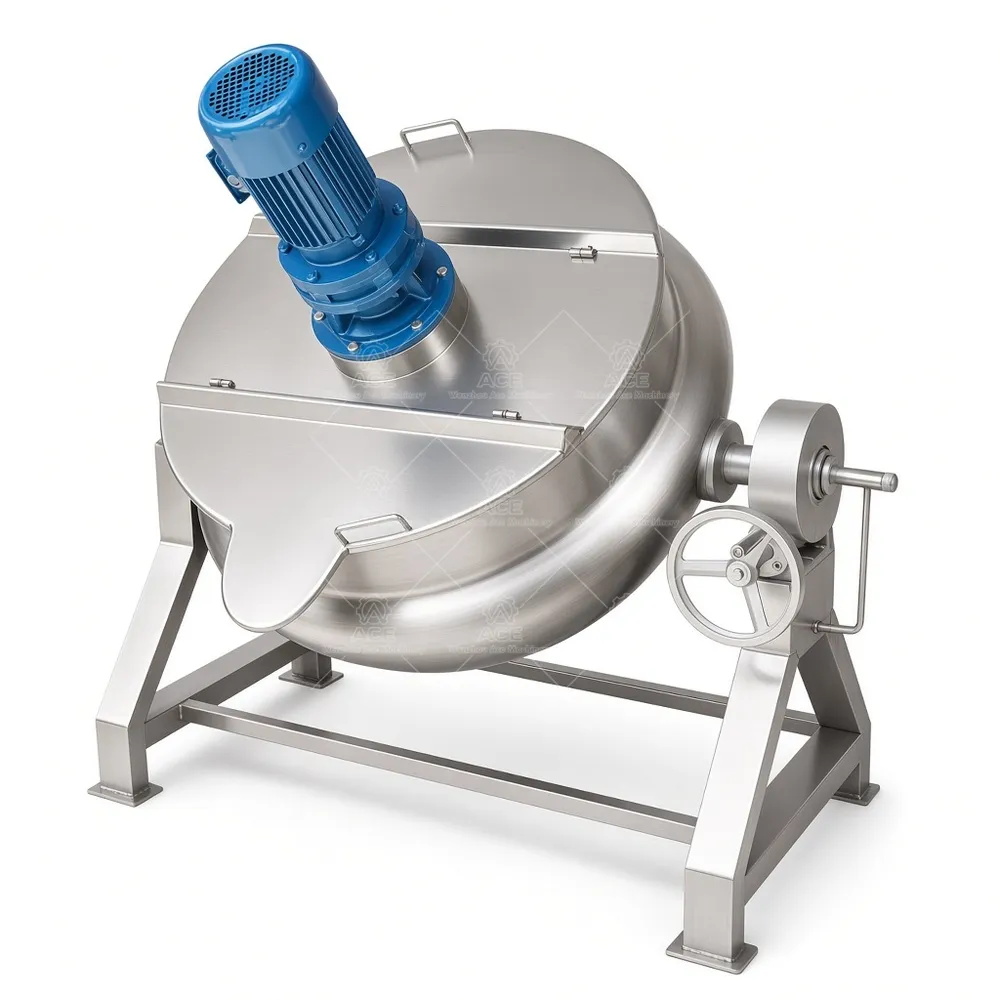

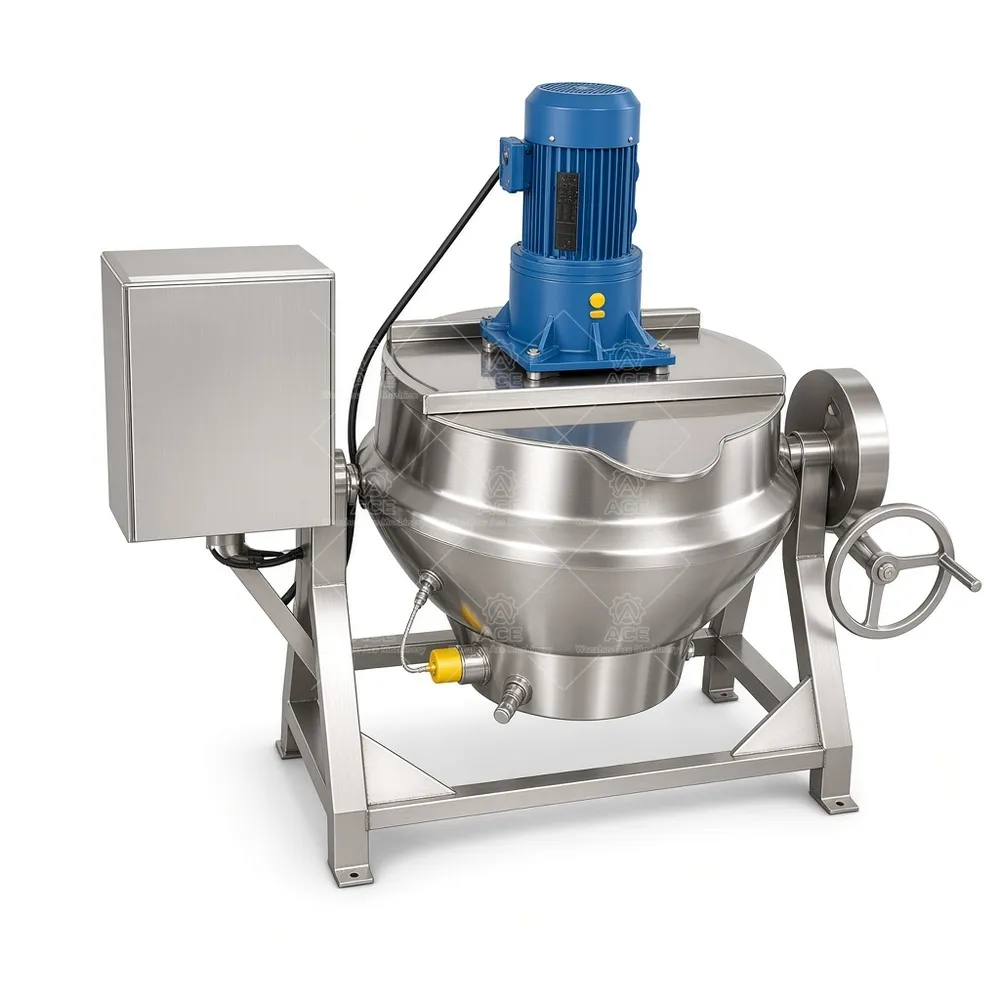

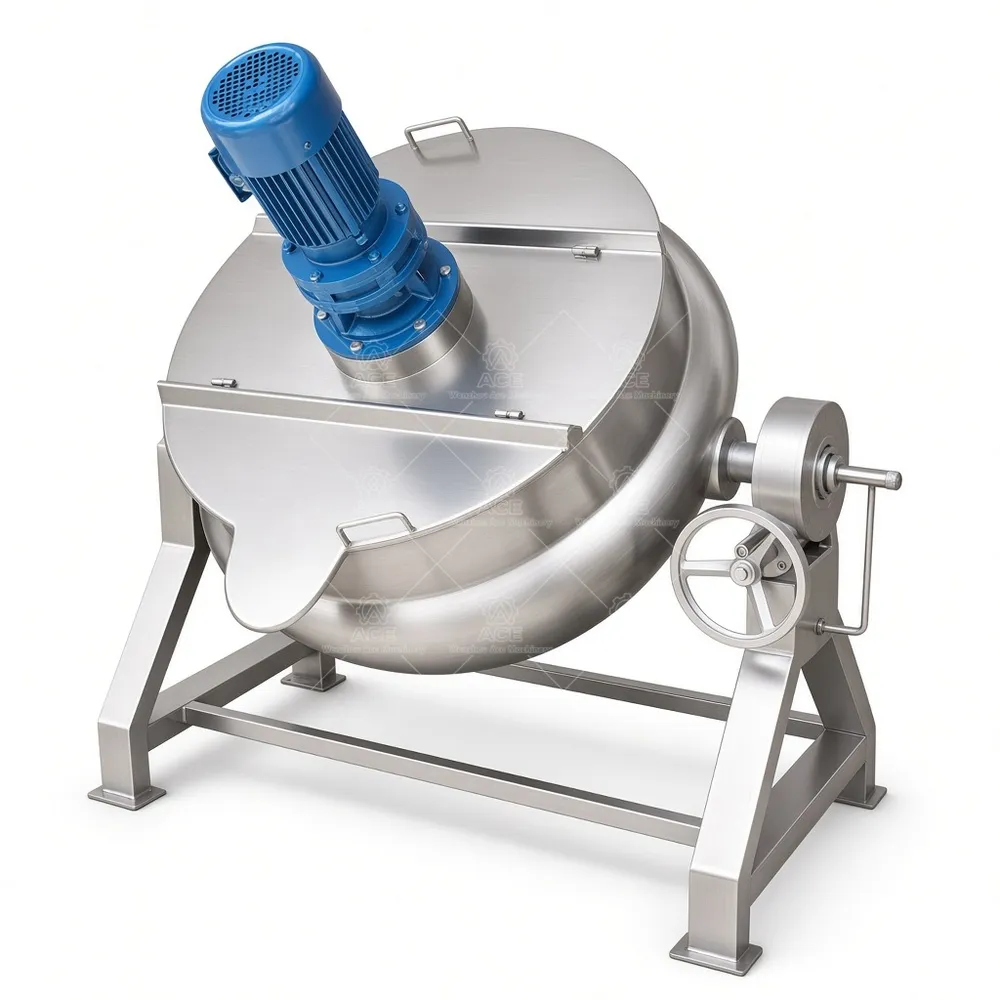

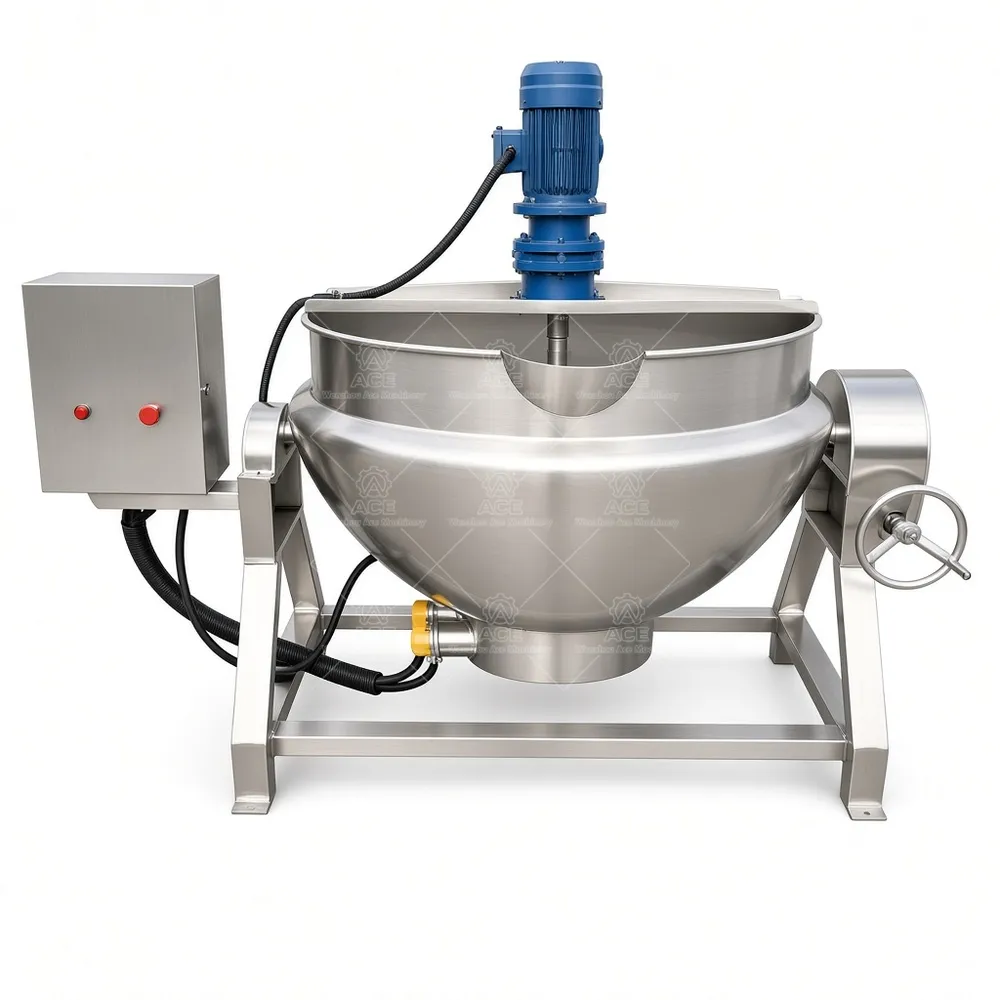

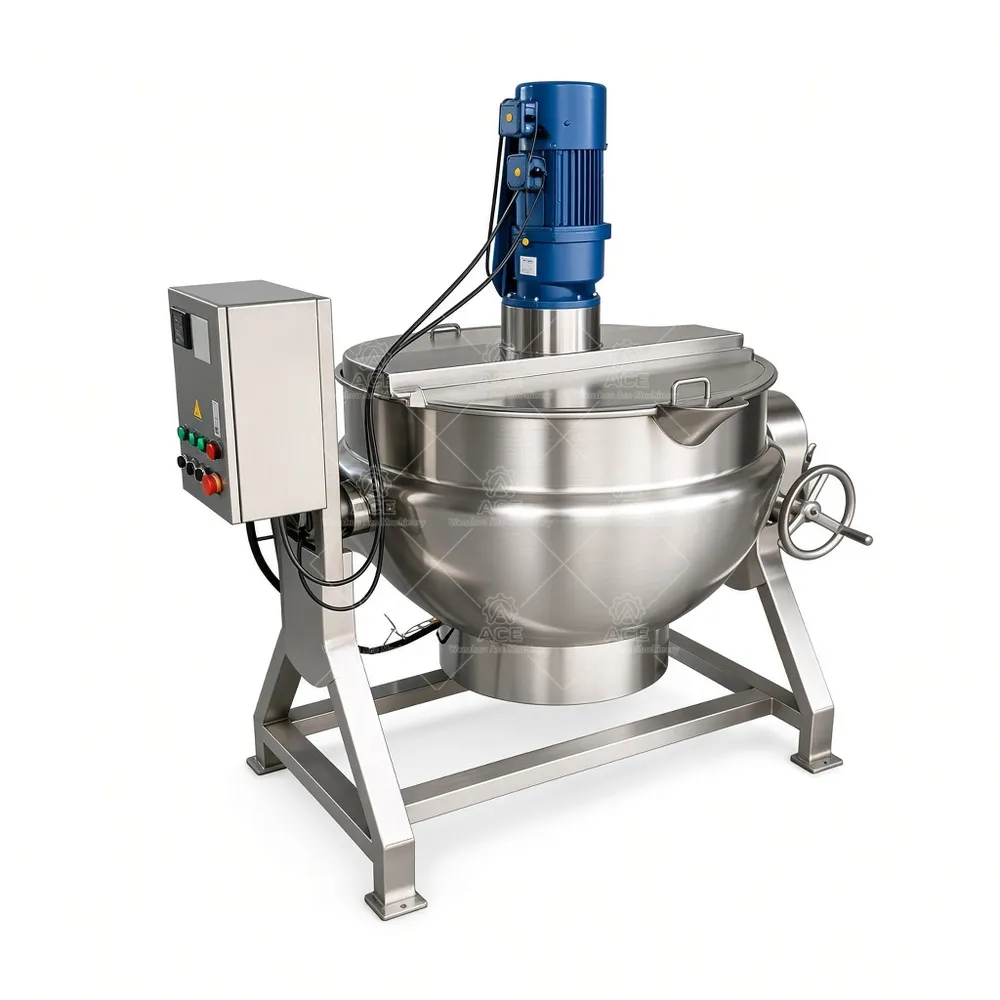

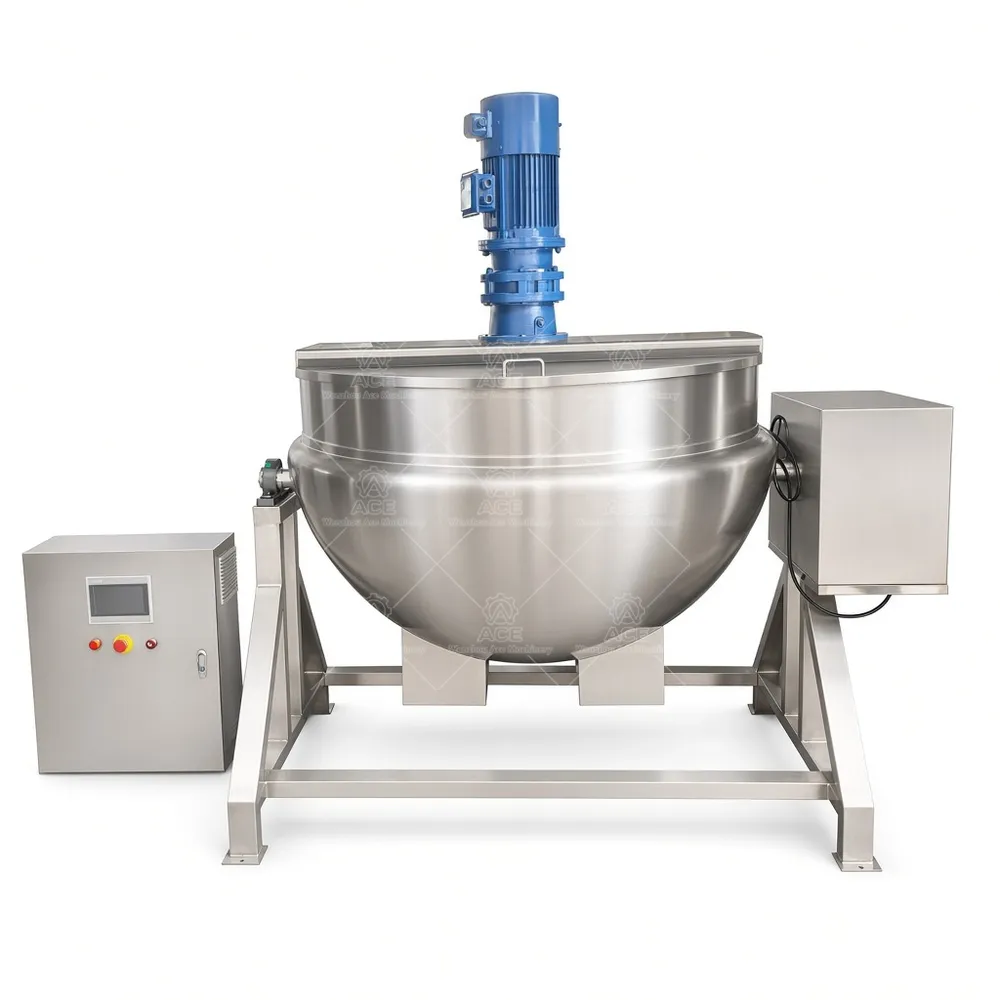

Jacketed Cooking Kettle with Stirrer, 50–1000L, Tilting Models Available
价格范围：$2,291.60 至 $2,518.70
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Heating thick sauces, fruit fillings, or dairy mixtures in a production vessel calls for a suitable heat source and mixing arrangement. Wenzhou Ace Machinery builds jacketed cooking kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. Heat is applied through the jacket rather than directly to the product, supporting indirect heating during batch cooking. Actual heat transfer depends on the product, batch size, and selected configuration.
Features and Applications
Choose electric, steam, gas, or thermal-oil heating where available for the selected model. Fixed and tilting vessel configurations are offered; tilting operation may be manual or hydraulic, depending on the model. An optional stirrer can help move the batch during cooking, while temperature control, variable-speed drive, insulation, and a control panel can be considered where compatible. These options affect day-to-day operation, from mixing a thick gravy to discharging a cooked fruit filling. They are not available in every combination.
Typical food uses include sauces, dressings, mayonnaise, gravy, jam, fruit fillings, soups, stock, syrup, confectionery mixtures, dairy blends, and other compatible foods. Starch, gum, stabilizer, or thickener dispersion may also be considered after reviewing the recipe and mixing needs. Cosmetic creams, lotions, shampoos, conditioners, liquid detergents, and suitable pharmaceutical or chemical batches require separate checks for product compatibility, contact materials, and seals. One standard configuration will not suit every formulation.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; configuration-dependent |
| Vessel setup | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic, where applicable |
| Stirring and controls | Optional; details depend on configuration |
| Customization | Available according to product and process requirements |
Configuration and Ordering
We manufacture at our Wenzhou facility and can discuss a setup around your product, batch size, available heat source, mixing needs, and discharge method. For a useful quotation, share the required working capacity, recipe or product characteristics, preferred material, heating preference, and whether stirring or tilting is needed. Confirm process and material compatibility for non-food applications.
FAQs
Are all capacities available with every heat source? No. Options depend on the selected model and requirements.
Can the kettle tilt? Tilting is available on applicable models, with manual or hydraulic operation as specified.
Is a stirrer included? Stirring is optional and should be selected to suit the batch.
Which stainless steel can I request? SUS304 or SUS316L, subject to application review.
What should I send for a recommendation? Capacity, product details, heating source, mixing needs, and discharge requirements.
Contact Wenzhou Ace Machinery with these process details so our team can review a suitable kettle configuration for your production line.
