This jacketed cooking kettle is designed for batch processing of sauces, soups, jams, syrups, dairy mixtures, and candy products. Available capacities range from 50L to 1000L, with SUS304 or SUS316L construction and electric, steam, gas, or thermal oil heating options. Mixer, temperature control, and fixed or tilting configurations depend on the selected model.

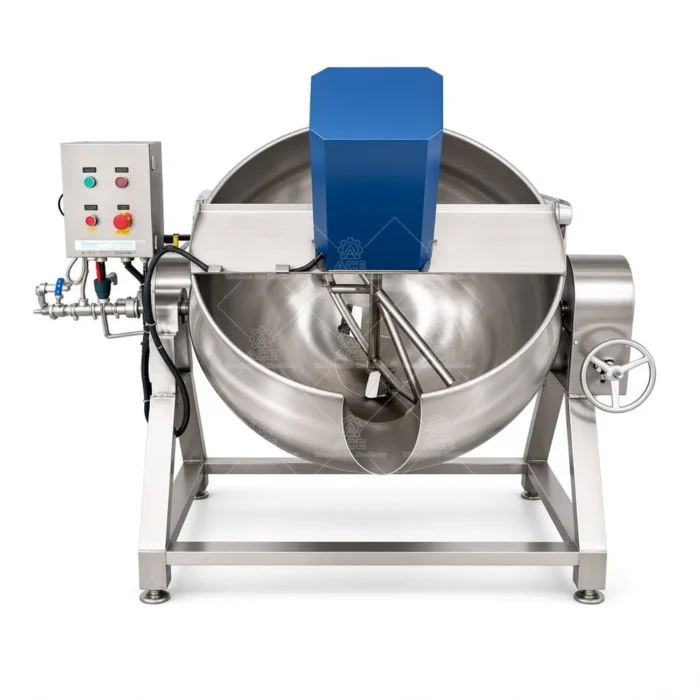

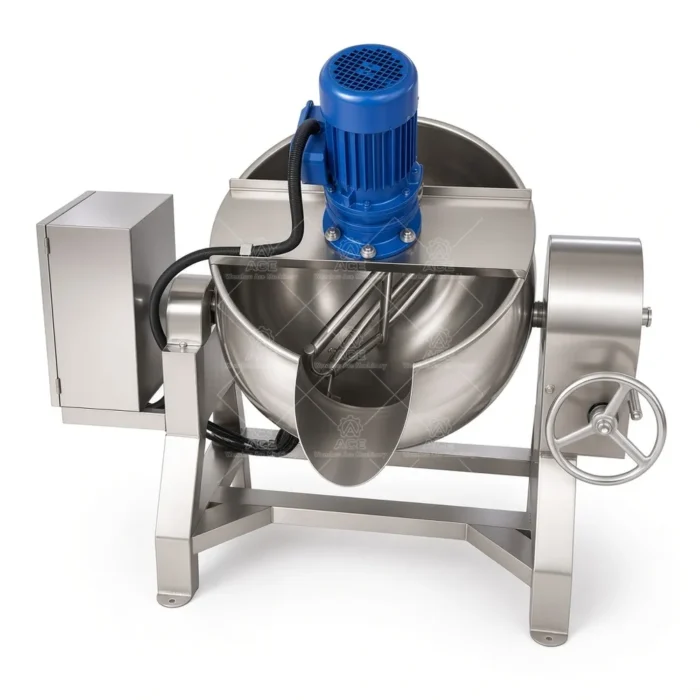

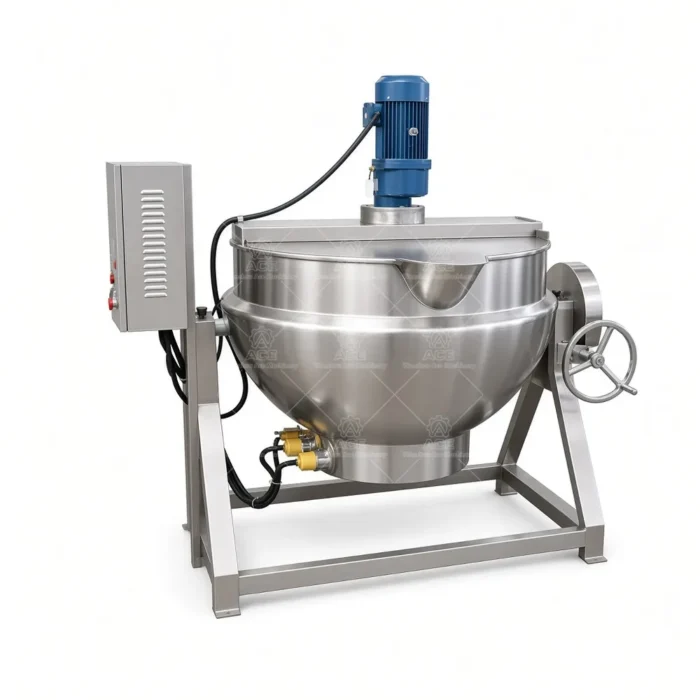

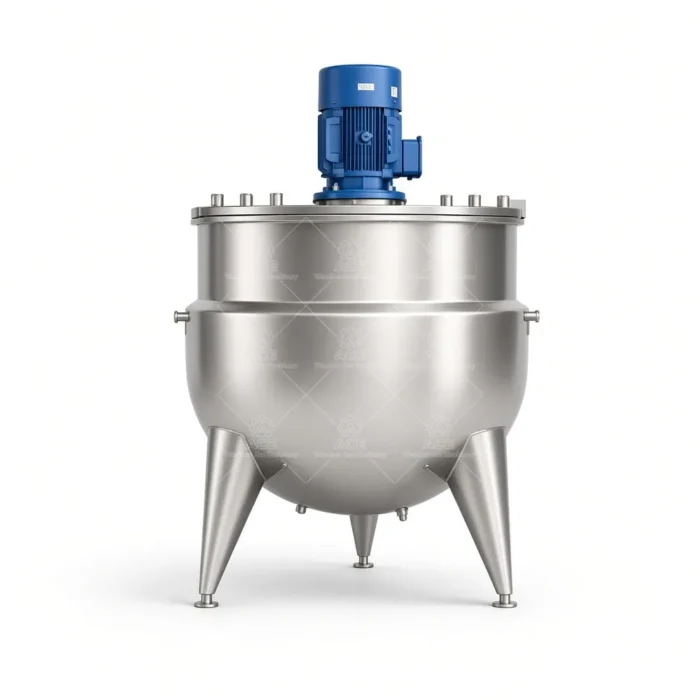

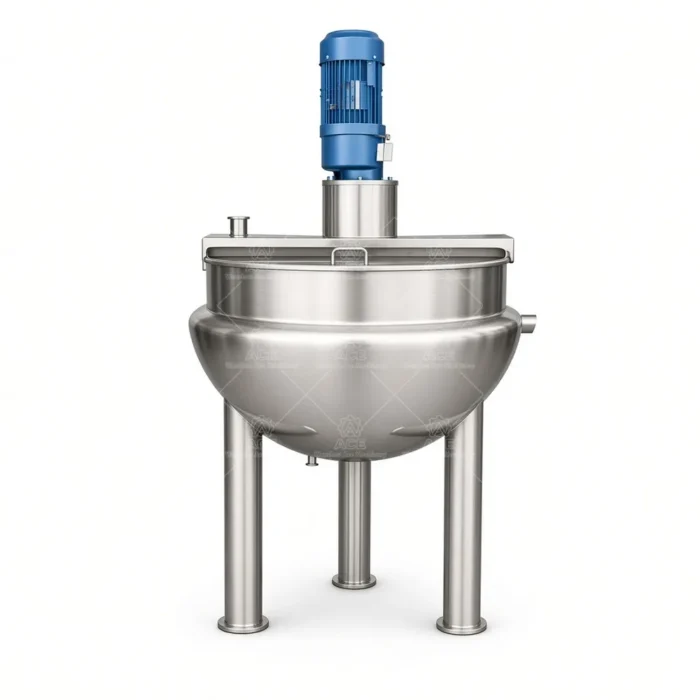

Jacketed Cooking Kettle with Mixer for Commercial Food Processing
价格范围：$2,094.27 至 $2,245.27
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Controlled Batch Cooking
Cooking thick sauces, fruit fillings, or candy mixtures calls for more than selecting a kettle by volume. Product viscosity, batch size, heat source, and how the batch is emptied all affect the working configuration. Wenzhou Ace Machinery manufactures jacketed cooking kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, with final options matched to the model and process.
The kettle transfers heat through its jacket, warming the product indirectly rather than applying heat directly to the vessel contents. This arrangement supports batch cooking where operators need to stir while heating. An optional agitator can help move thicker mixtures and reduce reliance on manual stirring; temperature control and a variable-speed drive are available where compatible. Fixed or tilting construction may be selected by model. Tilting can assist discharge, while the required mixer and outlet arrangement should be discussed together.
Typical Applications
Food uses include sauces and gravies, jam and fruit fillings, soups, broths, syrups, dairy mixtures, and candy masses. Each product has different viscosity, heating, and agitation needs. Other possible applications include cosmetic creams, lotions, shampoos, liquid detergents, pharmaceutical liquids or excipient dispersions, and compatible water-based chemical formulations. These require confirmation of material, seal, and process suitability; one configuration is not appropriate for every formula.
Technical Specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Kettle configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation system | Optional mixer; configuration depends on product and model |
| Temperature control | Optional; configuration dependent |
| Customization | Insulation, control panel, variable-speed drive, and other options available by request |
Configuration and Ordering
We manufacture and customize equipment at our factory. To review a suitable setup, share your product, target batch size, preferred heat source, mixing needs, and discharge method. Also note whether the batch contains acids, salts, or other ingredients that may affect material selection. SUS304 and SUS316L options are available; confirm product compatibility with our engineering team.
Frequently Asked Questions
Are all capacities available with every heating method? No. Availability depends on the selected model and requested configuration.
Can the kettle tilt? Fixed and tilting models are available. Manual or hydraulic operation depends on the model.
Can I specify a mixer? Yes. Share the product consistency and mixing task so the compatible option can be reviewed.
Which steel grade should I request? SUS304 and SUS316L are offered. Selection depends on ingredients and cleaning conditions.
What information helps with a quotation? Provide capacity, product details, heat source, agitation, and discharge requirements.
Send these process details to Wenzhou Ace Machinery to discuss a kettle configuration for your production line.
