Wenzhou Ace Machinery jacketed cooking kettles are available in 50L to 1000L capacities, with SUS304 or SUS316L construction and model-dependent heating options. Configure a fixed or compatible tilting vessel with optional agitation and controls for batch cooking applications such as sauces, soups, jams, syrups, and dairy blends. Share your product and process details to discuss a suitable setup.
Jacketed Cooking Kettle for Commercial Food Processing
价格范围：$2,242.44 至 $2,465.34
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

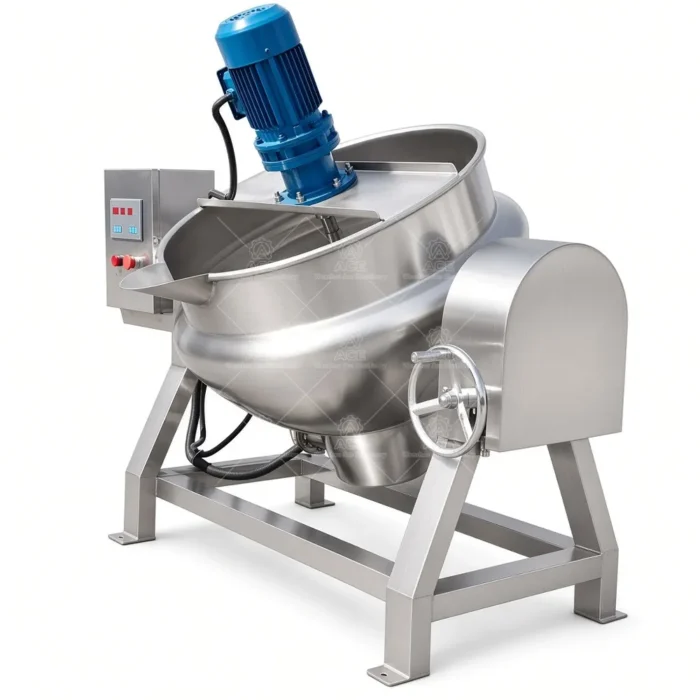

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Batch Production
Heating a thick sauce or fruit filling directly can create hot spots and product sticking. Our jacketed cooking kettle transfers heat through the vessel wall: a selected heating medium warms the jacket, which then heats the batch indirectly. This arrangement supports controlled batch cooking, though results depend on the product, kettle configuration, and operating procedure.
Production Features
Wenzhou Ace Machinery manufactures fixed and, on compatible models, tilting kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. Choose SUS304 or SUS316L according to product and cleaning requirements. Electric, steam, gas, or thermal-oil heating may be available depending on the model. An optional agitator can help move the batch during heating; it is not a high-speed rotor-stator mixer and does not guarantee powder dispersion or emulsification. Temperature control, variable-speed drive, insulation, and a control panel can be considered where compatible. Tilt operation may be manual or hydraulic, depending on the selected unit.
Applications
Typical food batches include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy blends, and fillings. Viscosity, solids, sensitivity to heat, and discharge needs affect the suitable agitator and heating arrangement. Other potential uses include cosmetic creams or lotions, liquid detergent, pharmaceutical liquids and excipient dispersions, and compatible water-based chemical formulations. Confirm material, seal, cleaning, and process requirements before specifying non-food service; one configuration will not suit every formula.
Technical Specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilt option | Manual or hydraulic, where applicable |
| Agitation / controls | Optional agitator and temperature control; configuration dependent |
| Customization | Available according to process requirements |
Configuration and FAQs
To size a kettle, share batch volume, product behavior, heat source, agitation needs, cleaning method, and how the batch must discharge. Our factory-direct team can review these details and discuss compatible options.
Can every capacity use every heat source? No. Availability depends on the model and requested configuration.
Can I specify a tilting kettle? Yes, where the selected model supports it; operation may be manual or hydraulic.
Is an agitator standard? It is optional and should be matched to the product and process.
Which steel should I request? SUS304 and SUS316L are available; discuss product and cleaning conditions.
What should I include in a quote request? Send capacity, product, heating preference, and agitation or tilting requirements. Include discharge and process details so we can recommend a suitable configuration.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
