Cook sugar syrup, candy mixtures, and other food products with a jacketed kettle configured for your batch and heat source. Wenzhou Ace Machinery offers 50L to 1000L capacities, SUS304 or SUS316L construction, and electric, steam, gas, or thermal oil heating options. Fixed or tilting vessels and optional process features depend on the selected model and application.
Industrial Sugar Cooking Kettle for Candy, Syrup and Food Processing
价格范围：$1,806.24 至 $1,953.45
Request a quote

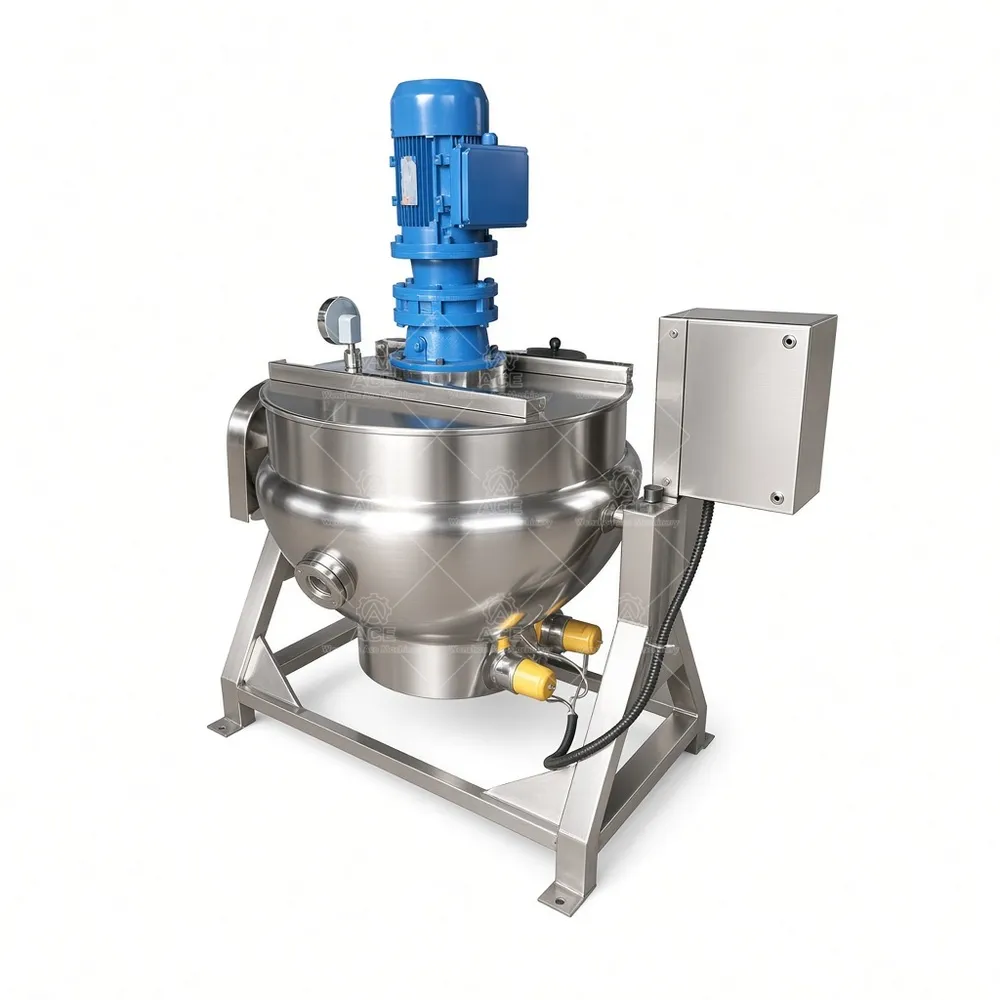

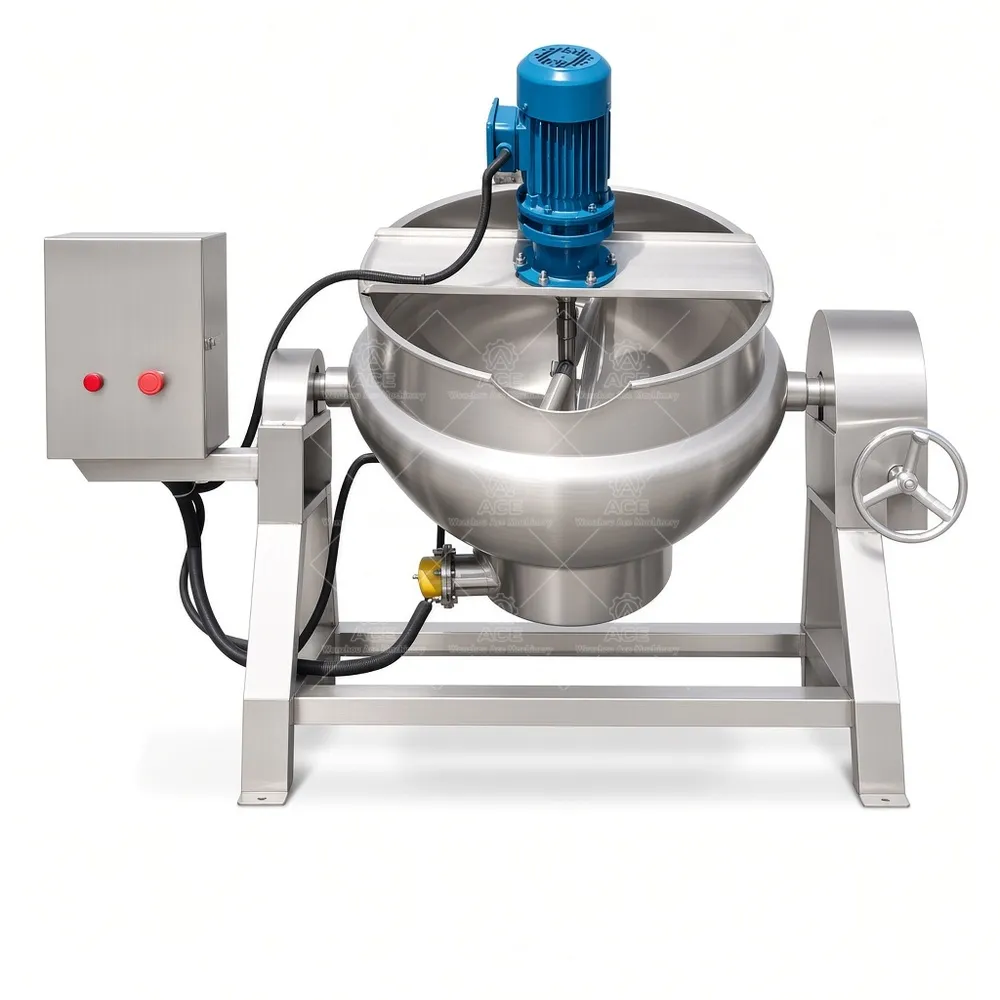

A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Sugar Cooking and Food Production
Cooking sugar syrup or a thick filling calls for controlled heat, suitable batch capacity, and a vessel that fits the way product is transferred at your plant. At Wenzhou Ace Machinery, we configure jacketed kettles around those production details rather than assuming one setup suits every recipe.
The product sits in the inner vessel while a selected heating medium warms the jacket. This indirect heat helps distribute heat through the vessel wall without direct contact between flame or heating element and the batch. Depending on model and requirements, the kettle can be fixed or tilting; tilting may be manual or hydraulic. An optional agitator can support product movement during cooking, but its suitability depends on the product’s viscosity and processing needs.
Production applications and configuration
Typical uses include sugar syrup and candy mixtures, sauces, gravy, jam, fruit fillings, soups, dairy mixtures, and other food products. A viscous candy mass may call for an agitator and a discharge arrangement suited to its flow, while a thinner syrup batch may have different mixing needs. Kettles may also suit selected beverage ingredients, cosmetic creams or lotions, and compatible liquid formulations in pharmaceutical or chemical processing. Material, seals, heating method, and process suitability must be reviewed for each application; one configuration does not handle every formula.
Choose capacity based on working batch size and available headroom for mixing and filling, not just nominal vessel volume. Tell us whether your site uses electricity, steam, gas, or thermal oil. SUS304 and SUS316L are available material options. Insulation, temperature control, a control panel, variable-speed drive, and other custom features may be considered where compatible with the selected model. Routine cleaning and maintenance access should also be discussed during layout planning.
Technical specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitator and temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
Common questions
Can every capacity use every heating method? No. Availability depends on the selected model and site requirements.
How do I select capacity? Share your target batch size, fill level, and production frequency.
Can the kettle tilt? Tilting is model-dependent, with manual or hydraulic operation where applicable.
Can you add mixing or temperature controls? These are optional when compatible with the configuration.
What information helps with a quotation? Provide product details, batch size, heat source, mixing needs, and preferred discharge method.
As a factory-direct manufacturer, Wenzhou Ace Machinery can discuss a configuration for your process. Send those production details to request a practical recommendation and quotation.
