Industrial jacketed cooking kettles from Wenzhou Ace Machinery are available in 50L to 1000L capacities, with SUS304 or SUS316L stainless steel and model-dependent electric, steam, gas, or thermal oil heating. Fixed or tilting designs and optional agitation and controls can be considered for jam, sauce, soup, syrup, candy, dairy, and other compatible batch processes.

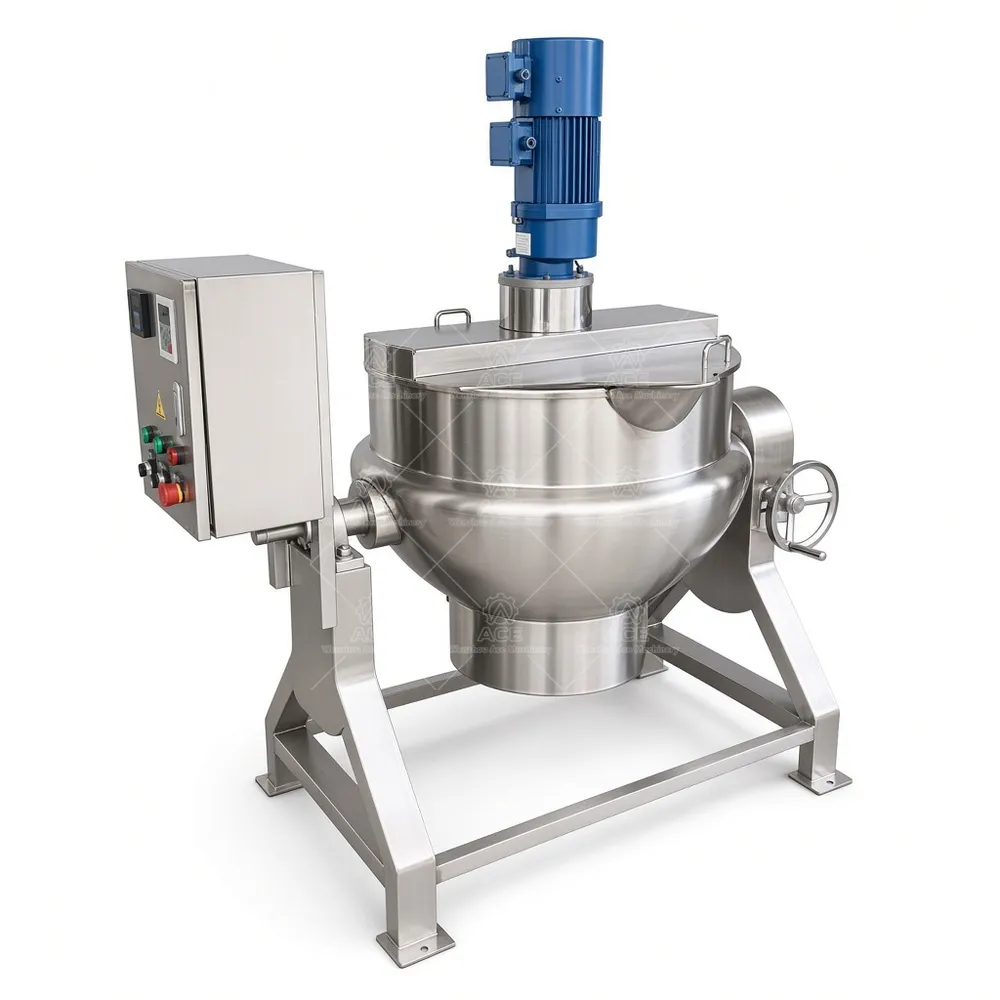

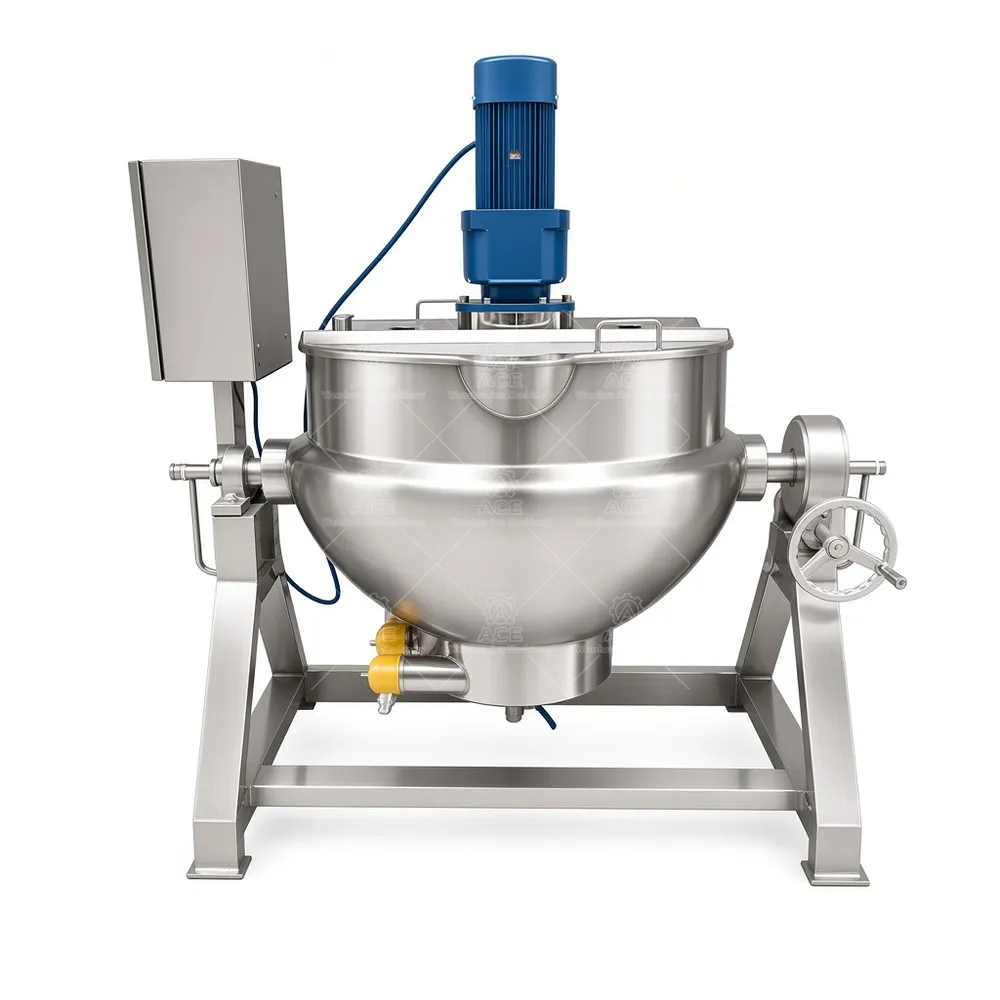

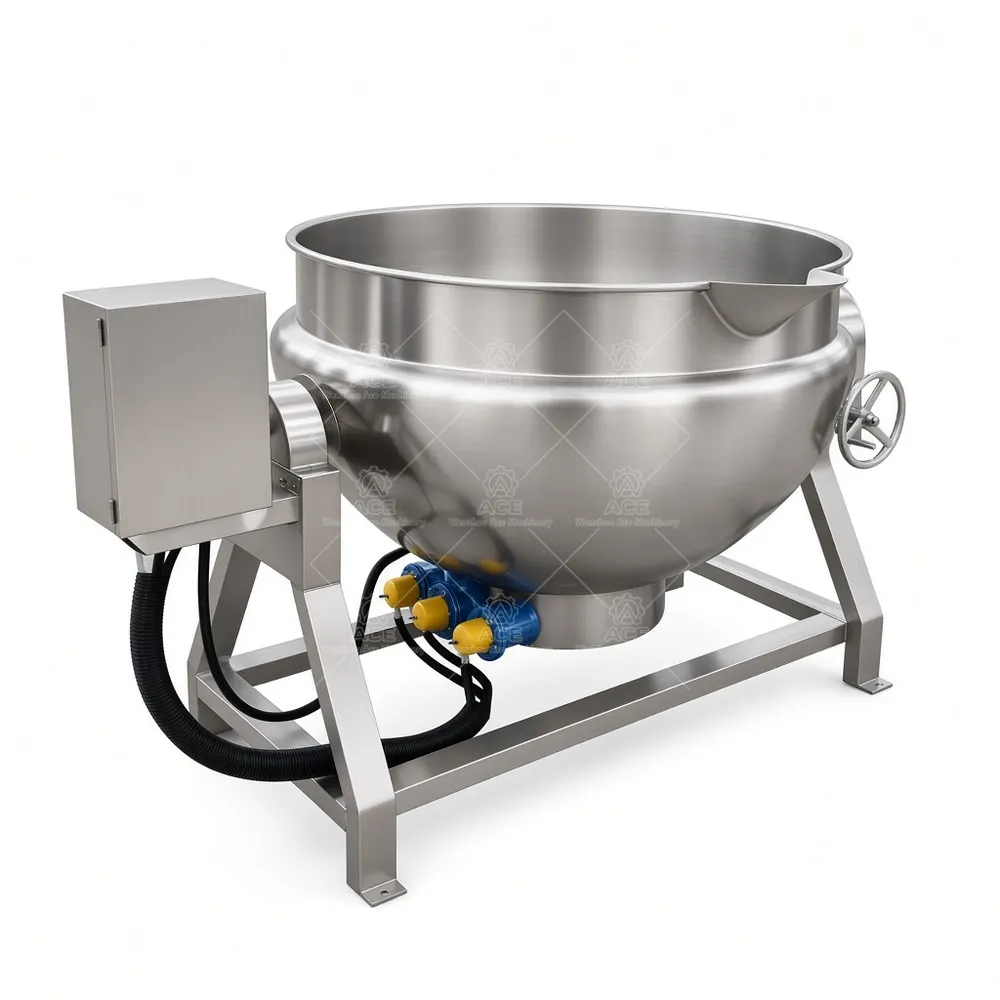

Industrial Jacketed Cooking Kettle with Agitator for Jam and Candy
价格范围：$2,250.14 至 $2,438.25
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Batch Food Production
Cooking thick or heat-sensitive products in a direct-fired vessel can create hot spots and make batch-to-batch control difficult. Our jacketed kettle heats product indirectly: the selected heat source warms the jacket, and heat transfers through the kettle wall. An optional agitator helps move product through the vessel during cooking, subject to model compatibility.
Wenzhou Ace Machinery manufactures kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. Heating options include electric, steam, gas, or thermal oil. Fixed and tilting constructions are available on applicable models; tilting operation may be manual or hydraulic. Temperature control, insulation, a control panel, and variable-speed drive can be discussed where compatible. These options support practical production needs such as controlled heating, product movement, and batch discharge. Final configuration depends on the model and process.
Typical Applications
Food applications include sauces and gravy, jam and fruit fillings, soups and stock, syrup, candy mixtures, dairy blends, and fillings. Starch, gums, stabilizers, and thickeners may require a suitable mixing approach to limit lumps. Cosmetics such as creams, lotions, shampoos, and liquid detergents, as well as pharmaceutical liquids or chemical emulsions, require separate review of product compatibility, materials, seals, and process conditions. One standard configuration is not suitable for every formulation.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic, where applicable |
| Agitation and controls | Optional; details depend on configuration |
| Customization | Available on request |
Configuration and FAQs
For sizing, share batch volume, product viscosity, ingredients, heating source, mixing needs, and how the cooked product will be discharged. We manufacture and customize at the factory; our team can review process and model compatibility before recommending a configuration.
Can every capacity use every heat source? No. Availability depends on the selected model.
Can I specify SUS316L? Yes, subject to the required configuration.
Is an agitator included? It is an optional feature; specify the product and mixing requirement.
Are all kettles tilting? No. Fixed or tilting construction depends on the model.
What should I send for a quotation? Capacity, product details, preferred heat source, and agitation or tilting requirements.
Contact Wenzhou Ace Machinery with these production details so we can review a suitable kettle configuration for your process.
