Wenzhou Ace Machinery’s jacketed cooking kettles are available in 50L to 1000L capacities, with SUS304 or SUS316L stainless steel and model-dependent electric, gas, steam, or thermal oil heating. Fixed and tilting designs, agitators, temperature controls, and other options can be discussed around your product, batch size, and discharge requirements.

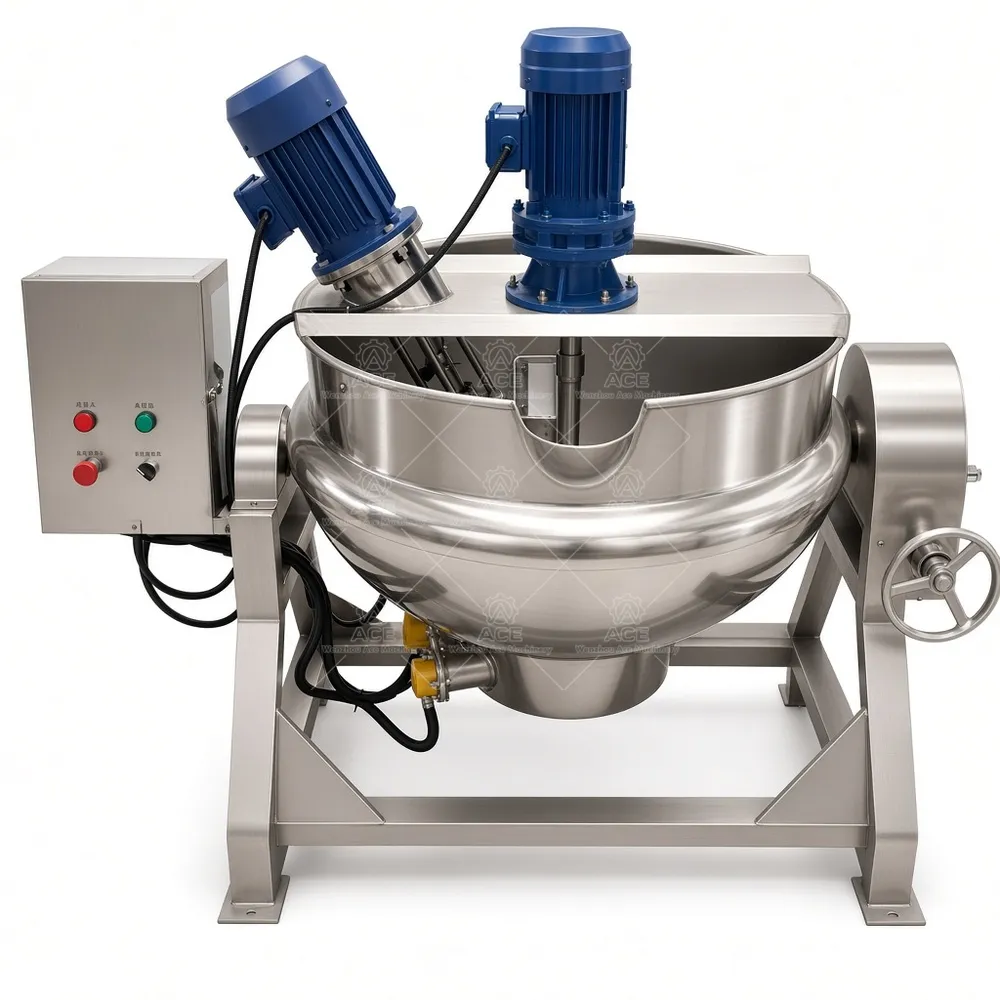

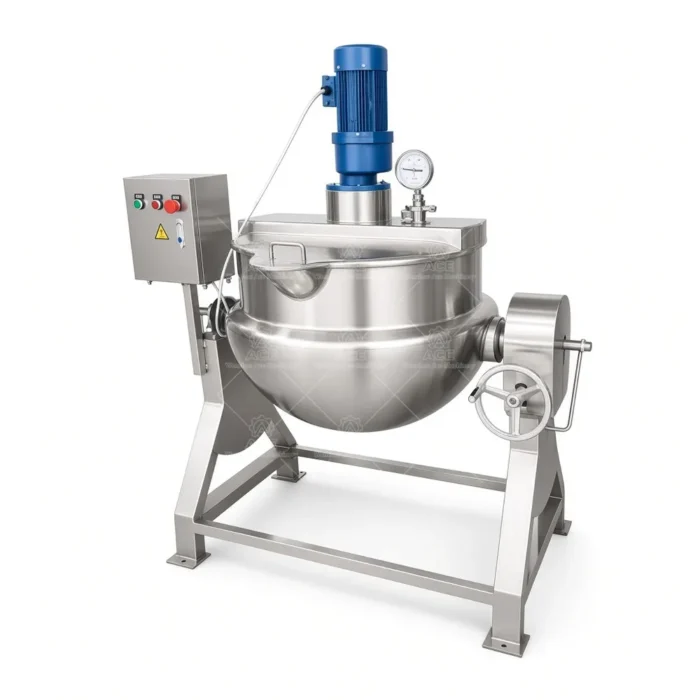

Industrial Jacketed Cooking Kettle with Mixer for Food Processing
价格范围：$1,802.06 至 $1,899.91
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Batch Production
Cooking a thick tomato sauce, fruit filling, or sugar syrup requires controlled heat and a vessel suited to the batch size. Direct heating can create hot spots, especially as a product thickens. Our jacketed kettle transfers heat indirectly: a selected heating medium warms the space around the inner vessel, which then heats the product. Agitation can help move product through the batch, subject to the mixer configuration and recipe.
Wenzhou Ace Machinery manufactures 50L, 100L, 200L, 300L, 500L, and 1000L models. A fixed kettle may suit a line with dedicated transfer equipment; a tilting model can support discharge where the product and layout allow it. Tilting operation may be manual or hydraulic, depending on the model. Heating options include electric, gas, steam, or thermal oil, but not every capacity or kettle arrangement supports every option.
Production Uses and Configuration
Typical food applications include sauces and gravy, jams and fruit fillings, soups and stocks, syrups and confectionery mixes, dairy blends, and other compatible foods. A thick filling may call for an agitator, while a delicate product may require a different mixing approach. We can discuss temperature control, variable-speed drive, insulation, control panel, and other custom features where compatible. These options can help operators manage routine batches, but recipe trials and process requirements should guide the final setup.
Similar vessels may be considered for cosmetic, personal-care, pharmaceutical, or chemical processing only after confirming product compatibility, materials, seals, and process requirements. A standard food-processing configuration is not automatically suitable for these applications.
Technical Specifications
| Item | Specification |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, gas, steam, or thermal oil; configuration dependent |

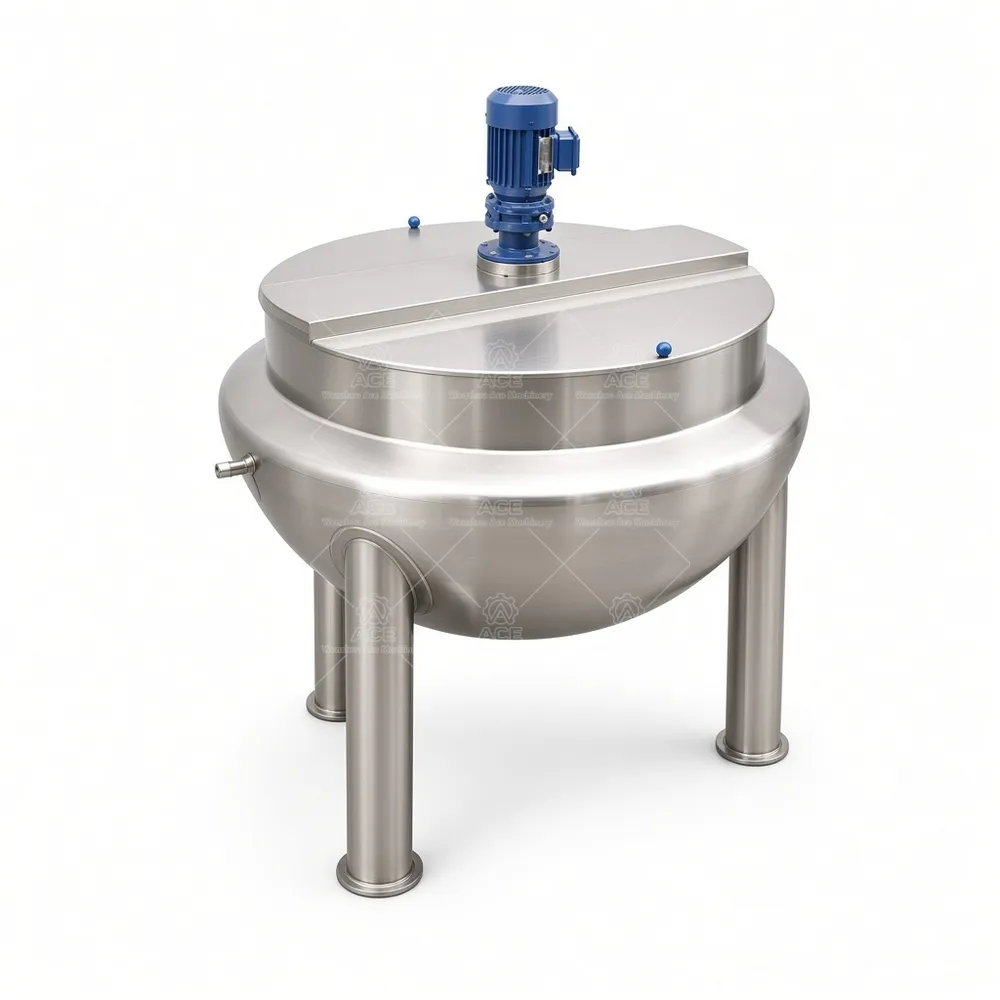

| Kettle arrangement | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation and controls | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
FAQs
How do I select capacity? Share target batch size, fill level, and production frequency for review.
Can every model use any heat source? No. Availability depends on model and requested configuration.
Is a mixer included? Agitation is optional and should be matched to the product.
Can the kettle tilt? Selected models offer manual or hydraulic tilting.
What details help with a quotation? Provide product, batch size, heat source, mixing needs, and discharge method.
Request a Configuration Review
As a factory-direct manufacturer, we customize equipment around the product, batch scale, heating requirement, and production workflow. Contact Wenzhou Ace Machinery with your required capacity, product details, preferred heat source, and mixing or tilting requirements so our team can review a suitable configuration.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
