Melt sugar and prepare sauces, syrups, jams, and other batch products with a customizable jacketed kettle from Wenzhou Ace Machinery. Available in capacities from 50L to 1000L, with SUS304 or SUS316L construction and model-dependent electric, steam, gas, or thermal oil heating. Optional agitation, temperature controls, and fixed or tilting configurations can be discussed for your process.
Customizable Sugar Melting Jacketed Kettle with Electric Heating
价格范围：$2,257.52 至 $2,445.35
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

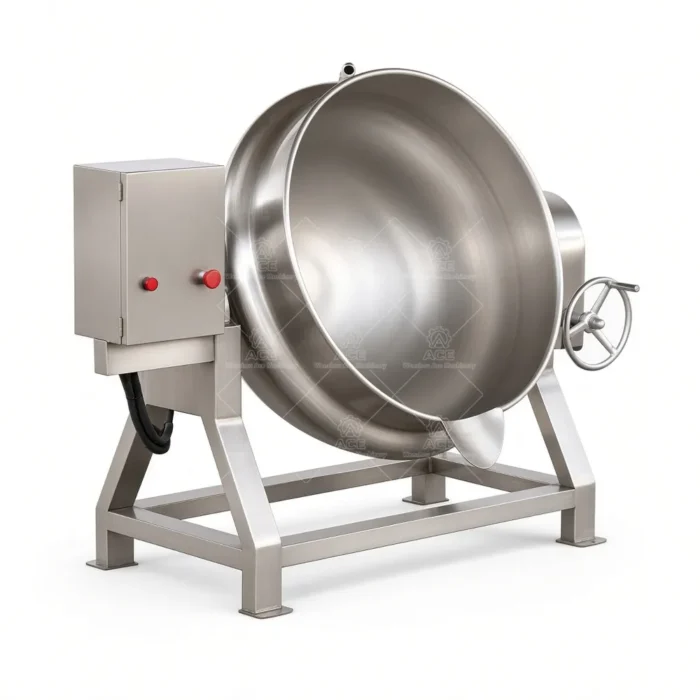

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Sugar can scorch or crystallize when heat is applied unevenly, especially in batches that need steady agitation. Our jacketed kettles use an external heating medium to transfer heat indirectly through the vessel wall. This helps avoid direct contact between the heat source and the product. The right heating method and agitation setup depend on the recipe, batch size, and production routine.
Wenzhou Ace Machinery manufactures kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. Select SUS304 or SUS316L stainless steel according to product and cleaning requirements. Available heat sources include electric, steam, gas, and thermal oil; compatibility varies by model. Fixed and tilting vessel configurations are available on selected models. Tilting may be manual or hydraulic, where applicable.
Production Fit and Options
An optional agitator can support mixing during sugar melting, sauce cooking, or preparation of fruit fillings. Temperature control and a control panel can help operators follow a repeatable process, while a variable-speed drive may suit recipes that need adjustable agitation. Insulation and other custom features are available subject to model compatibility. These options affect daily operation: for example, a tilting kettle may simplify batch discharge, while a fixed kettle may better match a stationary production layout.
Typical food applications include syrups, sauces, gravies, soups, jams, fruit fillings, dairy mixtures, and confectionery masses. Viscosity, solids content, heating needs, and cleaning procedures differ by recipe; a configuration suitable for syrup may not suit a thick filling. Other process uses should be reviewed against material, seal, and process requirements.
Technical Specifications
| Item | Specification |
|---|---|
| Product | Jacketed kettle |
| Capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model-dependent |
| Vessel | Fixed or tilting, depending on model |
| Tilt operation | Manual or hydraulic, if applicable |
| Agitation and controls | Optional; configuration-dependent |
| Customization | Available to suit product and process requirements |
FAQs
Can every capacity use every heat source? No. Available combinations depend on the selected model and requirements.
Is an agitator included? It is an optional feature, subject to configuration.
How do I choose a capacity? Share your target batch size, usable fill needs, and production frequency.
Can the kettle tilt? Selected models offer manual or hydraulic tilting.
What should I include in an inquiry? Provide the product, batch volume, preferred heat source, agitation needs, discharge method, and cleaning requirements.
Request a Configuration
As a factory-direct manufacturer, we can discuss custom configurations around your product, batch scale, heat source, mixing needs, and discharge workflow. Send these details to Wenzhou Ace Machinery so our team can review a suitable kettle configuration.
