A commercial jacketed kettle for batch cooking bean paste, fruit paste, sauces, fillings, and other food products. Available in 50L to 1000L capacities, with SUS304 or SUS316L stainless steel and model-dependent heating, vessel, and mixing options. Wenzhou Ace Machinery can discuss a configuration based on your product, batch size, plant utilities, and production requirements.

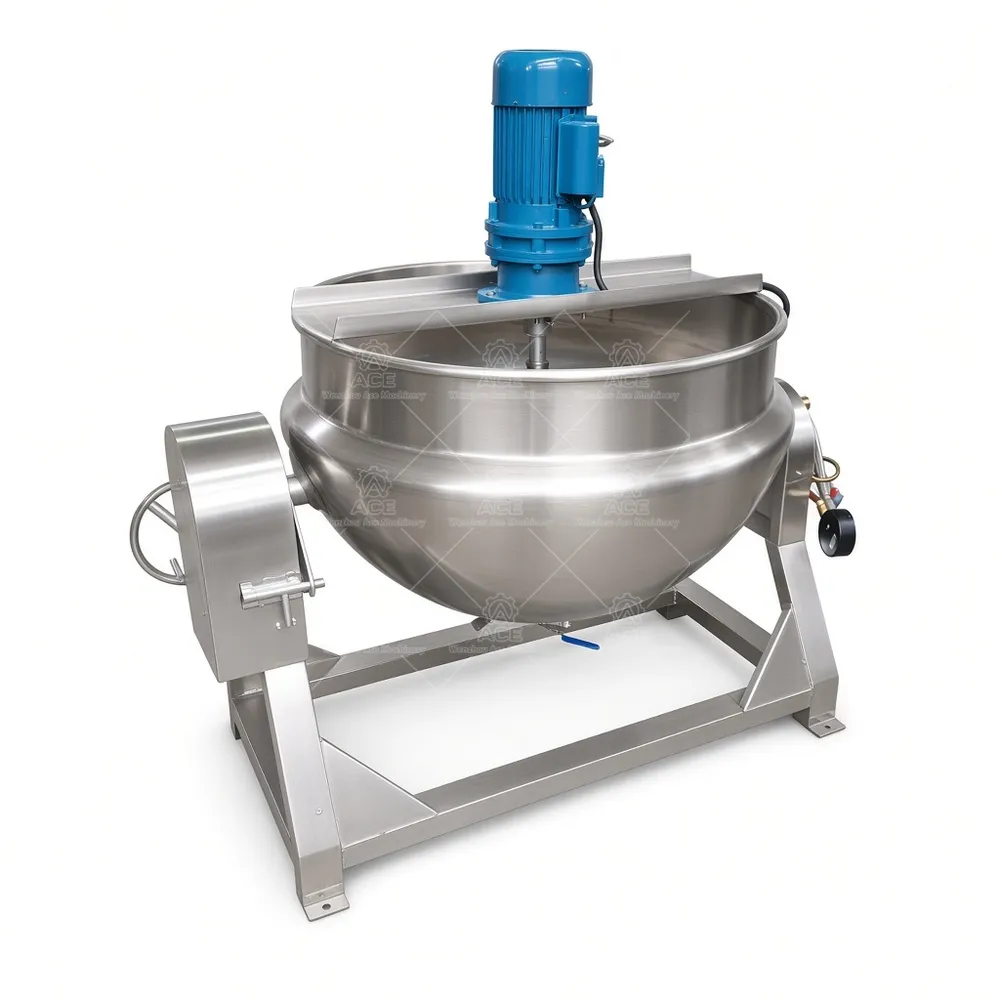

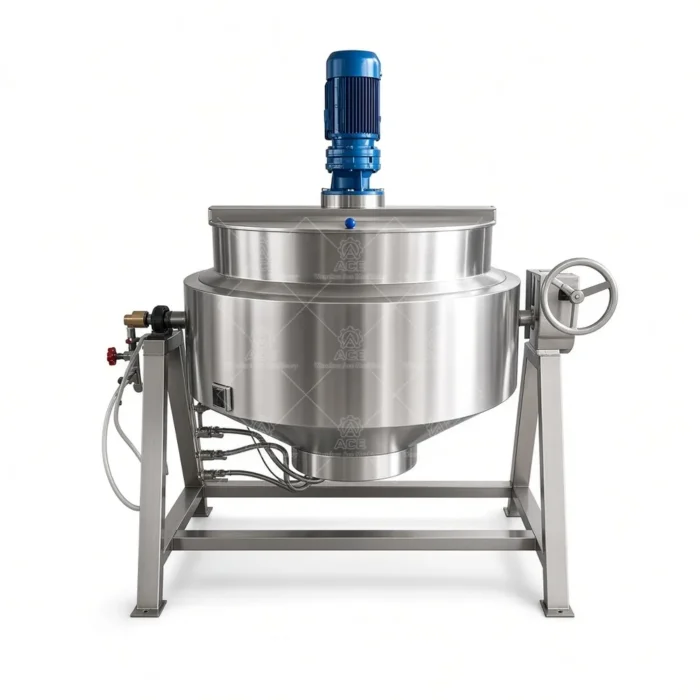

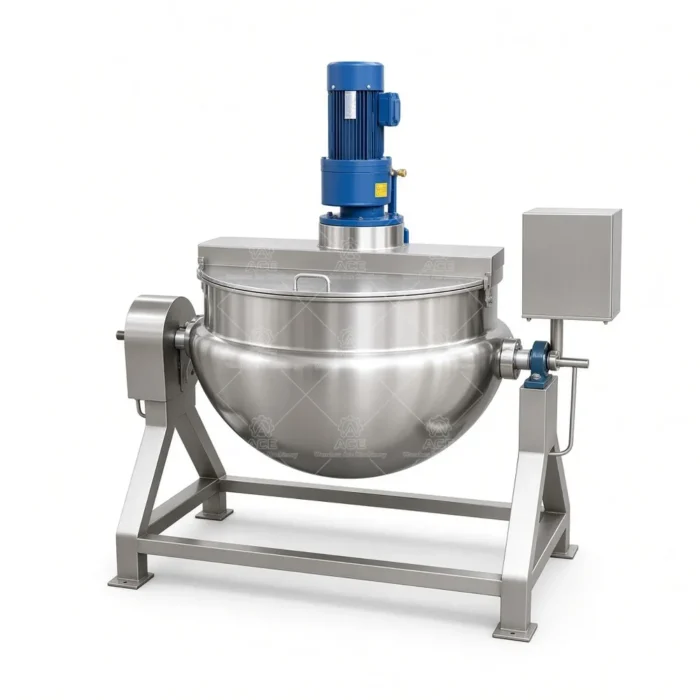

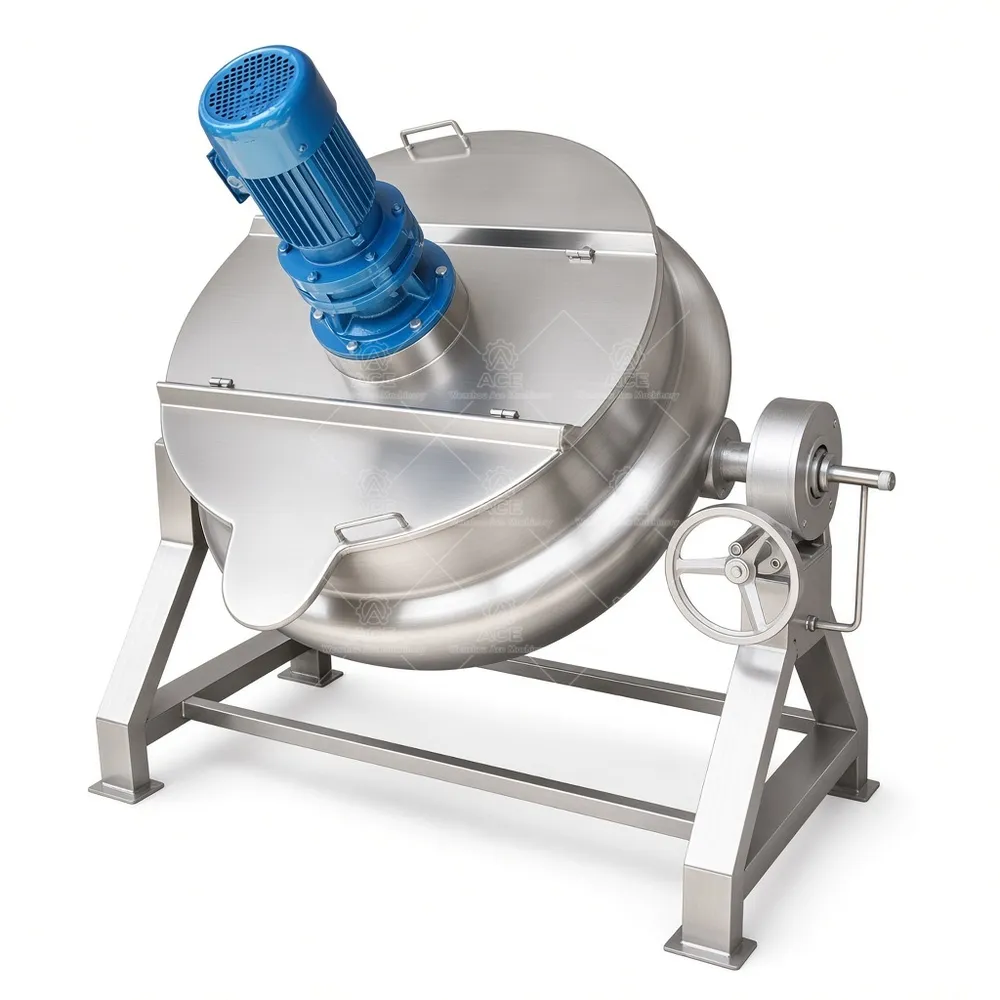

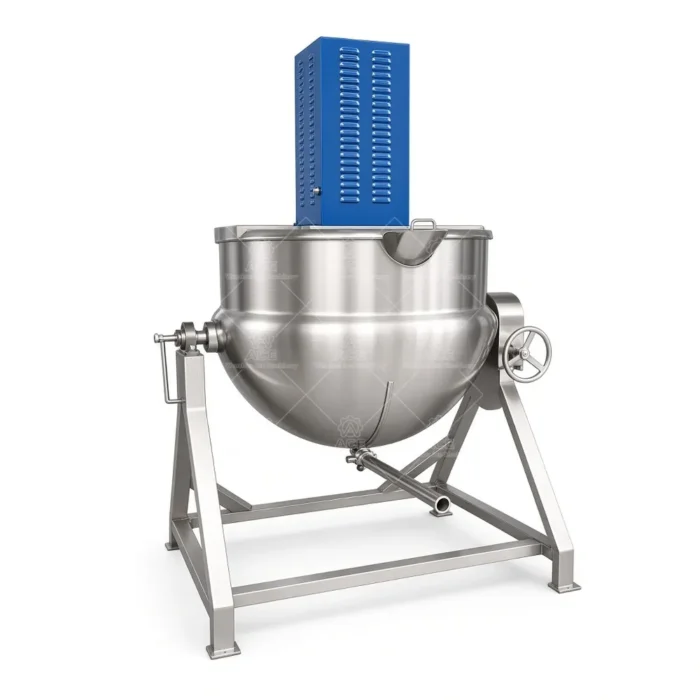

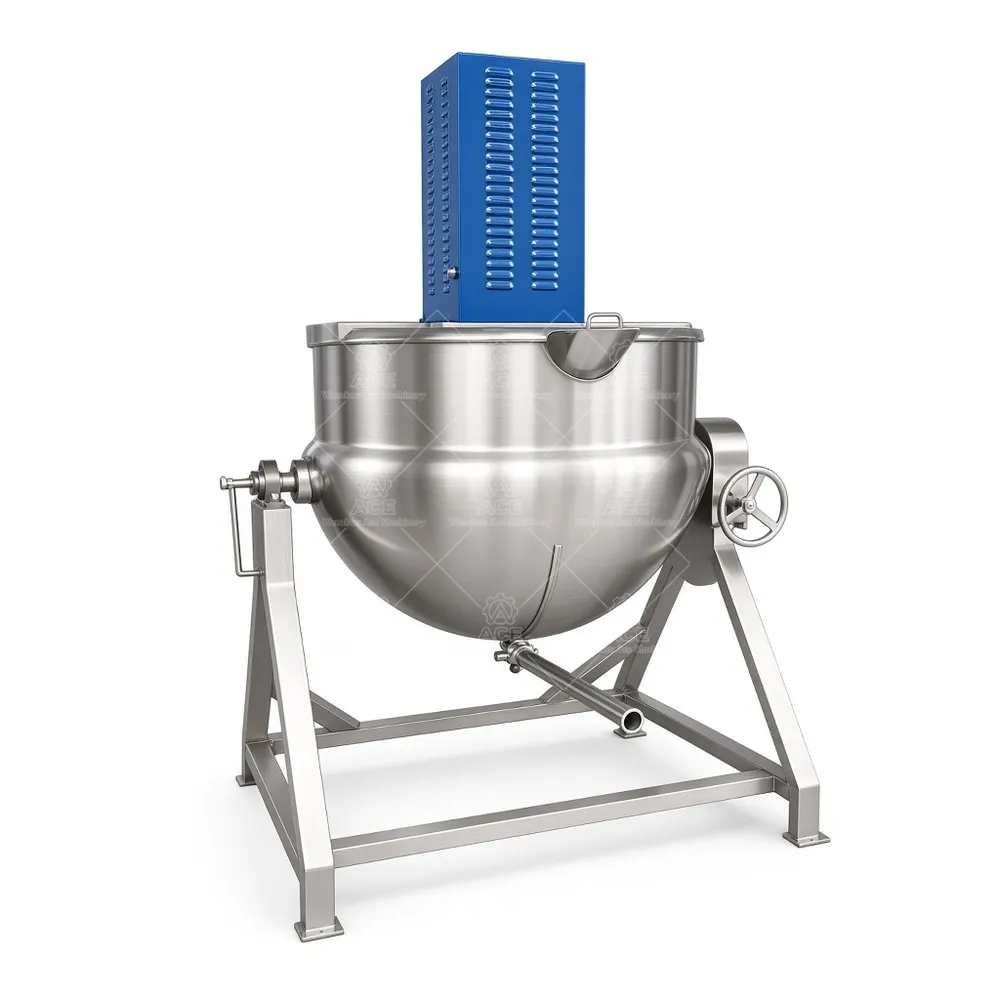

Commercial Jacketed Kettle for Bean Paste and Fruit Paste
价格范围：$1,825.79 至 $1,976.97
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Thick bean paste and fruit fillings can scorch or cook unevenly when heat is applied directly to the product. A jacketed kettle transfers heat indirectly through the vessel wall, helping distribute heat across the batch. The right heat source and mixing arrangement depend on the recipe, batch size, and production process.
Features and Production Considerations
- Capacity options: 50L, 100L, 200L, 300L, 500L, and 1000L models support different batch plans. Confirm usable batch volume and filling or discharge needs with our team.
- Heating choice: Electric, steam, gas, or thermal-oil heating may be available depending on the selected model and plant utilities.
- Vessel arrangement: Fixed or tilting construction is available by model. Where tilting is applicable, operation may be manual or hydraulic.
- Optional controls: An agitator, temperature control, variable-speed drive, insulation, and control panel can be discussed where compatible. Mixing can support routine batch handling; the suitable agitator depends on viscosity and solids.
Applications
Typical food uses include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy blends, and other compatible products. Recipe viscosity, particulates, heating needs, and cleaning routines affect the configuration. Food and beverage ingredients such as dressings, mayonnaise, liquid seasonings, starches, gums, stabilizers, and thickeners may also require product-specific mixing review. Cosmetics, personal-care products, pharmaceutical liquids, and chemical emulsions or dispersions should only be considered after checking process suitability and material and seal compatibility; one setup is not suitable for every formulation.
Technical Specifications
| Product name | Jacketed Kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration dependent |
| Temperature control | Optional, subject to configuration |
| Customization | Available upon request |
Configuration and FAQs
Wenzhou Ace Machinery manufactures and customizes equipment around the product, batch size, heat source, mixing needs, and discharge method. Is every heating option available on every capacity? No; confirm the compatible model. Which steel should I request? SUS304 or SUS316L, based on product and cleaning conditions. Can the kettle tilt? Some models offer tilting, with manual or hydraulic operation where applicable. What details help with a quote? Share recipe characteristics, target batch volume, available utilities, and mixing or discharge requirements.
Send Wenzhou Ace Machinery your required capacity, product, preferred heating method, and agitator or tilting requirements. Our team can review the process and recommend a suitable configuration.
