Wenzhou Ace Machinery jacketed kettles are available in 50 to 1,000 L capacities, with SUS304 or SUS316L stainless steel and model-dependent electric, steam, gas, or thermal oil heating. Fixed and tilting configurations are available, with optional agitation and controls. Share your product, batch size, heat source, and discharge requirements to discuss a suitable configuration.

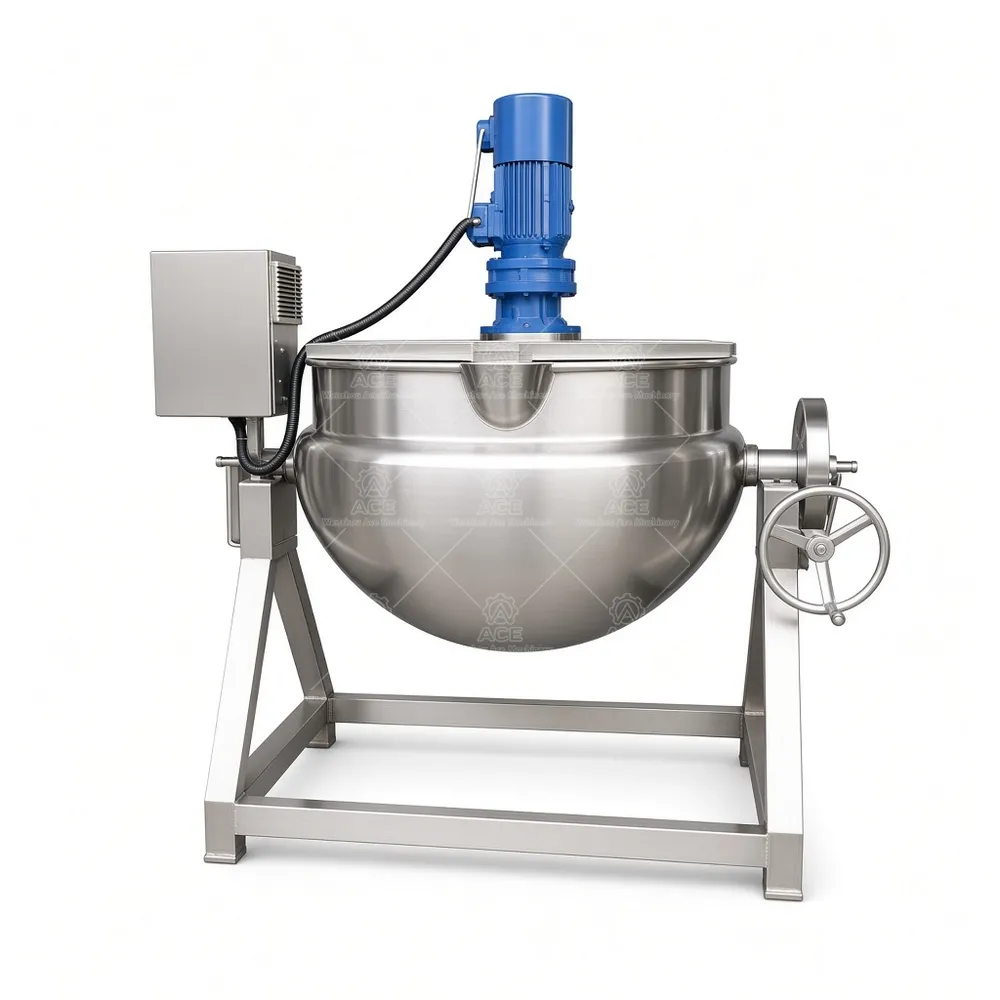

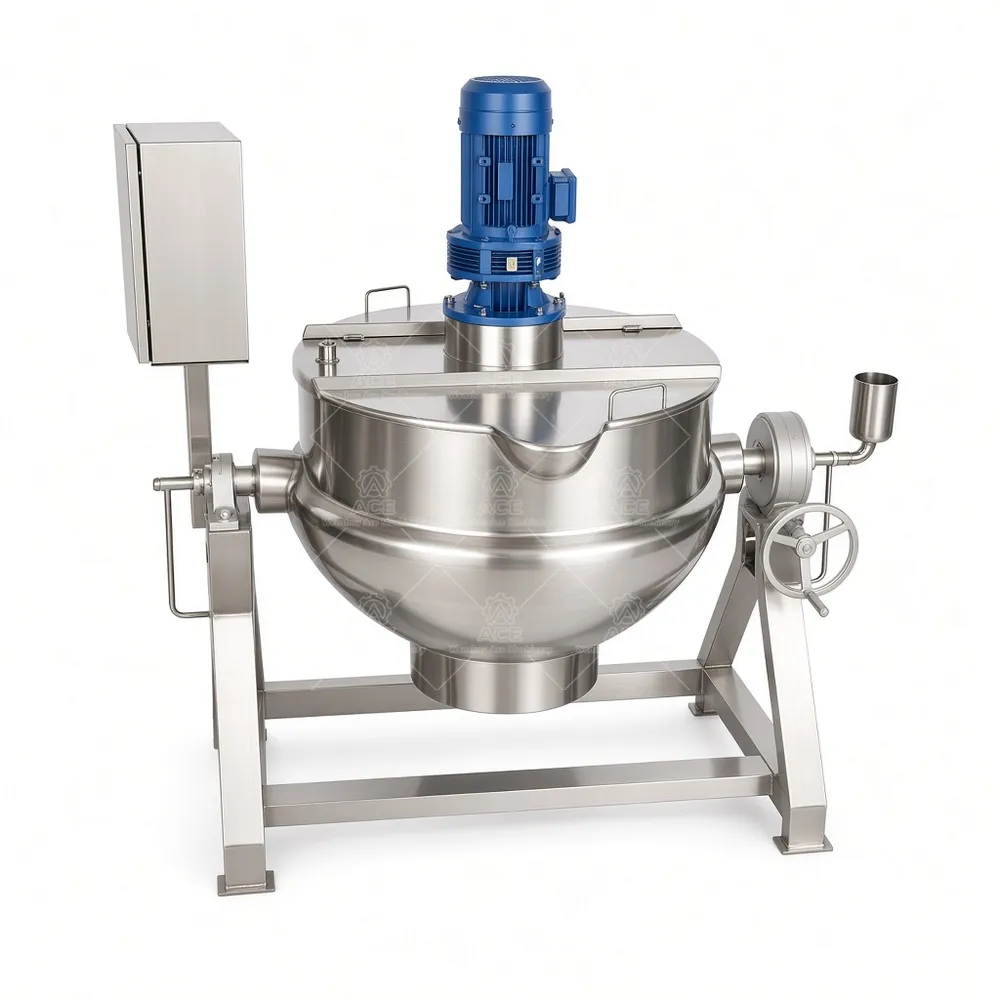

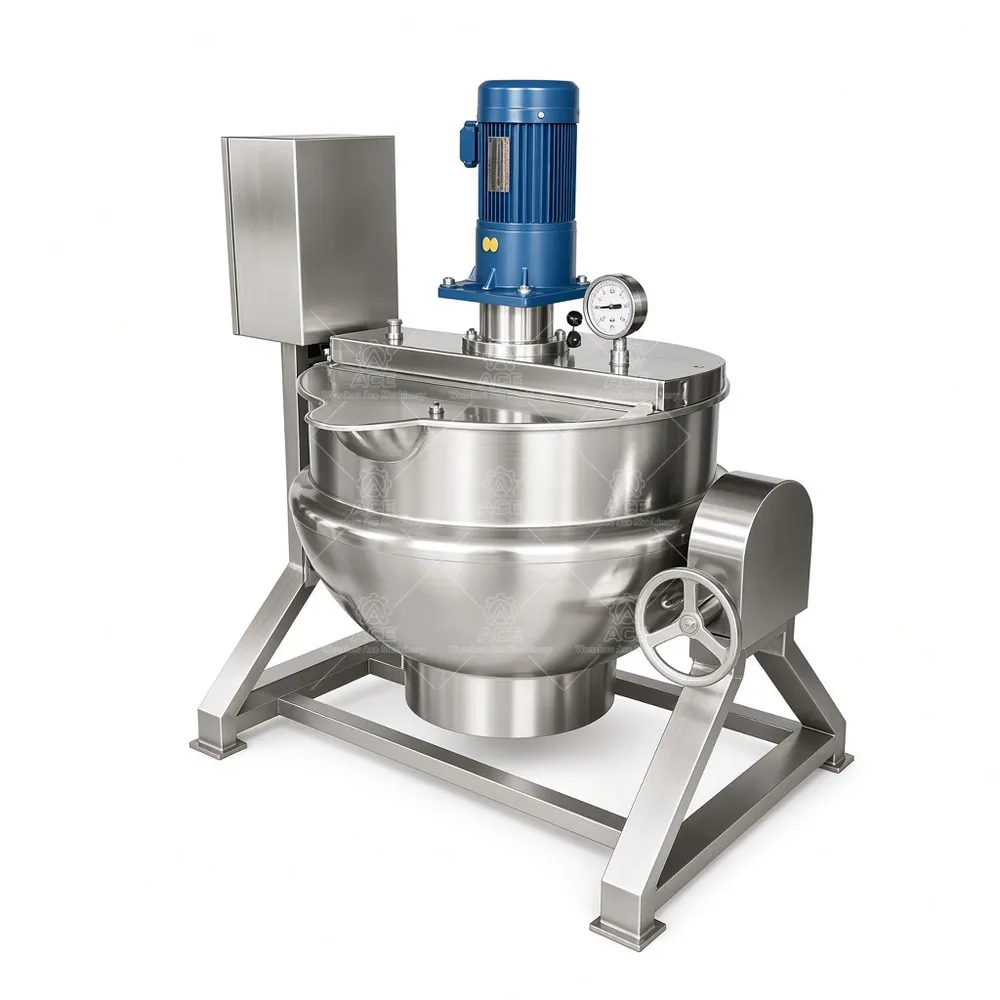

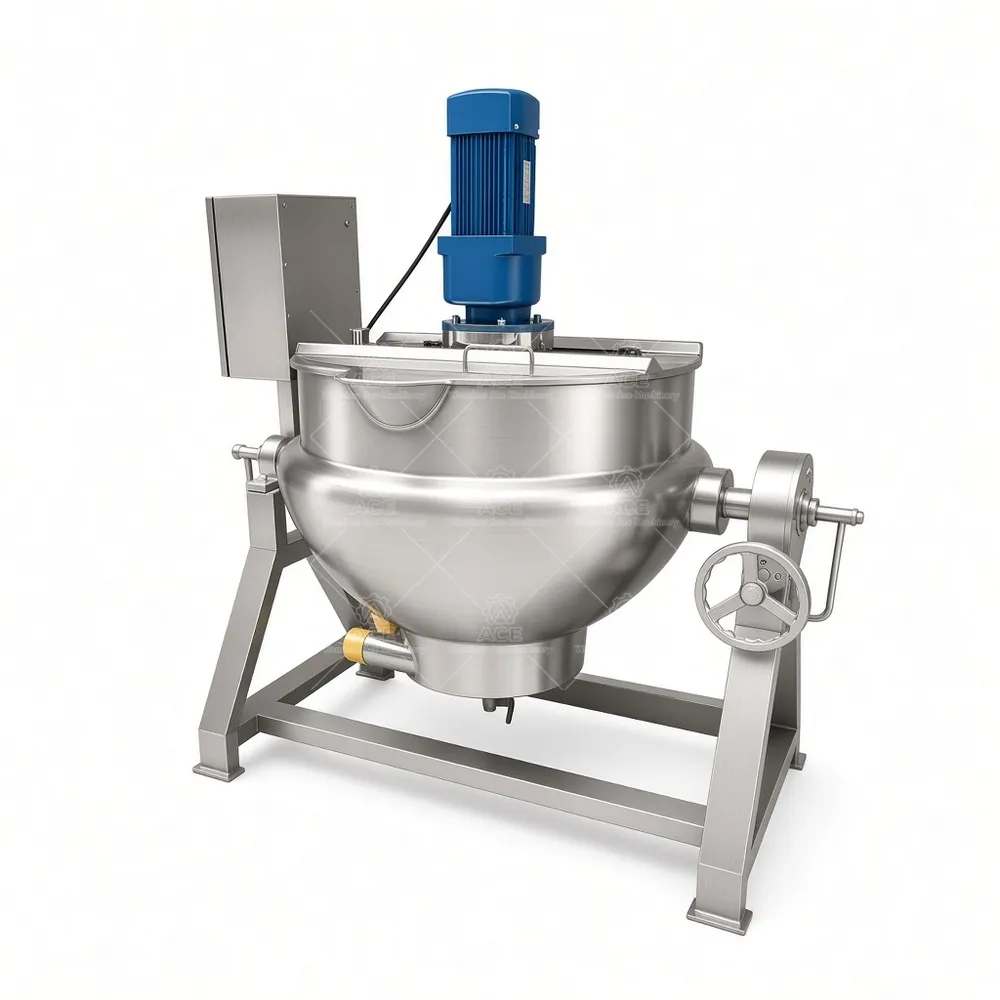

Tilting Jacketed Kettle with Agitator for Sauce Jam and Paste
Price range: $2,071.79 through $2,231.53
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Heating a thick sauce or fruit filling evenly can be difficult when product settles against the vessel wall or requires constant manual stirring. Our jacketed kettle heats product indirectly: a selected heating medium warms the space around the inner vessel, while optional agitation helps move the batch during cooking. This arrangement supports practical batch processing without exposing the product directly to a burner or heating element.
Wenzhou Ace Machinery manufactures kettles in 50, 100, 200, 300, 500, and 1,000 L capacities. Depending on the model, the vessel can be fixed or tilting. A compatible agitator, temperature control, variable-speed drive, insulation, or control panel can be specified to suit the recipe and operating routine. Tilting may be manual or hydraulic where available; confirm compatibility for the selected capacity.
Applications and Configuration

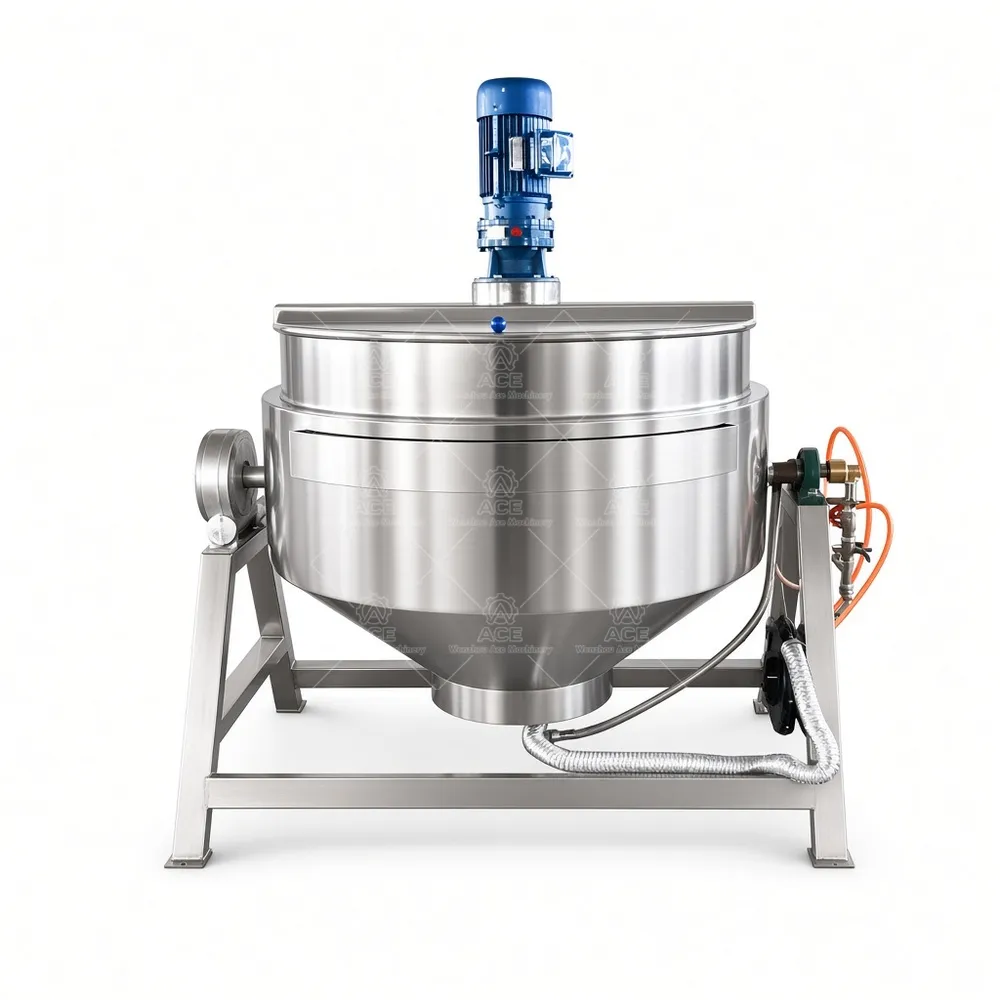

Typical food uses include sauces and gravies, jam and fruit fillings, soups and stock, syrups, confectionery mixtures, dairy blends, and other fillings. A thick paste may need a different agitation arrangement from a liquid syrup. For dairy or acidic recipes, discuss product composition and cleaning requirements when selecting SUS304 or SUS316L stainless steel. Heating options include electric, steam, gas, or thermal oil, subject to model availability and process requirements.
Similar vessels may be considered for cosmetic, personal-care, pharmaceutical, or chemical batches only when the product, materials, seals, heating arrangement, and applicable process requirements are confirmed. One configuration is not suitable for every formulation.
Technical Specifications
| Item | Details |
|---|---|
| Product | Jacketed kettle |
| Available capacity | 50, 100, 200, 300, 500, or 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic, where applicable |
| Agitation and controls | Optional; configuration dependent |
| Customization | Available to suit product and process requirements |
FAQ
How do I choose capacity? Share target batch size, fill level, and production frequency.
Can every size use every heat source? No. Heating and accessories depend on the model.
Is an agitator included? It is an optional configuration; provide product viscosity and mixing needs.
What is needed for a quotation? Specify product, capacity, heat source, material preference, discharge method, and any tilting or control requirements.
Can the kettle be customized? Yes. Our factory-direct team reviews product properties, batch scale, heating, agitation, and workflow before recommending a configuration. Send these details to Wenzhou Ace Machinery for a practical quotation discussion.
