Prepare jam, hot sauce, soup, syrup, and other batch products in an industrial jacketed kettle configured around your process. Available in 50 L to 1,000 L capacities, with SUS304 or SUS316L construction and model-dependent heating, mixing, and tilting options. Contact Wenzhou Ace Machinery with your product and production requirements for a configuration review.

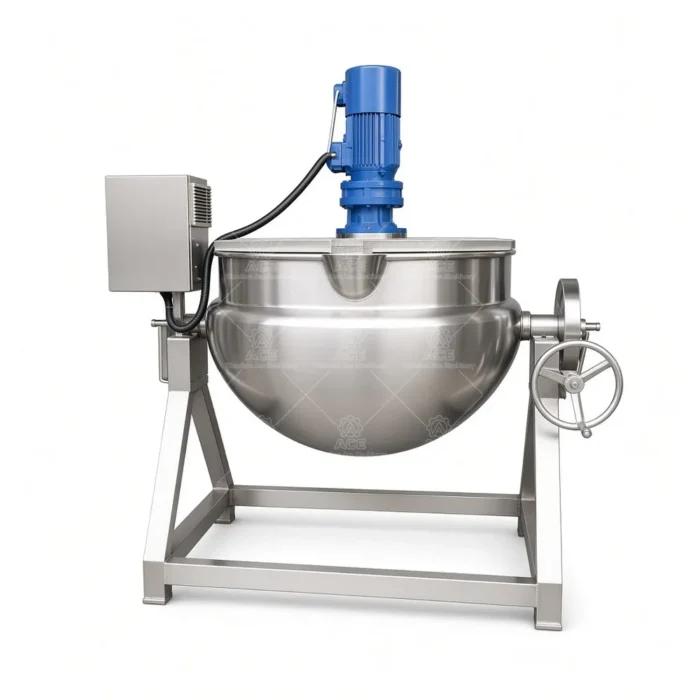

Industrial Jacketed Kettle with Mixer for Jam, Sauce and Food Cooking
价格范围：$2,256.29 至 $2,431.60
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Batch Food Production
Fruit preparations, sauces, and soups can scorch or cook unevenly when heat is applied directly to a batch. Our jacketed kettle heats product indirectly: a selected heating medium circulates through the jacket and transfers heat through the vessel wall. With a compatible optional agitator, the batch can be mixed during heating to support more even processing. The right setup depends on the recipe, batch size, and production routine.
Features and Applications
Available capacities are 50, 100, 200, 300, 500, and 1,000 L. Choose SUS304 or SUS316L stainless steel according to product and cleaning requirements. Heating options include electric, steam, gas, or thermal oil, subject to model compatibility. A fixed kettle suits processes where product is discharged by another method; a tilting model may help with emptying, using manual or hydraulic operation where available.
Typical batches include jam and fruit filling, hot sauce, gravy, soup, syrup, dairy mixtures, and confectionery blends. Stirring, temperature control, variable-speed drive, insulation, and a control panel can be considered where compatible. These options can help operators manage mixing and heating tasks, but they do not replace recipe trials or define a guaranteed process result. Cosmetics, personal-care, pharmaceutical, or chemical use should be reviewed for material, seal, cleaning, and process suitability before specification.
Technical Specifications
| Item | Specification |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50, 100, 200, 300, 500, 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting operation | Manual or hydraulic, if applicable |
| Agitation | Optional mixer; configuration dependent |
| Temperature control | Optional; configuration dependent |
| Customization | Available according to product and process |
Configuration and FAQs
As a direct manufacturer, Wenzhou Ace Machinery can discuss capacity, heating source, mixing needs, discharge method, and production workflow. Final combinations depend on the selected model. For a useful quotation, share the product, target batch size, heating preference, desired mixing, and whether tilting is required.
Can every size use every heating method? No. Availability depends on the model and requested configuration.
Is an agitator standard? It is an optional feature where compatible.
Which steel should I request? Specify SUS304 or SUS316L based on product contact and cleaning conditions.
Can the kettle be tilted? Tilting is available on selected models, with manual or hydraulic operation where applicable.
What information helps with sizing? Provide batch volume, product characteristics, heat source, mixing needs, and discharge requirements.
Request a Configuration Review
Send these production details to Wenzhou Ace Machinery for a factory-direct discussion of a suitable kettle configuration.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
