Cook caramel and other food products in a stainless steel jacketed kettle configured for your batch process. Available in capacities from 50L to 1000L, with SUS304 or SUS316L construction and model-dependent heating and vessel options. Share your product, heating preference, batch size, and mixing or discharge needs to discuss a suitable setup.

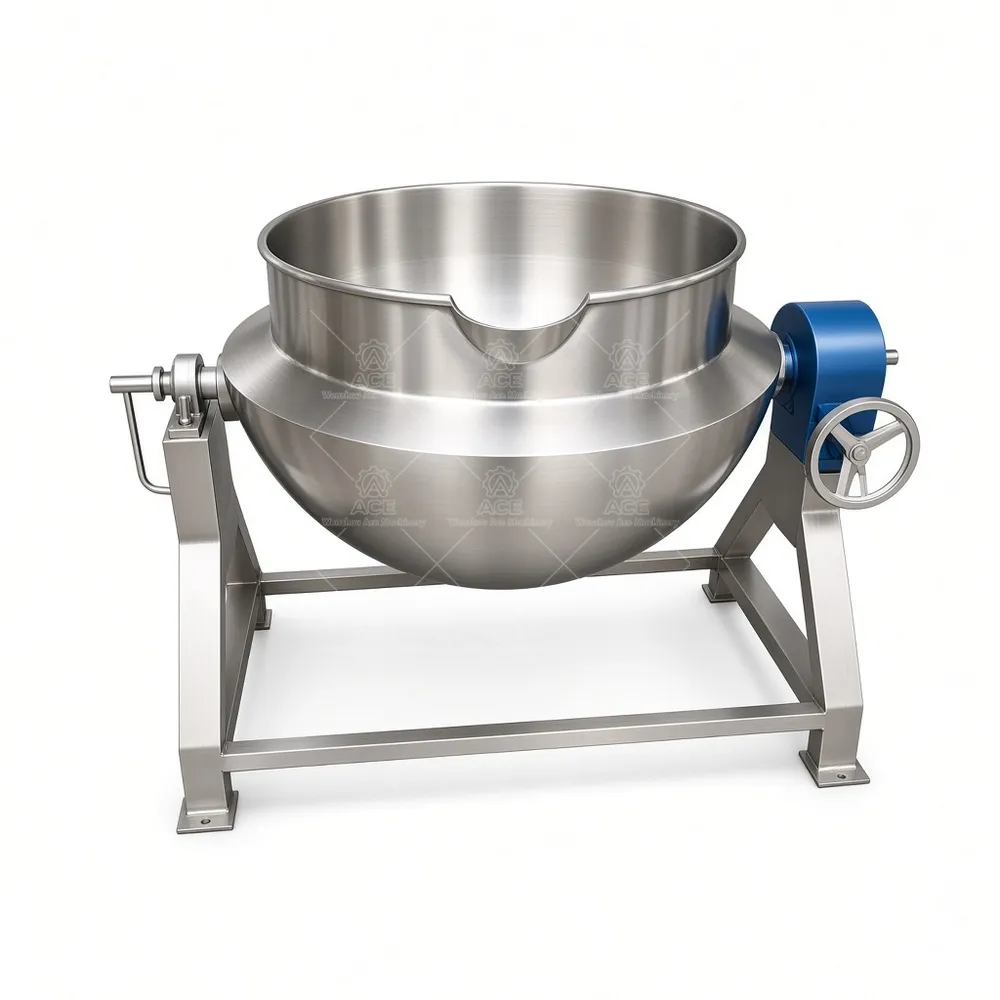

Tilting Gas-Heated Jacketed Kettle for Caramel and Food Processing
价格范围：$1,870.73 至 $1,995.51
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Caramel, fruit fillings, and sauces can scorch when heat is applied directly to a product-contact surface. Our jacketed kettle uses an indirect heating space around the vessel to transfer heat through the kettle wall. This supports batch cooking without direct flame contact with the food. Heating medium and vessel configuration depend on the selected model and production requirements.
Wenzhou Ace Machinery manufactures 50L, 100L, 200L, 300L, 500L, and 1000L options in SUS304 or SUS316L stainless steel. Fixed and tilting designs are available by model. A compatible tilting unit can help discharge viscous caramel or fruit filling into receiving containers; the tilt operation may be manual or hydraulic where applicable. An optional agitator and temperature control can be considered for products that need mixing during heating. Insulation, variable-speed drive, control panel, and other custom features depend on model compatibility.
Typical Applications
Food uses include sauces and gravies, jams and fruit fillings, soups, syrups, confectionery mixtures, dairy blends, and other suitable products. Batch viscosity, solids content, heating method, mixing needs, and discharge method all affect configuration. Food and beverage ingredients such as starches, gums, stabilizers, or thickeners may require an appropriate mixing arrangement to disperse effectively; no high-speed rotor-stator system is specified for this kettle.
For other industries, a suitable configuration may be discussed for cosmetic creams, lotions, shampoos, liquid detergents, pharmaceutical liquids or excipient dispersions, and water-based chemical products. Confirm product compatibility, contact material, and seal requirements before specifying non-food service. Not every formula is suitable for the same vessel setup.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic where applicable |
| Agitation and temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
FAQ
How do I select capacity? Share your target batch size and usable fill requirement.
Can every size use gas heating or tilt? No. Confirm compatible options for the selected model.
What should I include in a quotation request? Provide product details, batch volume, heat source, mixing needs, and discharge method.
Can the kettle be customized? Yes. We discuss configuration based on the product, process, and operating conditions.
Request a Configuration Review
Contact Wenzhou Ace Machinery with your required capacity, product, preferred heating method, and agitator or tilting requirements. Our factory team can review the process details and discuss a suitable configuration.
