Prepare jams, sauces, soups, syrups, and other batch products in a steam-heated jacketed cooking kettle with an optional bottom-mounted mixer. Available in capacities from 50L to 1000L, with SUS304 or SUS316L construction and model-dependent heating, vessel, and control options. Wenzhou Ace Machinery can discuss a configuration around your product, batch size, heating source, and discharge needs.

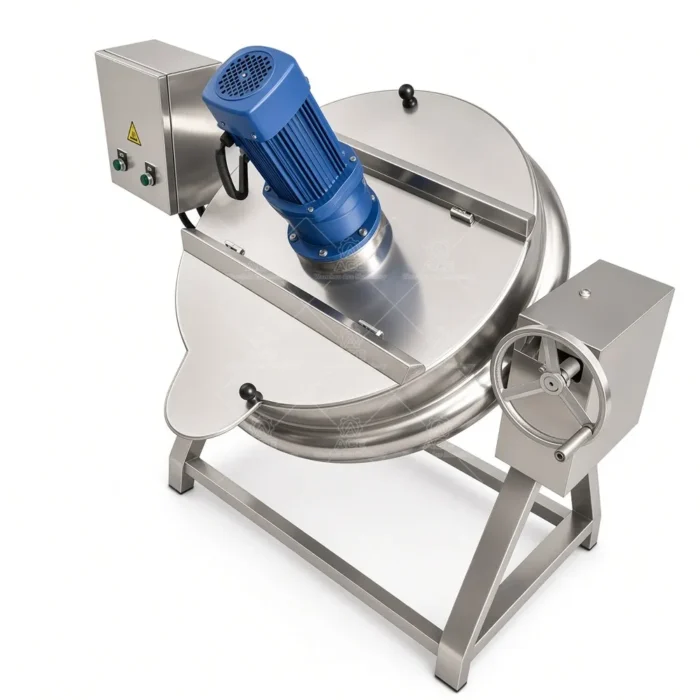

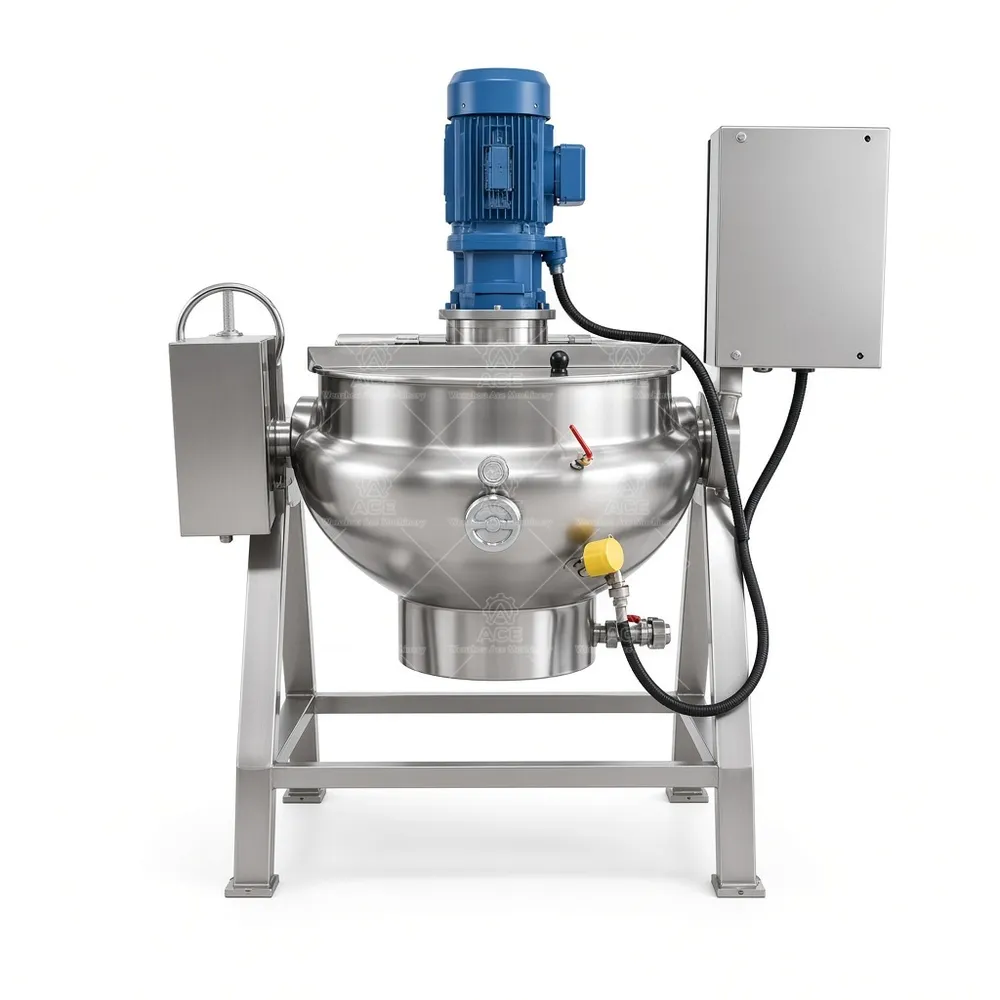

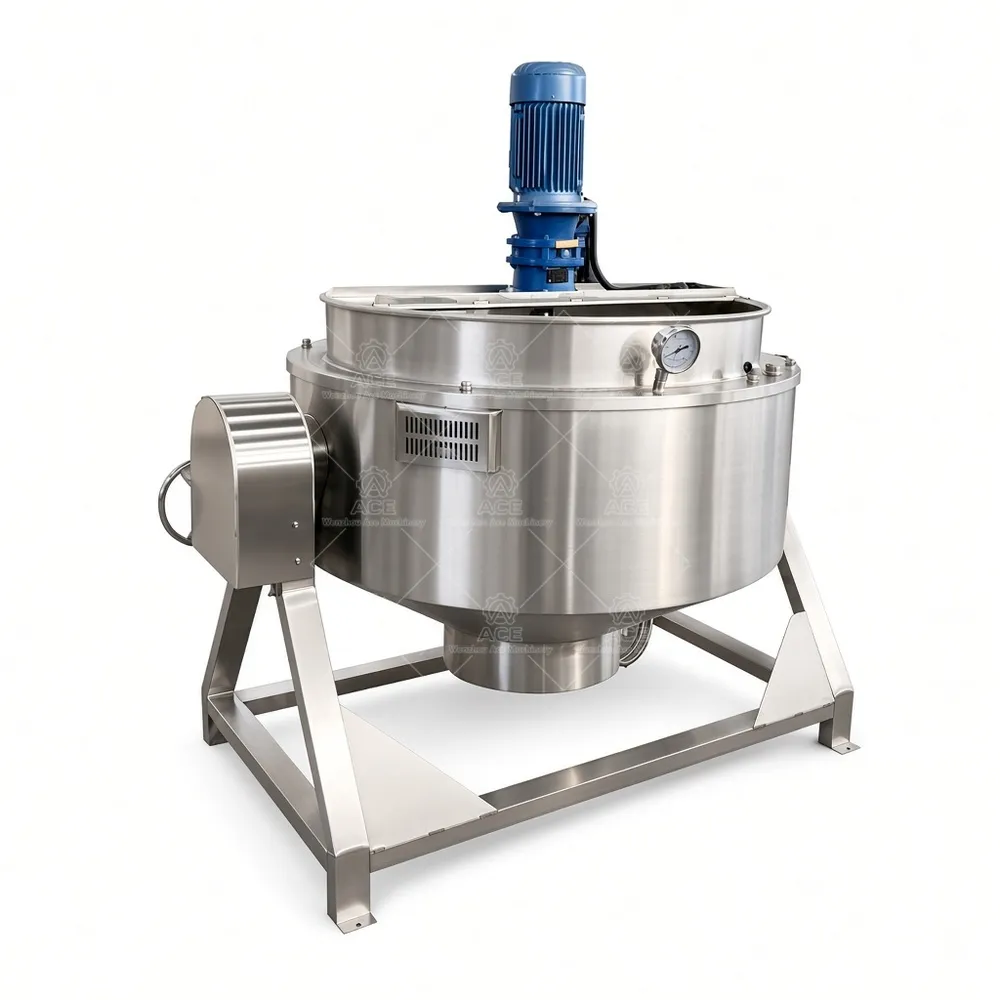

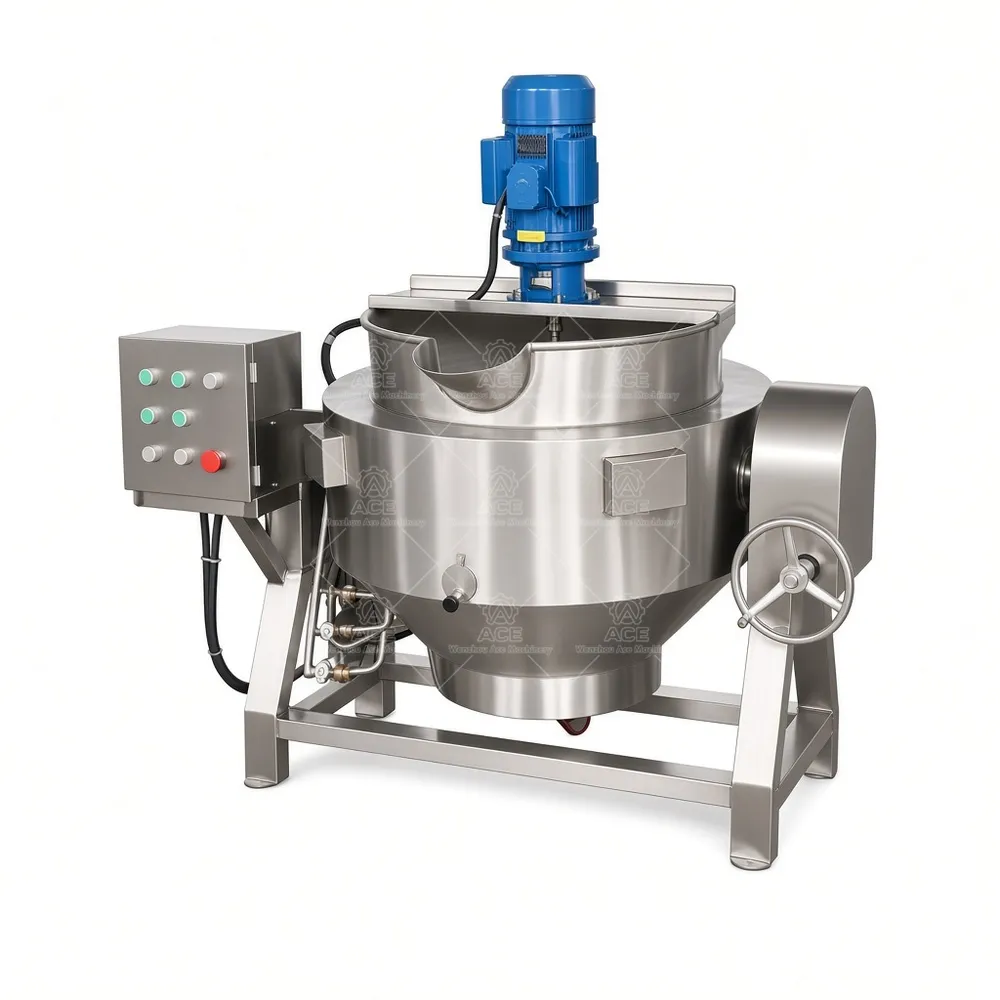

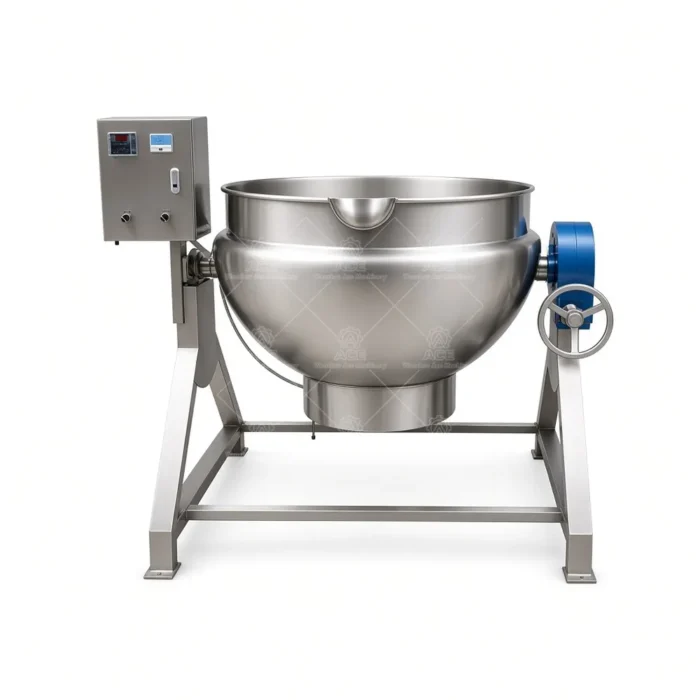

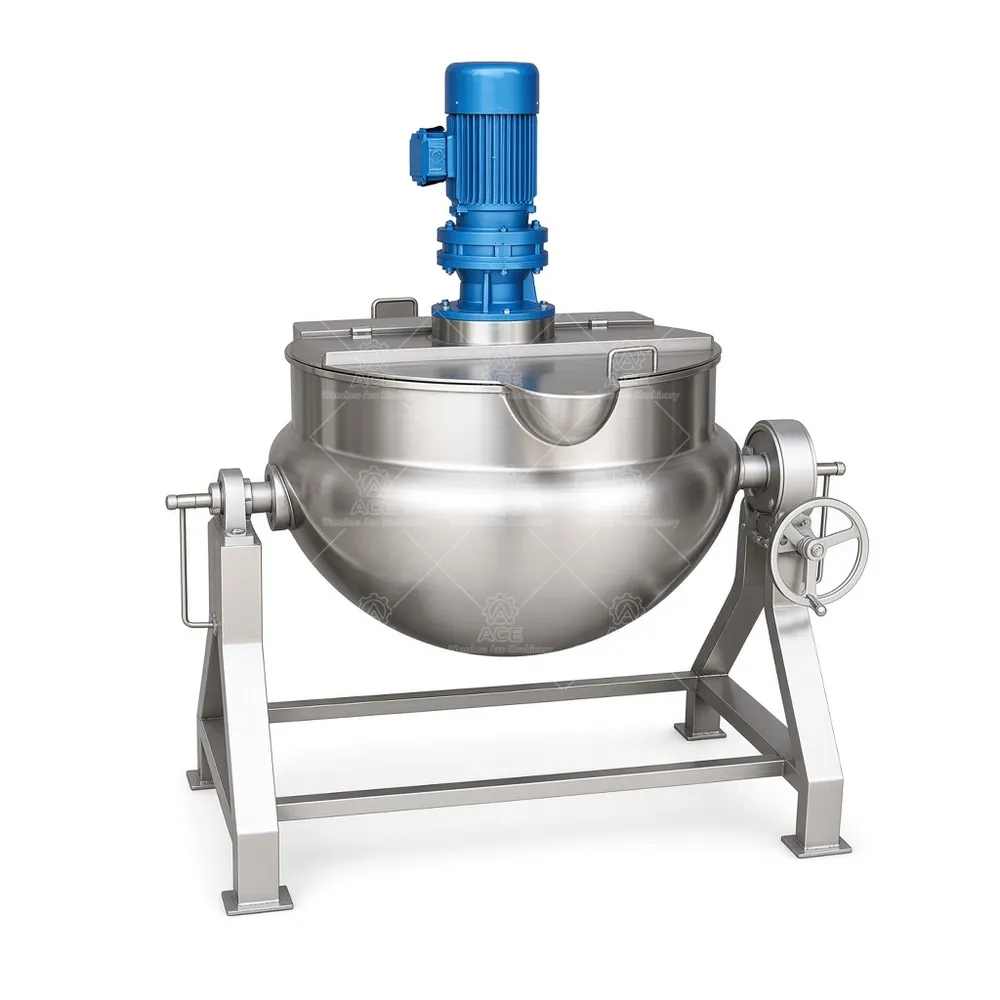

Steam-Heated Jacketed Kettle with Bottom-Mounted Mixer for Jam
价格范围：$2,237.04 至 $2,431.22
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Steam-Heated Jacketed Cooking Kettle
Cooking fruit filling or sauce in an open vessel can create uneven heating and demand frequent manual scraping. This jacketed kettle heats the product indirectly: steam or another selected heat source warms the space around the vessel, and heat passes through the kettle wall into the batch. Indirect heating supports controlled cooking without placing the heat source directly against the food. The suitable heat source and operating setup depend on the model and plant utilities.
Designed around your process
Available capacities are 50L, 100L, 200L, 300L, 500L, and 1000L. A bottom-mounted mixer can help move the batch during cooking, but agitator type and compatibility depend on the selected model and product behavior. Mixing needs differ: a fruit filling with pieces, a thick gravy, and a dairy blend do not impose the same load or circulation requirements. Temperature control, variable-speed drive, insulation, control panel, and other options can be discussed where compatible.
Choose SUS304 or SUS316L according to product contact, cleaning practice, and process requirements. Fixed and tilting kettle configurations are available on applicable models; tilting can be manual or hydraulic where supported. Confirm the intended discharge method and available operator space before finalizing the arrangement.
Food and other process applications
Typical food batches include sauces, gravies, jams, fruit fillings, soups, broths, syrups, confectionery mixtures, dairy products, and fillings. Viscosity, particulates, batch size, heating method, and mixing intensity all affect configuration. Related uses may include dressings, mayonnaise, beverage ingredients, or dispersing starches, gums, stabilizers, and thickeners. Personal-care, pharmaceutical, or chemical applications require confirmation that the vessel materials, seals, and process configuration suit the formulation; one setup is not suitable for every product.
Technical specifications
| Item | Specification |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic where applicable |
| Mixing system | Optional; configuration depends on model and product |
| Temperature control | Optional, subject to configuration |
| Customization | Available according to process requirements |
Configuration and FAQs
As a direct manufacturer, Wenzhou Ace Machinery discusses capacity, product characteristics, heat source, mixing needs, and discharge method before recommending a build. Share batch volume, ingredients, target production sequence, available utilities, and cleaning requirements when requesting a quotation.
Can every capacity use every heating method?
No. Heating and accessory compatibility vary by model.
Can the kettle tilt?
Selected models offer fixed or tilting construction, with manual or hydraulic operation where applicable.
Is a mixer included?
Mixing is an optional configuration; confirm the required arrangement for your product.
Which steel should I specify?
SUS304 and SUS316L are available; selection depends on the product and process environment.
Can you assess a non-food application?
Yes. Provide formulation and cleaning details so material and seal compatibility can be reviewed.
Request a configuration review: send your required capacity, product, preferred heating method, and mixing or tilting requirements to Wenzhou Ace Machinery.
