Wenzhou Ace Machinery jacketed cooking kettles are available in 50–1,000 L capacities, with SUS304 or SUS316L stainless steel and model-dependent electric, steam, gas, or thermal oil heating. Fixed and tilting configurations are available on selected models. Optional features include an agitator, temperature control, insulation, and a control panel. Share your product and batch requirements to discuss a suitable configuration.

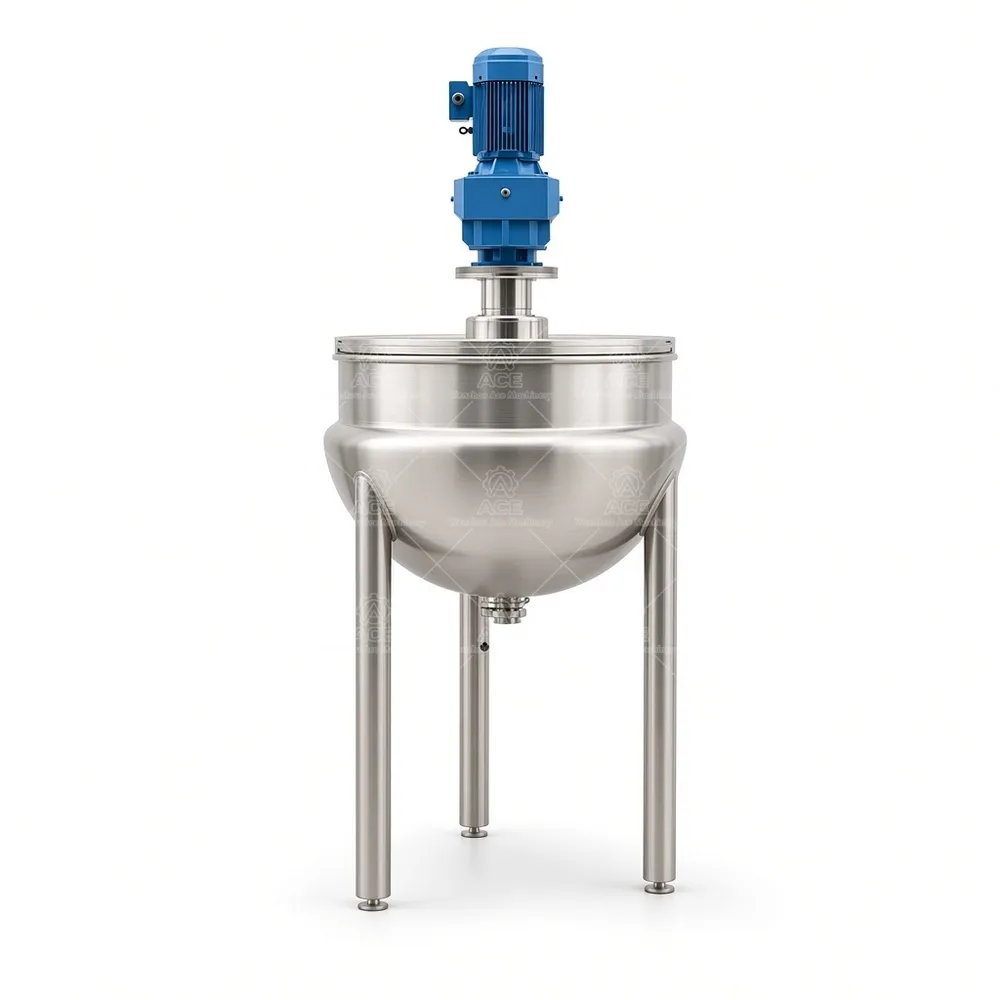

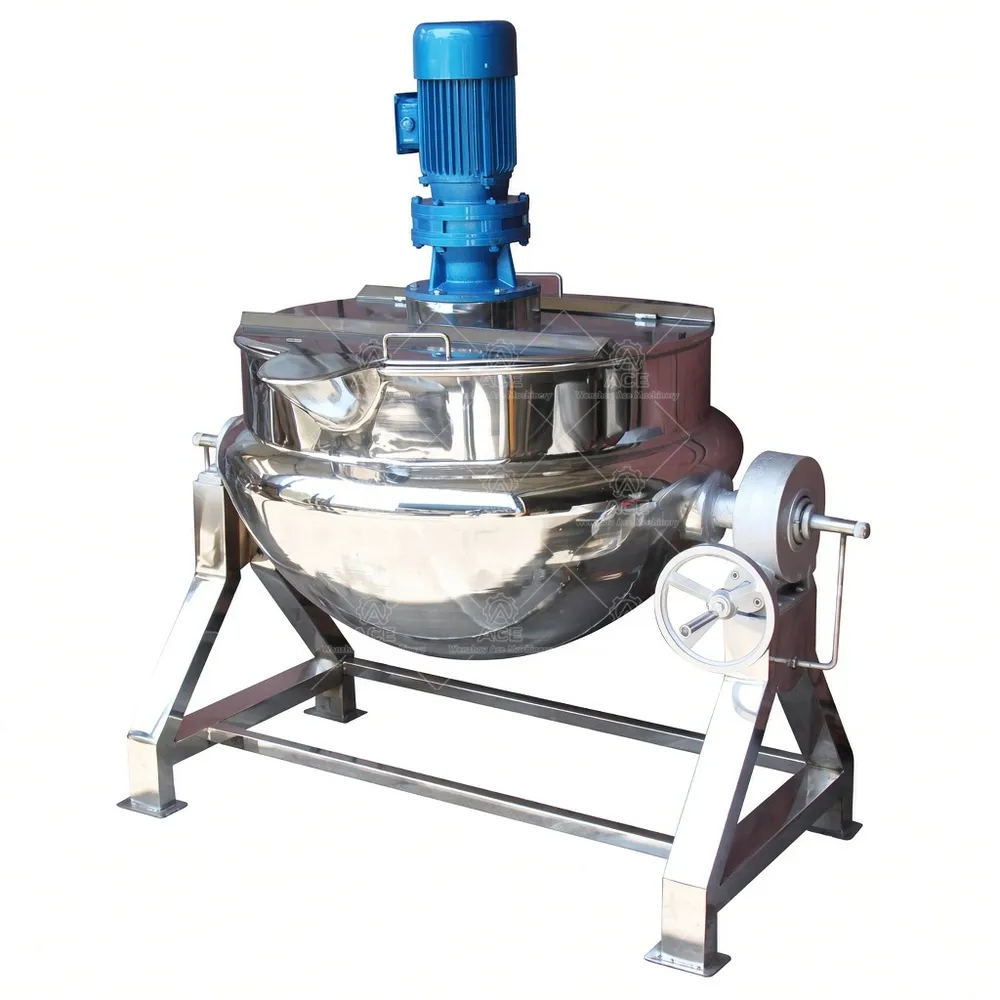

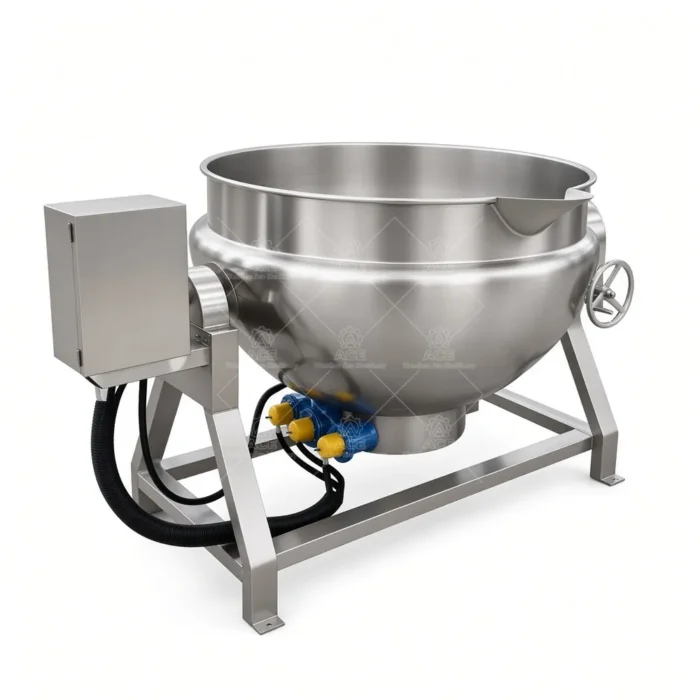

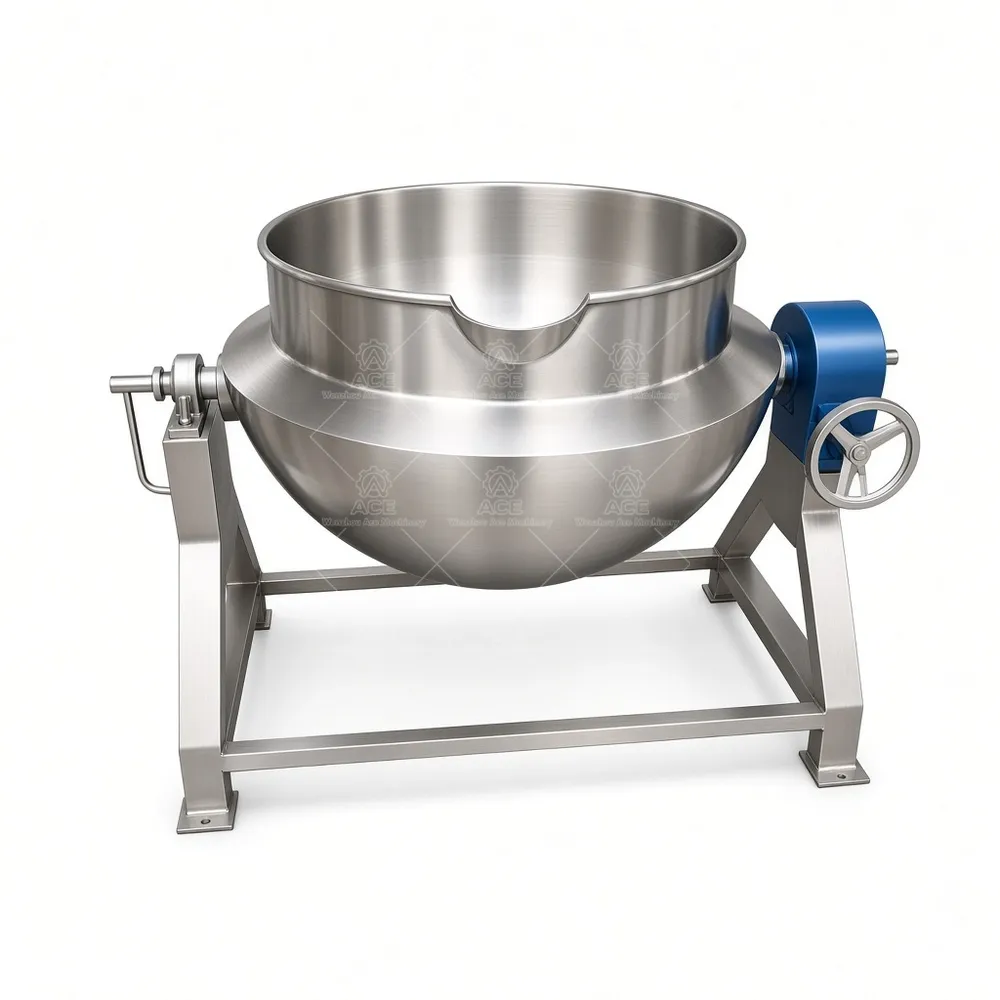

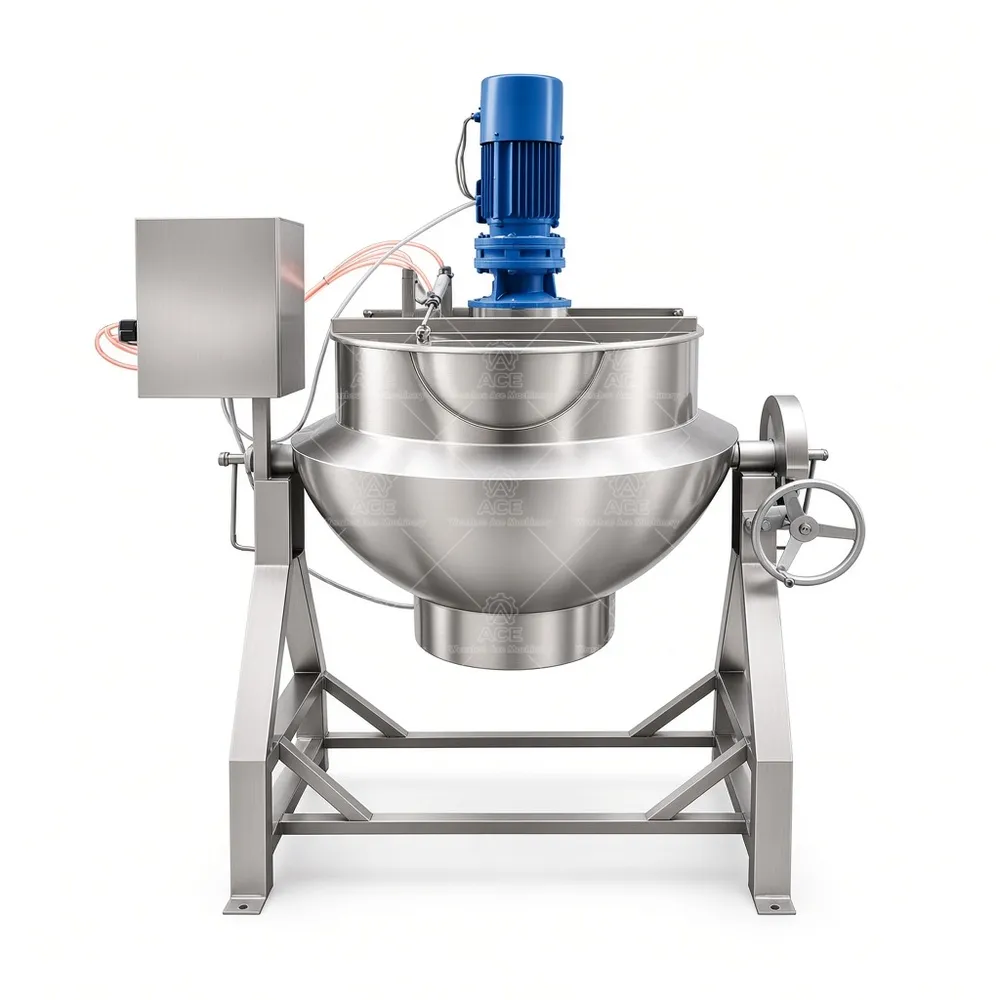

Jacketed Cooking Kettle with Insulation, 50–1000L, Multiple Heating Options
价格范围：$1,972.37 至 $2,145.15
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Controlled Batch Processing
Cooking thick sauces or fruit fillings can create hot spots, scorching, and difficult discharge if the kettle is not matched to the product. Our jacketed kettle heats the vessel indirectly: a selected heating medium transfers heat through the jacket to the product-contact vessel. This helps distribute heat without direct flame or a heating element contacting the food. Results depend on the recipe, batch size, and selected configuration.
Wenzhou Ace Machinery manufactures fixed and, on compatible models, tilting kettles in 50, 100, 200, 300, 500, and 1,000 L capacities. Heating options include electric, steam, gas, or thermal oil; availability varies by model. SUS304 or SUS316L stainless steel can be specified to suit product and cleaning requirements. An optional agitator may help keep a batch moving during cooking, while temperature control, variable-speed drive, insulation, and a control panel can be discussed where compatible. Insulation can reduce heat loss to the work area; it does not replace a process review.
Applications and configuration
Typical food applications include sauces, gravies, soups, stocks, jams, fruit fillings, syrups, confectionery mixes, dairy products, and fillings. Viscosity, solids, sensitivity to heat, and required discharge method affect agitator and kettle selection. Related formulations such as dressings, mayonnaise, beverage ingredients, starches, gums, and stabilizers require a suitability review; a standard kettle is not automatically a high-shear emulsifier or powder-dispersion system. Non-food use—such as cosmetics, personal-care liquids, pharmaceutical preparations, coatings, adhesives, or water-based chemical mixtures—requires confirmation of material, seals, cleaning, and process compatibility.
Technical specifications
| Item | Details |
|---|---|
| Product | Jacketed cooking kettle |
| Capacity | 50–1,000 L; available sizes listed above |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model-dependent |
| Vessel | Fixed or tilting, depending on model |
| Tilt operation | Manual or hydraulic, where applicable |
| Options | Agitator, temperature control, variable-speed drive, insulation, control panel; configuration-dependent |
| Customization | Available to discuss based on process requirements |
FAQs
Can every size use every heat source? No. Confirm availability for the selected model.
How do I choose capacity? Share working batch volume, not only vessel capacity, plus product behavior and batch frequency.
Can the kettle tilt? Tilting and manual or hydraulic operation depend on the model.
Is an agitator included? It is an optional configuration; provide viscosity and mixing needs for review.
What should I send for a quotation? Specify capacity, product, preferred heat source, mixing and tilt requirements, and discharge needs.
Request a configuration review
As a factory-direct manufacturer, Wenzhou Ace Machinery can discuss customization around your product, batch size, heat source, agitation, and production workflow. Send those details to request a suitable configuration and quotation.
