Wenzhou Ace Machinery manufactures jacketed cooking kettles for batch processing of sauces, jams, soups, syrups, dairy products, and other foods. Available capacities range from 50 L to 1,000 L, with SUS304 or SUS316L stainless steel and model-dependent heating, vessel, tilting, and control options. Share your product and process requirements to discuss a suitable configuration.

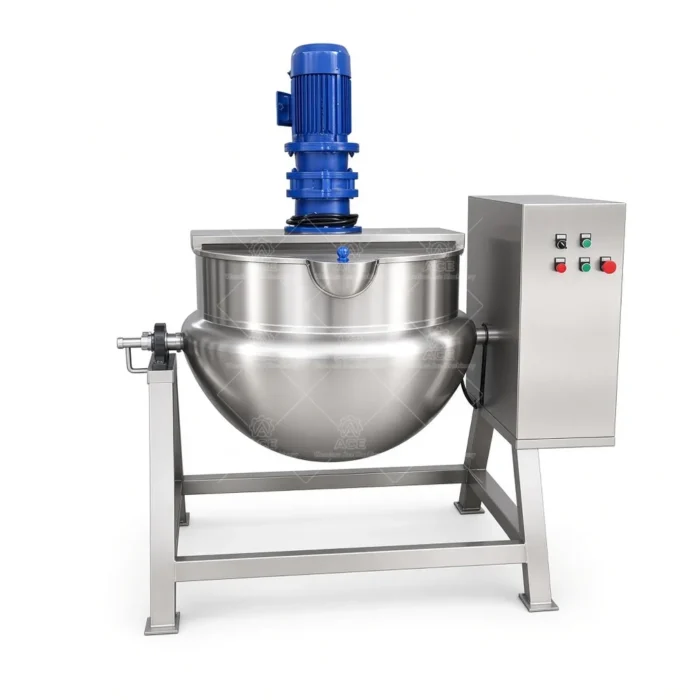

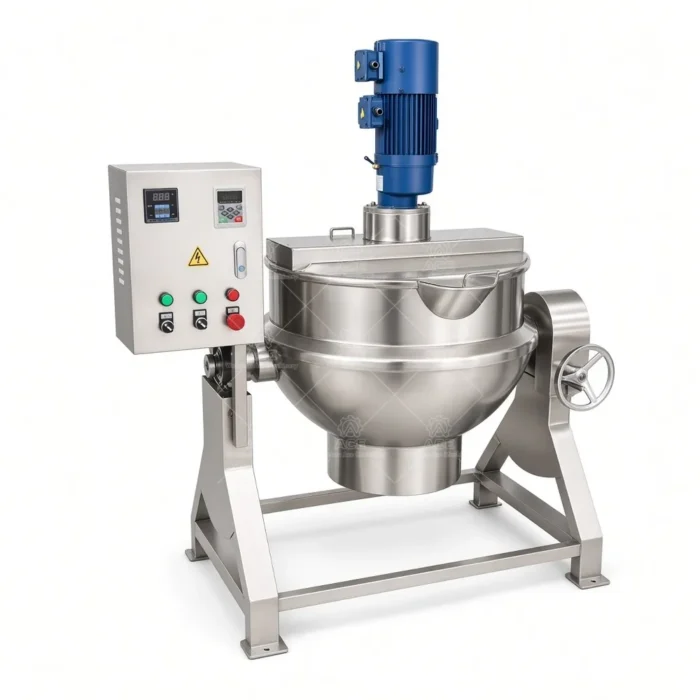

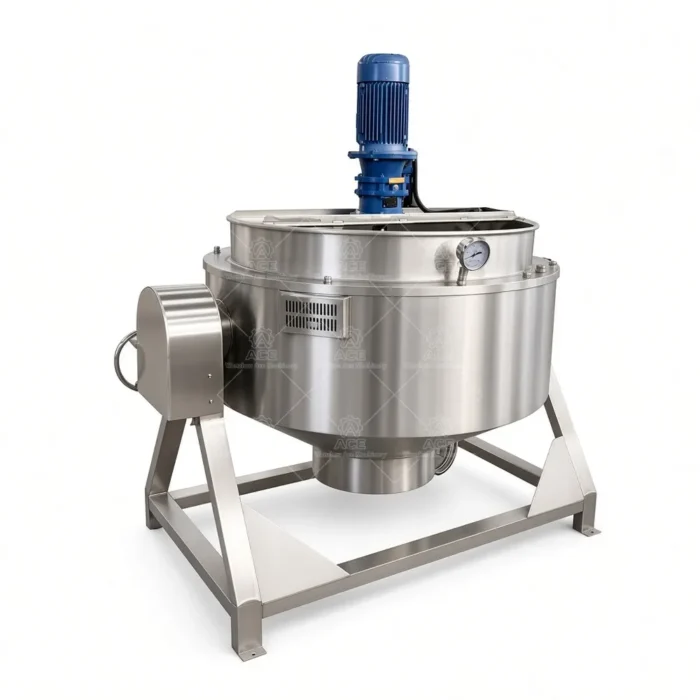

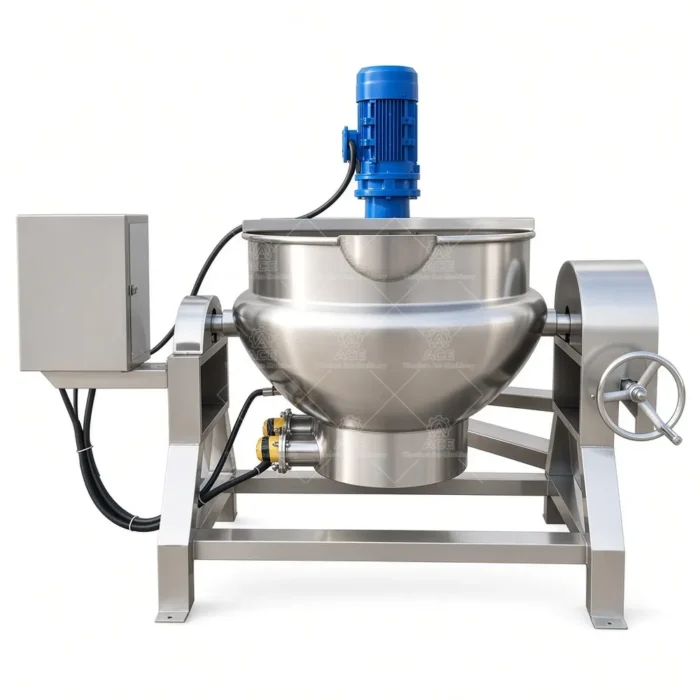

Industrial Tilting Jacketed Kettle for Food Processing
价格范围：$1,987.76 至 $2,096.49
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Industrial Jacketed Kettle for Batch Cooking
Choosing a kettle starts with the product, batch size, and available heat source. A fruit filling that needs occasional stirring has different requirements from a thick sauce or meat gravy that needs more active agitation. At Wenzhou Ace Machinery, we configure jacketed kettles around these production details rather than assume one setup suits every recipe.
Heat is applied through the jacket surrounding the product vessel, so the heating medium warms the kettle wall instead of contacting the food directly. This indirect approach supports controlled batch cooking and helps avoid direct burner contact with the product. Fixed and tilting designs are available depending on the model; a tilt mechanism can assist with emptying, while an agitator may help manage products that need mixing during cooking. Operating and cleaning routines should account for the product’s viscosity and any ingredients that can settle or stick.
Applications and Configuration
Typical food uses include sauces and gravies, jam and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy products, and other cooked foods. Thick recipes, delicate dairy mixtures, and batches containing particulates may call for different agitation and discharge arrangements. Other industries may be considered only after confirming product compatibility with the selected materials, seals, and process conditions; a standard food-kettle configuration is not automatically suitable for cosmetic, pharmaceutical, or chemical formulations.
Choose from 50 L, 100 L, 200 L, 300 L, 500 L, and 1,000 L capacities, with SUS304 or SUS316L stainless steel. Heating options include electric, steam, gas, or thermal oil, subject to model compatibility. Optional features may include an agitator, temperature control, variable-speed drive, insulation, control panel, and manual or hydraulic tilting where applicable.
Technical Specifications
| Product name | Jacketed Cooking Kettle |
|---|---|
| Available capacity | 50 L, 100 L, 200 L, 300 L, 500 L, 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation / temperature control | Optional; configuration dependent |
| Customization | Available to suit product and process requirements |
Frequently Asked Questions
Are all capacities available with every heating method?
No. Final combinations depend on the selected model and requirements.
How do I choose capacity?
Share target batch volume, fill level, and production frequency for review.
Can the kettle tilt?
Tilting is model dependent; manual or hydraulic operation may be available.
Can you add an agitator or controls?
These options can be discussed subject to model compatibility.
What should an inquiry include?
Provide product details, batch size, heat source, mixing needs, and discharge preferences.
Request a Configuration Review
As a factory-direct manufacturer, Wenzhou Ace Machinery can discuss a configuration around your process. Send your required capacity, product, preferred heating method, and agitation or tilting requirements so our team can review suitable options.
