Wenzhou Ace Machinery jacketed cooking kettles are available in 50L to 1000L capacities, with SUS304 or SUS316L construction options. Depending on the model, configure the kettle with electric, steam, gas, or thermal-oil heating, fixed or tilting operation, and optional scraper mixing and temperature control. Share your product and batch requirements to discuss a suitable setup.

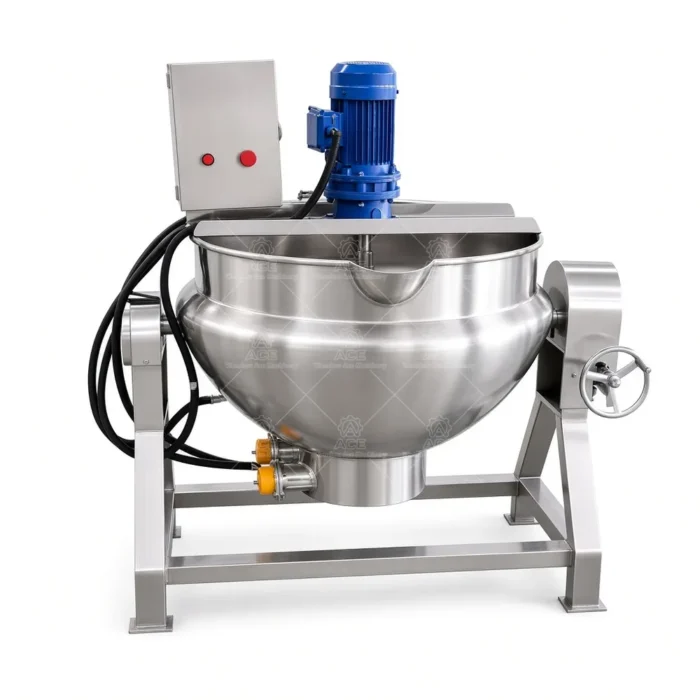

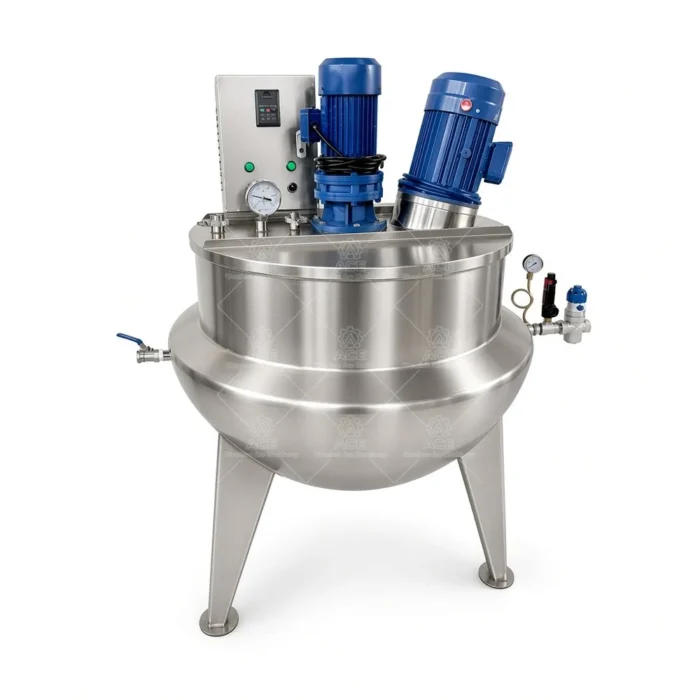

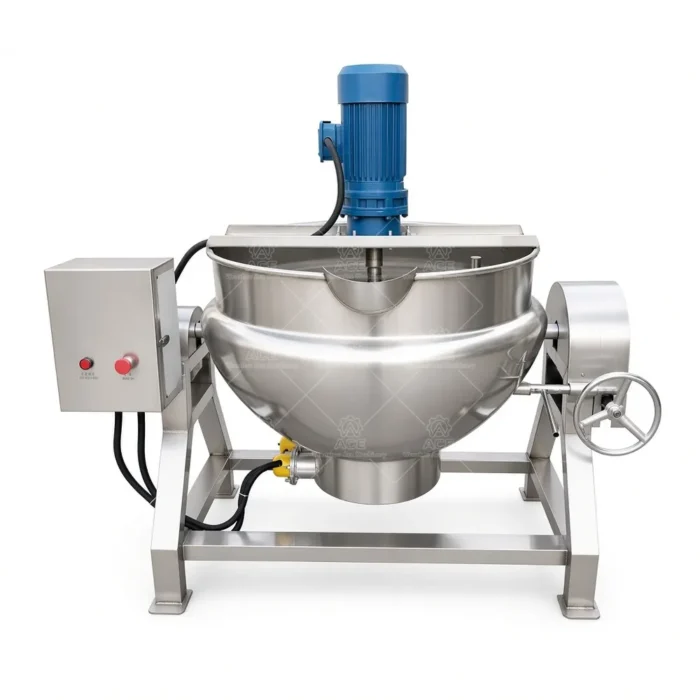

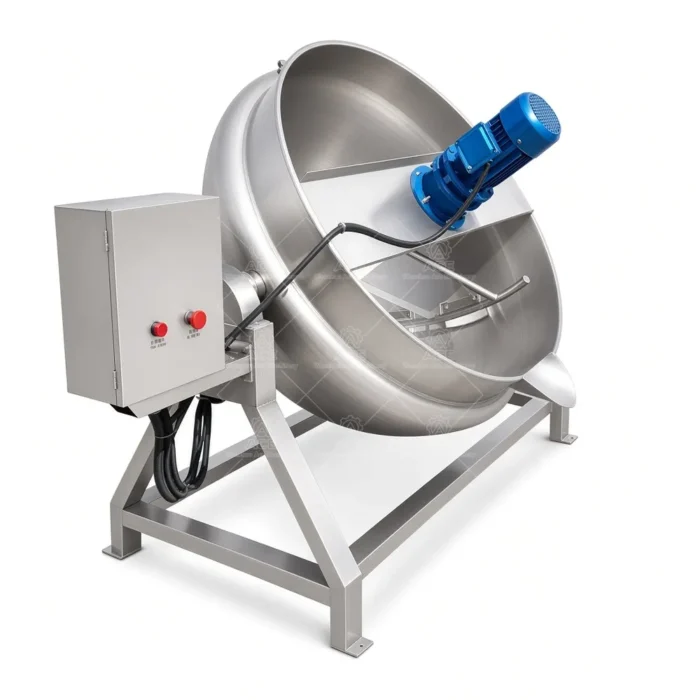

Electric Tilting Jacketed Cooking Kettle with Scraper Mixer
价格范围：$1,955.65 至 $2,140.85
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Controlled Batch Production
Uneven heating, product scorching, and difficult unloading are common concerns when cooking thick sauces or fruit fillings in production batches. Wenzhou Ace Machinery manufactures jacketed cooking kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, with the final configuration selected around the product and process.
Heat is applied through the jacket rather than directly to the product-contact vessel. This indirect heating method supports more even heat transfer during cooking and can help reduce localized overheating. Electric, steam, gas, or thermal-oil heating may be available depending on the model. A scraper mixer can move product along the vessel surface as it cooks, supporting consistent agitation for mixtures such as gravy, jam, and thick sauces. Mixer and temperature-control options depend on configuration; they should be specified against the recipe’s viscosity, batch size, and processing steps.
Production and Configuration Options
Choose a fixed kettle or, where supported by the selected model, a tilting vessel for discharge. Tilting can help transfer viscous batches, while manual or hydraulic operation is available where applicable. Insulation, a control panel, variable-speed drive, and other custom features may be discussed subject to model compatibility. For routine cleaning and maintenance, clarify the product-contact material, cleaning method, and access needed around the kettle before finalizing the layout.
Typical food applications include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy blends, and fillings. Each recipe places different demands on heating and agitation; a configuration suitable for a thin syrup may not suit a dense, heat-sensitive filling. Other processing uses should be reviewed for material, seal, and process compatibility.
Technical Specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic where applicable |
| Agitation | Optional mixer; scraper mixer availability depends on configuration |
| Temperature control | Optional; details depend on configuration |
| Customization | Available according to product and process requirements |
Frequently Asked Questions
Can every capacity use every heating method? No. Available combinations depend on the model and project requirements.
Is tilting included? Not on every model. Confirm vessel style and manual or hydraulic operation when requesting a quote.
What information helps select a mixer? Share product viscosity, batch size, ingredients, and required agitation during heating.
Can the kettle be made from SUS316L? SUS316L is an available material option; confirm suitability for your product and cleaning process.
Can it process non-food products? Potentially, subject to compatibility of the selected materials, seals, and process configuration.
Request a Configuration Review
As the manufacturer, we customize equipment around batch volume, product behavior, heat source, mixing, and discharge needs. Send Wenzhou Ace Machinery your required capacity, product, preferred heating method, and stirring or tilting requirements. Include cleaning practices and production-line constraints so our team can review a suitable configuration.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
