Cook sugar products and other food batches with a 200L tilting electric jacketed kettle and mixer. Indirect jacket heating supports controlled batch processing, while model-dependent options can include temperature control, variable-speed mixing, and manual or hydraulic tilting. Contact Wenzhou Ace Machinery with your product, batch size, and production requirements to discuss a suitable configuration.

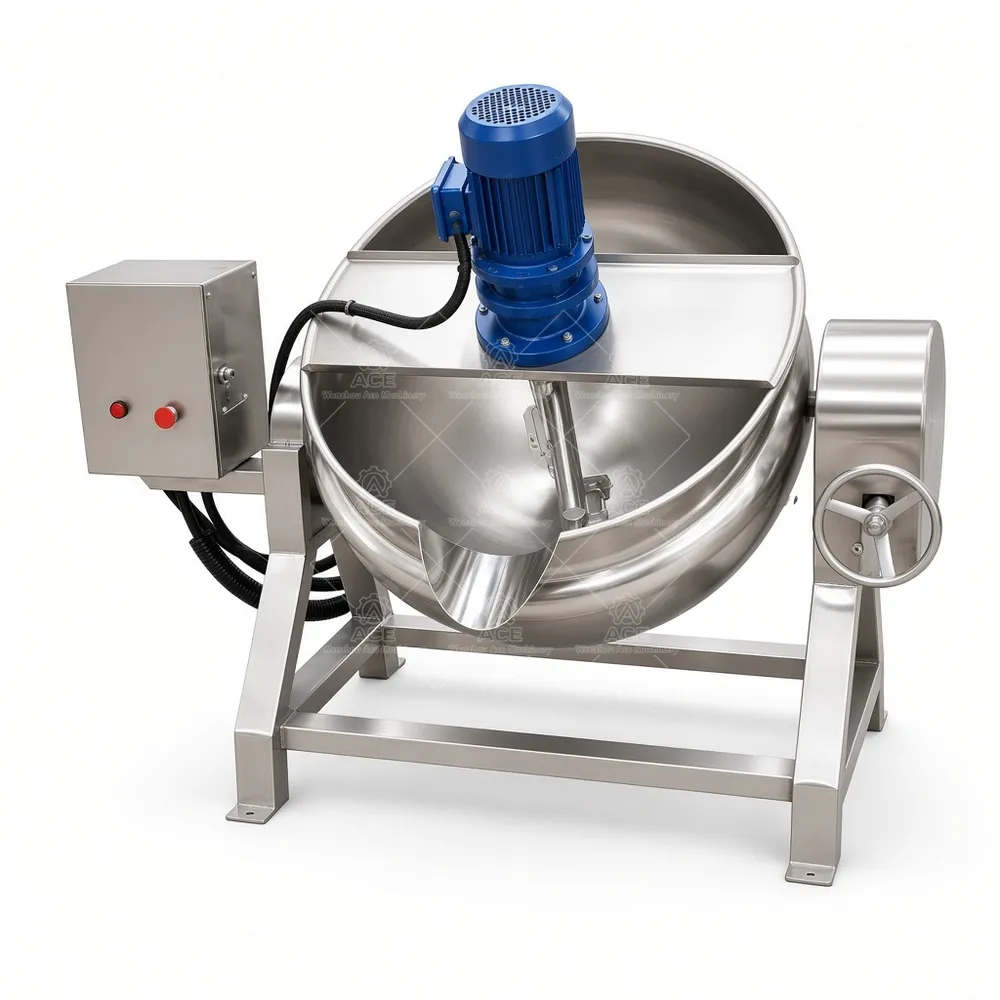

200L Tilting Electric Jacketed Sugar Cooking Kettle with Mixer
Price range: $2,101.20 through $2,299.55
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Built for controlled batch cooking
Cooking sugar products calls for a kettle that suits the batch size, heating source, mixing needs, and discharge process. Our jacketed kettle heats product indirectly: heat is applied through the jacket rather than directly to the vessel contents. This arrangement supports more even heat transfer and helps limit direct contact with a flame or heating element. The right setup depends on the recipe and production routine.
Wenzhou Ace Machinery manufactures jacketed kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. Depending on the model, the vessel can be fixed or tilting. A mixer can help keep sauces, syrups, fillings, or candy mixtures moving during cooking; mixer and temperature-control options depend on configuration. Manual or hydraulic tilting may be available where the selected model supports it. Confirm product viscosity, batch size, and how the kettle will be emptied before specifying the drive and discharge arrangement.
Applications and configuration
Typical food applications include sauces and gravies, jams and fruit fillings, soups and stocks, dairy mixtures, syrups, and confectionery batches. Salad dressings, mayonnaise, liquid seasonings, and mixtures containing starches, gums, stabilizers, or thickeners may need particular mixing and heating arrangements to control incorporation and avoid scorching. The same standard configuration is not suitable for every formula.
With compatible materials, seals, and process requirements, jacketed kettles may also be considered for cosmetic creams, lotions, shampoos, conditioners, liquid detergents, and selected pharmaceutical or chemical formulations. Confirm compatibility and process suitability with our team before ordering.
Technical specifications
| Item | Details |
|---|---|
| Product | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model-dependent |
| Vessel | Fixed or tilting, depending on model |
| Tilt operation | Manual or hydraulic, where applicable |
| Mixing and controls | Optional mixer, temperature control, variable-speed drive, insulation, and control panel; configuration-dependent |
| Customization | Available according to product and process requirements |
FAQs
How do I choose capacity? Share your normal batch size and required working volume.
Are all heating methods available at every size? No. Availability depends on the model and requested configuration.
Can the kettle tilt? Tilting and its operating method depend on the selected model.
What information helps with a quotation? Provide the product, batch size, heating source, mixing needs, and discharge method.
Can materials be specified? SUS304 or SUS316L is available; suitability depends on the product and process.
Request a configuration
As a factory-direct manufacturer, we customize equipment around product characteristics, batch scale, heat source, mixing, and production flow. Send your required capacity, product details, preferred heating method, and mixer or tilting requirements so our engineers can review a suitable configuration.
