This tilting industrial cooking pot is available in 100L and 200L sizes, with additional capacities from 50L to 1000L. Choose SUS304 or SUS316L stainless steel and discuss compatible heating options, vessel style, and agitation with the manufacturer. A scraper mixer, temperature control, and other features may be configured to suit the product and production process.

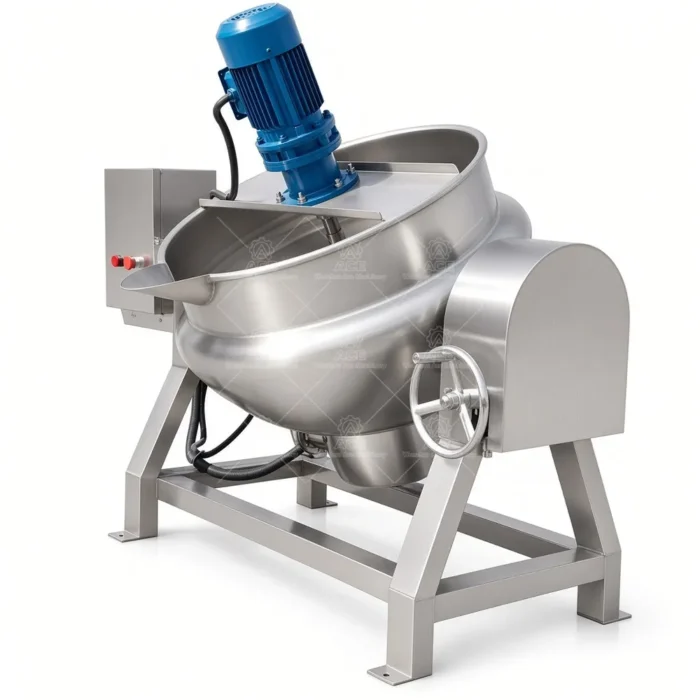

100L/200L Tilting Industrial Cooking Pot with Scraper Mixer
价格范围：$2,105.85 至 $2,273.48
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking for Controlled Batch Production
Cooking thick sauces, fruit fillings, or dairy bases in a direct-fired vessel can create hot spots and product buildup. Our jacketed cooking pot heats the batch indirectly: a selected heating medium warms the jacket, and heat passes through the vessel wall into the product. This arrangement supports controlled batch cooking; the suitable heating method and agitation depend on the product and model.
Wenzhou Ace Machinery manufactures pots in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, in SUS304 or SUS316L stainless steel. Models may be fixed or tilting. Where compatible, a scraper mixer can help move product from heated surfaces and maintain circulation in thicker recipes. It is not a substitute for a separate high-shear or inline emulsifying system.
Applications and Configuration
Typical batches include sauces and gravies, jams and fruit fillings, soups, syrups, confectionery mixes, dairy products, and other foods. A viscous filling may need a suitable agitator and discharge arrangement; a delicate dairy mix may call for different heating and temperature-control choices. Configurations should be matched to the recipe, batch size, and production sequence.
Heating options include electric, steam, gas, or thermal oil, subject to model compatibility. Tilting may be manual or hydraulic where available. Temperature control, variable-speed drive, insulation, control panel, and other custom features can be discussed for compatible models. SUS316L may be considered where the product or cleaning conditions call for it; confirm material suitability with our team.
Technical Specifications
| Product name | Jacketed cooking pot |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic, where applicable |
| Agitation | Optional; scraper mixer subject to configuration |
| Temperature control | Optional, depending on configuration |
| Customization | Available on request |
Other Industries and FAQs
With suitable materials, seals, and process review, related applications may include cosmetic creams, lotions, shampoos, liquid detergents, pharmaceutical liquids or excipient dispersion, and compatible water-based chemical preparations. One standard setup is not suitable for every formulation.
Can every capacity use every heat source? No. Availability depends on the selected model.
Is the scraper mixer standard? It is an option where compatible.
How is the pot emptied? Discuss tilting and the required discharge method with us.
What information helps with selection? Share the recipe, batch size, heating source, viscosity, agitation needs, and cleaning conditions.
Can the vessel be customized? Yes, subject to model and process requirements.
Contact Wenzhou Ace Machinery for a factory-direct configuration review. Include your required capacity, product, preferred heat source, and mixing or tilting requirements so our engineers can assess a suitable setup.
