Wenzhou Ace Machinery jacketed kettles are available in 50L to 1000L capacities for cooking products such as jam, caramel, sauces, soups, syrup and dairy mixtures. Choose SUS304 or SUS316L stainless steel, a compatible heating method, and optional agitation, temperature control or tilting. Final configuration depends on the selected model and your process requirements.

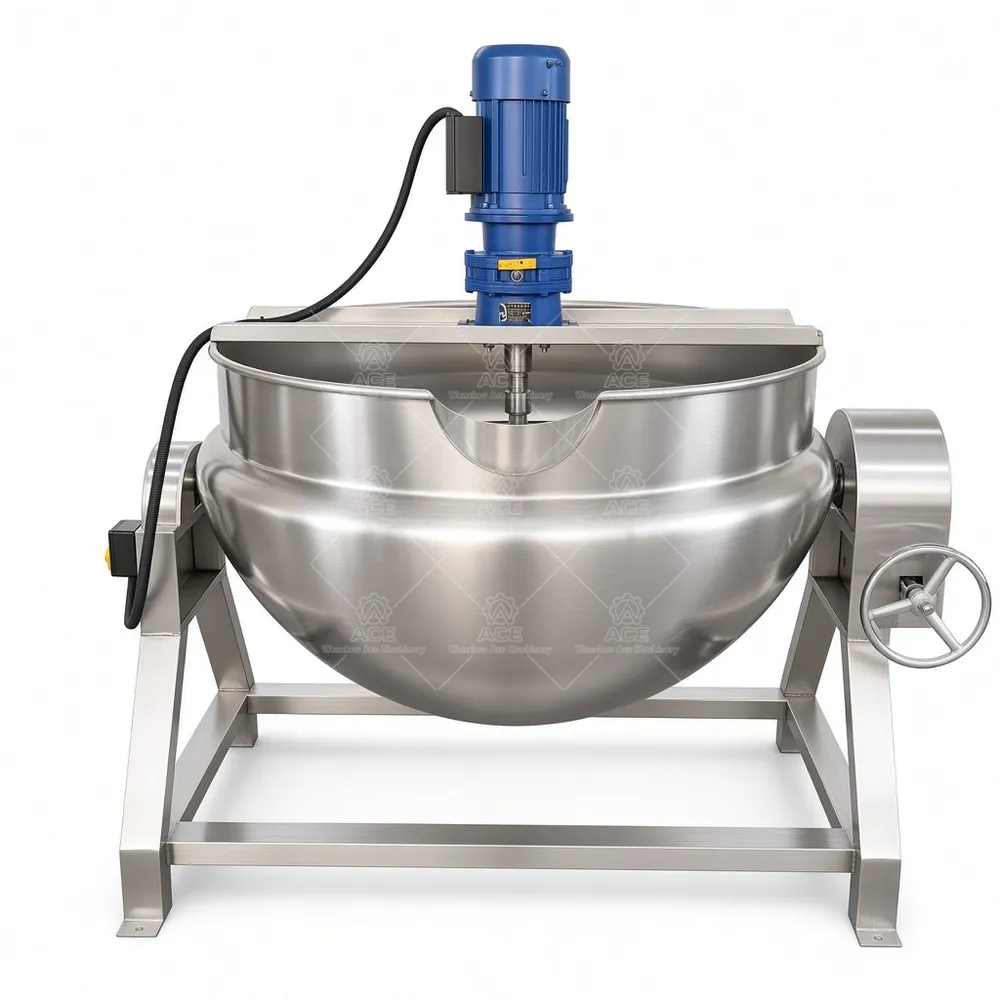

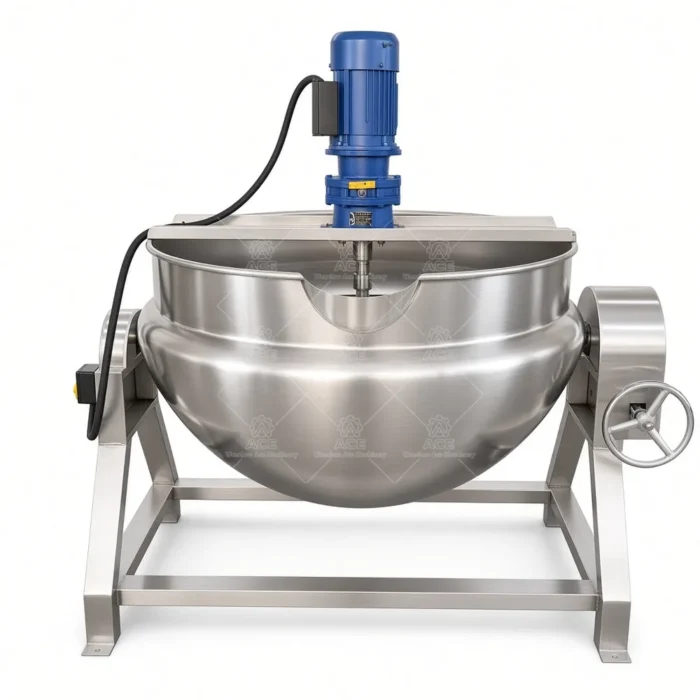

Jacketed Kettle Cooker with Agitator for Jam, Caramel & Sugar
价格范围：$2,110.69 至 $2,316.27
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Jam, Caramel and Batch Cooking
Cooking a thick fruit filling or sugar mixture calls for controlled heating and a way to manage product movement as viscosity changes. Wenzhou Ace Machinery manufactures jacketed kettles in fixed and, on applicable models, tilting configurations. The kettle heats product indirectly: a selected heat source warms the jacket, which transfers heat through the vessel wall rather than exposing the batch directly to a burner or heating element. An optional agitator can help keep ingredients moving during cooking; suitability depends on the recipe and selected model.
Configuration for your process
Available capacities are 50L, 100L, 200L, 300L, 500L and 1000L. SUS304 or SUS316L stainless steel can be specified. Heating options include electric, steam, gas or thermal oil, subject to model compatibility. Fixed kettles suit processes with a separate discharge arrangement; a tilting model may help empty the vessel, with manual or hydraulic operation where applicable. Optional temperature control, variable-speed drive, insulation and control panel can be discussed for compatible configurations. Confirm the product’s viscosity, batch size, heat source and unloading method before selecting a model. Routine cleaning and access requirements should also be reviewed for the installation.
Applications
Typical food uses include sauces, gravies, jam, fruit fillings, soups, broth, syrup, confectionery mixtures, dairy blends and other foods. A thick sauce may call for agitation, while a delicate dairy mixture may require a different heating and mixing approach. With suitable materials, seals and process review, related applications may include food and beverage ingredients, cosmetic creams or lotions, pharmaceutical liquids and excipient dispersions, and compatible chemical mixtures such as water-based formulations, coatings or adhesives. The same configuration is not appropriate for every product.
Technical specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas or thermal oil; configuration dependent |
| Vessel | Fixed or tilting; model dependent |
| Tilt operation | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration dependent |
| Temperature control | Optional, subject to model |
| Customization | Available to suit product and process requirements |
FAQs
Can every size use every heat source? No. Confirm availability for the selected model. Is an agitator standard? It is an optional feature, subject to compatibility. How is capacity selected? Share batch size and working product characteristics for review. Can the kettle tilt? Some models offer manual or hydraulic tilt. What information supports a quotation? Provide product, batch volume, heat source, mixing needs and discharge method.
Request a configuration review
Contact Wenzhou Ace Machinery with your required capacity, product, preferred heating method, and agitation or tilting requirements. Our factory team can discuss a suitable customized configuration for your production workflow.
