Wenzhou Ace Machinery manufactures configurable jacketed kettles for batch cooking and mixing in food production. Available capacities range from 50 L to 1,000 L, with SUS304 or SUS316L construction and model-dependent electric, steam, gas, or thermal oil heating. Fixed or tilting designs and optional agitation and controls can be discussed to match your product and process.

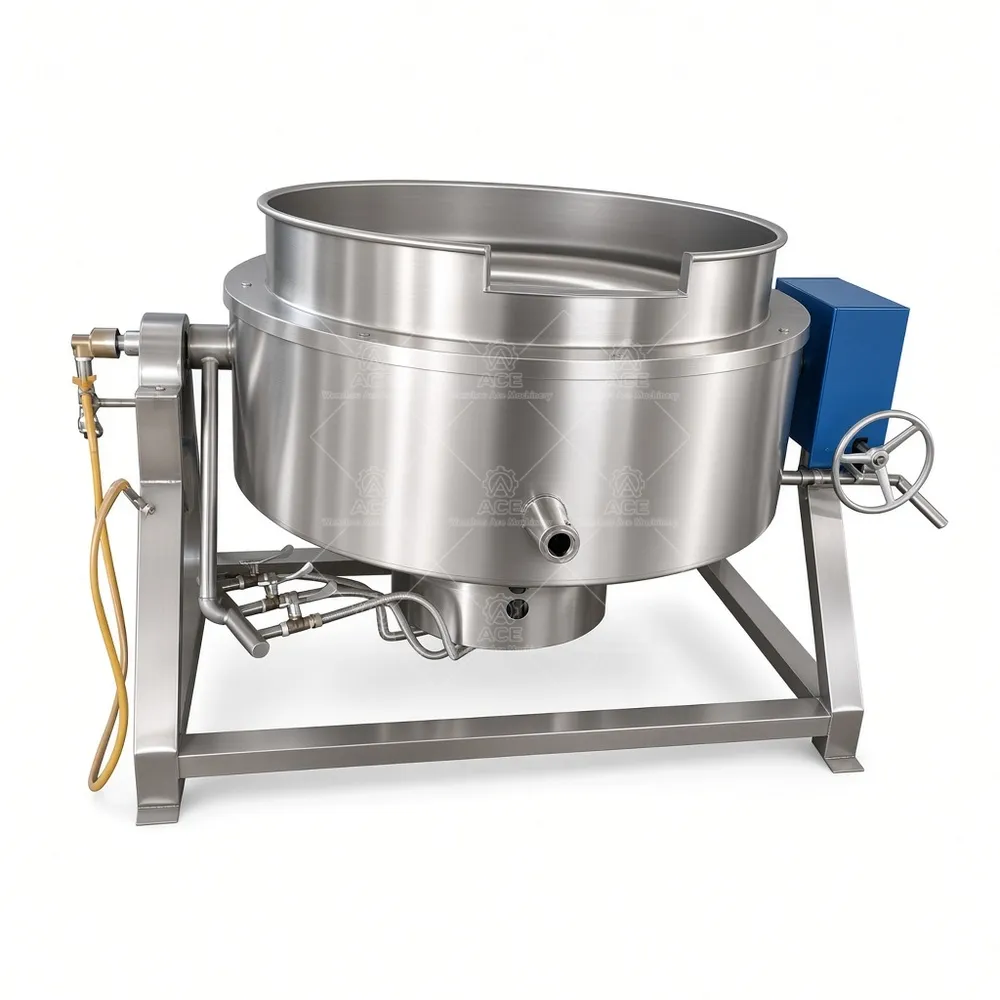

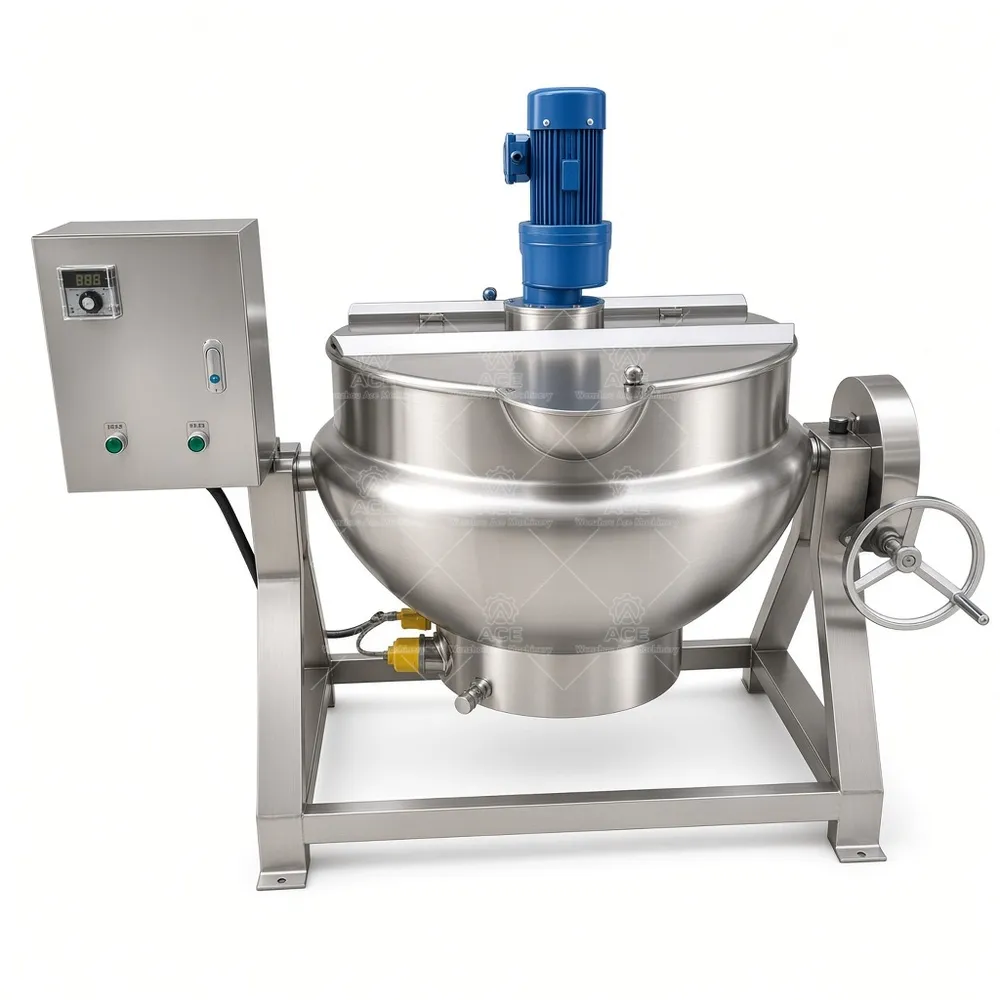

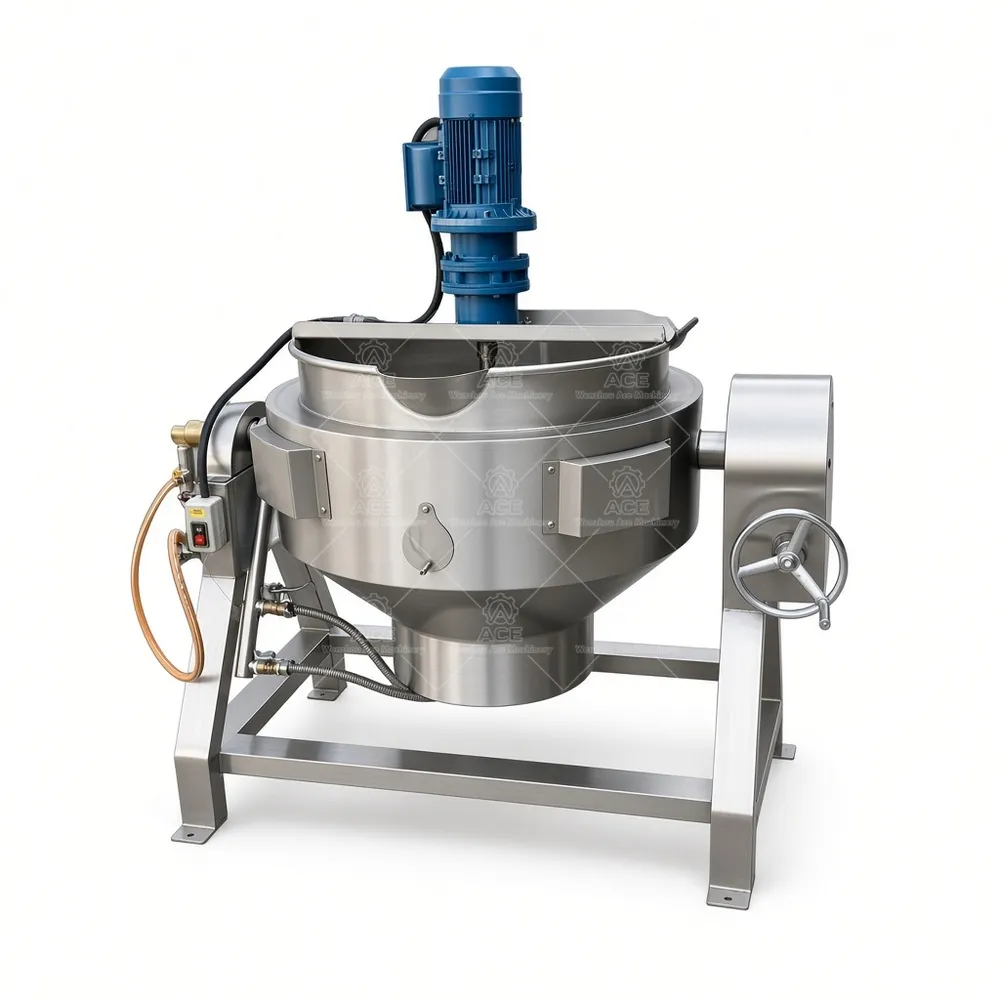

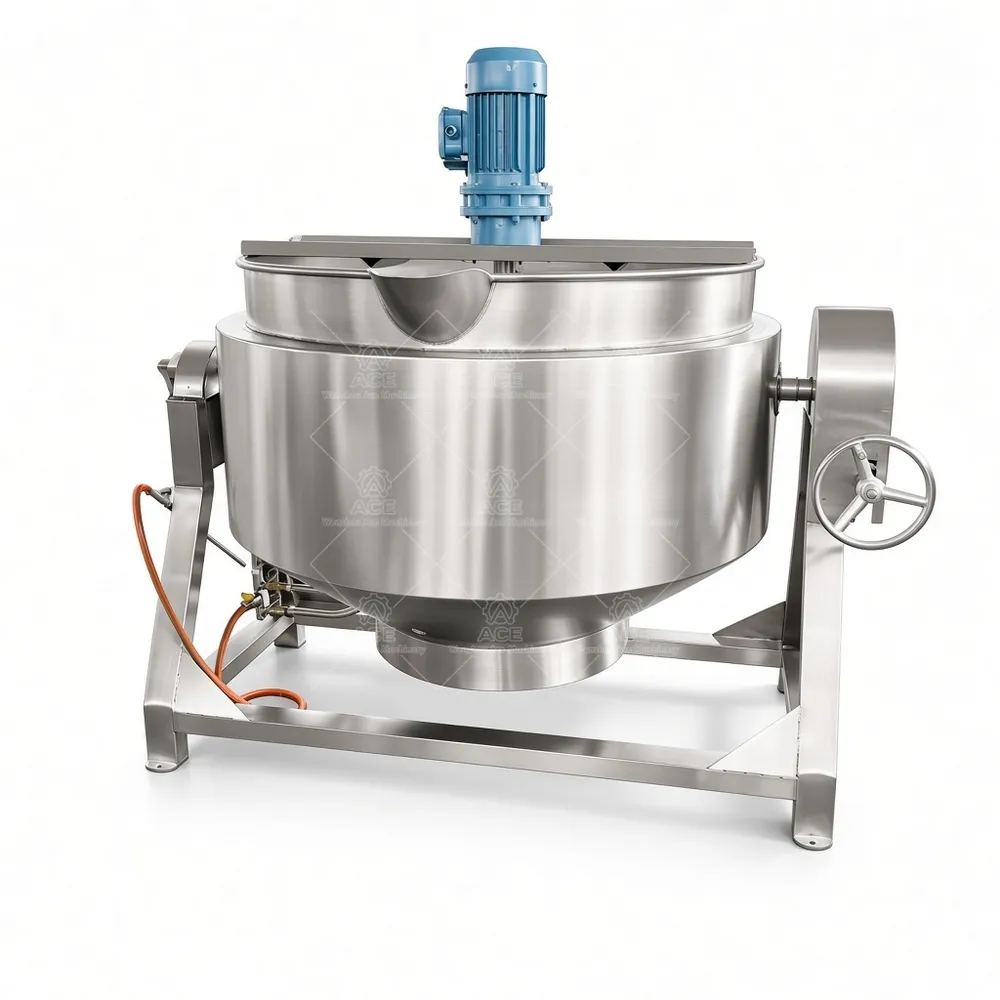

Industrial Jacketed Kettle for Sauce Mixing | Electric Heating
价格范围：$2,102.22 至 $2,248.11
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Industrial Jacketed Kettle for Controlled Batch Cooking
Choosing a kettle involves more than matching nominal capacity to batch size. Product viscosity, heating source, agitation needs, discharge method, and available plant utilities all affect the workable configuration. At Wenzhou Ace Machinery, we configure jacketed kettles around these production conditions.
Heat is applied through the jacket surrounding the product vessel, so the heating medium does not contact the food directly. Indirect heating supports controlled batch cooking for sauces, soups, fillings, and other products that need heating while being stirred. An optional agitator can help keep ingredients moving during processing; the suitable design depends on the product and model. Temperature control, variable-speed drive, insulation, and a control panel are available options where compatible. These choices can support day-to-day process control, but do not replace trials for a specific recipe.
Applications and Configuration
Typical food applications include sauce and gravy production, fruit jams and fillings, soups and stocks, syrups, confectionery mixtures, and dairy blends. Products containing starches, gums, stabilizers, or thickeners may need particular attention to mixing and heat input to limit lumps or uneven processing. Salad dressings, mayonnaise, beverage ingredients, and liquid seasonings also require configuration based on viscosity and recipe.
Cosmetic, personal-care, pharmaceutical, and chemical uses may be considered only after confirming material, seal, and process compatibility. Creams, lotions, shampoos, liquid formulations, coatings, adhesives, and water-based emulsions do not all suit the same vessel or agitator configuration.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50 L, 100 L, 200 L, 300 L, 500 L, and 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional agitator; configuration dependent |
| Temperature control | Optional; configuration dependent |
| Customization | Available to suit product and process requirements |
Frequently Asked Questions
Can every size use every heating method? No. Available combinations depend on the selected model and requirements.
How do I choose capacity? Share target batch size, working fill level, and production frequency for review.
Is the kettle fixed or tilting? Both are possible on applicable models; tilt operation may be manual or hydraulic.
Can you add an agitator or controls? Options depend on model compatibility and product needs.
What details help with a quotation? Provide product, batch size, preferred heat source, mixing needs, and discharge preference.
Request a Configuration Review
As a factory-direct manufacturer, Wenzhou Ace Machinery can discuss customization around your product, batch scale, heat source, agitation, and production flow. Send these details with any cleaning or installation requirements, and our team can review a suitable configuration.
