A small solvent recovery unit designed for extraction and concentration processes, with a stated solvent recovery rate of 90% or higher. Share your solvent, processing requirements, and intended operating conditions when requesting details so the appropriate unit configuration can be reviewed.
Small Solvent Recovery Unit with 90%+ Solvent Recovery
价格范围：$2,167.25 至 $2,352.12
Request a quote

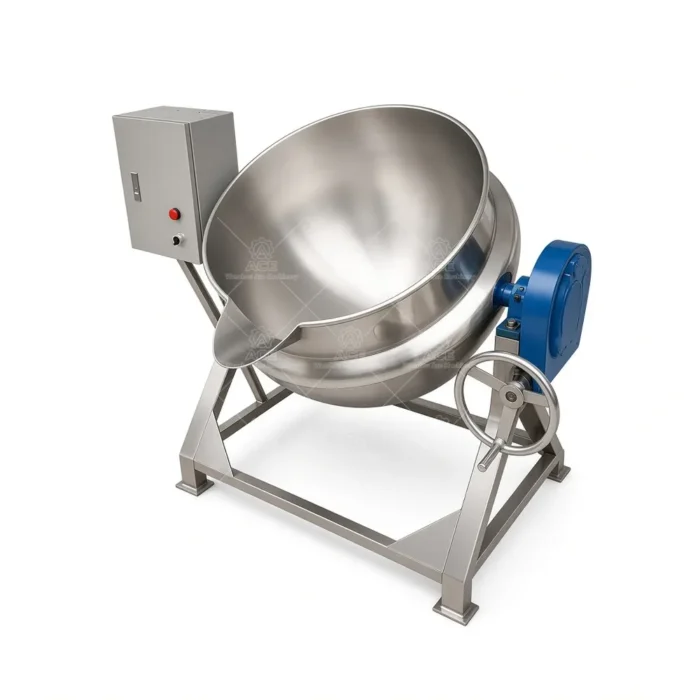

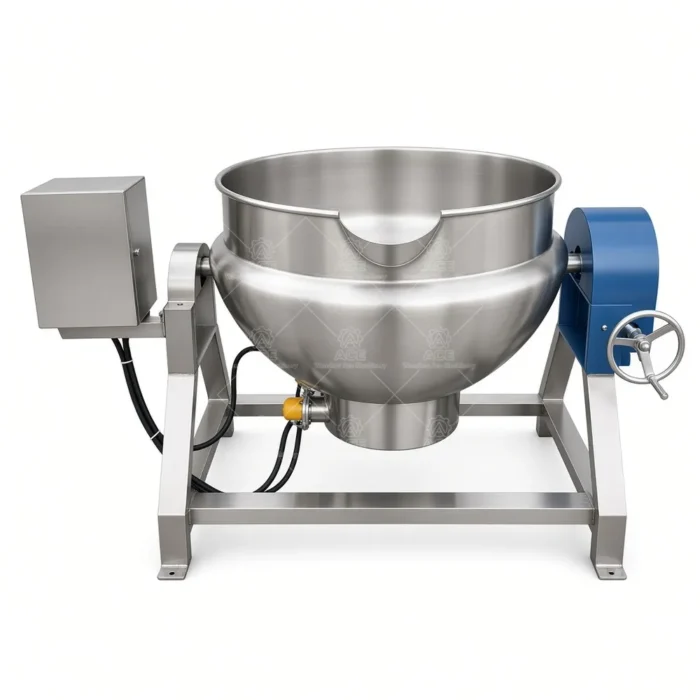

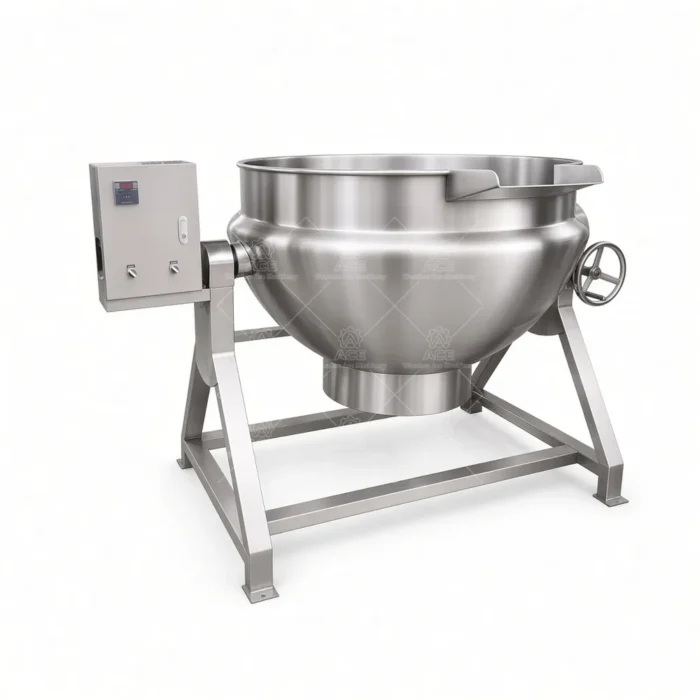

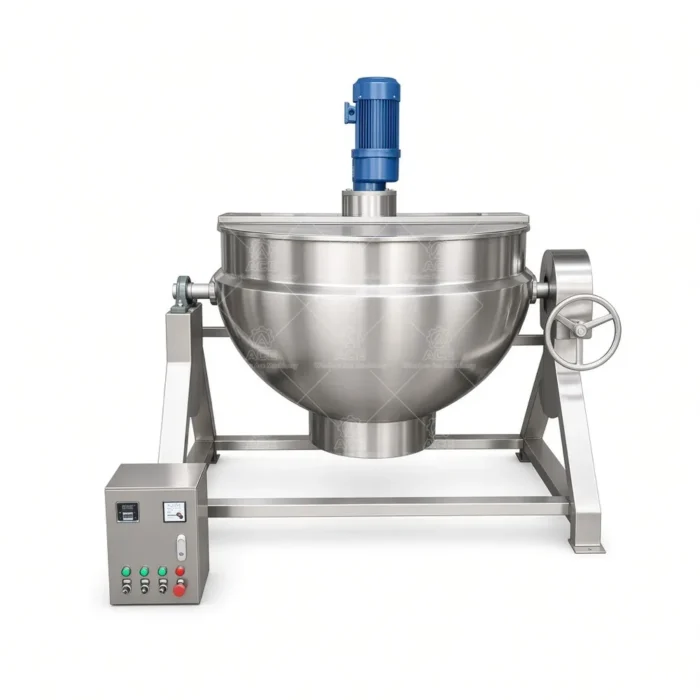

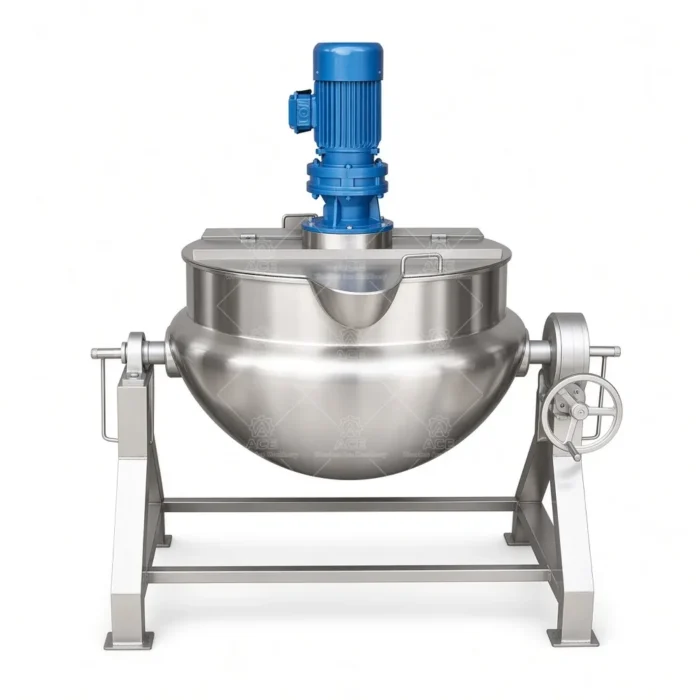

A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Batch Food Production
Choosing a kettle starts with the product and the way it moves through your process. A thick fruit filling, a pourable soup, and a dairy mixture place different demands on heating, agitation, discharge, and cleanout. At Wenzhou Ace Machinery, we configure jacketed kettles around those operating details rather than assuming one setup suits every batch.
Heat is applied to the product vessel through a surrounding jacket, so the heating medium does not contact the food directly. Depending on the selected model, the heat source can be electric, steam, gas, or thermal oil. Indirect heating supports controlled batch cooking; actual heat transfer and operating results depend on the product, batch size, and configuration. SUS304 and SUS316L stainless steel are available, with material selection guided by ingredients and cleaning conditions.
Production uses and configuration
Typical food applications include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy products, and other fillings. An agitator may help keep a moving batch mixed during cooking, while temperature control, variable-speed drive, insulation, and a control panel can be specified where compatible. Fixed or tilting construction is available by model; tilting operation may be manual or hydraulic. Discharge needs and available floor space should be reviewed before selecting a kettle.
Food and beverage plants may also use suitable configurations for dressings, mayonnaise, liquid seasonings, beverage ingredients, or dispersing starches, gums, stabilizers, and thickeners. Use in cosmetics, personal care, pharmaceutical, or chemical processing requires review of the formula, contact materials, seals, cleaning requirements, and applicable process conditions. One standard configuration should not be assumed suitable for every product.
Technical specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, and 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration dependent |
| Temperature control | Optional, depending on configuration |
| Customization | Available to suit product and process requirements |
FAQ
How do I choose capacity? Share your target batch size, fill level, and production frequency.
Does every size support every heat source? No. Availability depends on the selected model and requirements.
Can the kettle tilt? Tilting and its operating method depend on the configuration.
Can you add an agitator or controls? Optional features are subject to model compatibility.
What details help with a quotation? Provide product type, batch size, preferred heat source, agitation, discharge, and cleaning needs.
Request a configuration review
Wenzhou Ace Machinery provides factory-direct manufacturing and customization. Send your required capacity, product, heating preference, and agitation or tilting requirements so our team can discuss a suitable configuration.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
