Cook sauces, jams, soups, syrups, dairy mixtures, and confectionery batches with an industrial jacketed kettle from Wenzhou Ace Machinery. Available in 50L to 1000L capacities, with SUS304 or SUS316L construction and model-dependent electric, steam, gas, or thermal oil heating. Optional agitation, temperature control, insulation, and tilting configurations can be reviewed for your process.
Industrial Jacketed Cooking Kettle for Jam Sauce and Confectionery
Price range: $1,994.60 through $2,124.05
Request a quote

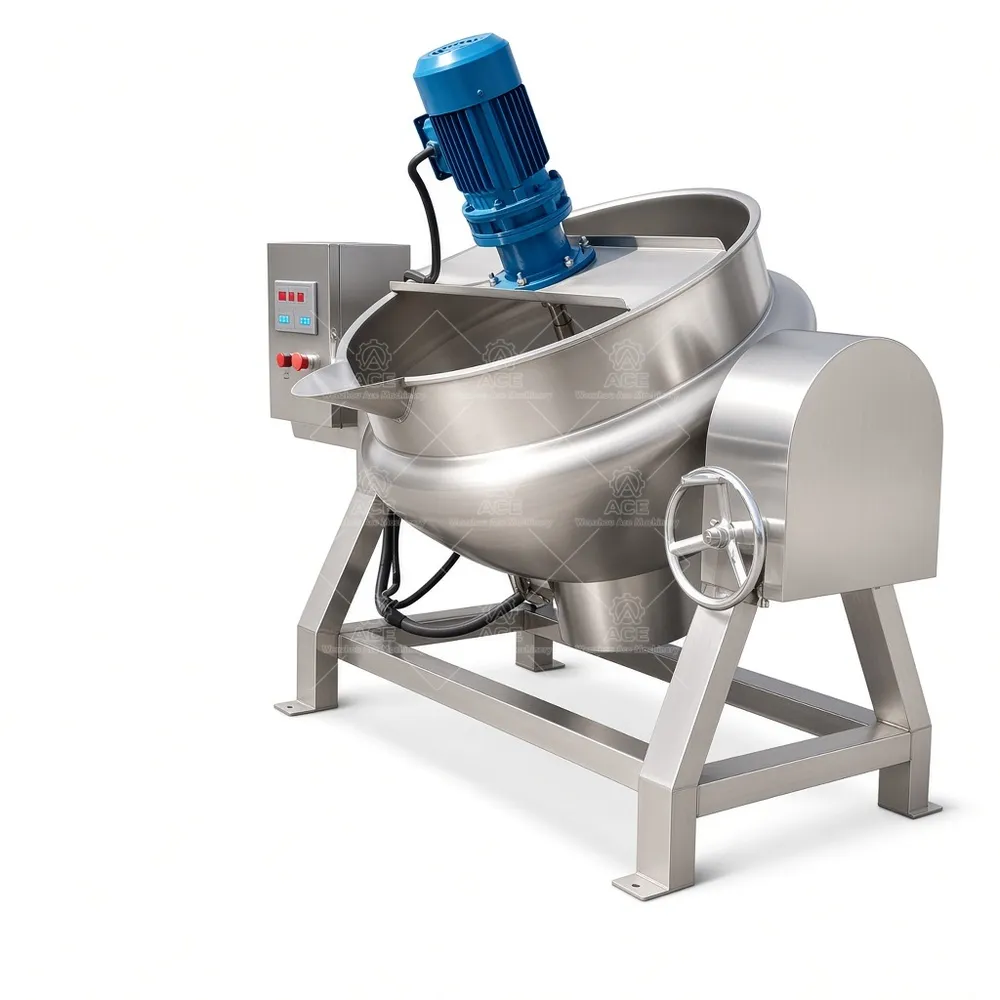

A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

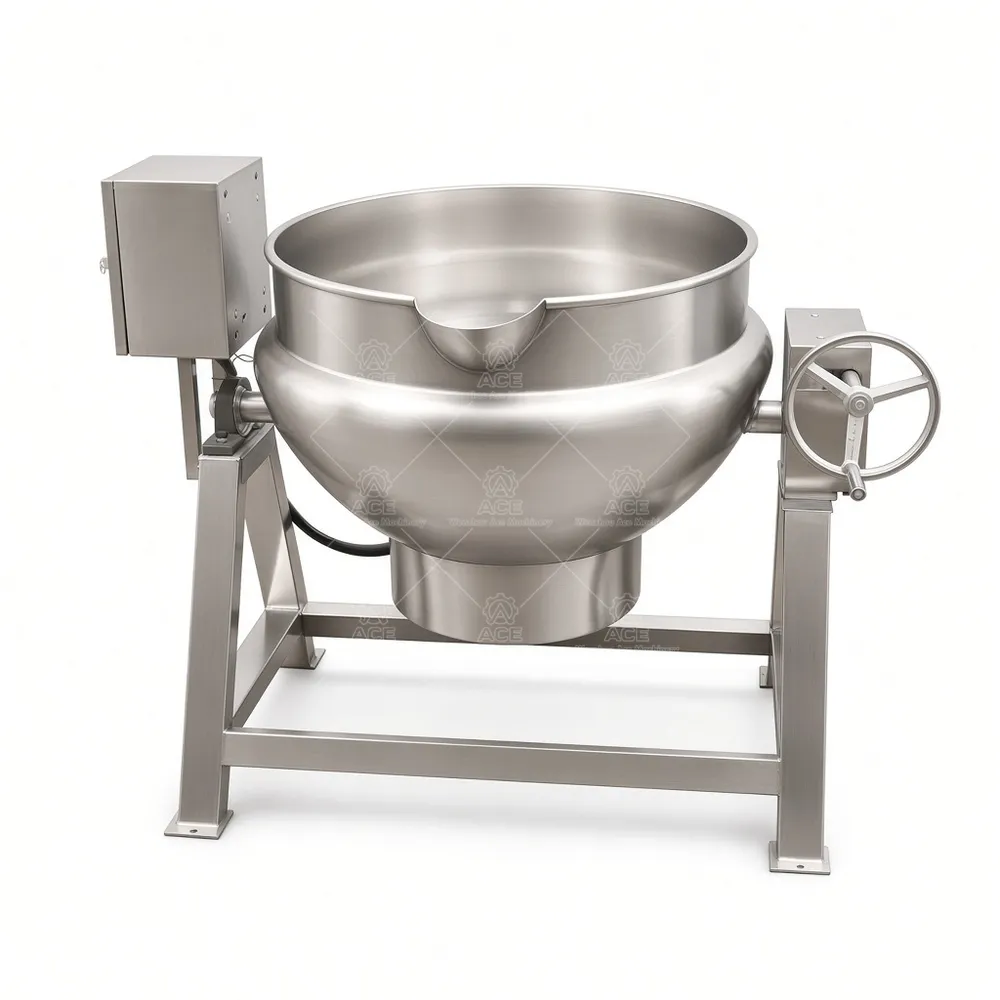

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products

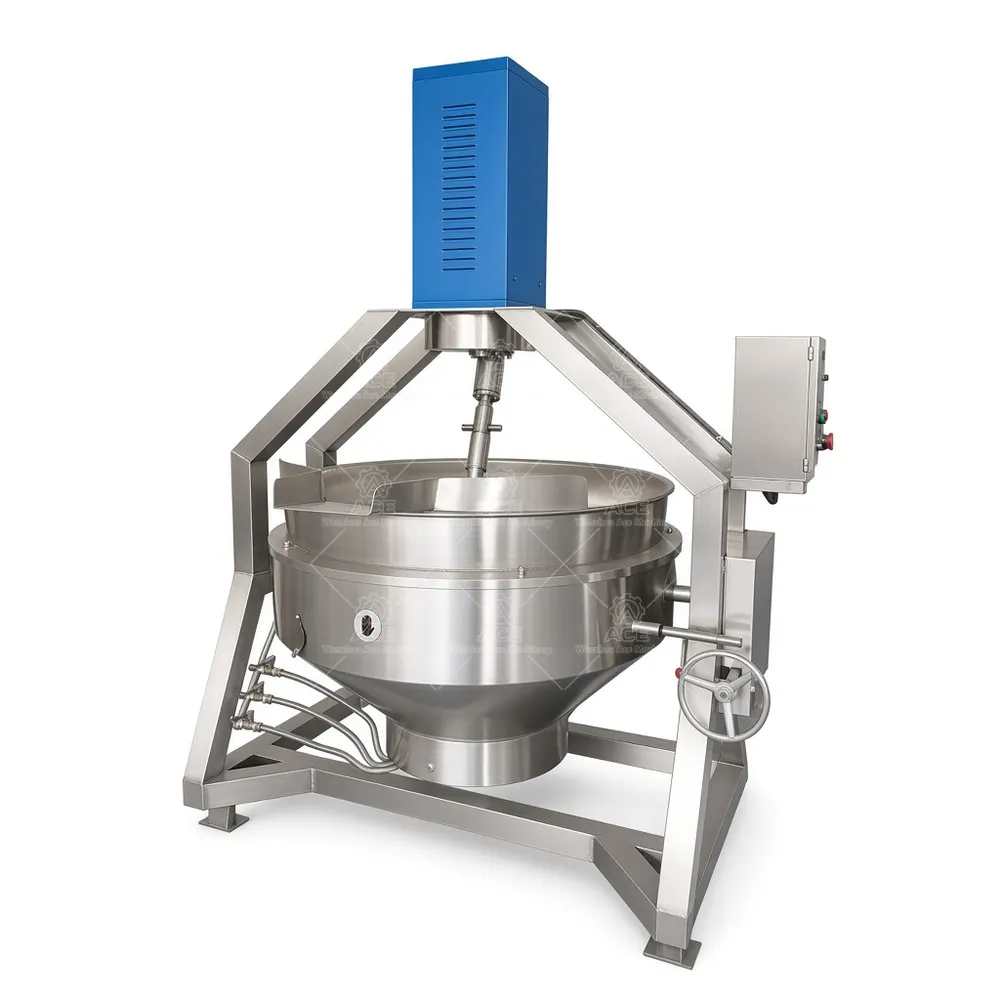

Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Choosing a kettle starts with the product, batch size, and available heat source. A thin syrup, a thick fruit filling, and a dairy mixture place different demands on heating, agitation, discharge, and cleanup. Wenzhou Ace Machinery builds jacketed kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, with final features selected for the model and process.
The product sits in the inner vessel while a separate heating medium warms the jacket. This indirect heating method transfers heat through the vessel wall rather than applying a direct flame to the food. It supports batch cooking for sauces, jams, soups, gravies, syrups, dairy products, fillings, and confectionery mixes. Product viscosity, agitation needs, and the heating source all affect the suitable configuration; no single setup fits every recipe.
Practical Configuration Options
Choose SUS304 or SUS316L stainless steel based on product and cleaning requirements. Heating options include electric, steam, gas, or thermal oil, subject to model compatibility and site utilities. Fixed kettles suit processes that use a separate discharge arrangement; tilting models can help empty batches, with manual or hydraulic operation available where applicable. An optional agitator can support mixing during cooking. Temperature control, variable-speed drive, insulation, and a control panel may also be specified when compatible. Confirm cleaning access, connections, and discharge method during design review.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; configuration dependent |

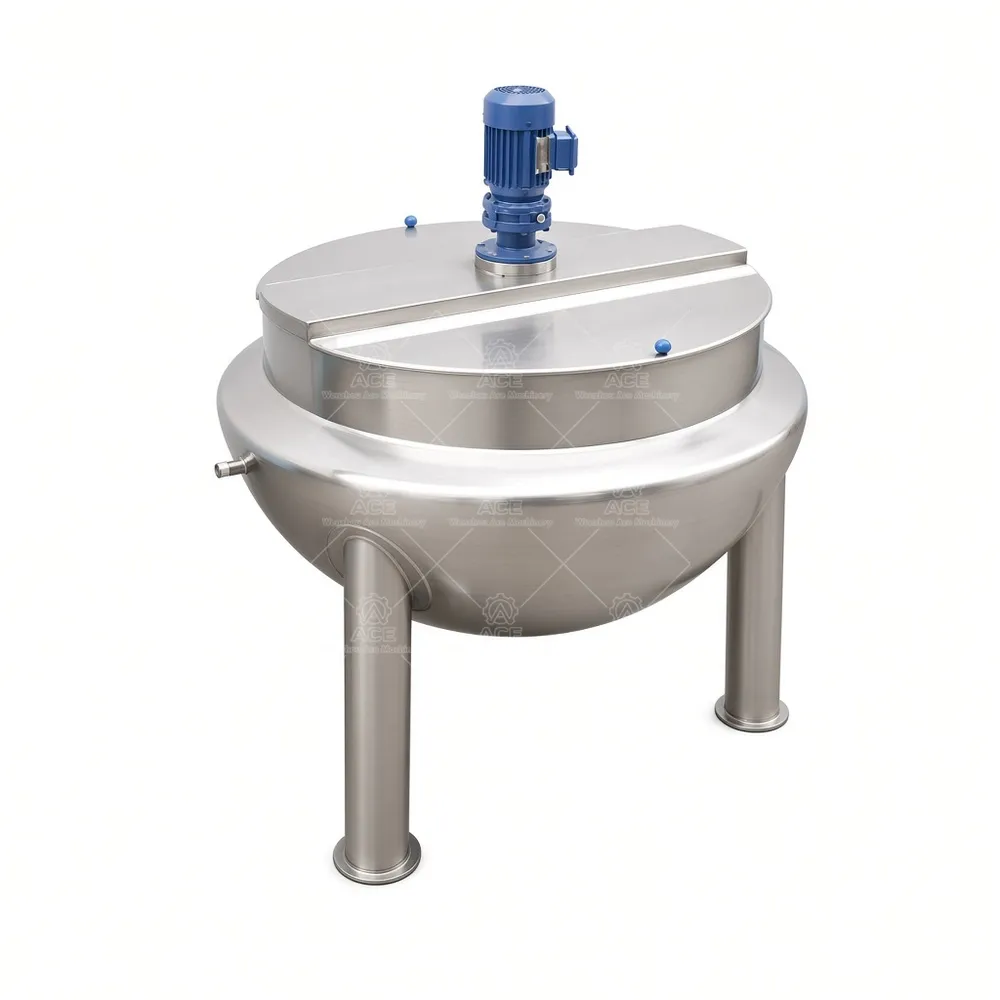

| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional; details depend on configuration |
| Temperature control | Optional, depending on configuration |
| Customization | Available according to process requirements |
Applications and Process Review
Typical food uses include sauce and gravy cooking, fruit jam and filling preparation, soups and stocks, syrup and candy batches, and dairy mixtures. Cosmetic creams, lotions, shampoos, and compatible liquid formulations, as well as pharmaceutical or chemical batches, require a separate review of materials, seals, mixing needs, and process suitability. We do not assume one configuration is suitable for every formulation.
Frequently Asked Questions
How do I choose capacity? Share the working batch size and production frequency for model review.
Are all heating methods available on every size? No. Availability depends on the selected model and requirements.
Can the kettle tilt? Tilting is model dependent; manual or hydraulic operation may be available.
Can an agitator be included? Yes, subject to product needs and model compatibility.
What details help with a quotation? Provide product, batch size, heat source, mixing, discharge, and site utility requirements.
Request a Configuration Review
As a direct manufacturer, Wenzhou Ace Machinery can discuss custom configurations around your product and production flow. Send your required capacity, product description, preferred heating method, and agitation or tilting requirements so our team can review a suitable kettle configuration.
