An electric jacketed cooking kettle with mixer for jam and other food-processing batches. Available in capacities from 50L to 1000L, with SUS304 or SUS316L stainless steel options. Heating, kettle arrangement, agitation, temperature control, and discharge features depend on the selected model and production requirements. Contact Wenzhou Ace Machinery to discuss a configuration for your process.

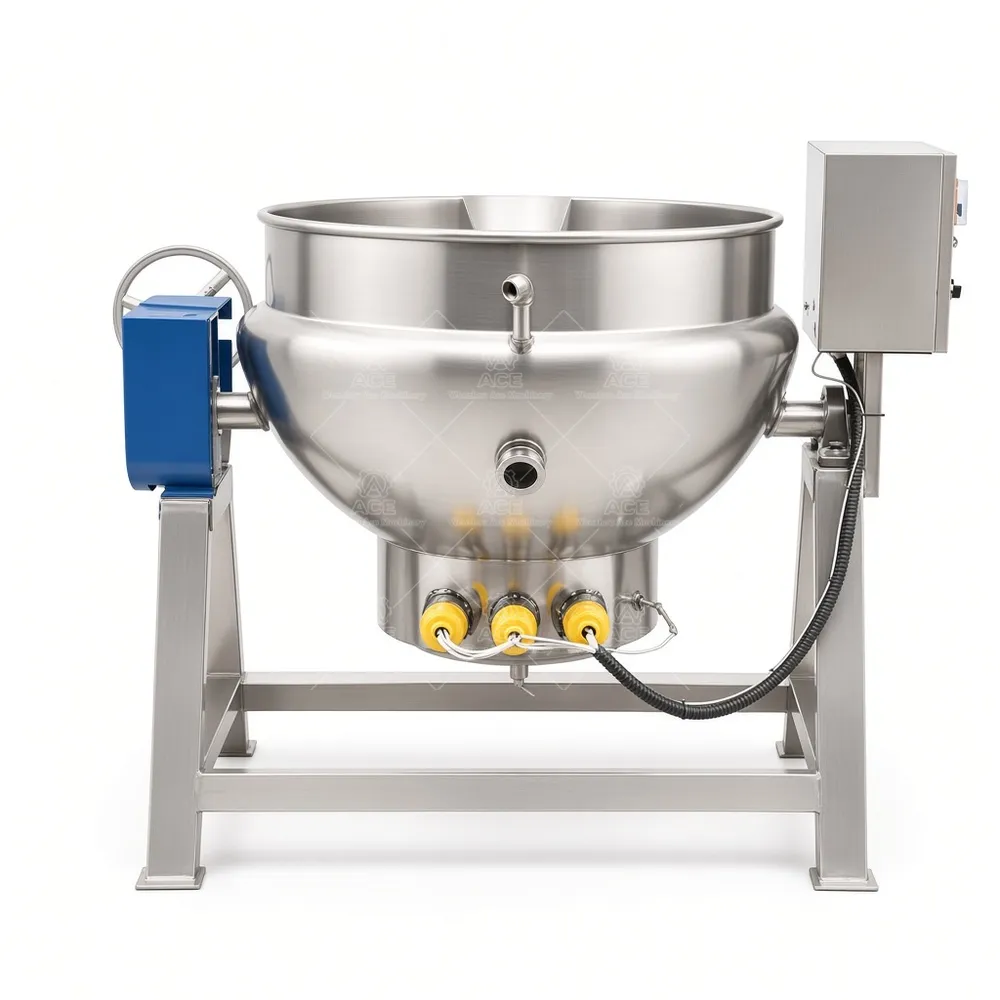

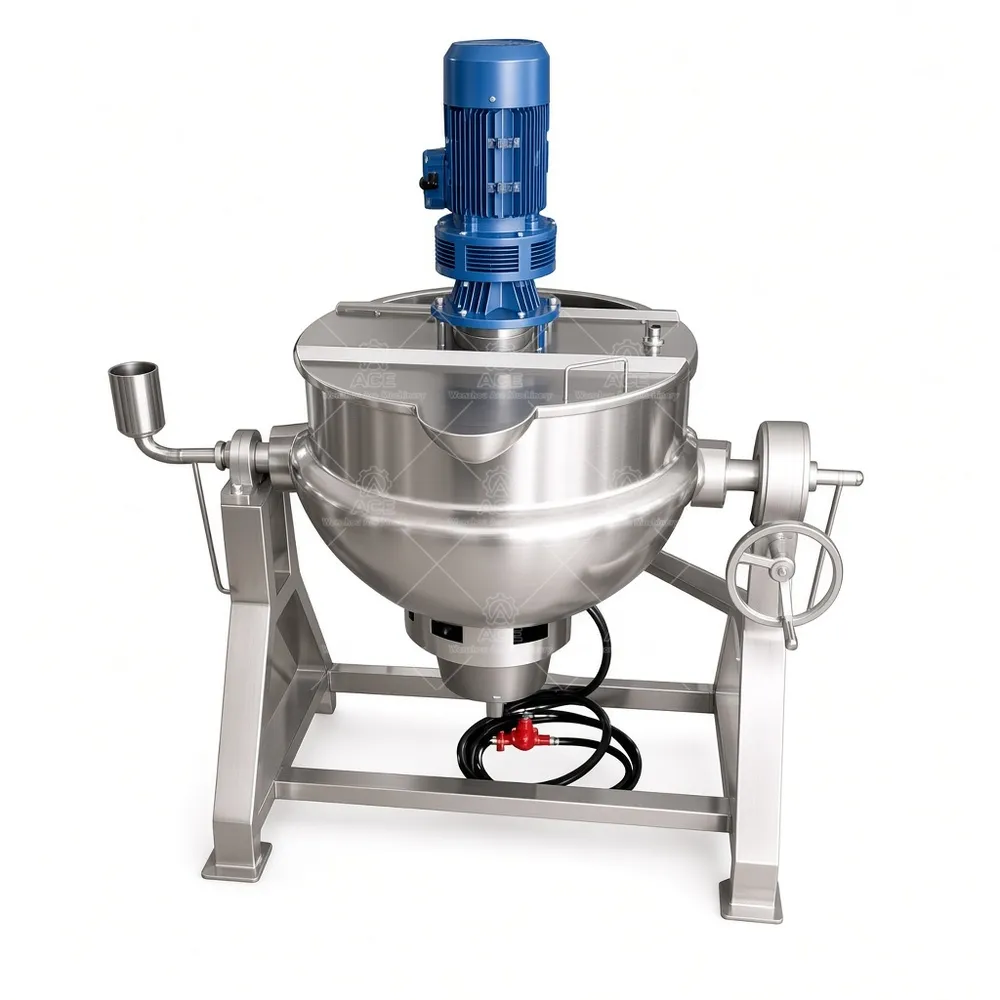

Electric Jacketed Cooking Kettle with Mixer for Jam and Food Processing
价格范围：$2,185.20 至 $2,306.48
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

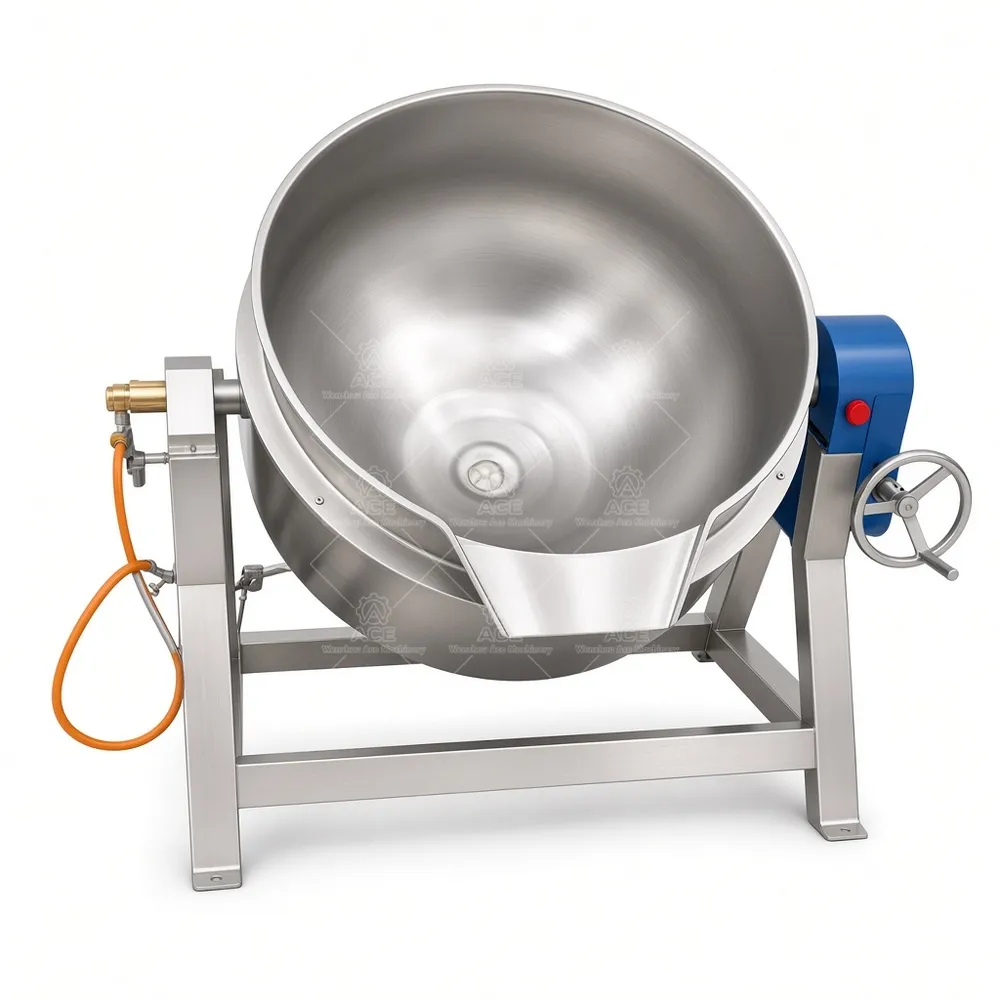

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification

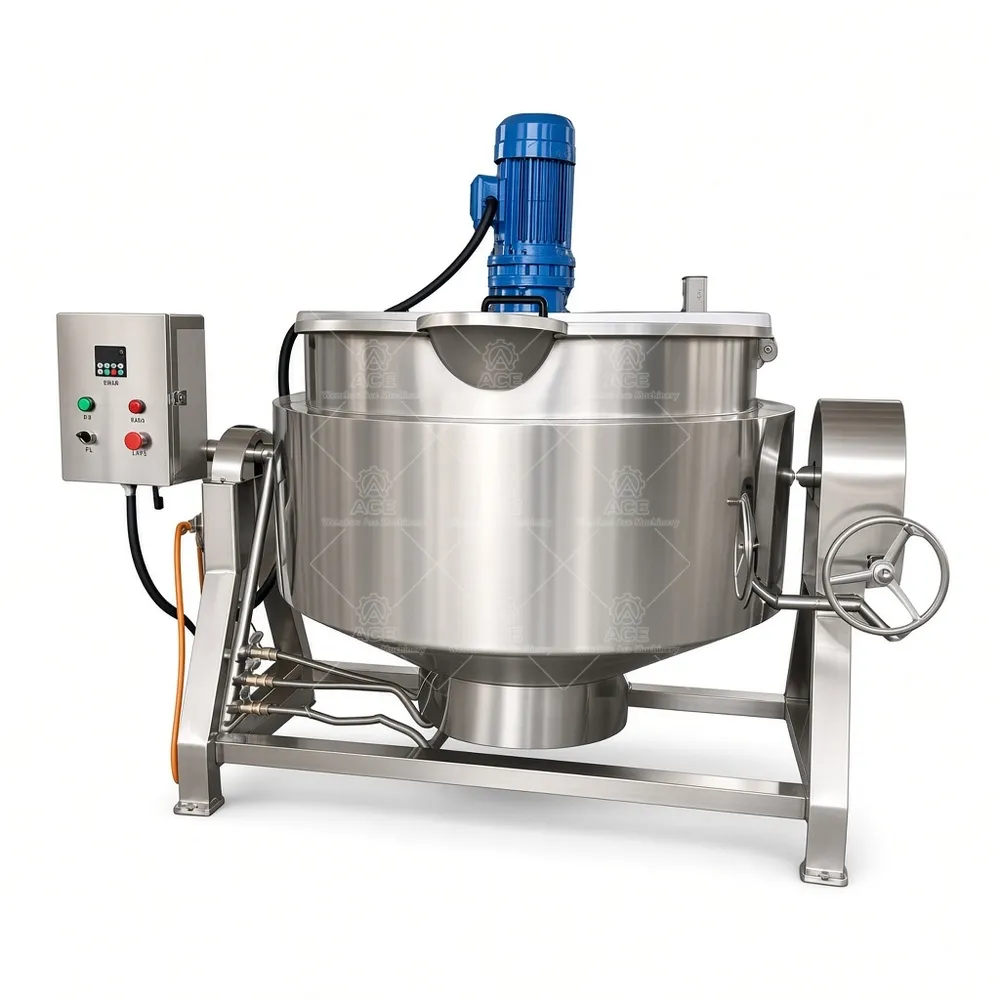

Electric Jacketed Cooking Kettle with Mixer
Jam and sauce batches can scorch when heat is applied too directly, while a kettle that is difficult to discharge can slow changeovers. Our jacketed cooking kettles from Wenzhou Ace Machinery use heat transferred through the vessel wall, helping avoid direct contact between the heat source and the product. An agitator can keep ingredients moving during cooking; its design and drive options depend on the selected model and product.
Features and production considerations
Available capacities are 50L, 100L, 200L, 300L, 500L, and 1000L. Choose SUS304 or SUS316L stainless steel to suit product and cleaning requirements. Heating options include electric, steam, gas, or thermal oil, subject to model compatibility and the facility’s utilities. Fixed and tilting kettle arrangements are available on applicable models. Tilting can support batch discharge, while a fixed kettle may suit a process with a separate transfer method.
Optional features include an agitator, temperature control, variable-speed drive, insulation, and control panel. These options can help operators manage mixing and monitor a batch, but the appropriate configuration depends on viscosity, ingredients, batch size, and process steps. Confirm cleaning access, discharge requirements, and available utilities during specification.
Typical applications
Use cases include sauces and gravies, jams and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy mixtures, and fillings. Other food or beverage formulations may be suitable after review of ingredients, process conditions, and contact materials. For cosmetics, pharmaceuticals, or chemical products, confirm material and seal compatibility and process suitability before ordering; one standard configuration is not suitable for every formulation.
Technical specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; configuration-dependent |

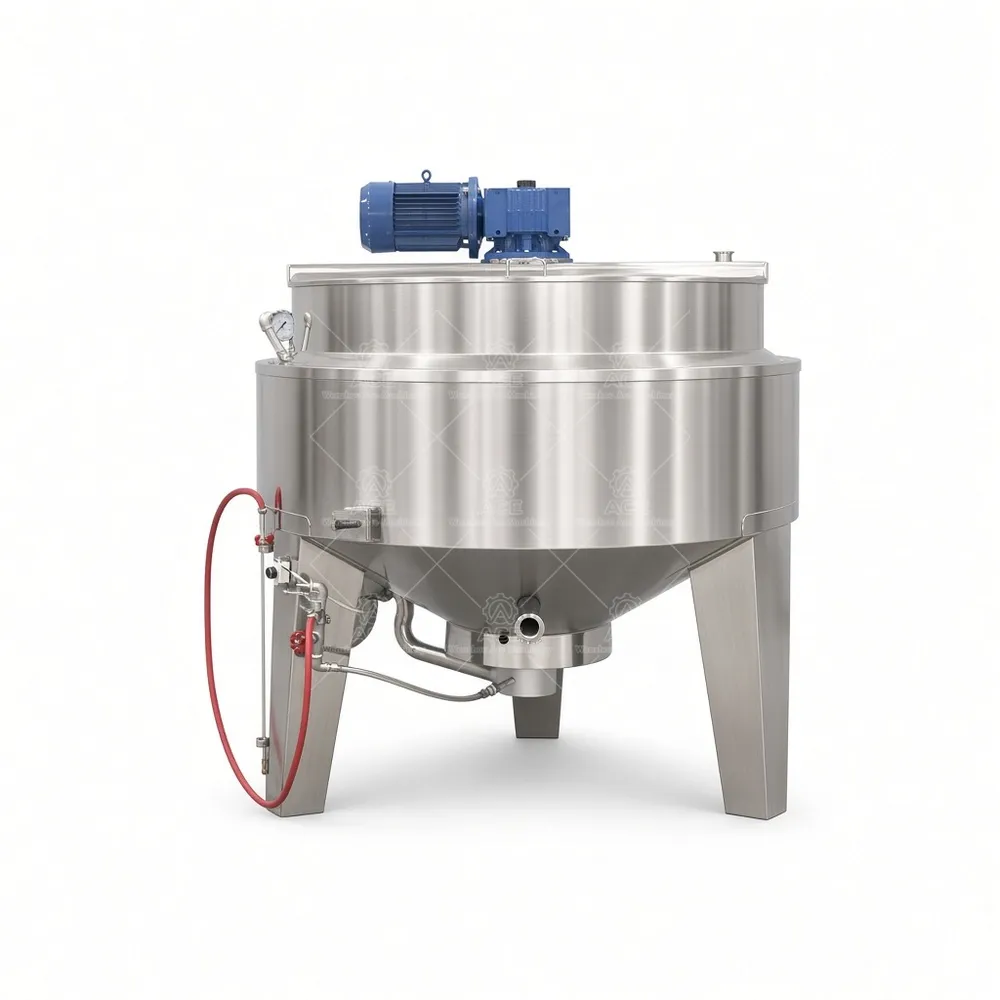

| Kettle configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic, where applicable |
| Mixing system | Optional agitator; configuration-dependent |
| Temperature control | Optional; configuration-dependent |
| Customization | Available according to product and process requirements |
FAQs
Are all capacities available with every heat source? No. Confirm availability for the selected model.
Can the kettle tilt? Tilting and manual or hydraulic operation depend on the configuration.
What details help with selection? Share batch size, product, heating utility, mixing needs, and discharge method.
Can materials be specified? SUS304 and SUS316L are available; discuss product compatibility with our team.
Can options be combined? Compatibility varies by model and should be confirmed during quotation.
Request a configuration review
As the factory-direct manufacturer, Wenzhou Ace Machinery can discuss customization around your product, batch volume, heat source, agitation, and discharge workflow. Send your required capacity, product details, preferred heating method, and mixing or tilting requirements so our team can recommend a suitable configuration.
